Summary of Contents for gofanco QuadView4K

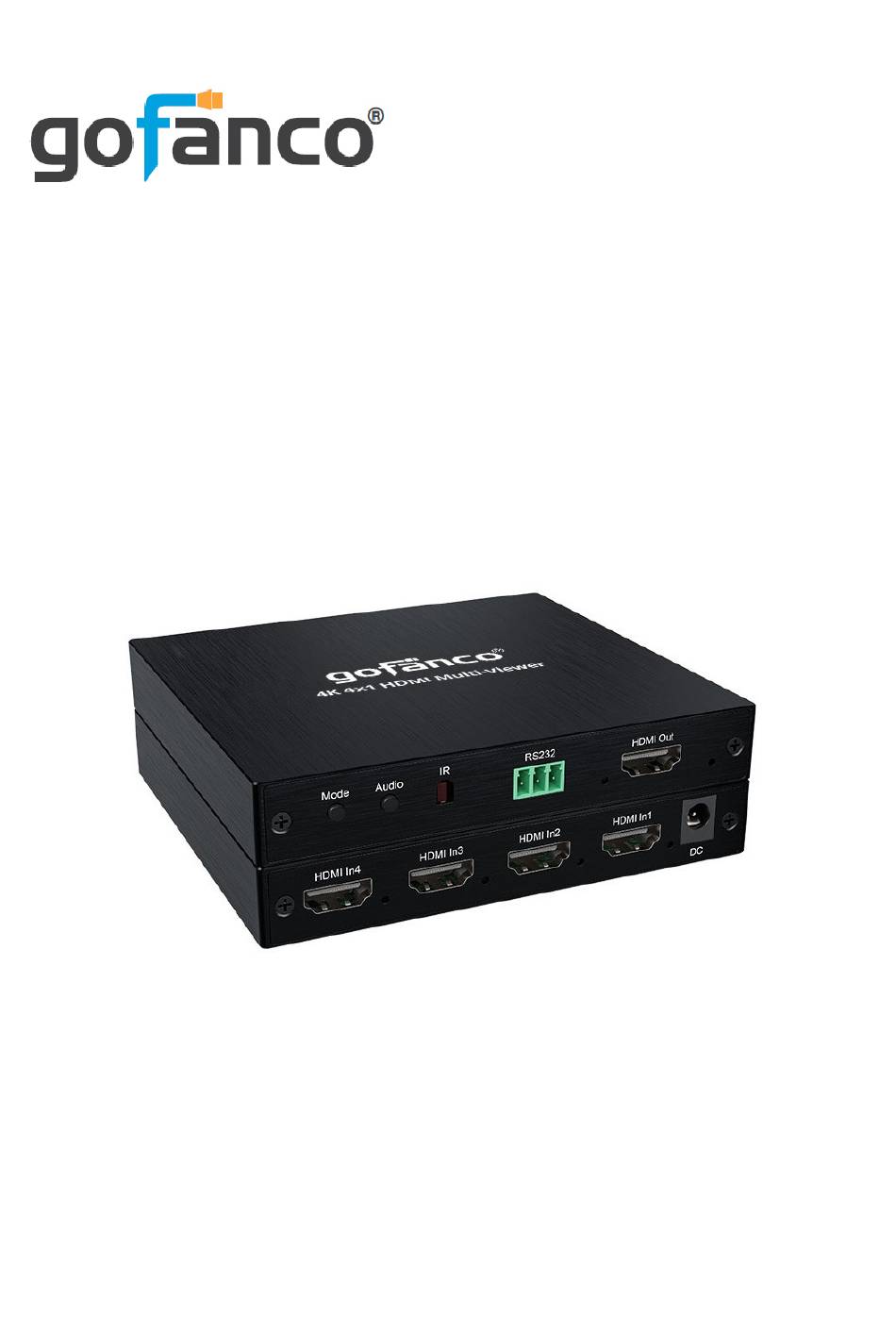

- Page 1 4K30 4x1 HDMI Multi-Viewer User's Guide P/N: QuadView4K G4-0152A...
-
Page 2: Important Safety Notices
Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com. -
Page 3: Installation Requirements
Introduction The 4K30 4x1 HDMI Multi-Viewer allows you to view four HDMI source devices on an HDMI display. Features • Simultaneously view four video sources on a display • Supports Quad, Triple, Dual, and Single/Full screen modes • Supports seamless switching •... - Page 4 Product Layout Figure 1: 4K30 Multi-Viewer Layout HDMI Inputs (1-4): Connect to your HDMI sources using HDMI cables (HDMI cables not included) Power Jack: Connect to the included power adapter Video Mode Button: Press to select the video output mode - see Video Mode on page 6 for more information Audio Button: Press to select the audio mode - see Audio Selection Button of page 9 for more...
-
Page 5: Hardware Installation
Hardware Installation Power off all devices including your HDMI source(s) and HDMI display. Connect your HDMI source device(s) to the HDMI In connectors with HDMI cables (HDMI cables not included). Connect your HDMI display to the HDMI Out connector with an HDMI cable (HDMI cable not included). - Page 6 Device Control Video Mode Button There are four main modes: Quad, Triple, Dual, Single/ Full Screen. Within each mode there are sub-modes to which you can choose screen positions. Use the video mode button, located on the front panel or included remote control, to select the video sub-mode.
- Page 7 22. Quad "H": Input 1, Input 2& 3, Input 4 23. 2x2 Standard Quadview: Input 1/ Input 2 & Input 3/Input 4 Video Sub-Modes Single Screen Left and Right Dual...
- Page 8 Up and Down Dual 3x1 Mode One Large and Three Small...
- Page 9 Four "H" Mode Standard Quadview Mode Audio Selection Button Use the Audio button, located on the front panel, to select the audio mode in order: Input 1, Input 2, Input 3, Input 4, Mute.
- Page 10 Remote Control Four Pictures: Press to select quadview mode Audio: Press to select audio mode, in order - Input 1, Input 2, Input 3, Input 4, Mute Mode: Press to select between the different video modes - see page 6 for more information Input 1-4: Press to select an input device to display in single screen mode Back Button: Press to select the previous input...
- Page 11 RS232 Control Connect the 4K 4x1 Multi-Viewer to a PC using an RS232 cable. COM Port Setting Baud Rate: 9600 Parity: None Data Bits: 8 Stop Bits: 1 RS232 Command List Use any RS232 terminal program of your choice, such as Hyperterminal or RS232 control.
-
Page 12: Specifications
Specifications Resolution 4K30Hz, 1080p, or 720p Audio Format PCM2 HDMI Cable Length Up to 10 meters Bandwidth (max) 340MHz Operating Current 0.6A Input: 100V-240VAC, 50-60 Hz Power Adapter Output: DC 5V/1A Operating Temperature 32-113 F (0-45 C) Dimensions 4.8"x 4.0"x0.8" (121x102x19 mm) Weight 0.48 lbs (220g) - Page 13 Blank Page...
- Page 14 Blank Page...
- Page 15 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the actual products. We reserve the right to make changes without prior notice to a product or system described herein to improve reliability, function, or design.
- Page 16 Thank you for choosing gofanco www.gofanco.com...
