ST Engineering Electronics Newtec iDirect MDM3315 Quick Start Manual

Modem Interfaces
Category Description
Tx Interface
Connector F-Type 75 Ohm
Frequency Range 950-2400 MHz
TX Level -55 dBm to +5 dBm (Dialog)
-45 dBm to + 5 dBm (Velocity)
BUC Power Supply 24V / 4A or 43~44VDC 3.5A
software selectable
BUC Reference 10/50 MHz
BUC Reference Level 0 dBm
Rx Interface
Connector F-Type 75 Ohm
Frequency Range 950-2150 MHz
LNB power Supply 13/18VDC 500mA
LNB band Selection 13/18V or 22kHz tone, programmable
LNB Polarization 13/18 or 22 kHz tone, programmable
Selection
Data Interface
LAN: Four 10/100/1000 Mbps Ethernet, auto
MDI/MDIX
Mechanical and Environmental Specifications
Category Description
Dimensions W 22cm x D 33cm x H 4cm (W8.66 in x D 12.99 in x
H 1.57 in)
Weight 1.7 kg (3.75 lbs)
Temperature, Operational 0° to +55°C (32° to +131°F)
Temperature, Storage -30° to +60°C (-22° to +140°F)
Humidity, Operating 5 - 95% non-condensing
Power Supply
Category Description
Input Voltage
48 VDC, 4 Amps input
Adapter
AC, 50Hz\220-260V and 60Hz\100-130V
-48VDC
Power Consumption
60W maximum
Management
Category Description
Protocols Supported
UDP, IPv4 & IPv6, ICMP, TCP, IGMPv1, IGMPv2,
ARP, DHCP, DNS, NTP, Diffserv Marking
Web GUI
Manage web GUI via configurable management IP
address.
ST Engineering (Europe) CY N.V.
Laarstraat 5
9100 Sint-Niklaas
Belgium
ST Engineering (US)
13861 Sunrise Valley Drive, Suite 300
Herndon, VA 20171-6126
USA

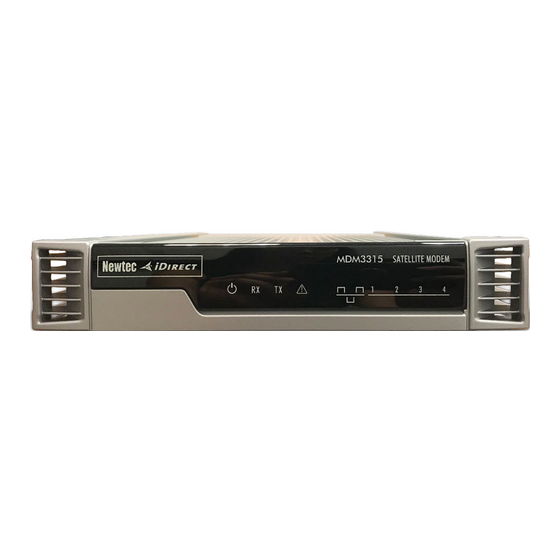

MDM3315 Satellite Modem
Quick Start Guide
© 2022 ST Engineering iDirect (Europe) CY N.V., and/or its affiliates. All
rights reserved.
Reproduction in whole or in part without permission is prohibited.
Inf ormation contained herein is subject to change without notice. The
specifications and information regarding the products in this document
are subject to change without notice. While every effort has been made
to ensure the accuracy of the statements, information, and
recommendations in this document, they are provided without warranty of
any kind, express, or implied. Users must take full responsibility for their
application of any products. Trademarks, brand names and products
mentioned in this document are the property of their respective owners.
All such ref erences are used strictly in an editorial fashion with no intent
to convey any affiliation with the name or the product's rightful owner.
Document Name: 59284_MDM3315_QSG
SAP Document Number: 59284
Agile Document Number: T0001348 (Rev A)
