Keri KBF-3KP Setup Manual

Fingerprint reader
Hide thumbs

Advertisement

Quick Links

Download this manual
BioSync Fingerprint Readers
KBF-3KP Fingerprint Reader
Setup Guide
                                                                      - 1 -
P/N: 02304-003 Rev. B

Advertisement

loading
Need help?

Need help?

Do you have a question about the KBF-3KP and is the answer not in the manual?

Questions and answers

Summary of Contents for Keri KBF-3KP

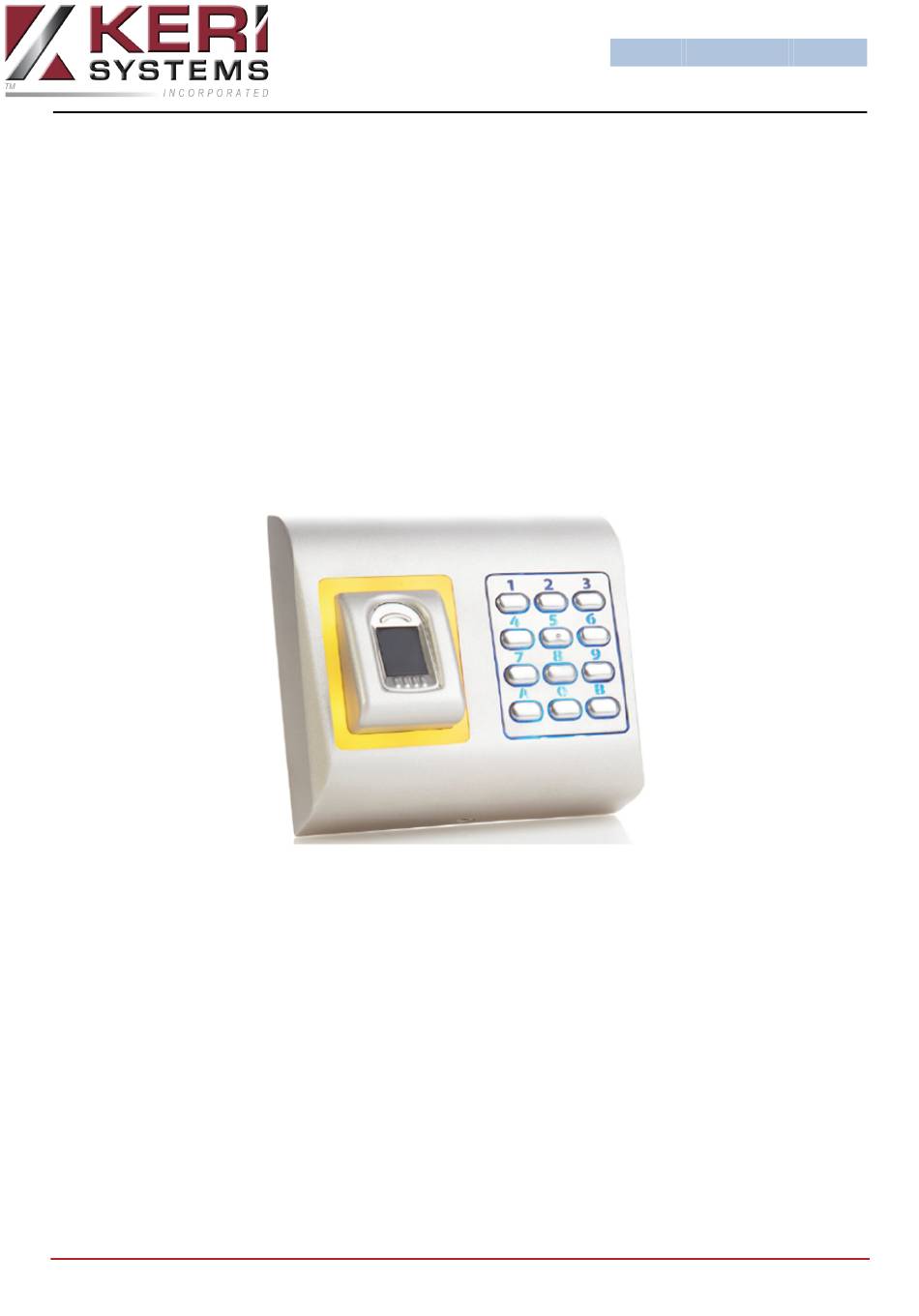

  • Page 1 BioSync Fingerprint Readers KBF-3KP Fingerprint Reader Setup Guide                                                                       - 1 - P/N: 02304-003 Rev. B...
  • Page 2 BioSync Fingerprint Readers 1.0 Introduction Setting up a KBF-3KP reader on a new installation is a three step process. Each of these steps is covered in its own document: BioManager Software Installation (p/n: 02301-001) CNV Converter Setup (p/n: 02303-001) - (used to connect to the BioSync via eth-...

  • Page 3: Mounting Instructions

    Note: On the reverse of the KBF-3KP (under the mounting bracket), you will see a white label which has a wiring diagram and the device ID/serial number - you should make a note of this number.
  • Page 4 BioSync Fingerprint Readers                                                                       - 4 - P/N: 02304-003 Rev. B...

  • Page 5: Wiring Instructions

    BioSync Fingerprint Readers 3.0 Wiring Instructions Wiring to an NXT RM3 (Reader Interface Module) Reader Interface Module Notes: On the Reader Interface Module the J3 jumper should be set to pins 1 and 2. This will provide 12VDC to the BioSync reader and when correctly set the D10 LED should be solid red.
  • Page 6 BioSync Fingerprint Readers Wiring to the PXL-500W Controller PXL Notes: On the PXL-500W controller, the JP5 jumper should be set to pins 1 and 2 - this will provide 12VDC to the BioSync and on the PXL-500W LED10 will be solid red. Wiring to an EP Controller (i.e EP-1502) EP Controller Notes BioSync readers have two LED lines but the EP controllers only have one LED pin-out.
  • Page 7 Typically the BioSync readers will be powered from the controller so ensure the con- troller's power supply outputs enough current for the controller and all connected devices. The current draw for the BioSync KBF-3KP is approx. 130mA max.                                                                       - 7 - P/N: 02304-003 Rev. B...
  • Page 8 BioSync Fingerprint Readers When using a separate power supply for the BioSync, connect the Ground for both devices to ensure correct transfer of the Wiegand signal. When you have connected the reader to the controller and applied power, the BioSync LED bar should flash amber and the reader will beep twice. When the BioSync reader is first powered up there will not be a backlight (by default the backlight is disabled) but can be easily enabled once it is online to the BioMan- ager software.
  • Page 9 BioSync Fingerprint Readers 6. A 15-second timer will begin to count down. 7. The detected BioSync reader(s) will show in the search window. 8. Highlight the detected reader then click to Add Reader. Manual Add The manual add option is useful if the hardware has not yet been installed but you want to begin setting up the system in advance.
  • Page 10 4. Enter a description for the KBF-3KP. 5. Select the exact model (KBF-3KP) from the Type drop-down list. 6. Select the Wiegand output type. Typically for the KBF-3KP this should be left at the default setting of Wiegand26. 7. The Wiegand Output type should be SingleWiegand.
  • Page 11 BioSync Fingerprint Readers 10. For now, all other settings can be left at their default values. 11. Click the SAVE & EXIT button. 12. In the live events grid you should see an online message for the reader. 13. You are now ready to start adding user PINs and fingerprints.                                                                       - 11 - P/N: 02304-003 Rev.
  • Page 12 BioSync Fingerprint Readers 5.0 Enrolling Users via the 3KP Reader 1. Double-click the Users link to open the User window. 2. Click the New User button. 3. Enter a User ID (Cardnumber) - This is the number that will be transmitted by the BioSync to the Doors.NET software - It therefore will be unique to each users.
  • Page 13 BioSync Fingerprint Readers 4. Next, enter an Access Code (this in the number that is entered into the keypad). 5. Click the SAVE NEW button.                                                                       - 13 - P/N: 02304-003 Rev. B...

  • Page 14: Enrolling Fingerprints

    BioSync Fingerprint Readers 6.0 Enrolling Fingerprints Now that the unique user number has been enrolled, you are ready to enroll user fin- gerprints. The fingerprint is associated with the enrolled User ID number. 1. In the Biometric section, select the reader (left-click) which will be used for enroll- ment.
  • Page 15 BioSync Fingerprint Readers Example: If the user has “Unlimited” Access level then the fingerprints will be sent to all readers, if the user has Access level only for Reader 1 and Reader 3 then the fin- gerprints will be sent only to those two readers. Note: If more fingerprints are added for one user, all fingerprints will send the same Wiegand Code (the User ID) to the controller.

  • Page 16: Deleting Fingerprints

    BioSync Fingerprint Readers 8.0 Deleting Fingerprints In general, the fingerprints are stored in the biometric reader and in the software. Delet- ing can be done only in the readers or from both places. Deleting one user from the biometric reader Select the user Click on “Delete User”.
  • Page 17 BioSync Fingerprint Readers 9.0 Changing the BioSync Reader Mode The following steps explain how to change the user authentication operating mode in BioManager. 1. In the BioManager software (in the upper-left pane), right-click on the BioSync reader and select Properties. 2.
  • Page 18 To enable or disable either the keypad backlight or the sensor backlight you must first ensure you are at least using Biosync firmware version 1.25. 1. Right-click the KBF-3KP from the reader list on the left, select Properties. 2. There are two backlight options (Disable Backlight and Keypad Backlight) 3.
  • Page 19 BioSync Fingerprint Readers 11.0 Enrolling the Users into Doors.NET The same users now need to be added to Doors.NET because so far we have only added the users to the BioManager software and the BioSync reader (not to the controller). In this example the BioSync reader is wired into an NXT-MSC controller but the same setup procedure applies to all controller types.
  • Page 20 BioSync Fingerprint Readers 3. The reader properties will appear on the right. 4. Locate Manufacturer Model and select Keri BioSync KBF-3KP from the drop-down list. 5. Save the reader settings 6. Close the hardware page.                                                                       - 20 - P/N: 02304-003 Rev. B...
  • Page 21 BioSync Fingerprint Readers 13.0 Manually Enroll the Cardholder 1. Go to Home >> Cardholders. 2. Click the Add icon. 3. Enter a first name and last name for the new cardholder (middle name is optional). 4. Ensure Calculate Internal Number is selected and the format is correct. 5.
  • Page 22 BioSync Fingerprint Readers 8. A unique card number will appear in the Credentials list. This number should exactly match the unique number (User ID) in BioManager. 9. Go to the Access Rights tab and assign an access group to the new cardholder (i.e Total Access).
  • Page 23 BioSync Fingerprint Readers 10. Save the new record 11. If you now gain access at the BioSync reader the reader's LED should go green and you should see an access granted event in the Live Events grid. 12. As previously mentioned, the fingerprint is associated with the User ID/Credential number so even if the BioSync is set to Finger/Finger or Card modes, and you only present the enrolled finger, the same name and card number will appear in Live Events.
  • Page 24 BioSync Fingerprint Readers Contact Keri Systems Keri USA Keri UK, Ireland, Europe 302 Enzo Drive. Suite 190, San Jose, Unit 17, Park Farm Industrial Estate, Ermine Street, CA, 95138 USA Buntingford, Herts, SG9 9AZ UK Telephone: (800) 260-5265 (408) 435-8400...
