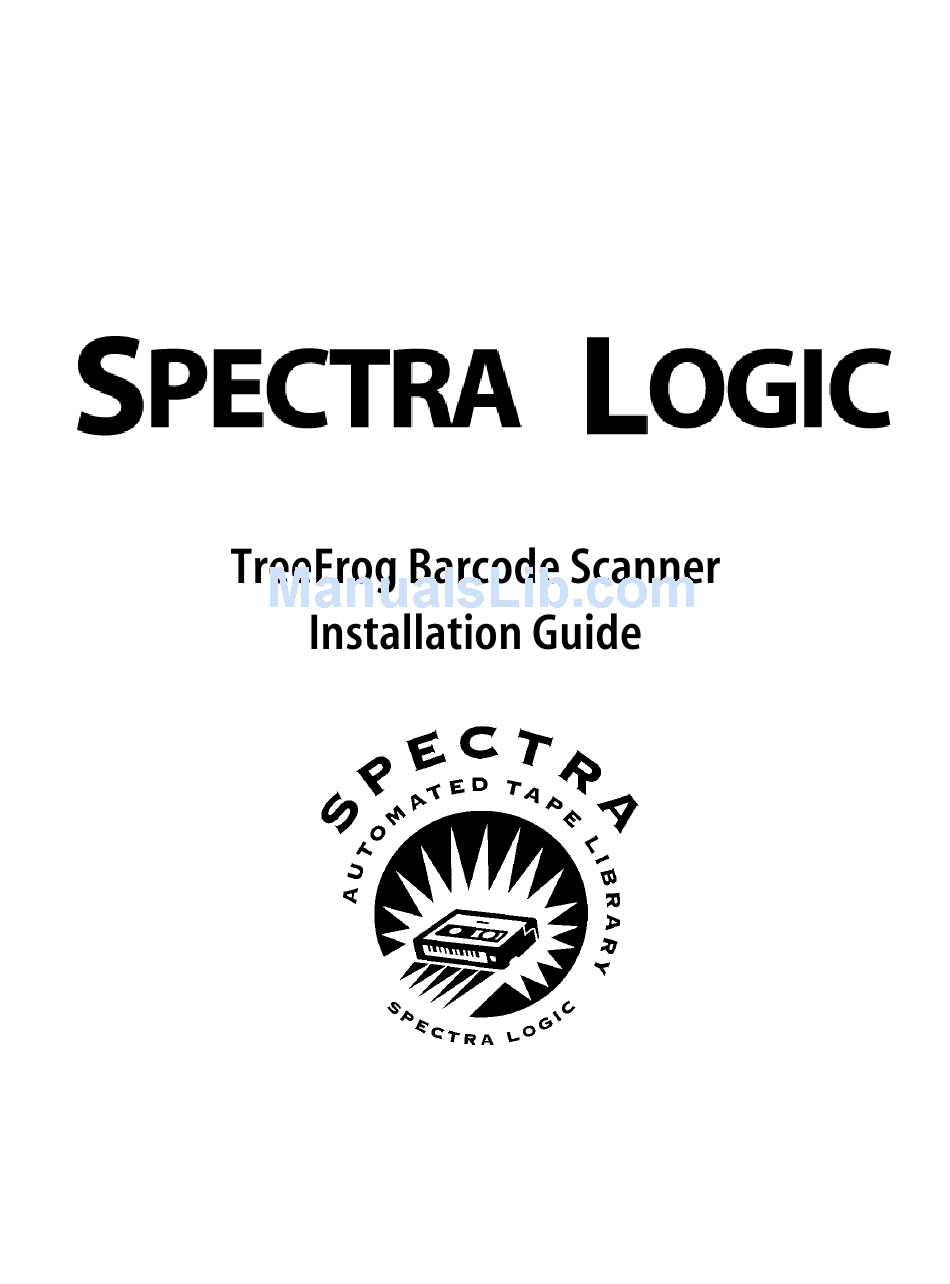

- Page 1 The Spectra 5000 Tape Library Upgrade Guid TreeFrog Barcode Scanner Installation Guide Part Number 90870767 Revision C...
- Page 2 Some products or services mentioned in this manual are provided by companies other than Spectra Logic. Inquiries about one or more of these products or services should be sent directly to the company in question.
- Page 3 Removing a barcode scanner ..4 Installing a barcode scanner ..6 Testing the barcode scanner ..8 TreeFrog Barcode Scanner Installation Guide...
- Page 5 • be familiar with the library configuration and how to operate and configure the TreeFrog You can find more information on operating the TreeFrog in the AIT TreeFrog User’s Guide or the Travan TreeFrog User’s Guide included with your library.
- Page 6 Shut down the TreeFrog and position the robotic picker arm. To do so: Quit all programs and shut down your computer. Turn off power to your computer. Turn off power to your library. Switch OFF power to any other connected equipment.
- Page 7 Open the library door. If the robotic picker is not already positioned at the bottom of the library, grasp it and manually push it towards the bottom of the library, until it rests just below the lowest drive. TreeFrog Barcode Scanner Installation Guide...
- Page 8 Follow these instructions to remove an existing barcode scanner, or to begin installing a new barcode scanner. The cover of the robotic picker arm is secured with two tabs accessible through two slots in the top of the picker cover. Using a small flat-bladed screwdriver, insert the screwdriver into a tab slot and push outwards (towards the side of the picker arm) while gently pulling up on the cover.
- Page 9 If you have not already done so, lift the barcode scanner out of the library and set it aside. Continue on to Installing a barcode scanner on page 8. barcode scanner TreeFrog Barcode Scanner Installation Guide on page 6, then see Testing the...
- Page 10 Follow this procedure to install a barcode scanner. Remove the new barcode scanner from its packaging. Note: Do not remove the barcode scanner from its packaging until you are ready to install it. Note: Before you touch the library, touch a metal or grounded surface to discharge any static electricity from your body.
- Page 11 Ensure that the back and sides of the scanner are all firmly snapped into place on the picker. You have now completed the scanner assembly procedure. Reconnect the power and SCSI connections to your TreeFrog, then see page 8. TreeFrog Barcode Scanner Installation Guide...
- Page 12 When you have completed installing your new or replacement barcode scanner, test it with your TreeFrog. To do so: Ensure that you have barcoded tapes in the cartridge magazine in your TreeFrog. If you do not, manually insert some barcoded tapes into the magazine.
