Solar Stik PRO-VERTER 5000-220 AGS BFF1 Programming Manual

Atsc l1 system with 13 kw generator
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual

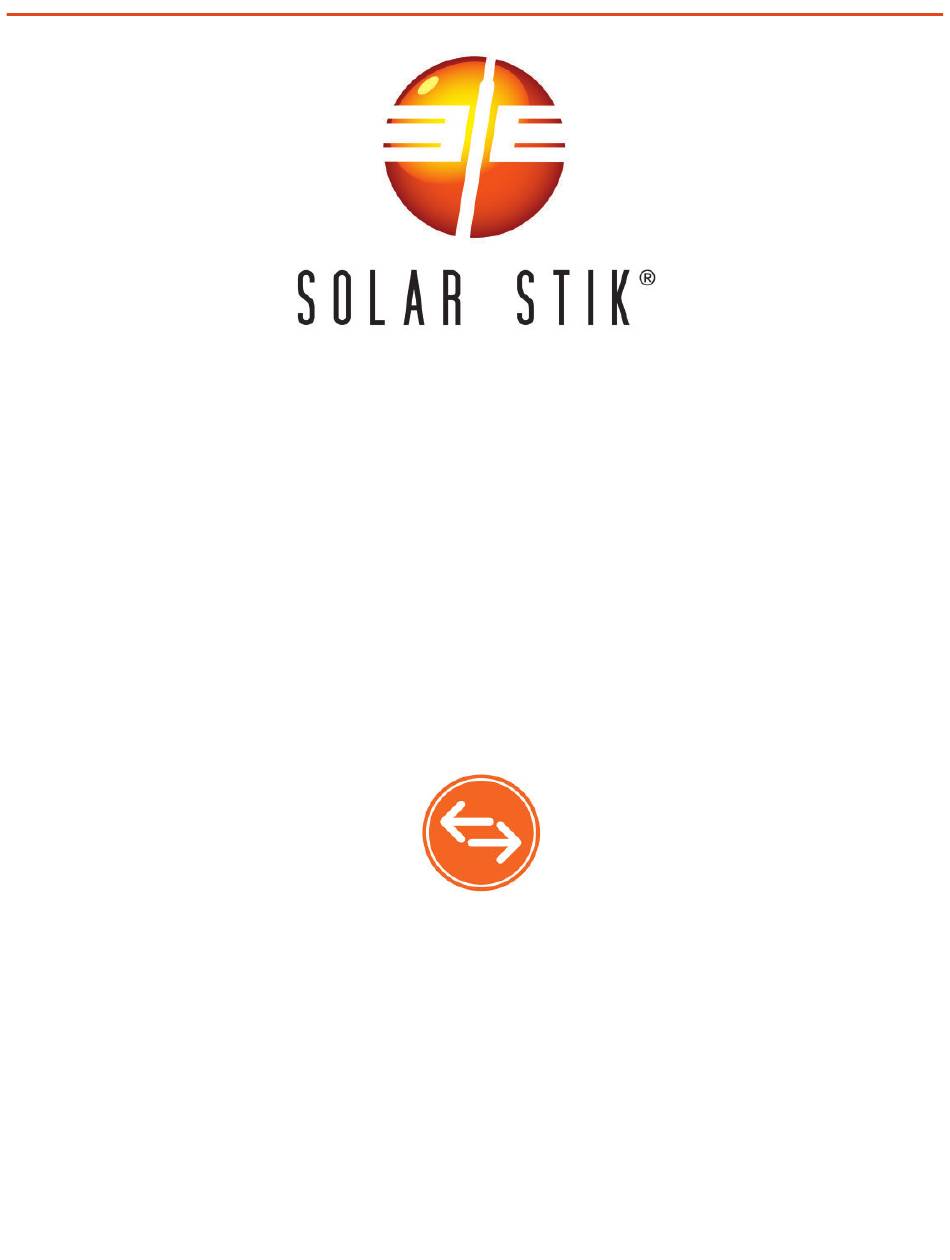

PROGRAMMING GUIDE
FOR THE
PRO-VERTER
5000-220 AGS BFF1
ATSC L1 SYSTEM WITH 13 KW GENERATOR
Note: The L1 Systems have two PRO-Verter 5000-220-BFF1s.
Program BOTH #1 and #2 with the same values.
Updated: 20221123

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRO-VERTER 5000-220 AGS BFF1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Solar Stik PRO-VERTER 5000-220 AGS BFF1

  • Page 1 PROGRAMMING GUIDE FOR THE PRO-VERTER 5000-220 AGS BFF1 ATSC L1 SYSTEM WITH 13 KW GENERATOR Note: The L1 Systems have two PRO-Verter 5000-220-BFF1s. Program BOTH #1 and #2 with the same values. Updated: 20221123...
  • Page 2 230 VAC/ 50.0 Hz 0 Amps AC 0 Amps AC 0 Amps AC Status 03 Timers 03A Charge Time 03B Since Absorb 03C Since EQ Status 27.8 VDC 0.0 Hours Status Continued on next page 04 AGS Meters November 2022 Solar Stik® Inc.
  • Page 3 Factory Fault and hold knob Power-up Fault 05H Minimum VDC Power-Up Fault for 3 seconds to ### VDC Unknown Fault ## Unknown Fault ## reset values. 05I Maximum VDC XXX VDC 05J Days Since 100% SOC November 2022 Solar Stik® Inc.
  • Page 4 02E AC-In SOC 20-100% Set Connect Set Disconnect SOC = 20% SOC = 100% 02F Power Up Always ON Set Power Up Set Power Up Continued on next page Always = OFF Always = ON November 2022 Solar Stik® Inc.
  • Page 5 Set Max Charge Time =12.0 Hrs 03G Final Charge Range: Float, Silent, Multi CC/CV Controlled 03H EQ Reminder CC/CV Controlled Set EQ Reminder Continued on next page Days = 1-255 days 03I should be OFF November 2022 Solar Stik® Inc.
  • Page 6 04B Gen Run Time Default=OFF-- should be set to OFF 04C Gen Run Amps Default=OFF -- should be set to OFF 04D Gen Run SOC Default=OFF -- should be set to OFF Continued on next page November 2022 Solar Stik® Inc.
  • Page 7 Time =0-127 Sec/Min Default 60 Seconds 04J Gen Cool Down OFF=0 Seconds Time = 4 min Range: 0-127 seconds; 0-127minutes Gen Cool Down Gen Cool Down Continued on next page Time = 4 min Time =0-127 Sec/Min November 2022 Solar Stik® Inc.
  • Page 8 Note: The state of charge 05B AmpHour Size 05B AmpHour Size 450 AH reported by the 24VDC PRO-Verter Range: 200-2500 5000-220 will be accurate only if the total battery bank size is at least 200 November 2022 Solar Stik® Inc.
