GB
OPERATING MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE
D
GEBRAUCHSANWEISUNG . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 14
F
MANUAL D'UTILISATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 26
NL
GEBRUIKSAANWIJZING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 38
E
INSTRUCCIONES DE USO . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 50
I
ISTRUZIONI D'USO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 62
DK
BRUGERVEJLEDNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 74
N
BRUKERINSTRUKSEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 86
S
INSTRUKTIONERNA INNAN ANVANDNING . . . . . . . . . . . . . . PAGE 98
FIN
KäyTTöOHJEET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE 110
LC – 35
2

Advertisement

Table of Contents
loading

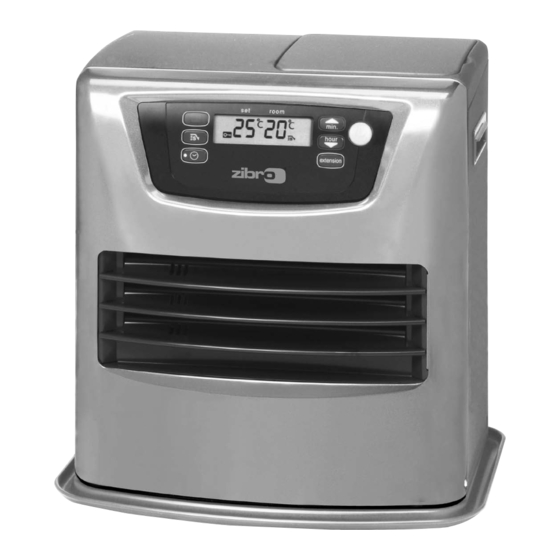

Summary of Contents for Toyotomi zibro LC-35

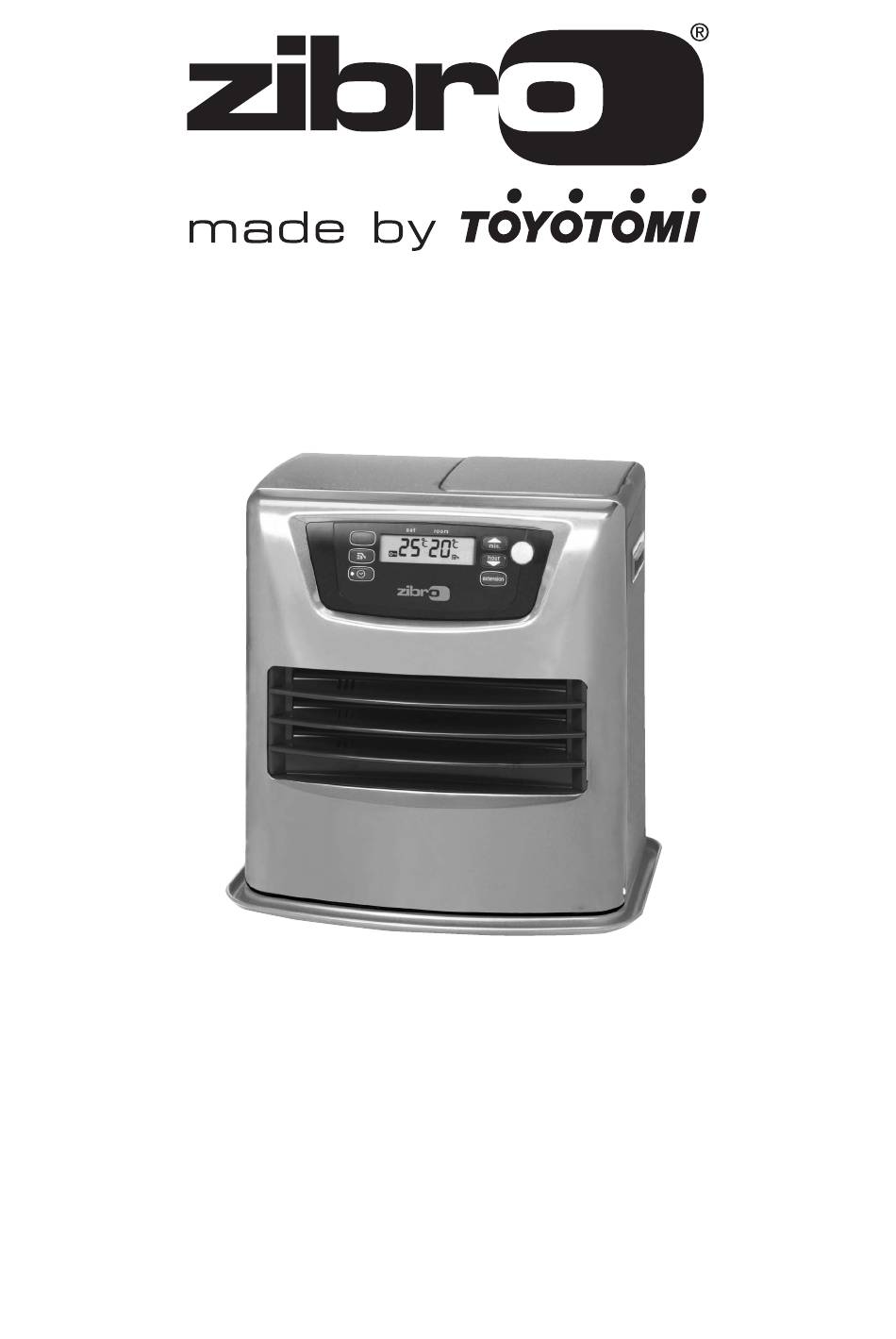

  • Page 1 LC – 35 OPERATING MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PAGE GEBRAUCHSANWEISUNG .
  • Page 2 We hope that you’ll enjoy your Toyotomi appliance for years to come! We invite you to read this instruction manual first, to ensure the maximum lifetime for this appliance. Get to know us better… visit us at www.toyotomi.eu for our full line of products. 1 Read the diRections foR Use fiRst.
  • Page 3: General Directions For Use

    GENERAL DIRECTIONS FOR USE Below you will find the main steps to be taken for using your heater. For more details, please refer to the MANUAL. Remove all packaging materials (refer to Section A, Fig. A). Fill the removable tank  (refer to Section B, Fig. C). Insert the plug into the wall-socket.
  • Page 4: What You Need To Know In Advance

    WHAT YOU NEED TO KNOW IN ADVANCE ventilate sufficiently Read this user manual carefully before using the appliance and keep it for future reference. Install this device only when it complies with local/national legislation, ordinances and standards. This product is intended to be used as a heater in residential houses and is only suitable for use in dry locations, in normal household conditions, indoors in living room, kitchen and garage.
  • Page 5 MANUAL installinG tHe HeateR Carefully remove your heater from the box and check the contents. In addition to the heater you also need to have:  a manual fuel pump  a transportation cap  these directions for use Keep the box and the packaging materials (Fig. A) for storage and/or transportation.
  • Page 6 6 Check whether the fuel cap is straight and tightened properly. Reinstall the removable tank in the heater (cap down). Close the lid. settinG tHe clOcK It is only possible to set the correct time, when the heater is connected to the mains and not burning.
  • Page 7: Using The Timer

    usinG tHe tiMeR The timer allows you to switch on the heater automatically at a preset time. In order to switch on the timer, the correct time must have been set (refer to Section C) and the heater should be off. Follow the procedure below: Press the button ...
  • Page 8: Automatic Deactivation

    e - 5 Tipping-over protection. Re-ignite the heater. e - 6 Poor burning. Contact your dealer. e - 7 Room temperature If necessary, above 32°C. re-ignite the heater. e - 8 Defective booster. Contact your dealer. e - 9 Air filter dirty; or Clean filter.
  • Page 9 Without the ‘SAVE’ setting your heater will maintain the set temperature by approximation as well, by adjusting its heating capacity. ‘SAVE’ is an economy setting, which you can use when, for instance, you are not present in the room or to keep it frost-free. tHe ‘fuel’...
  • Page 10 stORaGe (enD Of tHe HeatinG seasOn) At the end of the heating season, you must store the heater in a dust-free place, if possible in its original packaging. Unused fuel cannot be used in the next heating season. We therefore recommend that you burn up all fuel. If there is still some fuel left, do not throw it away, but dispose of it in accordance with the local regulations for the disposal of domestic chemical waste.
  • Page 11 sPecificatiOns Ignition electrical Dimensions (mm) width Fuel paraffin including base plate: depth Capacity (kW) max. 3.50 height Capacity (kW) min. 1.05 Accessories: - manual fuel pump Suitable space (m 54-140 - transportation cap Fuel consumption (l/hr) 0.365 Mains 230 V -- AC / 50 Hz Fuel consumption (g/hr) Electrical consumption:...
  • Page 12: Tips For Safe Use

    14 tiPs fOR safe use Children should be supervised to ensure that they do not play with the appliance. Do not move the heater when it is burning or still hot. Do not refill nor service the heater when it is burning or still hot. Position the front of the heater at a distance of minimum 1.5 metres from walls, curtains, and furniture.
  • Page 13: Main Components

    MAIN COMPONENTS Front plate  Grid  Base plate Lid for removable tank  Operation panel  Handle   Removable tank  Air filter   Vent filter    Thermostat   Plug + cord   Information display ...
  • Page 14 In caso aveste bisogno di ulteriori informazioni o riscontraste particolari problemi che non sono presi in considerazione nel presente manuale, vi invitiamo a visitare il nostro sito www .toyotomi .eu o contattare la nostra assistenza (il cui numero di telefono é indicato nel nostro sito www .toyotomi .eu) Hvis du ønsker yderligere information eller, hvis der opstår problemer, som ikke behandles i...
