Pragma BELLA VISTA 1808515 Owner's Manual

168 x120 cm pergola
Hide thumbs

Advertisement

Quick Links

Download this manual
The Netherlands
www.pragmabrands.com
+31 318 578800
support@pragma-trading.com
• Owner's Manual
• Frequently Asked Questions
• Assembly Instructions
• Warranty Information
www.pragmabrands.com (you will also find any updates on assembly instructions
Features the
Save this assembly manual for future reference in the event that
INS-1808515-A-BELLA VISTA 14x10 PERGOLA-ENG-11-29-2017
• Para obtener instrucciones en español, visite pragmabrands.com
• Per le istruzioni in italiano, visitare pragmabrands.com
• For instructions in English, please visit pragmabrands.com
• Ga naar pragmabrands.com voor instructies in het Nederlands
• Pour des instructions en français, visitez pragmabrands.com
Register your new (Outdoor Product) on-line @
and information to order replacement parts)
you need to order replacement parts.

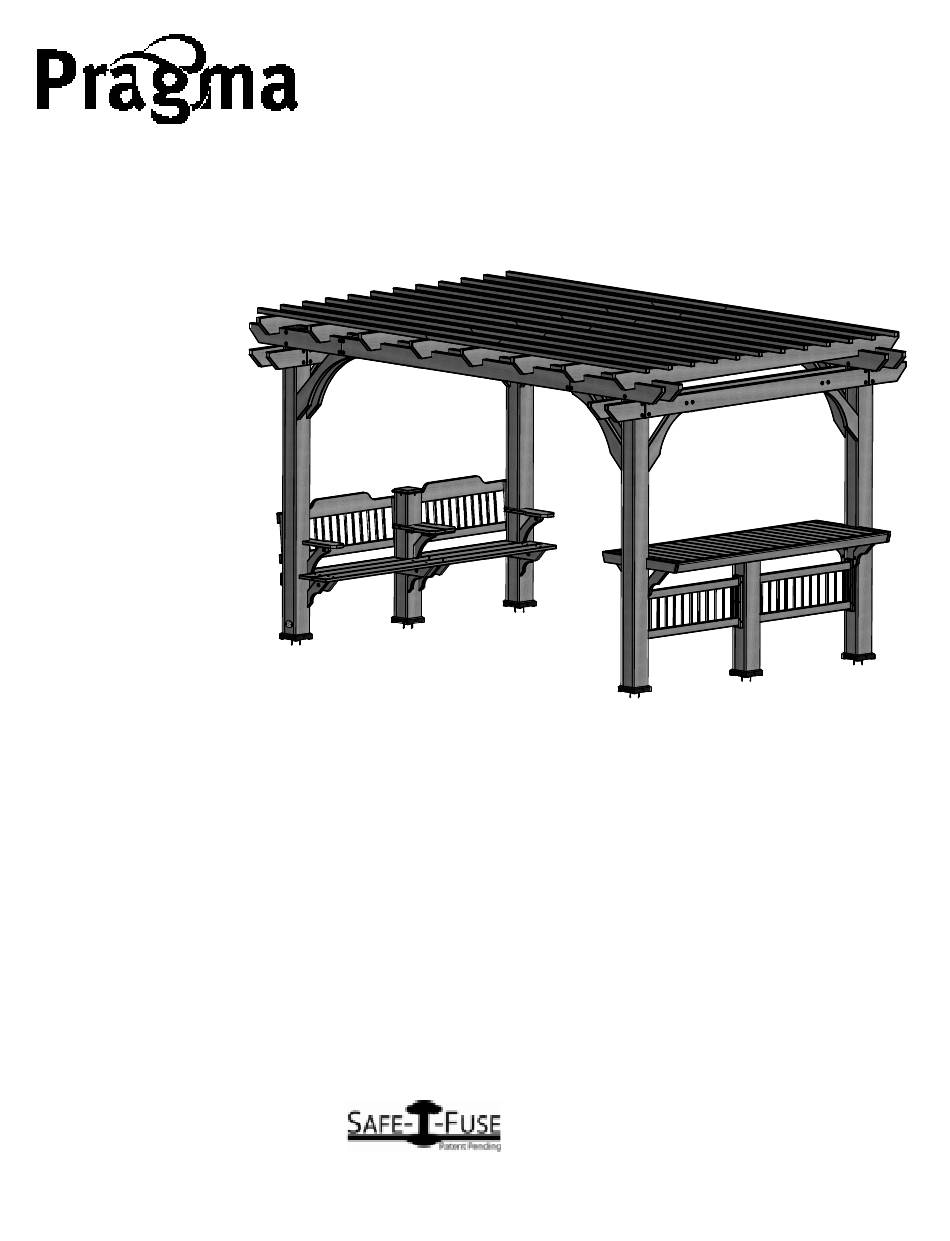

BELLA VISTA
168 x120 cm
PERGOLA
MODEL: #1808515
fastening system.
Made in China

Advertisement

loading
Need help?

Need help?

Do you have a question about the BELLA VISTA 1808515 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pragma BELLA VISTA 1808515

Summary of Contents for Pragma BELLA VISTA 1808515

  • Page 1 BELLA VISTA 168 x120 cm The Netherlands PERGOLA www.pragmabrands.com +31 318 578800 support@pragma-trading.com MODEL: #1808515 • Owner's Manual • Frequently Asked Questions • Assembly Instructions • Warranty Information • Para obtener instrucciones en español, visite pragmabrands.com • Per le istruzioni in italiano, visitare pragmabrands.com •...
  • Page 2 STOP Missing A Part? CALL US BEFORE GOING BACK TO THE STORE! The store where you made your purchase does not stock parts for this item. If you have assembly questions or if you need parts, whether they are missing or damaged Call Toll-Free Help Line or visit www.pragmabrands.com +31 318 578800 PLEASE READ THIS BEFORE STARTING ASSEMBLY...
  • Page 3 Owner’s Manual Outdoor Product Dear Customer: Please read entire booklet completely before beginning the assembly process. Structures are not intended for public use. The Company does not warranty any of its residential structures subjected to commercial use such as: Recreational Park, or any similar Commercial Application.
  • Page 4 Owner’s Manual Outdoor Product Maintenance Instructions: 1. Check all nuts and bolts twice monthly during the usage season and tighten as required. (But not so tight that you crack the wood) It is particularly important that this procedure be followed at the beginning of each season. 2.
  • Page 5 4. Do Pragma products come with a warranty? Yes. All Pragma products carry a 2-year replacement warranty on all parts for manufacturer’s defect. Our wood carries a 2 year warranty on rot and decay as well.
  • Page 6 Tools Required for Installation: (These are the tools that are generally required for assembly of our outdoor products. These tools are not included with the outdoor product purchase.) (Square) (Level ) (Rubber Mallet - Optional) (Phillips Screw Driver) (Tape Measure) (Drill Attachments: Phillips Head &...

  • Page 7: General Information

    Basic Setup Dimensions Place the set on level ground, not less than 6 ft [2 m] from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines, or electrical wires. 182.88 cm GENERAL INFORMATION: 304.8 cm 182.88 cm YOUR PERGOLA HAS BEEN DESIGNED AND ENGINEERED FOR RESIDENTIAL...

  • Page 8: Parts Identification

    Important Note: In the event the INK STAMP identifier is not easy to read or is missing from a wood component, match the unique geometric shape and dimensions of the wood component found in a specific assembly step to the PARTS IDENTIFICATION section when required.
  • Page 9 Parts Identification Wood Components (NOT TO SCALE) G2 - SEAT - W4L07553 1"x5 1/4"x39 1/2" (24x134x1002) G3 - ARMREST - W4L07551 1"x5 1/4"x18" (24x134x458) G4 - ARMREST - W4L07552 1"x5 1/4"x18" (24x134x458) H2 - SUPPORT BOARD - W4L07558 1"x3 3/8"x16 1/8" (24x86x410) H3 - BRACE - W4L07717 H5 - BRACE - W4L07557 1"x3 3/8"x12 1/4"...
  • Page 10 Parts Identification Wood Components (NOT TO SCALE) WA1 - WALL ASSEMBLY - W2A02102 2 7/8"x15"x39 1/2" (72x382x1003) WA2 - WALL ASSEMBLY - W2A02096 1"x16 3/4"x95 1/2" (24x424x2426) WP1 - PERGOLA POST - W2A02098 5 1/2"x5 1/2"x37 1/8" (140x140x943) WP2 - PERGOLA POST - W2A02097 5 1/2"x5 1/2"x37 1/8"...
  • Page 11 Parts Identification Wood Components (NOT TO SCALE) TT2 - TABLE TOP ASSEMBLY - W2A02105 1 5/8"x17 5/8"x27 7/8" (40x448x708) TT3 - TABLE TOP ASSEMBLY - W2A02103 1 5/8"x15 5/8"x27 7/8" (40x398x708)
  • Page 12 Parts Identification Hardware - T-30 TORX WRENCH - H100114 - T-30 TORX BIT - H100147 - T-40 TORX BIT - A100042 - T-40 TORX WRENCH - A100041 (26) VP - BOLT WH 5/16x7-1/4 BLK - H100196 (42) VM - BOLT WH 5/16x2-1/2 BLK - H100194 (26) VL - NUT BARREL WH 5/16x1-1/2 BLK - H100193 - BOLT WH 5/16x1 1/2 BLK - H100407...
  • Page 13 Parts Identification Hardware - SCREW PFH 8x3 BLK - H100362 (120) VU - SCREW PFH 8x2-1/2 BLK - H100201 (72) VS - WASHER LOCK EXT 12x19 BLK - H100199 (66) - SCREW PFH 8x2 BLK - H100391 (125) VR - WASHER LOCK EXT 8x19 BLK - H100198 (35) VT - SCREW PFH 8x1-1/2 BLK - H100200 VW - SCREW PFH 8x1/2 BLK - H100203...
  • Page 14 Parts Identification Accessories (NOT TO SCALE) HT - FOOT 142 SQUARE POST - A100029 (10) - 90° L-BRACKET - BLK - A4M00555 SQ - "A" REVISION TAG - A100314 XR - BYD ID TAG (SMALL) WITHOUT AGES - A100241 (1) STAIN MARKER - MED BRN-2UV - A6P00171...
  • Page 15 D4 - JOIST - W4L07568 1 3/8"x5 1/4"x90" (36x134x2286) D9 - SHORT ANGLE BRACE - W4L07574 1 3/8"x5 1/4"x29 3/4" (36x134x755) STEP 1 ***HAND TIGHTEN ONLY AT THIS TIME*** WASHER LOCK EXT 12x19 BLK WASHER LOCK EXT 8x19 BLK BOLT WH 5/16x2-1/2 BARREL WH 5/16x7/8 BLK...
  • Page 16 D11 - JOIST - W4L07716 1 3/8"x5 1/4"x92 7/8" (36x134x2360) D8 - LONG ANGLE BRACE - W4L07573 D2 - JOIST END - W4L07575 1 3/8"x5 1/4"x37 1/8" (36x134x942) 1 3/8"x5 1/4"x37 1/2" (36x134x954) STEP 2 WASHER (16) LOCK EXT 12x19 BLK WASHER (16) WASHER LOCK EXT 8x19 BLK...
  • Page 17 D1 - JOIST - W4L07567 1 3/8"x5 1/4"x92 7/8" (36x134x2360) D8 - LONG ANGLE BRACE - W4L07573 D7 - JOIST END - W4L07566 1 3/8"x5 1/4"x37 1/8" (36x134x942) 1 3/8"x5 1/4"x37 1/2" (36x134x954) STEP 3 WASHER (16) LOCK EXT 12x19 BLK WASHER (16) LOCK EXT...
  • Page 18 D5 - JOIST - W4L07570 1 3/8"x5 1/4"x90" (36x134x2286) WP4 - PERGOLA POST - W2A02100 5 1/2"x5 1/2"x89 1/2" (140x140x2273) STEP 4 WASHER LOCK EXT 12x19 BLK (4 PLCS) WASHER NUT BARREL WH 5/16x1-1/2 BLK LOCK EXT 12x19 BLK (4 PLCS) WASHER LOCK EXT 8x19 BLK (2 PLCS) WASHER...
  • Page 19 D5 - JOIST - W4L07570 1 3/8"x5 1/4"x90" (36x134x2286) WP3 - PERGOLA POST - W2A02099 5 1/2"x5 1/2"x89 1/2" (140x140x2273) STEP 5 WASHER LOCK EXT 12x19 BLK WASHER LOCK EXT 8x19 BLK (4 PLCS) BOLT WH 5/16x7-1/4 BLK WASHER (4 PLCS) LOCK EXT 8x19 BLK BARREL WH...
  • Page 20 STEP 6 NUT BARREL WH 5/16x1-1/2 BLK (8 PLCS) WASHER LOCK EXT 12x19 BLK WASHER (8 PLCS) LOCK EXT 12x19 BLK WASHER LOCK EXT 8x19 BLK (8 PLCS) BOLT WH 5/16x7-1/4 BLK (8 PLCS) WASHER NOTE HOLE (16) LOCK EXT 8x19 BLK BARREL WH 5/16x1-1/2...
  • Page 21 D6 - JOIST END - W4L07565 1 3/8"x5 1/4"x15" (36x134x381) STEP 7 BOLT WH 5/16x7-1/4 BLK (8 PLCS) WASHER LOCK EXT 8x19 BLK (8 PLCS) WASHER LOCK EXT 12x19 BLK BARREL WH 5/16x1-1/2 WASHER LOCK EXT 8x19 BLK NUT BARREL WH 5/16x1-1/2 BLK (8 PLCS) BOLT WH 5/16x7-1/4...
  • Page 22 D3 - SLOTTED JOIST - W4L07569 1 3/8"x5 1/4"x114" (36x134x2896) STEP 8 LAG SCREW WH 5/16x5-1/2 BLK WASHER LOCK EXT 8x19 BLK (16 PLCS) (16 PLCS) WASHER (16) LOCK EXT 8 PLCS 8x19 BLK LAG SCREW (16) 5/16x5-1/2...
  • Page 23 P1 - PURLIN - W4L07571 (12) 1 3/8"x1 3/8"x69 5/8" (36x36x1767) P2 - PURLIN - W4L07572 (12) 1 3/8"x1 3/8"x90 1/4" (36x36x2291) STEP 9 SCREW PFH (96) 8x2-1/2 BLK SCREW PFH 8x2-1/2 BLK (96 PLCS)
  • Page 24 HT - FOOT 142 SQUARE POST - A100029 STEP 10 DECIDE WHERE TO PLACE THE PERGOLA; GRASS, CONCRETE OR OTHER MATERIAL. PLACE THE PERGOLA EXACTLY WHERE IT WILL BE ANCHORED WHEN COMPLETED AND SLIDE A FOOT UNDER EACH POST. NOTE: IF NOT PLACING ON CONCRETE, PROCEED TO STEP 14.
  • Page 25 STEP 11 USE CHALK TO TRACE AROUND THE EDGES OF EACH FOOT.
  • Page 26 STEP 12 MOVE THE PERGOLA ASIDE. PLACE EACH FOOT INSIDE OF THE LINES DRAWN IN THE PREVIOUS STEP. USING A 3/16" CONCRETE DRILL BIT, PILOT DRILL ATTACHMENT HOLES INTO THE CONCRETE PAD. NEXT, USE THE 1/4"x2" CONCRETE ANCHORS TO ATTACH EACH FOOT TO THE CONCRETE SURFACE.
  • Page 27 STEP 13 SET THE PERGOLA BACK IN PLACE, SETTING EACH POST INSIDE A FOOT.
  • Page 28 STEP 14 ATTACH FEET TO EACH POST. SCREW PFH (16) 8x1-1/2 BLK SCREW PFH 8x1-1/2 BLK (16 PLCS)
  • Page 29 SQ - "A" REVISION TAG - A100314 XR - BYD ID TAG (SMALL) WITHOUT AGES - A100241 STEP 15 IF YOU CHOOSE NOT TO INSTALL THE SEAT OR BAR, YOUR PERGOLA IS NOW COMPLETE. OTHERWISE, CONTINUE TO NEXT STEP. SCREW PWH 8x5/8 BLK SCREW PFH SCREW PFH 8x1/2 BLK...
  • Page 30 WP1 - PERGOLA POST - W2A02098 5 1/2"x5 1/2"x37 1/8" (140x140x943) J7 - SUPPORT BOARD - W4L07718 1"x2 1/8"x5 1/2" (24x54x140) WA1 - WALL ASSEMBLY - W2A02102 2 7/8"x15"x39 1/2" (72x382x1003) J5 - SUPPORT BOARD - W4L07564 1"x2 1/8"x26 1/8" (24x54x662) STEP 16 WASHER LOCK EXT...
  • Page 31 HT - FOOT 142 SQUARE POST - A100029 STEP 17 PLACE WALL/POST ASSEMBLY IN POSITION IN THE CENTER OF OUTER POSTS AS SHOWN. USE CHALK AND TRACE AROUND FOOT (NOT NECESSARY IF NOT PLACING ON CONCRETE). NOTE HOLES FOOT 142 SQUARE POST (1 PLC)
  • Page 32 J4 - SUPPORT BOARD - W4L07563 1"x2 3/8"x26 1/8" (24x60x662) STEP 18 IF PLACING ON CONCRETE, MOVE WALL/POST ASSEMBLY ASIDE AND INSTALL CONCRETE ANCHORS USING THE SAME PROCEDURE USED PREVIOUSLY (STEP 12). WASHER LOCK EXT IF NOT PLACING ON CONCRETE, LEAVE WALL/POST ASSEMBLY IN PLACE. 8x19 BLK CONCRETE ANCHOR 1/4"...
  • Page 33 - 90° L-BRACKET - BLK - A4M00555 STEP 19 SCREW PWH SCREW PFH 8x3/4 BLK 8x1-1/2 BLK SCREW PFH (12) 8x2 BLK 90° L-BRACKET - BLK (4 PLCS) SCREW PWH 8x3/4 BLK (4 PLCS) LEVEL LEVEL AND CENTER ON POST SCREW PFH 8x2 BLK SCREW PFH 8x1-1/2 BLK (12 PLCS)
  • Page 34 J1 - TABLE TOP RAIL - W4L07561 2"x3"x84 1/2" (50x76x2146) STEP 20 SCREW PWH 8x3/4 BLK (4 PLCS) SCREW PWH 8x3/4 BLK SCREW PFH 8x2 BLK FLUSH SCREW PFH 8x2 BLK (6 PLCS)
  • Page 35 TT3 - TABLE TOP ASSEMBLY - W2A02103 TT1 - TABLE TOP ASSEMBLY - W2A02104 1 5/8"x15 5/8"x27 7/8" (40x398x708) 1 5/8"x17 5/8"x27 7/8" (40x448x708) TT2 - TABLE TOP ASSEMBLY - W2A02105 1 5/8"x17 5/8"x27 7/8" (40x448x708) STEP 21 SCREW PFH (20) 8x2-1/2 BLK SCREW PFH 8x2-1/2 BLK...
  • Page 36 H5 - BRACE - W4L07557 1"x3 3/8"x12 1/4" (24x86x312) STEP 22 LAG SCREW WH 1/4x2-1/2 WASHER LOCK EXT 6x15 BLK WASHER LOCK EXT 6x15 BLK (4 PLCS) LAG SCREW WH 1/4x2-1/2 BLK (4 PLCS) 4 PLCS WASHER LOCK EXT 6x15 BLK (4 PLCS) LAG SCREW WH 1/4x2-1/2 BLK (4 PLCS)
  • Page 37 J2 - TABLE TOP RAIL - W4L07562 1"x3"x12 1/4" (24x76x310) STEP 23 SCREW PFH 8x1 3/4 BLK (12 PLCS) SCREW PFH (12) FLUSH 8x1 3/4 BLK 4 PLCS...
  • Page 38 WP2 - PERGOLA POST - W2A02097 HT - FOOT 142 SQUARE POST - A100029 5 1/2"x5 1/2"x37 1/8" (140x140x943) M1 - WALL RAIL - W4L07559 5/8"x3 3/8"x95 1/2" (16x86x2426) STEP 24 PLACE RAIL/POST ASSEMBLY IN POSITION AS SHOWN. USE CHALK AND TRACE AROUND FOOT (NOT NECESSARY IF NOT PLACING ON CONCRETE).
  • Page 39 STEP 25 IF PLACING ON CONCRETE, MOVE RAIL/POST ASSEMBLY ASIDE AND INSTALL CONCRETE ANCHORS USING THE SAME PROCEDURE USED PREVIOUSLY (STEP 12). IF NOT PLACING ON CONCRETE, LEAVE RAIL/POST ASSEMBLY IN PLACE. CONCRETE ANCHOR 1/4" x 2" CONCRETE ANCHOR 1/4" x 2" (4 PLCS)
  • Page 40 WA2 - WALL ASSEMBLY - W2A02096 1"x16 3/4"x95 1/2" (24x424x2426) D10 - SUPPORT BOARD - W4L07560 1 3/8"x5 1/4"x14 1/8" (36x134x360) STEP 26 WASHER LOCK EXT 8x19 BLK LAG SCREW 5/16x2-1/2 LAG SCREW WH 5/16x3 SCREW PFH 1/2 BLK 8x1-1/2 BLK 15 7/16 BOTH POSTS LAG SCREW WH 5/16x3 1/2 BLK...
  • Page 41 H2 - SUPPORT BOARD - W4L07558 1"x3 3/8"x16 1/8" (24x86x410) STEP 27 WASHER LOCK EXT 8x19 BLK LAG SCREW 5/16x2-1/2 LOCATE PILOT HOLES IN WP2. LAG SCREW WH 5/16x2-1/2 BLK (8 PLCS) WASHER LOCK EXT 8x19 BLK (8 PLCS)
  • Page 42 H3 - BRACE - W4L07717 1"x3 3/8"x12 1/4" (24x86x312) STEP 28 BARREL WH 5/16x7/8 BLK BOLT WH 5/16x1 1/2 LAG SCREW WASHER WH 1/4x2-1/2 LOCK EXT 6x15 BLK WASHER LOCK EXT WASHER 8x19 BLK LOCK EXT 12x19 BLK NUT BARREL WH 5/16x7/8 BLK (4 PLCS) WASHER LOCK EXT 12x19 BLK (4 PLCS)
  • Page 43 G2 - SEAT - W4L07553 1"x5 1/4"x39 1/2" (24x134x1002) STEP 29 SCREW PFH 8x2 BLK SCREW PFH 8x2 BLK (8 PLCS)
  • Page 44 G1 - SEAT - W4L07719 1"x5 1/4"x92 7/8" (24x134x2360) STEP 30 SCREW PFH (12) 8x2 BLK SCREW PFH 8x2 BLK (12 PLCS)
  • Page 45 H4 - BRACE - W4L07554 - 90° L-BRACKET - BLK - A4M00555 1"x3 3/8"x12 1/4" (24x86x312) G3 - ARMREST - W4L07551 1"x5 1/4"x18" (24x134x458) STEP 31 BOLT WH SCREW PWH 1/4x1/2 BLK 8x3/4 BLK WASHER LOCK EXT 6x15 BLK LAG SCREW BARREL WH SCREW PFH WH 1/4x2-1/2...
  • Page 46 H4 - BRACE - W4L07554 - 90° L-BRACKET - BLK - A4M00555 1"x3 3/8"x12 1/4" (24x86x312) G4 - ARMREST - W4L07552 1"x5 1/4"x18" (24x134x458) STEP 32 BOLT WH SCREW PWH 1/4x1/2 BLK 8x3/4 BLK WASHER LOCK EXT 6x15 BLK LAG SCREW BARREL WH WH 1/4x2-1/2 SCREW PFH...
  • Page 47 N1 - CLEAT - W4L07555 N2 - CLEAT - W4L07556 5/8"x2 3/8"x8 7/8" (16x60x226) 5/8"x2 3/8"x10 3/8" (16x60x262) STEP 33 SCREW PFH 8x1-1/2 BLK SCREW PFH 8x1-1/2 BLK (8 PLCS)
  • Page 48 FP1 - POST CAP - W2A02101 1 7/8"x6 1/2"x6 1/2" (48x164x164) STEP 34 SCREW PFH 8x2 BLK SCREW PFH 8x2 BLK (4 PLCS)
  • Page 49 Limited Warranty Pragma warrants that this product is free from defect in materials and workmanship for a period of two (2) year from the original date of purchase. This two (2) year warranty covers all parts including wood, hardware, and accessories.
