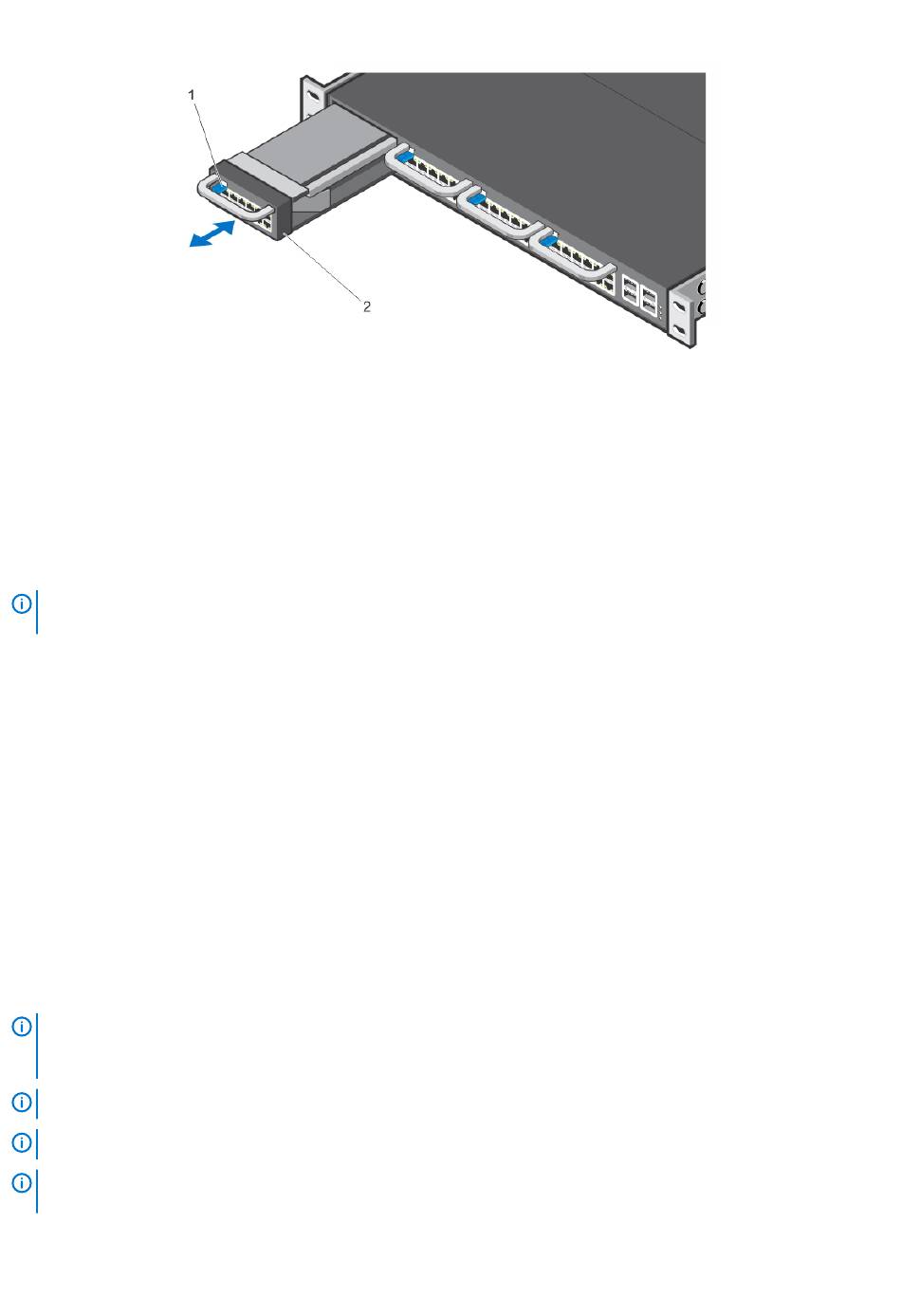

Figure 14. Installing a Fibre Channel Module
1. Release latch
2. Fibre Channel Module

Replacing a Fibre-Channel Module

NOTE: S5000 does not support the hot swapping of a Fibre-Channel pluggable module during switch operations.
Instead, you must power down the switch before removing and replacing an expansion module.
1. Disconnect any network interface cables attached to the module.
2. Use the grab handle to slide the Fibre-Channel module out of the switch module slot.
3. Use the grab handle on the replacement Fibre-Channel module to slide it into the switch module slot.
4. Connect any network interface cables to the attached module.
Important Points to Remember for Installing an AC
Power Supply
• The PSU slides into the slot smoothly. Do not force a PSU into a slot as this action may damage the PSU or the S5000 chassis.
• The S5000 supports AC and DC power supplies with two air-flow directions (I/O to Utility and Utility to I/O). The S5000 does not
support mixing PSU types, that is, you cannot replace an AC PSU with a DC PSU and an AC-R PSU with a DC-R PSU. The fan airflow
direction for both the PSUs must be the same.
• For AC PSUs, an illuminated translucent handle indicates the power status.
• To view the log messages, use the show logging command. For more information, refer to the System Logs chapters of the Dell
Networking OS Command Line Reference Guide for the S5000 Switch and Dell Networking OS Configuration Guide for the S5000
Switch.
NOTE: Although the switch can run on one PSU, Dell EMC OS highly recommends using two PSUs for full redundancy
and proper cooling. If the switch needs to run with only one PSU for a time, be sure to cover the second PSU slot
opening with a blank plate to avoid overheating.
NOTE: The Utility panel consists of four slots numbered from 0 to 3. Insert PSUs in slots 0 and 3.
NOTE: The PCB edge connector is at the bottom. Avoid installing the switch upside down.
NOTE: Electrostatic discharge (ESD) damage can occur if components are mishandled. Always wear an ESD-preventive
wrist or heel ground strap when handling the S5000 and its components.
22 Installation
