Speco RMX-9CD Specifications

Specifications subject to change
Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com
Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880

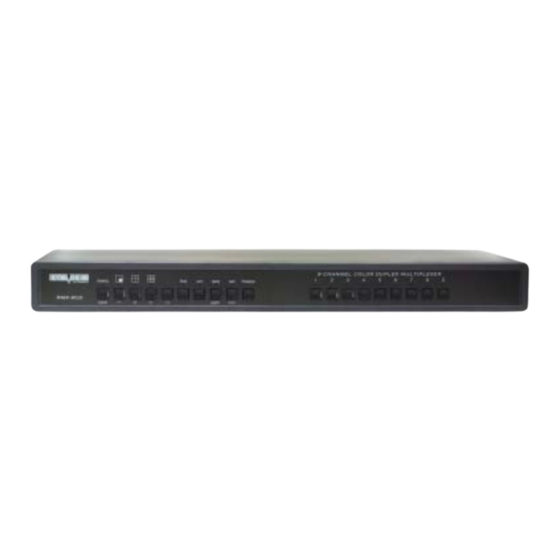

RMX-9CD
9 Channel Color Duplex Multiplexer
Our 9 channel color duplex multiplexer allows the viewing of up to 9 image sources on one
screen, while simultaneously recording full screen images on a VCR. It has an array of features.
Viewing options include full-screen, multi-screen, or sequential switching with adjustable dwell
time. During VCR playback, full-screen and multi-screen viewing options are available. It is
uniquely programmable for recording between 2 - 999 hours. It conveniently has a built-in time
and date generator with an 8 character camera title function. The video loss alert and alarm
detection are structured. The best part is the RMX-9CD's compatibility with all standard and
time lapse VCRs and most DVR's. There is also a 4 channel color (RMX-4CD), and 16 channel
color (RMX-16CD) version available.

Specifications

Camera Inputs
Adjustable Program Recording
Alarm Functions
Alarm Inputs
Alarm Output
Compatibility
Looping Camera Outputs
Maximum Image Sources
Monitor Output
Other Features
Playback Input
Power Consumption
Power Source
Recovery Output
RS-232 Interface
Switch Input
VCR Output
Viewing Options
Dimensions
Weight
For more information contact us at:
BNC, 9, composite video 1.0 Vp-p 75 ohms
2-999 hours-accepts trigger pulses from VCR's & DVR's
Video loss alert and alarm detection with up to 100 record
9 (TTL Level)
1, Normally open or closed (relay output)
contacts with shared common
Compatible with all standard and time lapse VCRs
and most DVRs
BNC, 9, composite video 1.0 Vp-p 75 ohms
9 on one screen
BNC, 3, composite video 1.0 Vp-p 75 ohms
Built-in time and date generator with
8 character camera title function
BNC, 1, composite video 1.0 Vp-p 75 ohms
Maximum 9 watts
12V DC, 1.2 Amp included
1 (TTL active low)
D-SUB 25 pin female connector
BNC, 1 (TTL Level)
BNC, 1, composite video 1.0 Vp-p 75 ohms
Full screen, multi-screen or sequential switching
with adjustable dwell time
1.75"H x 17"W x 9.75"D
5 lbs 8 oz net
