Summary of Contents for HAMOKI IMT-120F

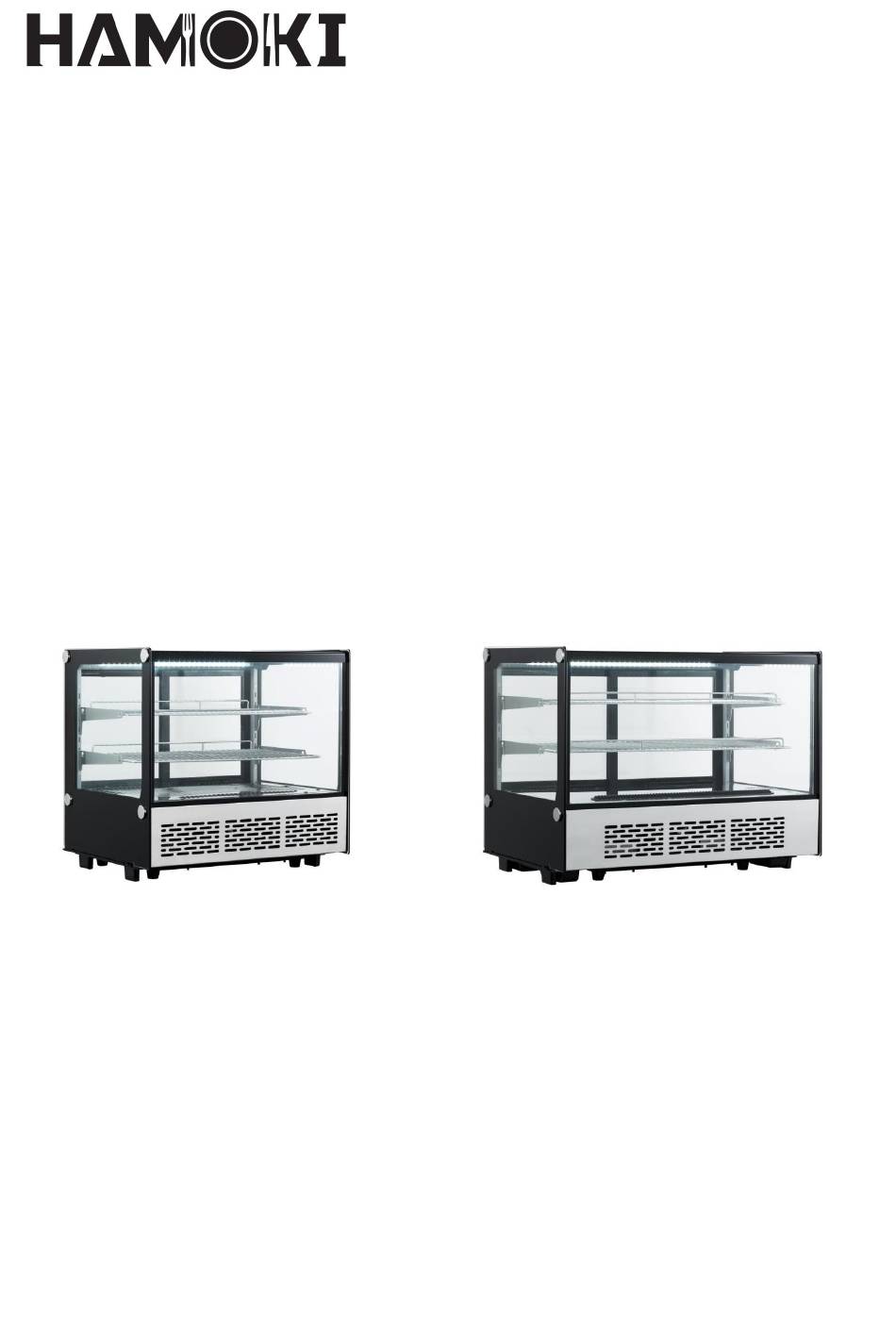

- Page 1 Hamoki Limited www.hamoki.co.uk Display Cooler Operation instructions IMT-120F IMT-160F Art. No.:251013 Art. No.:251012 Thank you for choosing and purchasing our product. Please carefully read the operation instructions before use for a correct application and satisfactory effect.
-
Page 2: Table Of Contents
Contents General Structure and Parts Handle and Placement Preparation and Power Supply Use and Caution Maintenance Trouble Shooting Principle of Refrigeration System Circuit Diagram Major Parameters... -
Page 3: General
General 1. Top brand fully enclosed compressor is used on the desk-top refrigerator. The refrigerant R600a is of an environmentally friendly agent. It features a rational configuration of refrigeration system with blower forced air cooling. The temperature is quite even inside the refrigerator. 2. -
Page 4: Structure And Parts
Structure and Parts... -
Page 5: Handle And Placement
Handle and Placement Handle with care Unplug the wall socket first. Never tilt it over 45 degree during handling Dry place Always locate the refrigerator at a dry place. Sufficient space The distance from both sides and back of refrigerator to wall or other substance must not less than 10cm.The refrigeration capability might be decreased if its surround space is too small to circulate air. -
Page 6: Preparation And Power Supply
No heavy load Never put any heavy load on the top of the refrigerator. No hole making Never make hole on the refrigerator. Never install other matter on the refrigerator. Stable location Unpacking and locate the refrigerator on a flat and solid place. Preparation and Power Supply Exclusive power socket Normally, the power supply should be 220-240V, single phase AC with exclusive single phase... -
Page 7: Use And Caution
No water flushing Never give the refrigerator surface a flush otherwise current leakage might be resulted. Prevent from flammables and explosive Never put any flammable or explosive inside the refrigerator such as ether, gasoline, alcohol, adhesive and explosive. Never put dangerous product nearby the refrigerator. No spray To spray the flammables such as paint or coating nearby the refrigerator is not allowed, otherwise fire might be resulted... - Page 8 After the refrigerator running,put hand on the air suction to confirm it is sufficient cold. Then you may put food inside the cold box. 2. Digital Temperature controller It is a mini-sized and integrated intelligent controller and applicable to the compressor of one Hp. The main functions are:Temperature Display/Temperature Control/Manual,automatic defrost bt burning off/Illumination Control/Value Storing/self Testing/Parameter Locking Front Panel Operation...
-
Page 9: Maintenance
The operation manual are not suitable for the persons (including children) with reduced physical, sensory or mental capabilities,or lack of experience and knowledge. Maintenance 1.Notice Often keep the refrigerator clean and periodical maintenance is necessary. Always unplug the socket before maintenance Never use damaged plug or loose socket to prevent from electric shock or short circuit. -
Page 10: Principle Of Refrigeration System
Principle of Refrigeration System The principle of compression refrigeration consists of “compression”, “condensation”, “throttling” and “vaporization”. The compression is undertaken by compressor, the condensation is completed by condenser, the throttling valve is executed by capillary and the vaporization is implemented by evaporator. -
Page 11: Major Parameters
