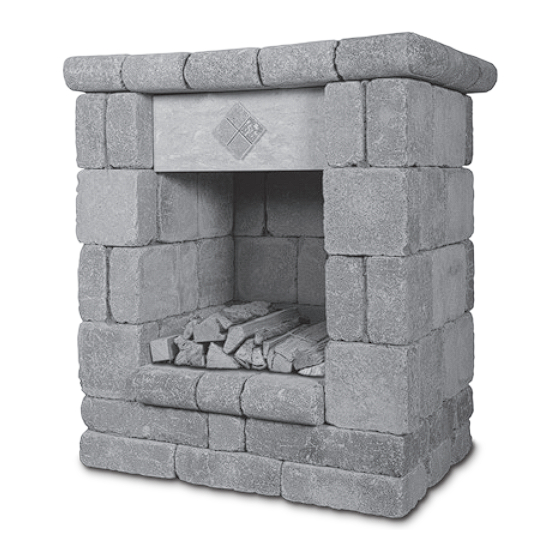

"Stacker 200" Woodbox (WBX-200) Assembly Instructions

How-To Assemble Your

STACKER 200

Woodbox

WBX-200

PART NO.

NOVICE

DIFFICULTY

3'W x 2'D x 3'8H

APPROX. DIM.

2,485 lbs.

APPROX. WEIGHT

GENERAL SHALE OUTDOOR LIVING PRODUCT WARRANTY

All General Shale Outdoor Living products are warranted to be made from high quality materials that meet or exceed ASTM material standards.

Outdoor Living products are intended for recreational or residential use and are not warranted for any other purpose. The life of the product

depends on correctness of installation and extent of usage. All metal components are subject to normal rust and corrosion.

ANY IMPLIED WARRANTIES ARE HEREBY DISCLAIMED AND ARE EXPRESSLY EXCLUDED.

P.O. Box 3547 / Johnson City, TN 37602 / 1-800-414-4661 / www.GeneralShale.com

Table of Contents

Need help?

Do you have a question about the STACKER 200 and is the answer not in the manual?

Questions and answers

Summary of Contents for General Shale STACKER 200

Page 1 GENERAL SHALE OUTDOOR LIVING PRODUCT WARRANTY All General Shale Outdoor Living products are warranted to be made from high quality materials that meet or exceed ASTM material standards. Outdoor Living products are intended for recreational or residential use and are not warranted for any other purpose. The life of the product depends on correctness of installation and extent of usage.
Page 2 “Stacker 200” Woodbox (WBX-200) Assembly Instructions Materials included with your outdoor kit. (15) Block “A” (4" x 8" x 16") (26) Block “B” (4"x 8" x 12") Bullnose Block “B3” (4" x 6 3/4" x 14") (18) Block “C” (4" x 8" x 8") (4) Block “D”...
Page 3 “Stacker 200” Woodbox (WBX-200) Assembly Instructions Step Create a level base using Crusher Run Stone to accommodate the overall footprint of the woodbox kit. Prepare an area 3'6" wide x 2'6" deep. Remove sod and vegetation. Excavate/remove soft soil as required to provide level stone surface at a minimum of 4"...
Page 4 “Stacker 200” Woodbox (WBX-200) Assembly Instructions Step Build the woodbox (courses 1 and 2). Assemble the woodbox on a level setting base. After laying the first course, check to make sure it is level before proceeding. Apply thin set layer with small trowel to bond courses.
Page 5 “Stacker 200” Woodbox (WBX-200) Assembly Instructions Step Build the woodbox (courses 3 and 4). Use supplied thin set between all courses and all block. Use supplied thin set between all courses and all block. Apply thin set to the inside of block to prevent excess from squeezing out onto the face of the woodbox.
Page 6 “Stacker 200” Woodbox (WBX-200) Assembly Instructions Step Build the woodbox (courses 5 and 6). Use supplied thin set between all courses and all block. Use supplied thin set between all courses and all block. Apply thin set to the inside of block to prevent excess from squeezing out onto the face of the woodbox.
Page 7 “Stacker 200” Woodbox (WBX-200) Assembly Instructions Step Build the woodbox cap (course 7). Use supplied thin set between all courses and all block. Use supplied thin set between all courses and all block. Apply thin set to the inside of block to prevent excess from squeezing out onto the face of the woodbox.
Page 8 “Stacker 200” Woodbox (WBX-200) Assembly Instructions Step Install decorative tile insert. Install supplied tile on exposed block lintel with thin set. Decorative Arriscraft Tile Insert OL-BRO 0045-0415 P.O. Box 3547 / Johnson City, TN 37602 / 1-800-414-4661 / www.GeneralShale.com...
