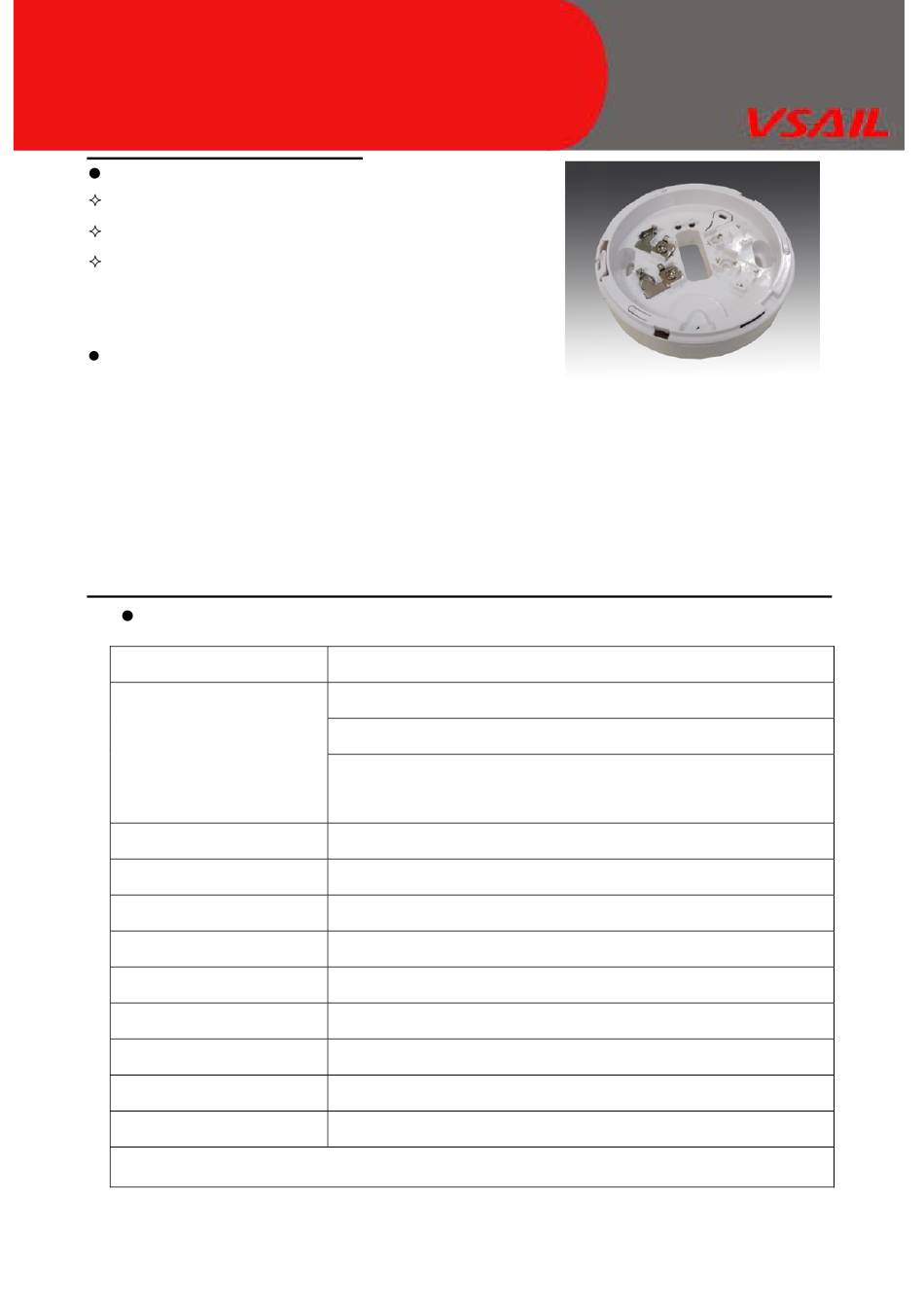

VSAIL VB-6617S Installation And Operation Manual

VB-6617S Digital Alert Base
Installation and Operation Manual V1.00
Beijing VSAIL Fire Protection Equipment Co. Ltd.
Building 32, Huilongsen Technology Park,
No.99 14th Kechuang Street, BDA, Beijing, PRC

Feature

Used as an warning device to generate fire alarm;
Installation And Wiring same as detector base;
Driven by detection circuit, no need for extra power
line.Two adjustable modes, sharing the same address
of detector, or occupying an individual address.

Description

VB-6617S Digital Alert Base is designed for the application inside a closed room. As a warning
device, the base will generate alarm sound when the detector detects a fire occurred. Installed as a
base, it is compatible with the range of VSAIL digital detectors. For application, when sharing the
same address with detector, the alert base will be triggered by that detector installed. Setting with
an individual address, the alert base can be as used a field warning device and activated by C&E
Logic. It is usually installed in hotel room, residential bedroom or other locations that are far away
from the audible and visual alarm..

Technical Data

Operating voltage:
Operating current:
Address
Sound level
Tonal modification cycle
Temperature:
Relative humidity
Weight
Shell material and color
Dimension
Installation hole distance
Wiring: directly connected with the detection loop of the control panel.
VSL3.928.011ASY
Loop voltage: 24V /Allowance range: 15V~28V (Vp-p)
Standby current: ≤ 0.2mA
Action current: ≤ 3mA
Total starting current at alarm state both for the detector and
alert base ≤ 3.5mA (maximum 20 pieces triggered at exactly
the same time)
≤95%，non-condensing
ABS+PC, White
diameter of 102mm, height of 25.5mm
1
1~254
>75dB
0.6~1.5S
-10℃~+55℃
67g
73mm
V1.00
