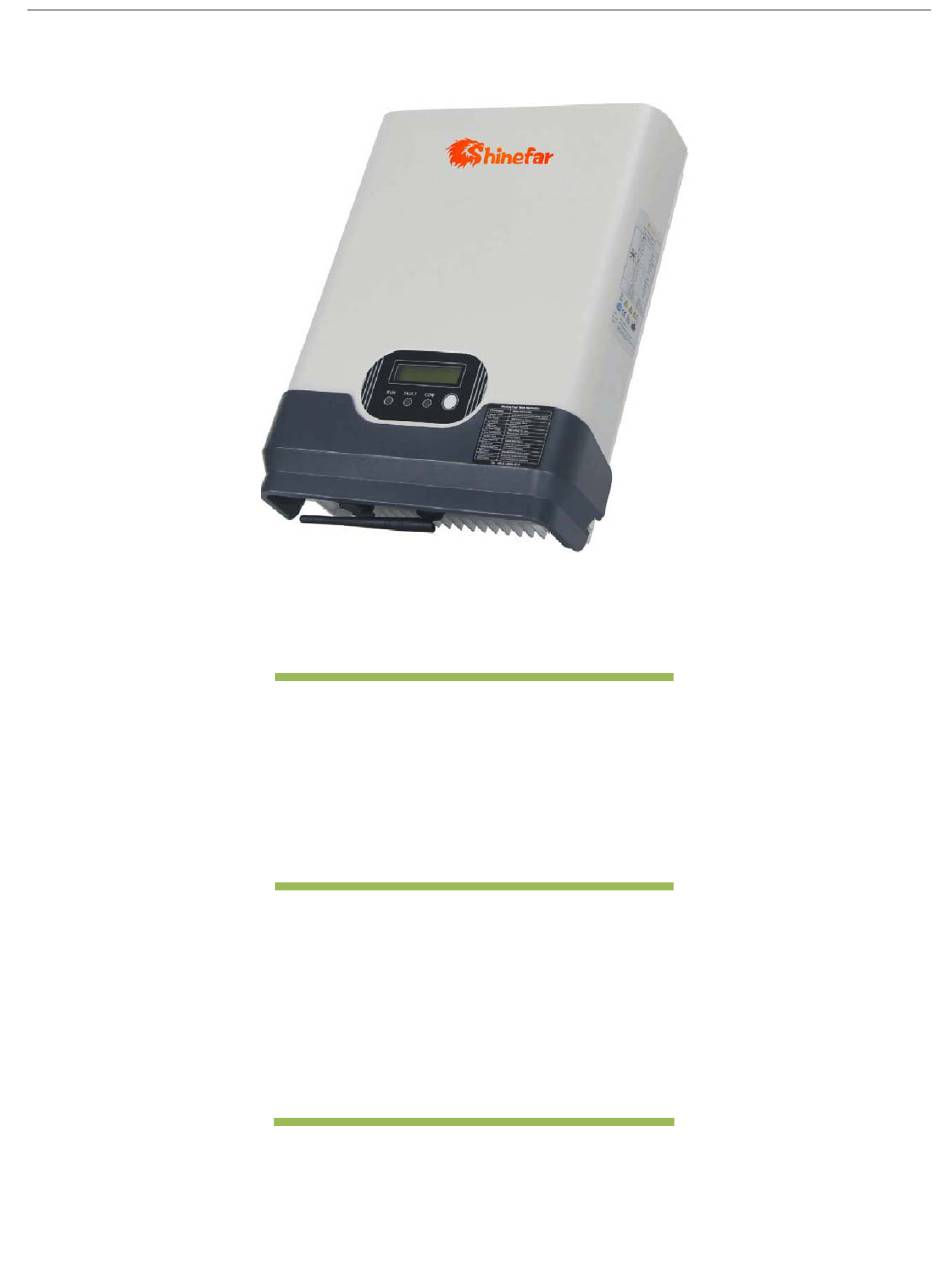

Page 1 User Manual -Installation -Operation SF-1k-TL SF-1.5k-TL SF-2k-TL ...
Page 2: Table Of Contents
Catalog Notes on this manual ..........................4 Scope of Validation ........................... 4 Symbols Used ........................... 4 Target Group ............................. 5 Preparation ............................. 6 Safety Instructions ..........................6 Explanations of Symbols on Inverter ....................7 Product Information ..........................9 Overview ............................
Page 3 Instructions of Safety Standard selection when power-up ............... 37 State Information ..........................39 Recycling and Disposal ........................40 Troubleshooting ........................... 41 Abbreviation ............................42 1. Contact ........................错误！未定义书签。 ...
Page 4: Notes On This Manual
1. Notes on this manual 1.1 Scope of Validation The main purpose of this User’s Manual is to provide instructions and detailed procedures for installing, operating, maintaining, and troubleshooting the following three types of New Energy- Solar Inverters: ...
Page 5: Target Group
1.3 Target Group  Chapter 1, 2, 3, 4, 7, 8, 9, 10 and Chapter 11 are intended for anyone who is intended to use Grid Tie Solar Inverter. Before any further action, the operators must first read all safety regulations and be aware of the potential danger to operate high-voltage devices.
Page 6: Preparation
2. Preparation . Preparation 2.1 Safety Instructions 2.1 Safety Instructions DANGER DANGER due to electrical shock and high voltage DO NOT touch the operating component of the inverter, it might result in burning or death. TO prevent risk of electric shock during installation and maintenance, please make sure that all AC and DC terminals are plugged out.
Page 7: Explanations Of Symbols On Inverter
CAUTION The PV inverter will become hot during operation; please don’t touch the heat sink or peripheral surface during or shortly after operation。 Risk of damage due to improper modiﬁcations. Never modify or manipulate the inverter or other components of the system.
Page 8 Without Transformer This inverter does not use transformer for the isolation function. German mark of conformity The inverter complies with the requirement of the German Grid Regulations. Certified Safety The inverter complies with the requirements of the Equipment and Product Safety Act in Europe.
Page 9: Product Information
3. Product Information 3.1 Overview  Industrial Layout  Excellent Heat Elimination ...
Page 10: Major Characteristics
 Effective Shield For DC/AC/Communication Connections 3.2 Major Characteristics inverter has following characteristics which make inverter “High Efficiency, High Reliability, High Cost Effective Ratio”  Wide DC input voltage and current ranges, enables more PV panels connected. ...
Page 11: Datasheet
3.3 Datasheet Type 1k-TL 1.5k-TL 2k-TL Input (DC) Max. PV Power 1300W 1750W 2300W 500V 500V Max DC Voltage 500V 360V 360V Nominal DC Voltage 360V Operating MPPT Voltage Range 80-360V 120-450V 120-450V Start up DC Voltage 150V 150V Turn off DC Voltage 120V...
Page 12 Type 1k-TL 1.5k-TL 2k-TL Reference Standard Safety Standard EN 62109, AS/NZS 3100 EN 61000-6-1, EN 61000-6-3, EN 61000-6-2, EN 61000-6-4, EN61000-3-2, EMC Standard EN61000-3-3 VDE 0126-1-1, RD1663, ENEL2010, C10/11, G83/1, UTE C15-712-1, AS4777, Grid Standard CQC, CEI 0-21 Physical Structure Dimensions (WxHxD) 330x425x130mm...
Page 13: Packing Checklist
4. Packing checklist 4.1 Assembly parts After you receive the inverter, please check if there is any damage on the carton, and then check the inside completeness for any visible external damage on the inverter or any accessories. Contact your dealer if anything is damaged or missing. ...
Page 14: Product Appearance
4.2 Product Appearance  Front Object Description Removable front shield LED light(Green) – RUN LED light(Red) – FAULT LED light(Yellow) – COM Function key for displays and choice of language Monitoring LCD with backlighting  Bottom A ...
Page 15: Product Identification
Object Description Plug connectors for DC input. RS232/RS485 interface Terminal for grid connection (AC output) 4.3 Product Identification You can identify the inverter by the side nameplate. Information such as serial number (SN.), type of the inverter, as well as inverter specifications are specified on the side name plate. The name plate is on the middle part of the right side of the inverter housing.
Page 16: Installation
5. Installation . Installation 5.1 Safety 5.1 Safety DANGER DANGER to life due to potential fire or electricity shock. DO NOT install the inverter near any inflammable or explosive items. This inverter will be directly connected with HIGH VOLTAGE power generation device;...
Page 17: Safety Clearance
 inverter is designed for indoors and outdoors installation  Please mount the inverter in the direction as illustrated above  Install the inverter in the vertical direction is recommended, with a max.15 degrees backwards.  For the convenience of checking the LCD display and possible maintenance activities, please install the inverter at eye level.
Page 18: Mounting Procedure
Direction Minimum clearance Above 30 cm Below 40 cm Sides 10 cm 5.4 Mounting Procedure 5.4.1 Mounting with bracket 1) Mark 4 positions of the drill holes on the wall according to the wall mounting bracket in the carton box. （...
Page 19 2) First check the 4 holes in the backside of the inverter. Then, lift the inverter carefully, align the 4 holes in the inverter and the 4 hooks on the bracket, and finally attach the inverter to the hooks slightly. ...
Page 20: Mounting Without Bracket
5.4.2 Mounting without bracket 1) Mark 4 positions of the drill holes on the wall according to the paper installation position scale packed in the carton box. ± ± Φ Φ ± ± 2) First, according to the marks, drill 4 holes in the wall. Then, place four expansion tubes in the holes using a rubber hammer.
Page 21 3) First ch eck the 4 holes in the backside of the inverter. Then, lift the inverter carefully, align the 4 holes in the inverter and the 4 screws in the wall, and finally attach the inverter to the screws slightly. 4) Please carefully check the accessories and original carton to make sure every necessary part is used and nothing is missing during installation.
Page 22: Safety Lock
5.5 Safety lock 5.5.1 Safety lock （with the wall mounting bracket） After the inverter is hang up on the bracket，lock up the device and the bracket together at the Lower Right Corner of the inverter (as the picture showed below) Padlock ...
Page 23 A  Recommended padlock dimension: A．Shackle Diameter 5~7 mm B．Vertical Clearance 8~15 mm C．Horizontal Clearance 12~20 mm Stainless, solid hanger and secured lock cylinder NOTICE For further maintenance and possible repair, please keep the key of the padlock in a safe place. ...
Page 24: Electrical Connection
6. Electrical Connection . Electrical Connection 6.1 Safety 6.1 Safety DANGER DANGER to life due to potential fire or electricity shock. With the inverter powered, comply with all prevailing national regulations on accidents prevention. This inverter will be directly connected with HIGH VOLTAGE power generation device;...
Page 25: Ac Side Connection
Object Description Plug connectors for DC input. RS232/RS485 interface Terminal for grid connection (AC output) 6.3 AC Side Connection DANGER DANGER to life due to potential fire or electricity shock. NEVER connect or disconnect the connectors under load. ...
Page 26 c. Pass the cable through each component from left to the right as follows. d. Use a screw driver and loose the three screws at the side of the straight plug. Then insert the stripped N, L and PE cable accordingly to the corresponding position and fully tighten the screws.
Page 27: Dc Side Connection
6.4 DC Side Connection DANGER DANGER to life due to potential fire or electricity shock. NEVER connect or disconnect the connectors under load. NOTICE DC Switch (Optional) may be integrated or external to Inverter, and it can be used to connect or disconnect the DC source from Inverter.
Page 28 Unplugging under load: PV plug connections must not be unplugged while under load. They can be placed in a no load state by switching off the DC/AC converter or breaking the DC circuit interrupter. Plugging and unplugging while under voltage is permitted.
Page 29 (ill.2) Interchangeable crimping inserts incl. hexagonal screwdriver A/F 2,5. Type: PV-ES-CZM-18100 PV-ES-CZM-19100 (ill.3) Open-end spanner PV-MS 1 set = 2 pieces Order No. 32.6024 (ill.4) PV-WZ-AD/GWD socket wrench insert to tighten, Order No. 32.6006 (ill.5) PV-SSE-AD4 socket wrench insert to secure PV-SSE-AD4, Order No.
Page 30 Cable preparation (ill.9) Important: Cables with class 2, 5 or 6 construction can be connected. It is advantageous to use tinned conductors. It is unadvisable to use non-tinned cables of type H07RN-F, since with oxidised copper wires the contact resistances of the crimp connection may exceed the permitted limits.
Page 31 Assembly control (ill.13) Insert the test pin with the corresponding side into the socket or plug to the end position. If the contact is correctly assembled, the white marking on the test pin must be still visible. (ill.14) Screw on the cable gland, hand- tight, with the tools PV-MS.
Page 32: Communication And Monitoring Device
6.5 Communication and Monitoring Device There are 2 plugs in the bottom side of the inverter as the following figure: These 2 plugs are used for multipoint communications, that is, up to 50 inverters can be connected one by one through these 2 plugs and the cables, the upper computer can communicate with these inverters via a single signal cable at the same time, and maximum length of the cable is 1000m.
Page 33: Display
7. Display . Display 7.1 LCD Panel 7.1 LCD Panel A B C D Object Description LED light(Green) – RUN LED light(Red) – FAULT LED light(Yellow) – COM Function key for displays and choice of language Monitoring LCD with backlighting The LCD panel is integrated in the front lid of the inverter, so it is easy for user to check and...
Page 34: Lcd Display
7.2 LCD Display NOTICE Make sure the DC switch (Optional) is switched to “On” position; otherwise the inverter cannot work due to power shortage. The display content consists of 2 lines. The bottom line (Line 2) always displays the output power (Pac = xxxx W).
Page 35 State information Pac = xxxx W E-today Pac = xxxx W E-total Pac = xxxx W Pac = xxxx W Pac = xxxx W Pac = xxxx W Frequency Pac = xxxx W Model Pac = xxxx W Pac = xxxx W Set language Pac = xxxx W...
Page 36: Set Language
Line 1 Description State Current state information: all possible content shows in the following information table, reference to 7.4 for further information E-today The energy generated today in kilo watt hours (kWh) E-total The energy generated since starting up the inverter (kWh) The present voltage of the solar generator The present current of the solar generator The present grid current...
Page 37: Instructions Of Safety Standard Selection When Power-Up
7.4 Instructions of Safety Standard selection when power-up 1) Attentions before the operation: Only perform this operation when the voltage value displayed on inverter’s LCD falls between 80V and 300V for 1.0kW inverter or between 150V and 450V for 1.5kW/2.0kW inverters. Only perform this operation when the accumulative generated electricity is less than 1KWh.
Page 38 c. When the LCD displays your desired Safety Standard, hold the Function button for 5 seconds or more until it shows ”Safety Standard OK”. d. The Safety Standard setup is now completed. ...
Page 39: State Information
7.5 State Information State Display State information Waiting Initialization & waiting Wait Reconnect s Reconnect Checking s Checking Normal Normal Normal state Ground I Fault GFCI failure oversized leakage current Fac Failure Grid frequency failure Vac Failure Grid voltage failure Utility Loss No Utility &...
Page 40: Recycling And Disposal
8. Recycling and Disposal . Recycling and Disposal To comply with European Directive 2002/96/EC on waste Electrical and Electronic Equipment To comply with European Directive 2002/96/EC on waste Electrical and Electronic Equipment and its implementation as national law, electrical equipment that has reached the end of its life and its implementation as national law, electrical equipment that has reached the end of its life must be collected separately and returned to an approved recycling facility.
Page 41: Troubleshooting
9. Troubleshooting LCD display Possible actions 1. Check the impedance between PV (+) & PV (-) and the inverter is earthed. The impedance must be greater Isolation Fault than 2M. 2. Check whether the AC-side has contacts with earth. 1.
Page 42: Abbreviation
10. Abbreviation Liquid Crystal Display Light Emitting Diode MPPT Maximum Power Point Tracking Photovoltaic Voltage at the DC side Voltage at the AC side Vmpp Voltage at the Maximum Power Point Impp Amperage at Maximum Power Point Alternating Current ( Form of electricity supplied by Utility Company ) Direct Current ( Form of electricity generated by PV modules ) German...
