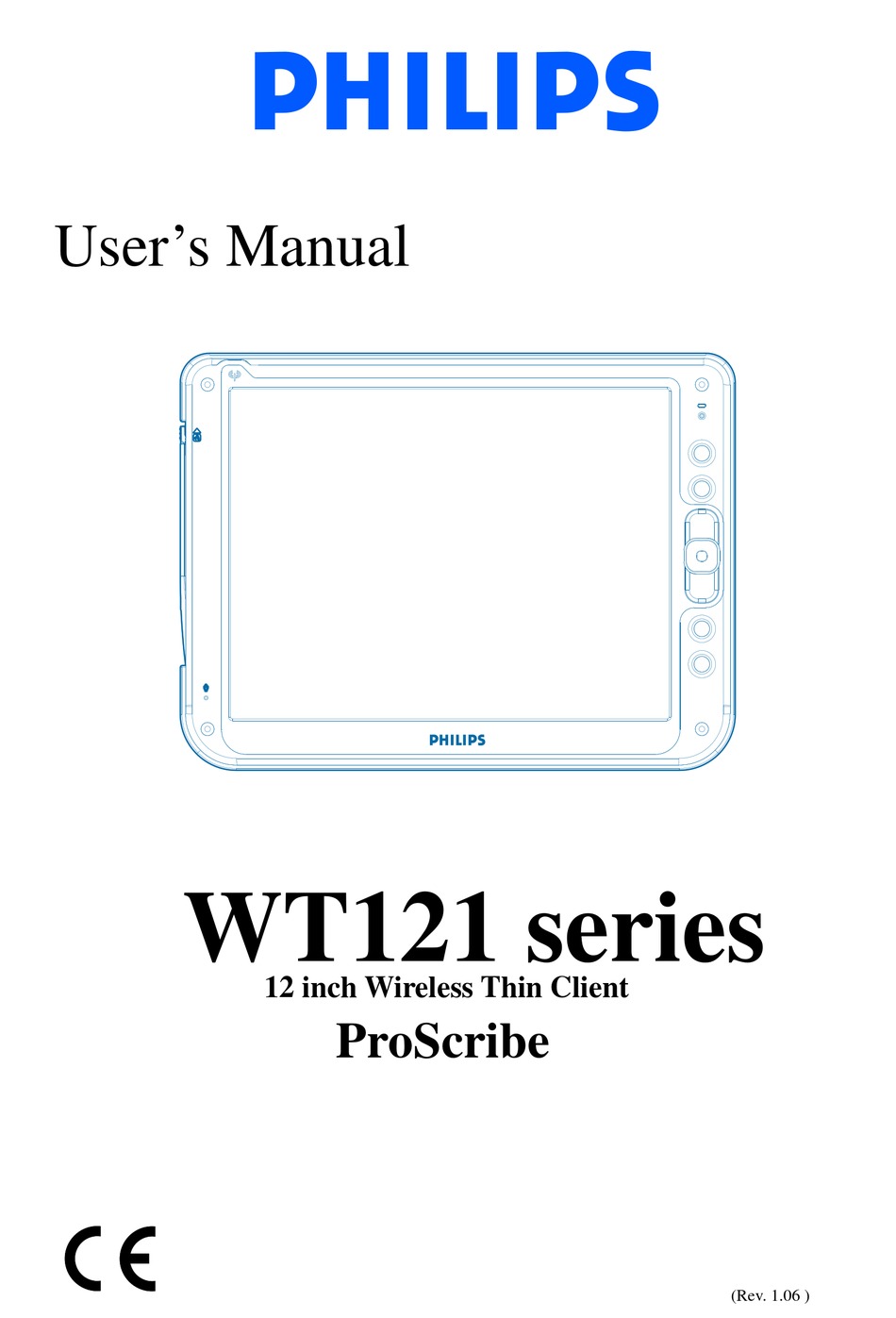

- Page 1 User’s Manual WT121 series 12 inch Wireless Thin Client ProScribe (Rev. 1.06 )
- Page 2 This manual is copyrighted with all rights reserved. Under the copy rights law, this manual may not be copied, in whole or part, without written consent of Philips. Under the law, copying includes translating into another language or format. The monitor described in this manual, has been certified/registered by the safety agencies/regulatory authorities as model n°...
- Page 3 RF Exposure Statement This EUT is compliance with SAR for general population / uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods and procedures specified in OET bulletin 65 Supplement C. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the pos- sibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 1.5 cm during normal operation.
- Page 4 INTRODUCTION A ruggedized wireless thin client display for the on-the-go computing The Philips ProScribe is a ruggedized wireless thin client display, released with Windows XP embedded for the on-the-go comput- ing, both for ITE and medical applications. The ProScribe suits all applications in to vertical markets where users meet to take it with them, while away from their desk. It’s a “cordless display” which makes use of wireless technology and thin-client computing to allow mobile workers to access applica- tions stored on a central server as if they were sitting behind their desktop monitor. Its ruggedized design, compact size and touch- screen interface makes it also a perfect solution for point of information and system control applications too. Designed for healthcare providers or any organization with highly mobile employees The ProScribe addresses the growing demand for mobile computing solutions among healthcare providers and medical system sup- pliers, who need immediate, portable and secure access to on-line data.
- Page 5 Approved for medical applications The Proscribe meets the medical safety and electromagnetic requirements of IEC 60601-1 and IEC 60601-1-2, if used with the sup- plied battery-pack, or power supply unit certified according to the same standard (Medical Grade PSU; check the d.c. supply connec- tor pin-configuration of the PSU before connecting it to the unit). Unit shall be used, in all modes of power supply (battery , ac/dc adapter or docking station modes), only if battery-pack is in place. Docking station for easy charging and desktop use The ProScribe optional docking station enables simple recharging of the device’s swappable smart Li-ion battery pack. In typical usage a full charge will enable up to 3 hours operation. The docking station includes two USB sockets enabling convenient use of keyboard and mouse, while the portable device is docked. An additional Ethernet port makes the docking station perfectly suited to desktop usage.
-
Page 6: Table Of Contents
CONTENTS TECHNICAL INFORMATION ..........7 INSTALLATION ..............8 KICKSTAND AND HAND STRIP ........9 DIMENSIONS ...............10 WEIGHT ................10 INPUT INSTRUCTION ............11 right view ..............11 left view ...............11 bottom view ..............1 back view ..............12 CONTROL PANEL DESCRIPTION .........1 BEFORE yOU BEGIN ............1 GETTING STARTED ............1 load battery ..............1 stylus re-calibration ............15 power saving mode ............15 set data and time ............15 WLAN setup ..............16 ethernet LAN setup ............16 screen brightness ............16 DATA INPUT TO THE TOUCH SCREEN ......17 touch the screen ............17 left or right click emulation .........17... -
Page 7: Technical Information
1.1.0 TECHNICAL INFORMATION VIA Low Voltage VIA Eden running at 1GHz (BGA, 133MHz FSB, 64KB L2 cache, 0.13 Processor micron process with 7 watt-Thermal-Design-Power) VIA CN400 + VT8237R Chipset Graphic processor VIA/S3G Unichrome Pro 1GP Inside version VA11, with the kernel-code-base V4.31 Bios Operating System Microsoft Windows XP Embedded with SP2 Built-in 802.11g mini-PC WLAN module with integral antenna Networking Remote Protocol Microsoft RDP / Citrix ICA Memory 256 MB SDRAM on board (WT121XB / WT121NS versions) 512 MB SDRAM on board (WT121XE / XE-M / XES / XES-M versions) Flash ROM 512 MB flash memory module (WT121XB version) 1GB flash memory module (WT121XE / XE-M / XES / XES-M versions) LCD Panel Characteristic 12.1 “ TFT LCD panel (Mini required : XGA 1024 x 768 resolution for 12.1” ) , LVDS I/F Audio System AC97 internal microphone and speaker; stereo (supported via earphone jack) Durability Rugged anti-shock design with standing 1 meter drop / IP53 water and dust resistant construct- ion (front side) •1 x VGA out •1 x PCMCIA... -
Page 8: Installation
2.1.0 INSTALLATION Before unpacking the ProScribe , prepare a suitable workspace. You need a stable and level surface near a grounded wall outlet in an area that is relatively free of glare from sunlight or other sources of bright light. While unpacking the ProScribe, inspect it and other package contents for shipping damage that could cause a fire or shock hazard. -
Page 9: Kickstand And Hand Strip
2.2.0 INSTALLATION KICKSTAND AND HAND STRIP The ProScribe is provided of a hand-carry set (Hand strip and Kickstand) for the assembling see fig. 9a 1. Kickstand . Hand strip 3. Screw M2,5x8 (q.ty 2) 4. Left stand adapter 5. Right stand adapter MODEL NO. : CMPD12 3.42A INPUT RATING: This device complies with part 15 of the FCC Rules. Operation is subject to the MADE IN TA IWAN MADE IN ITALY following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received including interference that may cause undesired operation. -
Page 10: Dimensions
3.1.0 DIMENSIONS 313,5 35,2 (fig. 10a) 3.2.0 WEIGHT Weight with battery enclosed : 1,75 Kg. WT11... -
Page 11: Input Instruction
4.1.0 INPUT INSTRUCTION 4.1.1 RIGHT VIEW 1. Power button 2. Network connector (RJ45) 3. RGB video connector 4. USB 2.0 port type A 5. USB .0 port type B 6. External ear set jack 7. External microphone jack 8. AC/DC adapter connector (fig. 11a) 4.1.2 LEFT VIEW 1. Smart card reader slot . Stylus pen latch release . Flash slot . Stylus pen 5. PCMCIA slot 6. Security cable slot (fig. 11b) WT11... -
Page 12: Bottom View
4.1.3 BOTTOM VIEW 1. Docking device connector (fig. 12a) Connector layout: 1 = GND 10 = N.C. 2 = MAIN_IN 11 = N.C. 3 = CRADLE_AV (+19V) 12 = N.C. = USB - 1 = N.C. 5 = CRADLE_AV (+19V) 14 = N.C. 6 = USB + 15 = N.C. 7 = CRADLE_AV (+19V) 16 = GND 8 = N.C. 17 = N.C. 9 = N.C. 18 = GND 4.1.4 BACK VIEW 1. Speakers . Mounting screw holes (x) M,5 3. Battery latch 1 (lock) . Battery 5. -
Page 13: Control Panel Description
5.1.0 CONTROL PANEL DESCRIPTION 1. Battery LED . Programmable buttons 3. Track stick buttons 4. Track stick 5. Programmable buttons 6. On-Screen Keyboard (default) 7. Microphone 8. WLAN status LED (fig. 13a) WT11... -
Page 14: Before You Begin
6.1.0 BEFORE yOU BEGIN The ProScribe is intended for use as Windows XP embedded powered wireless thin client touch-screen device. To use your ProScribe you must have the following; • 0V mains plugs to charge the battery for using it as portable device • a wireless access point to access the corporate network or • an Ethernet connection in case you plan to use the ProScribe on a fixed location 6.2.0 GETTING STARTED The Windows XP embedded operating system provides you all the convenience to set-up any type of thin-client session with centrally located applications or web-based services. Before doing so, please make sure to apply the following instructions. -
Page 15: Stylus Re-Calibration
6.2.2 STYLUS RE-CALIBRATION When the pad is powered on for the first time, the pad need to be calibrated. See par. 8.1.0 for instructions. 6.2.3 POWER SAVING MODE To make changes to power saving setup, • Navigate through: “START -> Settings -> Control panel -> Power Options” and select the Power Schemes that best meets your needs. • Navigate through: “START -> Settings -> Control panel -> Tablet and Pen Settings”. • Select the “display” TAB • Choose the desired Brightness level Power Schemes Display 6.2.4... -
Page 16: Wlan Setup
6.2.5 WLAN SETUP The WLAN setup is strictly dependent on the existing wireless network infrastructure. A example of WLAN setup is depicted: • From the Winbond or Ralink Wireless Utility icon on the Windows Taskbar select: “Start Windows Zero Configuration” • Navigate through : “START -> Settings -> Control Panel -> Network Connections -> Wireless Network Connection” and select one of the available networks. • If required, insert a network key or password. • To further configure the WLAN parameters on the “Wireless Network Connection” “Related Tasks” panel, select “Change advanced settings”. • The “Wireless Network Connection Properties” dialog pops up, select “Wireless Networks” tab • Select the preferred network and press “Properties” to adjust the authentication / encryption parameters. 6.2.6 ETHERNET LAN SETUP Setting up an Ethernet connection is just a matter of plugging the Ethernet cable in the RJ45 jack. It is advised to switch off the WLAN connection in order to save battery power. 6.2.7 SCREEN BRIGHTNESS The ProScribe is pre-configured to save battery power by switching the LCD brightness to a lower level when the power plug is removed. Normal brightness is restored by going to: “Control Panel > Tablet and Pen Settings > Display > Screen Brightness > Powered by Batteries” and by moving the slide bar to “Bright”. -
Page 17: Data Input To The Touch Screen
7.1.0 DATA INPUT TO THE TOUCH SCREEN 7.1.1 TOUCH THE SCREEN Use the stylus pen to move the mouse cursor or select the desired desktop icon or menu. (fig. 17a) NOTE: The two stylus that are supplied with WT121 are designed for your screen. Use of fingertip or other pointers could damage your screen. 7.2.1 LEFT OR RIGHT CLICK EMULATION Users accustomed to a mouse device often right click for quick access to command options for an icon. The stylus pen offers a similar command function. Click on taskbar mouse icon to select “left” or “right” click emulation. NOTE: default “left” (fig. 17b) (fig. 17c) 7.3.1 ON-SCREEN KEYBOARD Users can ‘type’ message with the on screen keyboard. • To display, press the Input keyboard button on your ProScribe (fig.17d). • The on screen display keyboard can also be activated by double clicking on the relevant icon on the desktop (fig.17e-ref. A). • The desktop contains an additional on-screen-keyboard that can be configured in multiple ways (fig. 17e-ref. B). (fig. 17d) (fig. 17e) WT11... -
Page 18: Sizeable Keyboard
7.3.2 SIZEABLE KEYBOARD The “Click-N-Type” keyboard is re-sizeable. Once started, point the mouse at one of the edges to make it larger or smaller. It can also be programmed as standard keyboard under the corresponding hotkey by going to: Control Panel > Tablet and Pen Settings > Tablet Buttons > Button 4 > Change > Browse > (go to desktop and select shortcut). (fig. 18a) 7.3.3 SCREEN ROTATION (Landscape to Portrait) Click the portrait icon on the desktop, to rotate the screen as the fig. 17b. Viceversa, click the Landscape icon on the desktop to return the screen at the original orientation. (fig. 18b) WT11... -
Page 19: Touch-Panel Calibration
8.1.0 TOUCH-PANEL CALIBRATION To calibrate the stylus tapping pattern: • Tap Start -> Settings -> Control Panel • Double click “Touch Panel” Button • Select “Calibration” tab • Enable the Check-Box -> Press “Apply” Button • Disable the Check-Box -> Press “Apply” Button -> Press “Calibrate Now” • Calibrate Touch-Panel • Press “Update” Button • Press “OK” button Tap Start ->... - Page 20 Select “Calibration” tab Enable the Check-Box -> Press “Apply” Button WT11...
- Page 21 Disable the Check-Box -> Press “Apply” Button -> Press “Calibrate Now” Calibrate Touch-Panel WT11...
- Page 22 Press “Update” Button Press “OK” button WT11...
-
Page 23: Power Supply
9.1.0 POWER SUPPLy There are two sources of power for ProScribe operation: the battery and the AC adapter. 9.1.1 You may operate your ProScribe with AC power in two different ways. Mounted in the Docking station WD121.., or connected directly to the AC adapter fig. 23a). To run your ProScribe on the base station, place the pad into and connect the AC adapter to the jack at the rear of the base station. To plug the product directly to the AC adapter, locate and plug into the DC adapter at the lower right corner of the product. (fig. 23a) 9.1.2 BATTERy When using the ProScribe for the first time, it is advisable to charge the battery for at least 2 hours. After the initial charging, when not in use, the ProScribe takes approximately three hours to fully charged; it takes 4 hours to fully charged while in use. Battery duration depends on the actual use of the device and may be affected by heavy-duty application. -
Page 24: Connecting To A Network
10.0.0 CONNECTING TO A NETWORK You can setup a connection to a wireless network (WLAN) or a wired network (LAN). 10.1.0 WLAN Your ProScribe includes a wireless LAN module. 10.1.1 START A CONNECTION Method One Tap (right click) on the WinBond or Ralink network icon that resides in the taskbar at the bottom of your screen. • Select “Restore” •The “Winbond or Ralink wireless utility” pops-up •Select the “Site Survey” tab • Select one of the available networks Press the “config” button to adjust the wireless network properties WinBond Ralink Ralink WinBond Method Two The WLAN setup is strictly dependent on the existing wireless network infrastructure. A example of WLAN setup is depicted: • From the Winbond or Ralink Wireless Utility icon on the Windows Taskbar select: “Start Windows Zero Configuration” • Navigate through : “START -> Settings -> Control Panel -> Network Connections -> Wireless Network Connetion” and select one of the available networks. - Page 25 10.1.2 When the connection is ready, you may be required to launch a remote control application to communicate between your ProScribe and the host computer. The ProScribe ships with two applications to do this: • Remote Desktop Connection connects to a Window server • Critrix ICA Manager connects to a Citrix server. WT11...
- Page 26 To complete the connections with Remote Desktop Connection or ICA Manager, you will need information including user name, password and network IP. Ask your network administrator to provide the required setup information. 10.2.1 LAN You can use the RS 45 plug to connect your ProScribe to a LAN (fig. 26a) connection WT11...
-
Page 27: Featured Software Application
11.0.0 FEATURED SOFTWARE APPLICATIONS Your ProScribe has a suite of applications designed to create, share, and manage your information. 11.1.1 CONTROL PANEL The Control Panel provides access to system settings allowing you to manage the properties of your ProScribe such as: • Touch Panel Configures and calibrates your touch screen. -
Page 28: Hot Key Utility
11.6.1 HOT KEy UTILITy There are 4 hot keys buttons to quick launch software applications. You can customize three of these hot keys functions with the tablet and pen settings applet: • Navigate through: “START -> Settings -> Control panel -> Tablet and Pen Settings” • Choose tablet buttons tab • Select the tablet button • Tap on the change button • Tap OK to complete NOTE: Button “2”... -
Page 29: Troubleshooting
12.0.0 TROUBLESHOOTING 12.1.1 THE ProScribe WILL NOT TURN ON... • Make sure that both the battery latches on the back of the unit are set to the lock position. • When power is on, you will see: On the pad: Power indicator light above the screen on the right will turn green • If power is on, but you still don’t see anything on the screen, wake up the pad by tapping on the screen or by pressing control buttons located on the right hand side of the screen. • If pad does not power on attach the AC adapter to the unit by either ;... -
Page 30: How Do I Use A Password To Protect My Data
12.7.1 HOW DO I USE A PASSWORD TO PROTECT MY DATA ON ProScribe? You can use a password to protect your data. Here’s how: 1. To setup, tap the PASSWORD icon on the Control Panel 2. Enter the password you have selected 3. Enter the password again to confirm your password. You can enable password protection at Power On or Screen Saver. CAUTION: If you forget your password, you must restore the OS image. All custom data will be lost. 13.0.0 SAFETy AND PRODUCT CARE INSTRUCTIONS 13.1.1 TO CLEAN THE SCREEN: 1. -
Page 31: Precautions
14.0.0 PRECAUTIONS 14.1.0 Installation The equipment should be installed near an easily accessible outlet. Do not install or leave the monitor: In places subject to extreme temperatures, for example near a radiator, heating vent, or in direct sunlight. Subjecting the LCD monitor to extreme temperatures, could cause deformations of the casing or malfunctions. - Page 32 14.5.0 DISPOSAL OF THE LCD ProScribe Do not dispose of this monitor with general household waste. The fluorescent tube used in this LCD monitor contains mercury. Disposal of this monitor must be carried out in accordance with the regulations of your local sanitation authority. • For countries in the European Union This symbol indicates that this product (including the cables, plugs and accessory) must not be disposed of with the other household waste.
-
Page 33: Accessory (Optional)
WD121 WD121P • Docking Station (see Fig. 1-2) • Docking Station (see Fig. 1-2) • AC Power Adapter (ITE grade) • Power Cord set (EU, UK and US cords) WD121P-M WD1212 • Docking Station (see Fig. 1-2) • 2 x Docking Station (see Fig. 1-2) • AC Power Adapter (Medical grade) • Power Cord set (EU, UK and US cords) 15.1.2 Hardware Installation To use the Docking Station, connect it to power through its AC adapter. The ProScribe can be docked and undocked both in OFF and ON status. To dock the ProScribe, keep it in vertical position and align the PHILIPS logos in such a way the one on the ProScribe is aligned around 1 cm on the left of the Docking Station one. Gently release the ProScribe in the Docking Station; 2 plastic frames will drive the ProScribe in the correct position. When the ProScribe is docked, the green led on the front of the Docking Station will light on. The ProScribe front led will turn to yellow, indicating the battery is charging; when full charge is reached, the led will turn to green. 15.1.3 Software Installation The ProScribe (Xpe version), comes with the Docking Station driver devices (10/100 Ethernet RJ45 port and USB 2.0 ports) already installed; the relevant drivers will be activated when you dock the ProScribe and deactivated when you undock it. Docking Station (Front view) Docking Station (Back view) connector PAD AC/DC adapter connector Docking LED... -
Page 34: Identification Label
16.0.0 IDENTIFICATION LABEL The identification label is visible by removing the battery CMPD12 MODEL NO. : 3.42A INPUT RATING: This device complies with part 15 of the FCC Rules. Operation is subject to the MADE IN TA IWAN MADE IN ITALY following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received including interference that may cause undesired operation. - Page 35 17.0.0 INDEX AC power Accessories (Standard) Ruggedized design Accessory (optional) Safety and product care inst. Safety note battery-pack Base station setup Battery Screen brightness Screen rotation Before you begin Sizeable keyboard Software release label Caution Start a connection CITRIX ica client Stylus re-calibration Clean Connecting external peripherals Connecting to a network Technical information Touch-panel calibration Control panel 1- 7...
- Page 36 Specifications subject to change without notice. All dimensions shown are approximate. Copyright © 006 FIMI S.r.l. Saronno - Italy All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner Printed in Italy 4519 206 1011.1...
