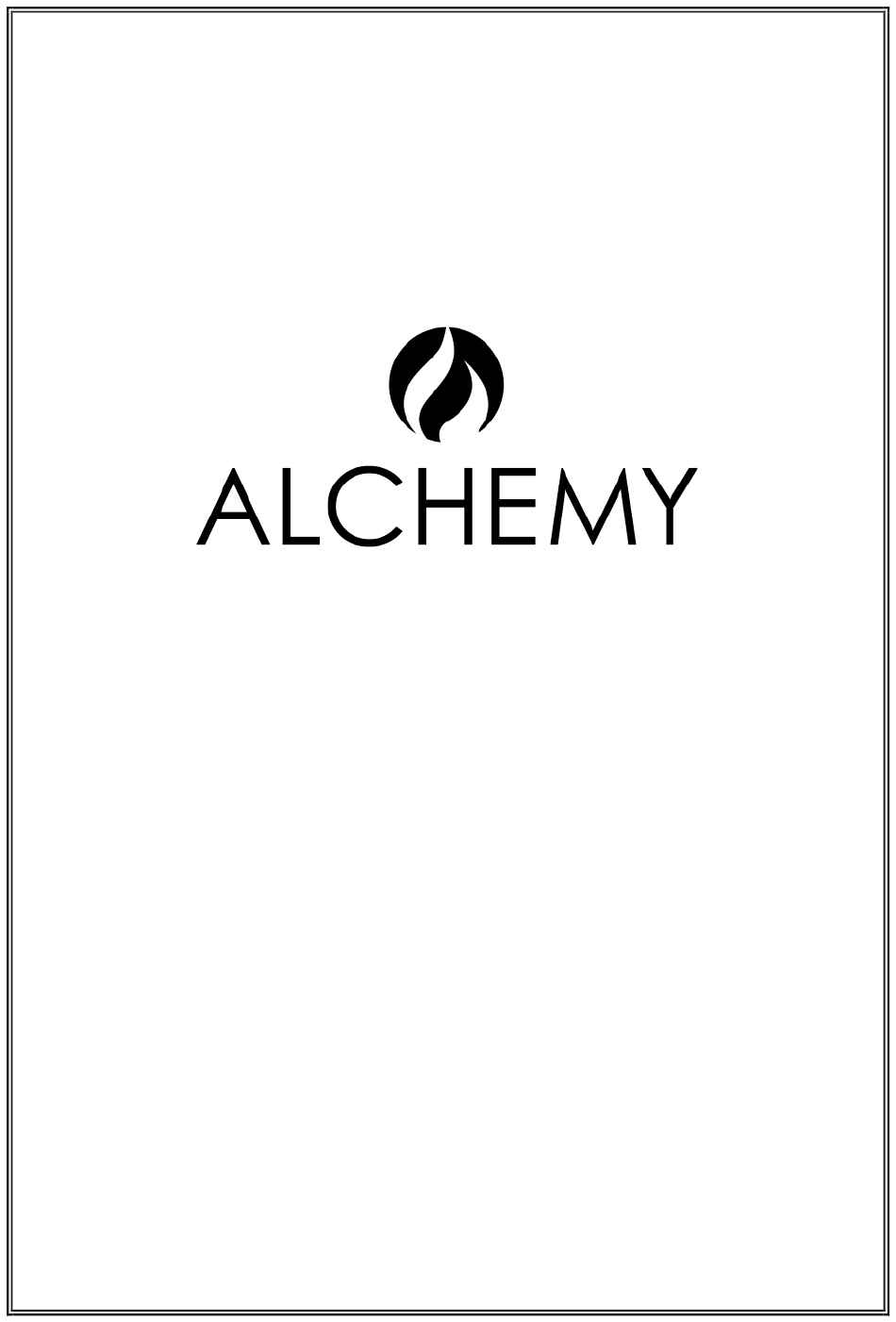

- Page 1 Installation & User Manual Model: Salisbury Bioethanol Stove-MKII Version 001-NP-2023...
- Page 2 Please read this manual carefully for correct installation, use and maintenance of the appliance. Operate the fireplace in accordance with the instructions provided. IMPORTANT SAFETY NOTICE: BIO-ETHANOL FUEL MUST BE BETWEEN 85% - 96.6% ALCOHOL NEVER COVER OR PLACE ITEMS ON THE APPLIANCE AT ANY TIME...
-
Page 3: Table Of Contents
Contents 1. Supplied Parts ..................4 2. Safety Information .................. 6 3. Installation ..................8 4. Operating the Appliance ..............13 5. Safety Systems ................... 16 6. Maintenance ..................17 7. Technical Information................17 8. Troubleshooting ................... 18 9. Appendices Appendix 1 –... -
Page 4: Supplied Parts
Supplied Parts 1.Stove with flue 2. Remote Control 3. RC Handset 4 x AAA Batteries 5. Refill Hose Extension 4. AC 220V – 240V Mains Power Cable... - Page 5 6. Ceramic Logs Complete Log set Individual Ceramic Logs...
-
Page 6: Safety Information
• Alchemy Ltd is not liable for any damage caused by using the incorrect type of fuel. • Do not refuel while the appliance is still hot. Allow at least 30 minutes before refuelling. - Page 7 • NON-COMBUSTIBLE pebbles, logs or other refractory decorative fire accessories should not be used. • Do not use fittings or spare parts, other than those available from or recommended by Alchemy Ltd. • Always isolate the power to the appliance before moving, cleaning or servicing.
-
Page 8: Installation
3. Installation • While installing the appliance according to the instruction manual ensure local and national guidelines are observed. • The appliance must be positioned on a flat and level surface. • The elements of construction within a 1m radius of the appliance must be A1 classified non- combustible materials. - Page 9 VENTILATION • Bioethanol combustion requires oxygen (O ) and releases carbon dioxide (CO ) and water • It is important to ensure there is adequate ventilation in the area that the appliance is installed to ensure there is a fresh air supply and a healthy level of oxygen to allow for one room volume change of air per hour.
- Page 10 INSTALLATION IN A CHAMBER • The minimum chamber dimensions are 600mm wide x 8000mm high x 350mm deep (see Figure 1). This is to ensure sufficient free flowing air to prevent excessive heat build-up and damage to the appliance. • Ensure the chamber is constructed from non-combustible materials.
- Page 11 INSTALLING THE APPLIANCE • spacers on the rear MUST be fitted on to the back cover before the appliance has been installed in order to have the required airflow to operate safely and efficiently. • Place the inner flue over the flue outlet and the outer flue over the inner flue with the ventilation grilles to the rear of the stove.
- Page 12 CERAMIC LOG LAYOUT • Please handle the logs with care as they are fragile. • Please ensure the logs are only placed on the correct position on the log grate as per the below diagrams. • The logs must not cover or interfere with the burning area or flames in any way as otherwise it could cause the appliance to overheat causing damage.
-
Page 13: Operating The Appliance
4.OPERATING THE APPLIANCE READ INSTRUCTIONS COMPLETETLY BEFORE STARTING During the first use the paint finish goes through a curing process which will soften the paint with the heat and as the stove cools down the paint will harden. This process can take several uses to fully cure and will depend on the temperature achieved and for how long the appliance has been used. - Page 14 OPERATING THE REMOTE CONTROL 1. Touch power button to awaken handset. To turn on, hold power button until green bar fills. The screen will display PRIMING for about 45 seconds. 3. When the flame has established the screen will display the level of heating in red.
- Page 15 FUEL NOTIFICATION When the tank is empty or does not have enough fuel, there will be an audible beep and a message of NO FUEL will appear on the display screen. When there is sufficient fuel in the tank for the appliance to operate, the fuel indicator will show a green bar.
-
Page 16: Safety Systems
5. Safety Systems LEAK DETECTION SENSOR The appliance has a leak detection sensor located underneath the burner on the lowest part of the sump and also on the under tray underneath the pumps as per images showing the sensors. Thus, if there is a leak the appliance will turn off. A strong beep will sound if the safety is activated. -
Page 17: Maintenance
Turn the appliance off and isolate the mains supply. Ensure the appliance is cold before attempting any maintenance of the appliance. No liability can be accepted by Alchemy Ltd for injury caused by burning or scolding by a hot appliance. -
Page 18: Troubleshooting
8. Troubleshooting 8.1 There is smoke or a foreign smell coming from the Burner when burning a. There may be waste burning that should not be in the Burner. b. You are using the wrong fuel (it is essential that you ONLY use Bioethanol). c. - Page 19 8.5 RC Handset Error Codes The software installed will give an error/ stop coded if the bioethanol fire stopped or did not start from any reason. If the bio-fire stops a code is generated, and can be read on the RC handset. To get to the Stop Code screen, on the remote press both Menu buttons together until the MENU appears with three options.
- Page 20 5. High level sensor not reached, pump timed out Reason: The fuel has not reached the high level sensor in the burner during operation due to fuel running out, blockage in the fuel lines or faulty pump. Solution: Check for leaks, around fuel tank. Check fuel, refuel if no fuel. If leak found or still doesn’t turn on after refuelling, call engineer/dealer to check fuel lines and pump.
-
Page 21: Appendices
9. Appendices Appendix 1 - Remote Control APPENDIX 1 - REMOTE CONTROL The appliance is in Standby mode when the power is switched on. You must have the power supply ON (—) before using the handset. The remote control works by radio signal which is configured at the factory with a unique signal code. - Page 22 1. Remote Control Functions Press both Menu buttons until a menu appears at top of screen. Three screen options will appear. To select options rotate dial until highlighted in RED and press select. • SET CLOCK • DEVICE • ADVANCED 1.1 SET CLOCK •...
- Page 23 1.1.1 DELETING DEVICE Scroll to DEVICE menu and press select. This gives details of the appliance and also gives the option to delete the appliance from the remote handset. Press and hold the delete option to remove appliance. III. Once the deletion process completes, the handset will show NO PAIRED DEVICE. By selecting EXIT options to the main screen, the PAIRING selection will appear.
- Page 24 1.2 ADVANCED 1.2.2 SCREEN DIMMER Scroll to ADVANCE menu and press select. This function dims the screen of the remote. To switch dimmer on or off press SET option to toggle between ON and OFF.
-
Page 25: Appendix 2 - Dimensions And Spare Parts
APPENDIX 2 - DIMENSIONS AND SPARE PARTS DIMENSIONS... - Page 26 SPARE PARTS ITEM NO. PART NUMBER DESCRIPTION QTY. 5BIO-001 GRATE FRONT 5BIO-002 GRATE REAR 5BIO-003 INNER FLUE 5BIO-004 OUTER FLUE 5BIO-005 REFUEL PUMP 5BIO-006 BACK COVER RBIO-003 FUEL PUMP TOP RBIO-002 FUEL PUMP COMPLETE RBIO-005 IEC POWER SOCKET RBIO-006 POWER LEAD 5BIO-008 LOG SET 5BIO-009...
-
Page 27: Installer Checklist
10. Installer Checklist THE BELOW FORM MUST BE COMPLETED BY THE INSTALLER ON COMPLETION AND IS REQUIRED IN THE EVENT OF A WARRANTY CLAIM... -
Page 28: Warranty Registration
Warranty Registration The appliance is covered by a 2-year warranty. The warranty must be registered within 28 days of installing the appliance. Failure to register within this time period will result in the warranty reverting to void from date of installation. Please complete the online form at the below website to register your warranty: https://chesneys.co.uk/warranty-registration In the event of a breakdown or claim you are required to contact the installer/dealer. - Page 29 Electrical (Fan kits etc Dispose of at a local recycling centre in accordance with the WEEE directive. components if applicable) Alchemy Fires Ltd 194-196 Battersea Park Road, London, SW11 4ND...
