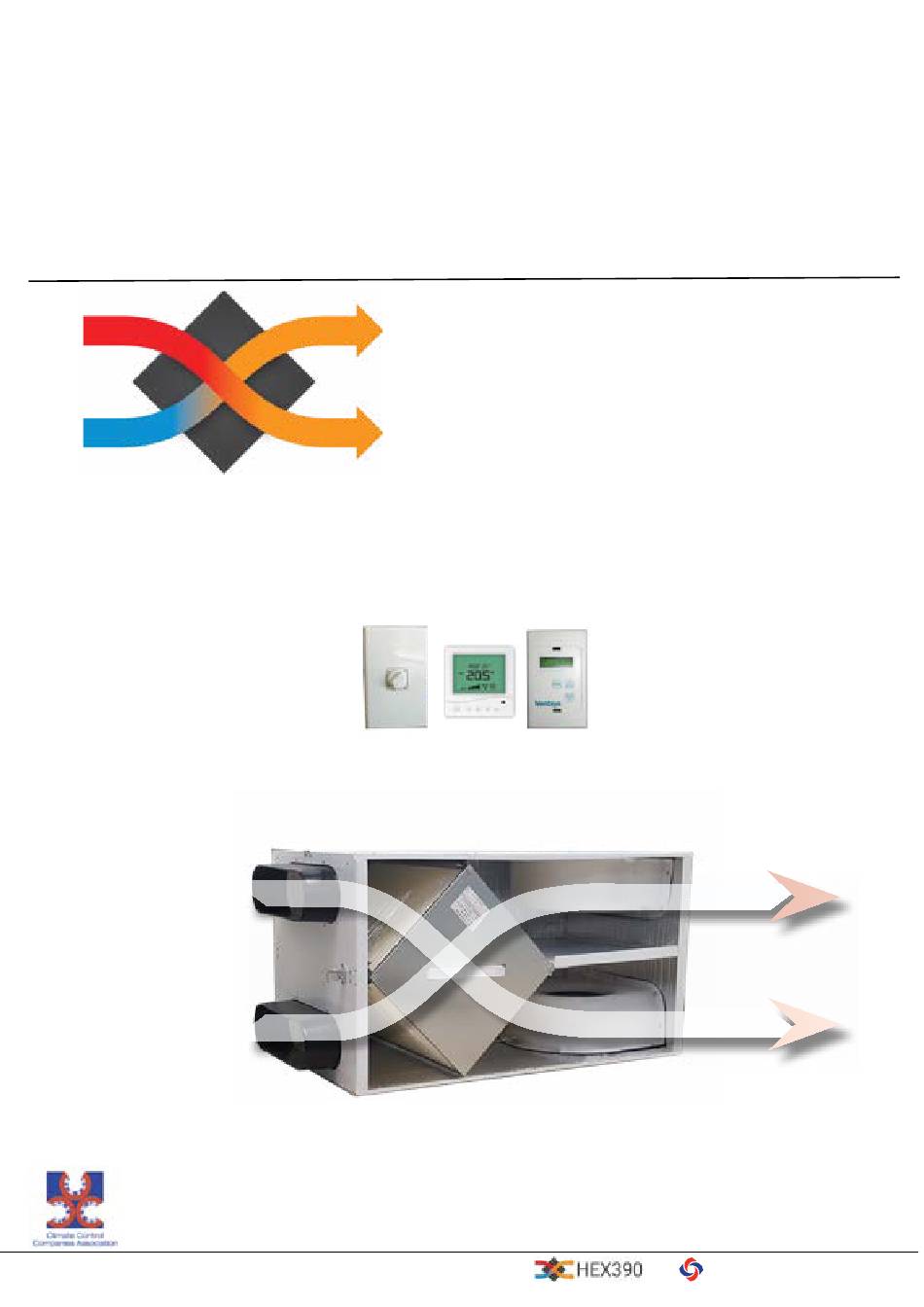

Smooth-Air HEX390 Installation & User's Instructions

Installation, Commissioning & User Instructions
HEX390 Domestic Ventilation System
Return Air
Outside Air
HEX390 Installation & Commissioning Instructions September 2023
for Digital, Hybrid or Manual controller
HEX390
with Heat Exchanger
Balanced Pressure Ventilation
Fan Controller
TR3100FC
Operating Manual
EN
Buttons / Icon Description
Power on/off
M Auto/Manual mode selection
View Filter usage time elapsed
Increase the fan speed
Decrease the fan speed
! !
Filter changing symbol
Set temperature
SET TO
ER Sensor is not connected
Temperature is lower than -9°C
LO
HI Temperature is higher than 60°C
Winter Mode/Summer Mode / Manual mode
Press button M to select Winter mode / Summer mode /Manual mode
Winter mode and summer mode belongs to Auto mode.
Auto mode: on LCD , there will be an " Auto " displaying on left bottom side,
controller will adjust the fan speed automatically according to temperature conditions.
Manual mode: on LCD , there will be a hand icon displaying on left bottom side, user
can ajust the fan speed manually by
user may select 6 grades of fan speed:
lowest
Set temperature in Auto mode
Press button or button once, you will see set temperature
flashing. Use button or button again to adjust to the
temperature you want your room to maintain. Press button
and exit. HEX390 Heat Exchange unit
Resetting factory defaults
Your controller has the ability to reset all settings to the factory defaults. If you
are certain you want to do this:
In standby mode(when controller is turned off), press and hold button
for 5 seconds until RES is shown on LCD.
Lock /Unlock the buttons
To lock/unlock the buttons, press and hold the buttons
Winter mode(Warmup mode)
If the room temperature is cooler than the roof space temperature
then the system will enter winter mode and bring warmer air from the roof space
into the home. If roof space temp drops below 16°C, the fan speed will drop to trickle.
Summer mode(Ventilation mode)
If the room temperature is higher than the roof temperature, the fan speed will enter
summer mode, The fan will operate at mid speed unless roof space temp reaches
25 °C or higher when the fan will drop to trickle speed.
Filter changing symbol ! !
Safety Instructions
Note
•
Please follow this manual for complete installation and operation instructions.
If you have any questions or comments, please contact your supplier.
•
CAUTION: This unit should be installed by a registered electrician and are familiar with house wiring.
This is a line voltage device that could cause serious injury or damage if improperly installed.
Button / Icon Description
Technical data
Roof Roof space temperature
Dimensions H x W x D (mm)
Supply voltage
RT Room temperature
Display
Outputs
Auto
Auto mode Function mode
Temperature sensor
Differential
Manual mode
Controlled temperature
Temperature meas. range
Ventilation mode
Display temperature update
Ambient temperature
Fan speed indicator
Accuracy
Resolution
Summer mode
Protection degree
Winter mode
Installation and Mounting
Carefully separate the front half of the thermostat from the back plate by placing a
small flat head terminal driver into the slots on the bottom face of the thermostat.
Carefully unplug the ribbon connector which is plugged in to the front half of the thermostat.
Place the thermostat front half somewhere safe. Terminate the diagrams below.
Screw the thermostat back plate on to the back box.
Re-connect the thermostat ribbon cable and clip the two halves together.
button.
highest
to accept
M and
Wiring Diagram
and for 5 seconds .
by
Risk of electric shock!
Connection and mounting must be
 
WARNING
undertaken by a professional electrician!
86 x 86 x 15
230 / 240V AC
3.2" LCD
1 x triac output & 1 switch relay output
Ventilation /Heating
NTC 10K Thermistor
1°C
+18°C ... + 25°C
-9°C ... + 60°C
every 1 sec.
-5°C ... + 45°C
Supply Air
± 1°C for +20°C
0.5°C
IP 30
Exhaust Air
230Vac
v3.1.762 a
F
Smooth-Air
M 1 2 P R N L
1
