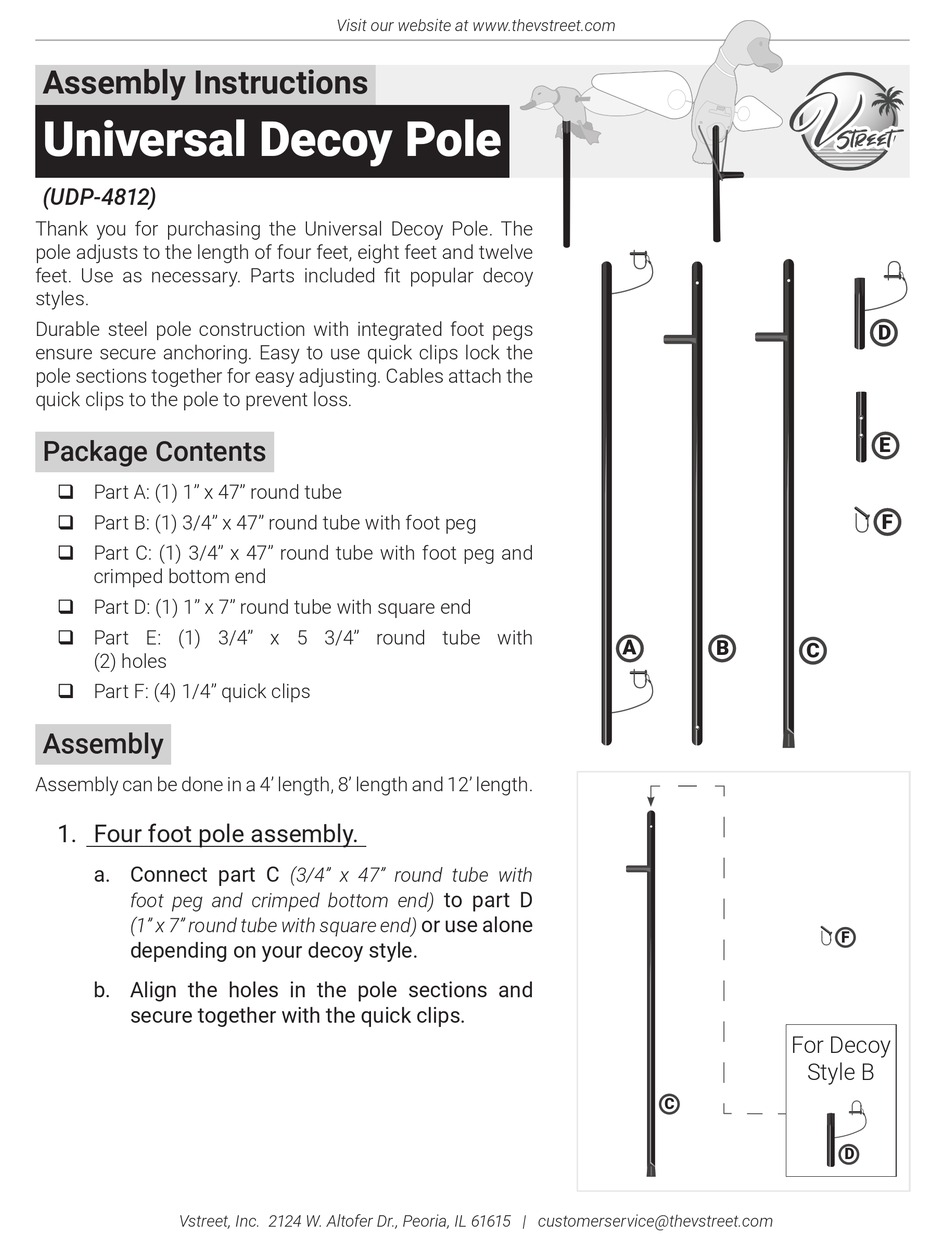

Vstreet UDP-4812 Assembly Instructions

Assembly Instructions
Universal Decoy Pole
(UDP-4812)
Thank you for purchasing the Universal Decoy Pole. The
pole adjusts to the length of four feet, eight feet and twelve
feet. Use as necessary. Parts included fit popular decoy
styles.
Durable steel pole construction with integrated foot pegs
ensure secure anchoring. Easy to use quick clips lock the
pole sections together for easy adjusting. Cables attach the
quick clips to the pole to prevent loss.

Package Contents

q Part A: (1) 1" x 47" round tube
q Part B: (1) 3/4" x 47" round tube with foot peg
q Part C: (1) 3/4" x 47" round tube with foot peg and
crimped bottom end
q Part D: (1) 1" x 7" round tube with square end
q Part E: (1) 3/4" x 5 3/4" round tube with
(2) holes
q Part F: (4) 1/4" quick clips

Assembly

Assembly can be done in a 4' length, 8' length and 12' length.

1. Four foot pole assembly.

a. Connect part C
foot peg and crimped bottom end)
(1" x 7" round tube with square end)
depending on your decoy style.
b. Align the holes in the pole sections and
secure together with the quick clips.
Vstreet, Inc. 2124 W. Altofer Dr., Peoria, IL 61615 | customerservice@thevstreet.com
Visit our website at www.thevstreet.com
(3/4" x 47" round tube with
to part D
or use alone
A
B
For Decoy
C
D
E
F
C
F
Style B
D
