ProLogic PL100 - Automatic Blood Pressure Monitor Manual
![]()
Introduction
Thank you for purchasing the ProLogic PL100 Digital Automatic Blood Pressure Monitor.

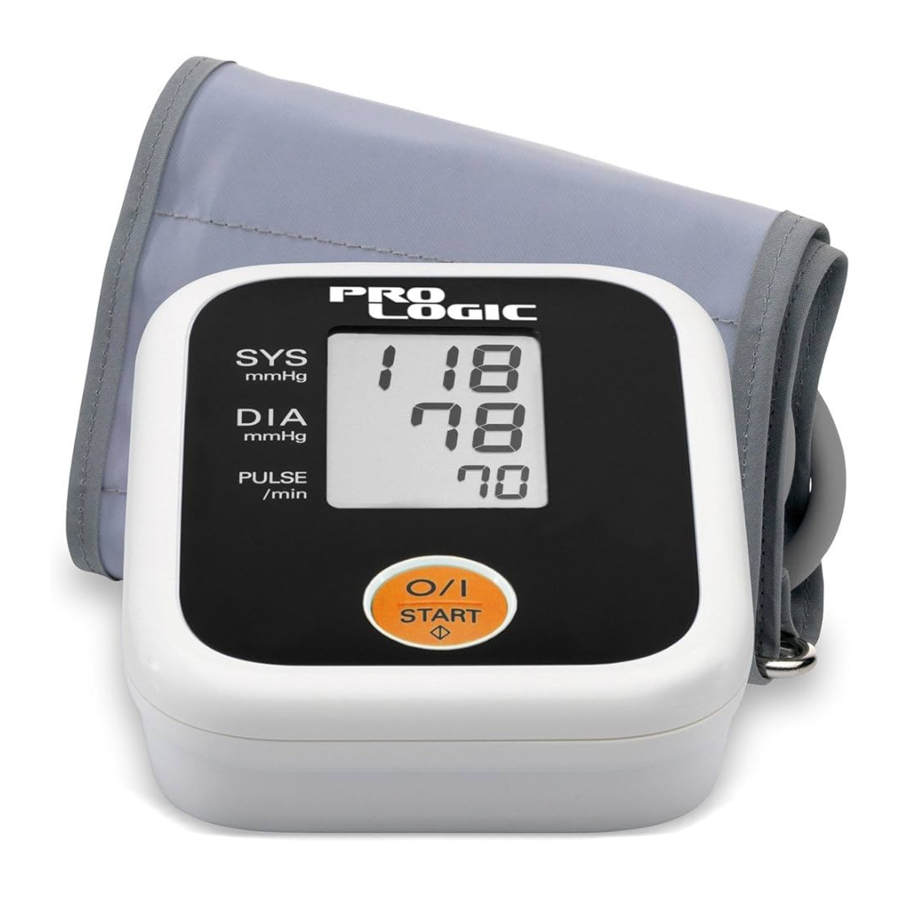

The ProLogic PL100 is a compact, fully automatic blood pressure monitor, operating on the oscillometric principle. It measures your blood pressure and pulse rate simply and quickly.
Intended Use
This product is designed to measure the blood pressure and pulse rate of people within the range of the designated arm cuff, following the instructions in this instruction manual.
It is mainly designed for general household use. Please read the Important Safety Information in this instruction manual before using the unit.
![information]()
Please read this instruction manual thoroughly before using the unit.
Please keep for future reference.
For specific information about your own blood pressure, CONSULT YOUR DOCTOR.
Consult your doctor prior to using in pregnancy or if diagnosed with arrhythmia or arteriosclerosis.
Please read this section carefully before using the unit.
![]()
- Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
(General Usage)
- Always consult your doctor. Self-diagnosis of measurement results and self-treatment are dangerous.
- People with severe blood flow problems, or blood disorders, should consult a doctor before using the unit, as cuff inflation can cause internal bleeding.
(Battery Usage)
- If battery fluid should get in your eyes, immediately rinse with plenty of clean water. Consult a doctor immediately.
![]()
- Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury to the user or patient or damage to the equipment or other property.
(General Usage)
- Do not leave the unit unattended with infants or persons who cannot express their consent.
- Do not use the unit for any purpose other than measuring blood pressure.
- Use only the approved arm cuff for this unit. Use of other arm cuffs may result in incorrect measurement results.
- Make sure that the air tube is not wrapped around other parts of your body when taking measurements. This could result in injury when the air pressure in the air tube is increased.
- Do not leave the cuff wrapped on the arm if taking measurements during the night. This could result in injury.
- Do not use a mobile phone or other devices that emit electromagnetic fields, near the unit. This may result in incorrect operation of the unit.
- Do not operate the unit in a moving vehicle (car, airplane).
- To inflate the cuff manually, refer to Taking a Reading Section. If the cuff is over inflated, it can cause internal bleeding.
(Battery Usage)
- If battery fluid should get on your skin or clothing, immediately rinse with plenty of clean water.
- Use only four "AAA" alkaline or manganese batteries with this unit. Do not use other types of batteries.
- Do not insert the batteries with their polarities incorrectly aligned.
- Replace old batteries with new ones immediately. Replace all four batteries at the same time.
- Remove the batteries if the unit will not be used for three months or more.
- Do not use new and used batteries together.
General Precautions
- Do not apply strong shocks and vibrations to or drop the unit and arm cuff.
- Do not take measurements after bathing, drinking alcohol or caffeine, smoking, exercising or eating.
- Do not forcibly bend the arm cuff or bend the air tube excessively.
- When removing the air tube, pull on the air plug at the connection with the main unit not the tube itself.
- Do not inflate the arm cuff when it is not wrapped around your arm.
- Read and follow the "Important information regarding Electro Magnetic Compatibility (EMC)" in the Technical Data Section.
- Read and follow the "Correct Disposal of This Product" in the Technical Data Section when disposing of the device and any used accessories or optional parts.
Overview
Main unit
![ProLogic - PL100 - Overview of the Main unit - Part 1 Overview of the Main unit - Part 1]()
![ProLogic - PL100 - Overview of the Main unit - Part 2 Overview of the Main unit - Part 2]()
- Display
- O/I START (
) button
- Air Jack
- Battery compartment
Arm cuff
![ProLogic - PL100 - Overview of the Arm cuff Overview of the Arm cuff]()
- Arm cuff (Medium Cuff: arm circumference 22-32 cm)
- Marker
- Air tube
- Air plug
Display
![ProLogic - PL100 - Overview of the Display Overview of the Display]()
- Systolic blood pressure
- Diastolic blood pressure
- Heartbeat symbol (Flashes during measurement)
- Battery low symbol
- Pulse display
- Deflation symbol
Preparation
Installing/Replacing the Batteries
- Remove the battery cover.
- Insert four "AAA" batteries as indicated in the battery compartment and then replace the battery cover.
![ProLogic - PL100 - Installing/Replacing the Batteries Installing/Replacing the Batteries]()
Notes:
- If the battery low symbol (
) appears on the display, turn the unit off then replace all batteries at the same time.
Disposal of used batteries should be carried out in accordance with the national regulations for the disposal of batteries.
Using the Unit
Applying the Arm Cuff
Remove tight-fitting clothing or tight rolled up sleeve from your upper arm.
Do not place the cuff over thick clothes.
- Insert the air plug into the air jack.
![ProLogic - PL100 - Applying the Arm Cuff - Step 1 Applying the Arm Cuff - Step 1]()
- Put your arm through the cuff loop.
![ProLogic - PL100 - Applying the Arm Cuff - Step 2 Applying the Arm Cuff - Step 2]()
- Position the arm correctly.
![ProLogic - PL100 - Applying the Arm Cuff - Step 3 Applying the Arm Cuff - Step 3]()
The bottom edge of the cuff should be 1 to 2 cm above the elbow. Marker (arrow under tube) is centred on the middle of your inner arm. Close the fabric fastener FIRMLY.
![]()
Notes:
- When you take a measurement on the right arm, air tube will be at the side of your elbow. Be careful not to rest your arm on the air tube.
![]()
- The blood pressure can differ between the right arm and the left arm, and therefore also the measured blood pressure values can be different. OMRON recommends to always use the same arm for measurement. If the values between the two arms differ substantially, please check with your physician which arm to use for your measurement.
How to Sit Correctly
To take a measurement, you need to be relaxed and comfortably seated, under comfortable room temperature. No eating, smoking or exercising 30 minutes before taking a measurement.
- Sit on a chair with your feet flat on the floor.
- Sit upright with your back straight.
- The cuff should be at the same level as your heart.
![ProLogic - PL100 - How to Sit Correctly How to Sit Correctly]()
Taking a Reading
Notes:
- To cancel a measurement, press the O/I START button to turn off the unit and to release the air in the arm cuff.
- Remain still while taking a measurement.
- Press the O/I START button.
The cuff will start to inflate automatically.
![ProLogic - PL100 - Taking a Reading Taking a Reading]()
![]()
If your systolic pressure is more than 140 mmHg
After the cuff starts to inflate, press and hold the O/I START button until the monitor inflates 30 to 40 mmHg higher than your expected systolic pressure.
Notes:
- The monitor will not inflate above 299 mmHg.
- Do not apply more pressure than necessary.
- Remove the arm cuff.
- Press the O/I START button to turn the monitor off.
It will automatically turn off after five minutes.
![]()
- Recent research suggests that the following values can be used as a guide to high blood pressure for measurements taken at home.
Systolic Blood Pressure | Above 135 mmHg |
Diastolic Blood Pressure | Above 85 mmHg |
This criteria is for home blood pressure measurement.
Note:
Wait 2-3 minutes before taking another blood pressure measurement.
Waiting between readings allows the arteries to return to the condition prior to taking the blood pressure measurement.
![]()
Self-diagnosis of measured results and treatment are dangerous.
Please follow the instructions of your doctor.
Troubleshooting and Maintenance
The Icons and Error Messages
Error Display | Cause | Remedy |
![]() | Cuff is under inflated. | Carefully read and repeat the steps listed under section "Taking a Reading". |
![]() | Movement during measurement. | Repeat measurement. Remain still and do not talk during measurement |
Air plug disconnected. | Insert the air plug securely. Refer to section "Applying the Arm Cuff" . |
Arm cuff not applied correctly. | Apply the arm cuff correctly. Refer to section "Applying the Arm Cuff" |
Clothing is interfering with the arm cuff. | Remove any clothing interfering with the arm cuff. |
Clothing is interfering with the arm cuff | Replace cuff with new one. |
![]() | Arm cuff has been inflated above 299 mmHg. | Do not inflate the arm cuff above 299 mmHg. Refer to section "Taking a Reading" |
![]() Blinks or appears continuously | Battery power is low. | Replace all four "AAA" batteries with new ones. Refer to section "Installing/Replacing the Batteries" |
![]() | Device error. | Contact your OMRON retail outlet or distributor. |
Troubleshooting
Problem | Cause | Remedy |
The reading is extremely low (or high). | Arm cuff not applied correctly. | Apply the arm cuff correctly. Refer to section "Applying the Arm Cuff". |
Movement or talking during measurement. | Remain still and do not talk during measurement. |
Clothing is interfering with the arm cuff. | Remove any clothing interfering with the arm cuff. |
Arm cuff pressure does not rise. | The air plug is not securely inserted into the main unit. | Make sure that the air jack is connected securely. Refer to section "Applying the Arm Cuff". |
Air is leaking from the arm cuff. | Replace the arm cuff with a new one. |
Arm cuff deflates too soon. | The arm cuff is loose. | Apply the cuff correctly so that it is firmly wrapped around the arm. Refer to section "Applying the Arm Cuff". |
Cannot measure or readings are too low or too high. | The arm cuff has not been inflated sufficiently. | Inflate the cuff so that it is 30 to 40 mmHg above your previous measurement result. Refer to section "Taking a Reading". |
The unit loses power during measurement. | The batteries are empty. | Replace the batteries with new ones. |
Nothing happens when you press the buttons. | The batteries are empty. | Replace the batteries with new ones. |
The batteries have been inserted incorrectly. | Insert the batteries with the correct (+/ -) polarity. |
Other problems. | Press the O/I START button and repeat measurement. If the problem continues, try replacing the batteries with new ones. If this still does not solve the problem, contact your OMRON retail outlet or distributor. |
Maintenance
To protect your unit from damage, please observe the following:
- Do not subject the main unit and the cuff to extreme temperatures, humidity, moisture or direct sunlight.
- Do not fold the cuff or tubing tightly.
- Do not disassemble the unit.
- Do not subject the unit to strong shocks or vibrations (for example, dropping the unit on the floor).
- Do not use volatile liquids to clean the main unit.
- Do not wash the arm cuff or immerse it in water.
- Do not use petrol, thinners or similar solvents to clean the arm cuff.
- Do not carry out repairs of any kind yourself. If a defect occurs, consult your OMRON retail outlet or distributor as mentioned on the packaging.
![ProLogic - PL100 - Maintenance Maintenance]()
- The unit should be cleaned with a soft, dry cloth.
- Use a soft, moistened cloth and soap to clean the arm cuff.
Calibration and Service
- The accuracy of this blood pressure monitor has been carefully tested and is designed for a long service life.
- It is generally recommended to have the unit inspected every two years to ensure correct functioning and accuracy. Please consult your authorised OMRON dealer or the OMRON Customer Service at the address given on the packaging or attached literature.
Storage
- Unplug the air tube from the air jack.
- Gently fold the air tube into the arm cuff.
![]()
Note: Do not bend the air tube excessively.
Do not store the unit in the following situations:
- If the unit is wet.
- Locations exposed to extreme temperatures, humidity, direct sunlight, dust or corrosive vapours.
- Locations exposed to vibrations, shocks or where it will be at an angle.
Optional Parts
- Medium Arm Cuff
Arm circumference
22 - 32 cm
CM2-9513256-6
(Model: HEM-CR24)
- Large Arm Cuff
Arm circumference
32 - 42 cm
![]()
CL2-9513255-8
(Model: HEM-CL24)
Technical Data
Product Description | Automatic Blood Pressure Monitor |
Model | ProLogic PL100 (HEM-7101-PR) |
Display | LCD Digital Display |
Measurement Method | Oscillometric method |
Measurement Range | Pressure: 0 to 299 mmHg Pulse: 40 to 180/min. |
Accuracy | Pressure: ±3 mmHg Pulse: ±5% of display reading |
Inflation | Automatic by electric pump |
Deflation | Automatic pressure release valve |
Power Source | 4 "AAA" batteries 1.5V (not included) |
Battery Life | Capacity of new alkaline batteries is approx. measurements |
Applied Part | = Type B |
Protection Against Electric Shock | Internally powered ME equipment |
Operating temperature/ Humidity | +10°C to +40°C / Maximum: 30 to 85% RH |
Storage temperature/ Humidity | -20°C to +60°C / Maximum: 10 to 95% RH / 700-1060hPa |
Console Weight | Approximately 315g without batteries |
Cuff Weight | Approximately 120g |
Outer Dimensions | Approximately 103 (w) mm × 62 (h) mm × 125 (l) mm |
Cuff Dimensions | Approximately 146 mm × 446 mm (Medium cuff: arm circumference 22 to 32 cm) |
Cuff Material | Nylon and polyester |
Package Content | Main unit, cuff, instruction manual |
Note: Subject to technical modification without prior notice.
![]()
