Page 1

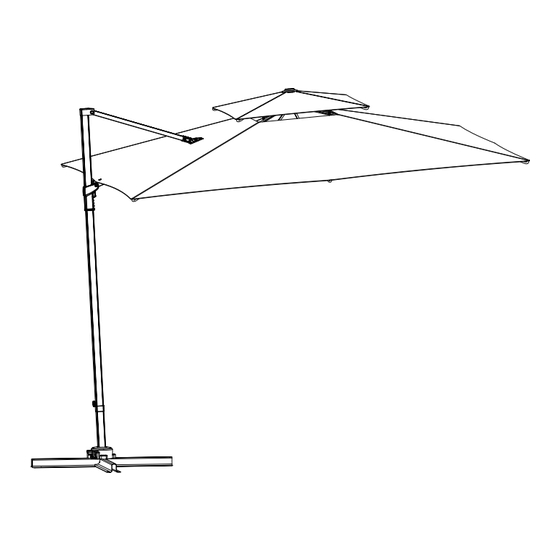

Patio Umbrella Parasol de Jardin NP10887 USA office: Fontana AUS office: Truganina GBR office: Ipswich FRA office: Saint Vigor d'Ymonville THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Page 2
Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. Read through each step carefully and follow the proper order. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled.
Page 4
③ ② ② ① ① EN: Cut off the packing material of the umbrella pole as shown in Figure 1. Take off the packing material of the tray as shown in Figure 2. FR: Coupez le matériau d'emballage du mât du parasol comme ②...
Page 5
EN: Open the sunshade by ① pushing ① and ② simultaneously in the direction of arrow. FR: Ouvrez le parasol en ② poussant simultanément ① et ② ② dans le sens de la flèche. ① ③...
Page 6
Return / Damage Claim Instructions DO NOT discard the box / original packaging. In case a return is required, the item must be returned in original box. Without this your return will not be accepted. Take a photo of the box markings. Push A photo of the markings (text) on the side of the box is required in case a part is needed for replacement.
