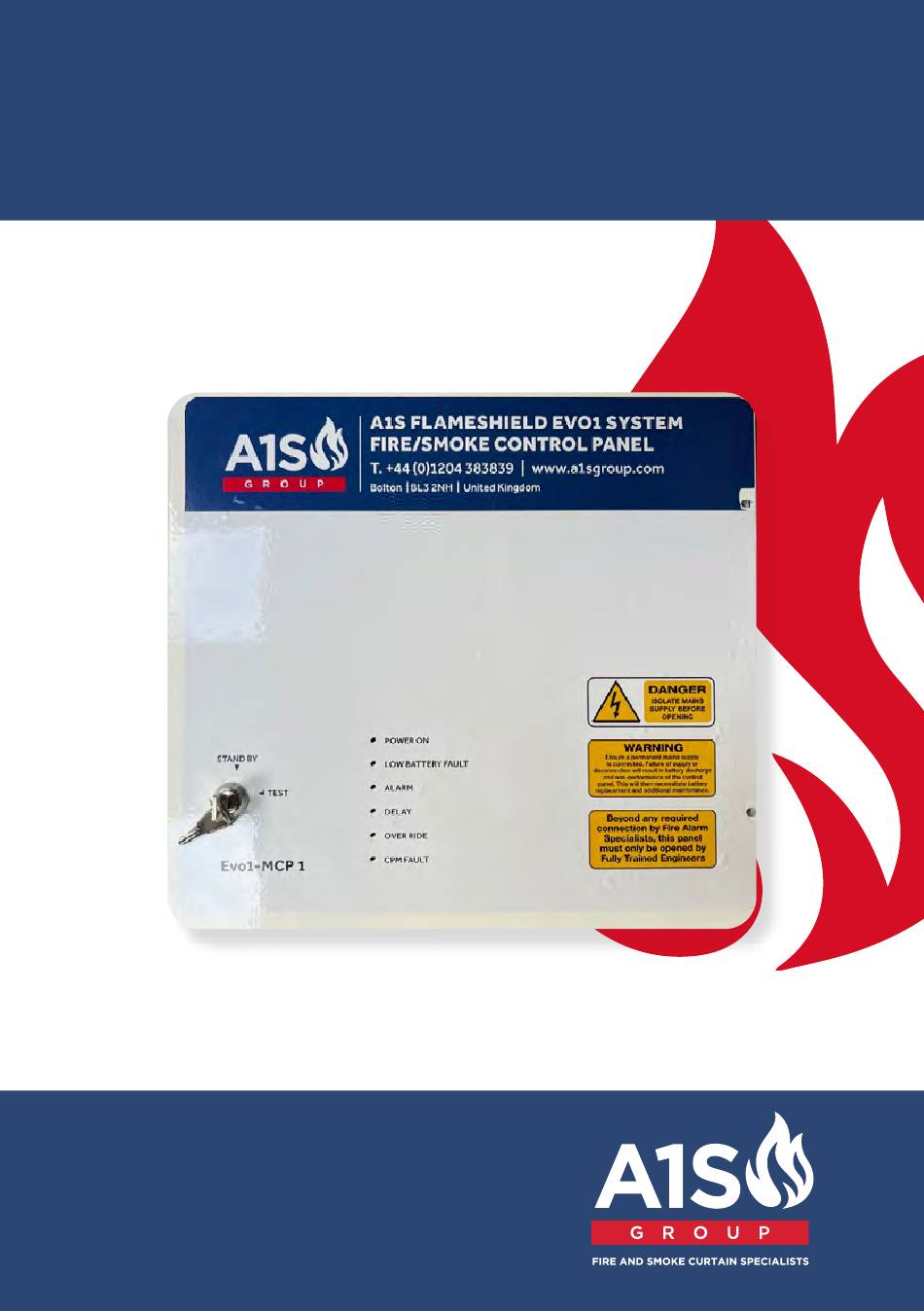

Summary of Contents for A1S Group Evo1-MCP 1
- Page 1 Back to contents A1S Group Evo System A1S Group Evo System Smoke and fire curtain systems Technical Manual Ver 1.05 +44 (0) 1204 383839 info@a1shutters.co.uk www.a1sgroup.com...
-
Page 2: Table Of Contents
Contents Mechanical Installation Instructions > Control Panel Lighting > Motor Control Board Lighting > General Overview Instructions > Control Panel Wiring > Motor Control Board Wiring > Dip Switch Settings > Override Switch Wiring to Control Panel > Override Switch Wiring to Motor Control Board > Control Panel Function Programming >... - Page 3 Back to contents Disclaimer This technical manual contains information for the installation of our range of Evo System fire and smoke curtains, the manual should only be used by competent installers of fire and smoke curtains with relevant training and or experience, in no way should untrained individuals attempt to install this life critical fire / smoke protection range of products.
-
Page 4: Mechanical Installation Instructions
Back to contents Mechanical Installation Instructions... - Page 5 Back to contents Mechanical Installation instructions This product should only be installed by competent engineers/ installers. All risk assessments for the installation should be site specific and carried out by a competent person prior to installation. Prior to mechanical installation All packaging must be removed with extreme care and no sharp tools should be used, the fabric is rolled around the roller assembly and will very easily be damaged.
- Page 6 Back to contents Approved fixings for smoke & fire curtains Head Box Minimum embedded depth of 55mm 1, M6 loose bolt shield anchor with 2, Concrete screws steel and nylon washer. M6 x 80, 100, 120 or 125mm with Drill size 14mm minimum hole depth steel and nylon washer.
- Page 7 Back to contents Head Box - Drawing ID 01/02 • The head box is manufactured from mild steel sheet, which depending on the length may come in pre-assembled sections. Each part of the head box is clearly marked inside. All roller support brackets and hood support brackets must be installed in the pre-drilled locations.
- Page 8 Back to contents Roller Assembly and Curtain - Drawing ID 03 + 04 • Using the correct lifting method (minimum two people) lift the curtain and roller assembly up to the head box. Install the dummy sliding end into the end plate cup and secure with the M8 x 40 Allen screw.
- Page 9 Back to contents Attaching the bottom bar cont. • All 6 rivets must be fitted and secured to prevent the curtain pulling through the retainers. • Drill through the fabric with a 6.5mm drill bit (the pre drilled bottom bar holes should align and you should only be drilling the fabric) the bottom bar has been factory assembled and no cutting or drilling is required.
- Page 10 Back to contents Guide fronts - Drawing ID 07 • Lift the guide front onto the rear part of the guide channel and align with the M6 studs, secure with M6 nuts provided, Nylon cover caps are provided for the nuts. if the guides are slightly pinched or overfolded then gently prise the guides open leaving a true gap of between 8 mm to 10mm from top to bottom between the internal running faces of the guides MCC and MCB Fixing...
-
Page 17: Control Panel Lighting
Back to contents Control Panel Lighting... - Page 18 Back to contents Control Panel Lighting Normal Green power on Retracted Green power on Closing or Closed Alarm signal Red alarm on activated Panel beeps Low battery Amber light on Open or Closed fault / Power failure Delay Blue light on Alarm Delay set in programming Override...
- Page 19 Back to contents • A Green light Power on indicates the panel has a healthy mains supply to the PSU. • Amber light Low battery fault on indicates either there is a mains failure to the panel or the batteries are below the required voltage and will require charging, the panel constantly monitors the battery voltage and will detect when low, once recharged the light will go out.
-
Page 20: Motor Control Board Lighting
Back to contents Motor Control Board Lighting... - Page 21 Back to contents Motor Control Board Lighting Motor control board lighting sequence The MCB has 3 green lights Power Brake, status and one Red fault light. When the curtain is retracting after an alarm, test or initial power up the following lighting sequence should take place.
-
Page 22: General Overview Instructions
Back to contents General Overview Instructions... - Page 23 Back to contents General Overview Instructions prior to mains connection If the below instructions are followed correctly you should have a very secure balanced system that will give a minimum of 850 cycles. The Control Panel must be mounted vertically and have sufficient air flow around the perimeter Approx 10cm, the side louvres must not be obstructed this could cause overheating of the power supply unit.
- Page 24 Back to contents • It is important to check the motor cable is correctly wired into the Motor control board {MCB) the power+ and - terminals and the brake out + and - Incorrect wiring will damage the motor and board. •...
-
Page 25: Control Panel Wiring
Back to contents Control Panel Wiring... - Page 26 24V DC MOB OUT BRAKE...
- Page 27 24V DC MOB OUT BRAKE...
- Page 28 Back to contents Main Control Panel Do not remove the fire signal loop wire until the curtains have been fully commissioned as this will eradicate any issues there could be with the fire signal which is not our responsibility. Wiring main control panel to first Motor control board Brown to MDB out - Black to MDB out - neg...
- Page 29 Back to contents Battery and mains connections Battery connections Firstly install the link wire using the negative terminal on one battery and the positive terminal on the second battery. Now connect the battery wires from the PCB Red wire to the positive terminal on one battery Black wire to the negative terminal on the second battery.
-
Page 30: Motor Control Board Wiring
Back to contents Motor Control Board Wiring... - Page 34 Back to contents Motor Control Board Wiring Motor Control Board from Main Control Panel Blue to brake in Grey to brake in Brown to power Black to power If the brown and black wires are to be removed from the board the curtains must be in the closed position or the bottom bar must be chocked in the guide channel prior to disconnection, the curtains will free fall at speed and damage will occur.
- Page 35 Back to contents Wiring motor to MCB Blue to brake out Grey to brake out Brown to motor out Black to motor out The above 2 motor wires are for right hand motors viewed from the roller side for a left hand motor swap over brown and black. Loop wiring MCB to MCB Blue to brake in Grey to brake in...
-
Page 36: Dip Switch Settings
Back to contents Dip Switch Settings... - Page 37 Back to contents Dip switch settings The dip switches are used to adjust the Current required to lift the curtain. Dip switch Current limit % 100% It is important to set the switches correctly, if set too low the motor will stall, too high the motor will pull the bottom rail off the curtain when retracted.
- Page 38 Back to contents Dip Switches Cont. This balance is very important and if not enough current is applied the motor will stall prior to a full retract, if too much power is applied the bottom bar will hit the head box with too much power and possibly detach from the curtain. Careful setting and balancing is very easy and very important.
-
Page 39: Override Switch Wiring To Control Panel
Back to contents Override Switch Wiring to Control Panel... - Page 40 Back to contents Override switch wiring to main control panel Brown to override Blue to override The above wires can connect to either of the override terminals as this is a volt free signal. Wiring to the push switch access or retract Only use the yellow pair of wires (normally open) Brown to yellow...
-
Page 41: Override Switch Wiring To Motor Control Board
Back to contents Override Switch Wiring to Motor Control Board... - Page 42 Back to contents Override Switch wiring to the motor control board (MCB) Fire rated cable is required for all external wiring when using override switches. 2 Core fire rated cable is required When switches are wired to the motor control board (MCB) only the motor connected to the board will retract The egress switch (green) will retract the curtain whilst the button is held pressed, once released the curtain will close back to the fire safe position.
- Page 43 Back to contents Wiring of an access switch The link wire must be used to power the override circuits, Link out Brake in + to override + Use left hand override terminal Brown to+ on the override terminal (double up with the link wire) Blue to In on same override terminal Wiring to the push switch access or retract...
-
Page 44: Control Panel Function Programming
Back to contents Control Panel Function Programming... - Page 45 Back to contents Control Panel functions and programming Press and hold the right hand button for 2 seconds to enter the programming mode, keep pressing the right hand button to scroll through the menu, when a function is visible the configuration on the bottom line can now be adjusted. Enter PIN This is the pin code required to enter the programming mode, the pin is factory set at 1234, press the right hand button 4 times to enter programming mode.
- Page 46 Back to contents Delay before close After a fire alarm signal has been detected a delay can be set in seconds between 0 and 600 seconds, once set the curtain will remain in the retracted position for the required time. This feature can be set in Increments of one second.
- Page 47 Back to contents Two stage drop time The Two stage Drop function upon a fire alarm signal will allow the curtain to close to the timed distance of the close travel and stop, the travel distance can be set between 0 and 120 seconds. •...
- Page 48 Back to contents Low battery drop time Low Battery Drop time in seconds between 5 and 60 seconds. Increments of one second. • Press and release the centre button to increase the seconds. • Press and hold the centre button to increase the seconds by 10. •...
- Page 49 Back to contents Low battery hold/drop cycles Low Battery Hold cycles can be set between 1 and 10 cycles. Increments of one cycle. • Press and release the centre button to increase cycles. • Press and release the left-hand button to decrease the cycles. •...
- Page 50 Back to contents Curtain close This is the time which the curtain will remain in the fire safe closed position after the alarm signal has ceased prior to commencing an auto reset which can be set between Disabled 0 and 600 seconds. Disable will instantly auto reset each curtain once the fire signal ends and the circuit returns to normally closed.
- Page 51 Back to contents OPTIONS ENABLE /DISABLE Override input Enables or Disables the main PCB Override input, when enabled whilst in alarm a momentary press of the override button will open the curtain for the configured override time. • Press and release the centre button to toggle between Enable and Disable. •...
- Page 52 Back to contents OPTIONS YES NO Change user PIN The four-digit user PIN can be adjusted. When a line is under a digit it can be adjusted using the centre button, to go to the digit on the right press and release the right-hand button, to go to the previous digit press and release the left-hand button.
- Page 53 Back to contents OPTIONS DISABLED FIRE ALARM INPUT OVERRIDE INPUT Spare Inputs 1 & 2 These input can be configured to accept a second fire signal or additional remote over ride switches • Disabled • Fire Alarm Input • Override Input Press and release the centre button to move through the various options.
-
Page 54: Optional Extras
Back to contents Optional Extras... - Page 55 Back to contents Optional extras Smoke detector The detector is wired to the fire alarm port or to the second fire alarm port and will activate the curtain in a localised position in addition to the the fire signal, once activated the curtain will deploy in a active alarm condition.
- Page 56 Back to contents Optional extras Cont. Voice audio alarm Normally located adjacent to the curtain, activated by a fire signal with a voice warning of “caution fire curtain closing” as standard however other play back messages can be requested. Audio visual unit This is normally located adjacent to the curtain to warn the curtain is deploying or about to deploy if close wait is programmed.
- Page 57 Back to contents Optional extras Cont. Standard beacon and sounder This is normally located adjacent to the curtain to warn the curtain is deploying or about to deploy if close wait is programmed.
-
Page 58: Wiring Of Optional Extras
Wiring of Optional Extras... - Page 59 Back to contents Wiring of a smoke/heat detector to the detector head 4 core cable is required Brown Black Grey Blue Wiring of a smoke/heat detector To the control panel input 1 or 2 Brown Blue Grey Black Either input 1 (IN1) or 2 (IN2) can be configured •...
- Page 60 Back to contents Wiring of beacon and sounder Standard beacon and sounder 2 core cable is required • Install the loop wire from 24v to common on relay 1 or relay 2 • Connect the blue cable to 0v • Connect the brown cable to NO on relay •...
- Page 61 Back to contents Wiring of audio visual panel (AV) Standard audio visual panel 2 core cable is required • Connect the brown cable to the red cable at the connector block • Connect the blue cable to the black cable at the connector block •...
- Page 62 Back to contents Wiring of speak easy voice warning 2 core cable is required The standard box has 3 cables The red cable message is: “Caution Fire Curtain Closing“ The blue cable is not used . • Install the loop wire from 24v to common on Relay 1 or relay 2 •...
- Page 63 Back to contents Wiring of additional remote test key switches 2 core fire rated cable is required Wiring of remote test key switch to the main control panel Input 1 or 2 Brown Blue Wiring of remote test key switch to the key switch Use only the yellow pair of wires normally open.
-
Page 64: Fault Finding
Back to contents Fault Finding... - Page 65 Back to contents Fault Finding The curtains fail to close or part close on receipt of a fire alarm signal or test. • Check there has been no modifications to the ceiling or walls that could prevent the curtain and bottom bar from deploying. •...
- Page 66 Back to contents Fault Finding Cont. Curtains close on power failure. • Replace the batteries and check the panel is charging by the LCD display. Power light not illuminated • Check the mains supply. • Check the mains fuse. • Check if The power supply unit has failed check the voltage at the MCB 24v DC. •...
-
Page 67: Maintenance & Service
Back to contents Maintenance & Service... - Page 68 Back to contents Maintenance Although our products have been through stringent cyclic testing, over 1000 cycles for a 8m drop curtain on our smoke curtain to obtain BS EN 12101-1 at our maximum width, our fire curtain has also been cyclic tested to over 850 cycles to achieve the requirement of annex D (BS8524) there is still a requirement to carry out weekly or monthly tests and an annual full service.
- Page 69 Back to contents Annual Service This should be carried out by fully trained fire/smoke curtain engineers. In addition to the above the following should be carried out: • Open the front cover of the Main control panel. • Remove one leg of the fire alarm and the curtain or curtains should deploy and close to their correct position without any snagging .
- Page 70 Back to contents Annual Service Cont. • Remove the mains supply fuse in the panel, this will switch the panel over to battery back up operation and the panel lcd should display a mains fault by the green light goes out and the amber battery light illuminates. •...
- Page 71 EVO System Maintenance Record Date Engineer Action Taken Date Engineer Action Taken Date Engineer Action Taken...
- Page 72 EVO System Maintenance Record Date Engineer Action Taken Date Engineer Action Taken Date Engineer Action Taken...
- Page 73 EVO System Maintenance Record Date Engineer Action Taken Date Engineer Action Taken Date Engineer Action Taken...
-
Page 74: Standard Drawings Headbox & Guides
Back to contents Standard Drawings Headbox and Guides... - Page 75 FIRE CURTAIN HEADBOX INFORMATION HEAD BOX 1 HEAD BOX 1 - 180 x 230mm PRODUCT CURTAIN DROP OVERALL WIDTH up to 5000mm up to 4000mm BS EN 1634 up to 5000mm up to 3500mm EW 120 HEAD BOX 2 HEAD BOX 2 - 210 x 260mm PRODUCT CURTAIN DROP OVERALL WIDTH...
- Page 76 SMOKE CURTAIN HEADBOX INFORMATION HEAD BOX 1 HEAD BOX 1 - 180 x 210mm PRODUCT CURTAIN DROP OVERALL WIDTH up to 5000mm up to 5000mm BS EN 12101 HEAD BOX 2 HEAD BOX 2 - 210 x 260mm HEAD BOX 2 - 210 x 260mm PRODUCT CURTAIN DROP OVERALL WIDTH...
- Page 77 MAX & MULTI ROLLER FIRE CURTAIN HEADBOX INFORMATION MAX HEAD BOX MAX HEAD BOX - 250 x 300mm PRODUCT CURTAIN DROP OVERALL WIDTH up to 6000mm BS EN 1634 5001 - 10000mm OVERLAPPING HEAD BOX 1 OVERLAPING HEAD BOX 1 - 180 x 380mm PRODUCT CURTAIN DROP OVERALL WIDTH...
- Page 78 MULTI ROLLER SMOKE CURTAIN HEADBOX INFORMATION OVERLAPPING HEAD BOX 1 OVERLAPING HEAD BOX 1 - 180 x 380mm PRODUCT CURTAIN DROP OVERALL WIDTH up to 3800mm up to 30000mm BS EN 12101 OVERLAPPING HEAD BOX 2 OVERLAPING HEAD BOX 2 - 225 x 425mm PRODUCT CURTAIN DROP OVERALL WIDTH...
- Page 79 FIRE CURTAIN GUIDE INFORMATION APPLICATION: · SINGLE FIRE CURTAINS UP TO 5000 X 5000mm REMOVABLE FRONT PLATE 100mm GUIDE DETAIL APPLICATION: · SINGLE FIRE CURTAINS WITH A CURTAIN DROP OVER 5000mm · 'MAX' FIRE CURTAINS · MULTI ROLLER FIRE CURTAINS REMOVABLE FRONT PLATE 125mm GUIDE DETAIL...
- Page 80 FIRE CURTAIN GUIDE INFORMATION - SMOKE SEALS APPLICATION: · SINGLE FIRE CURTAINS UP TO 5000 X 5000mm REMOVABLE FRONT PLATE 100mm GUIDE DETAIL APPLICATION: · SINGLE FIRE CURTAINS WITH A CURTAIN DROP OVER 5000mm · 'MAX' FIRE CURTAINS · MULTI ROLLER FIRE CURTAINS REMOVABLE FRONT PLATE 125mm GUIDE DETAIL...
