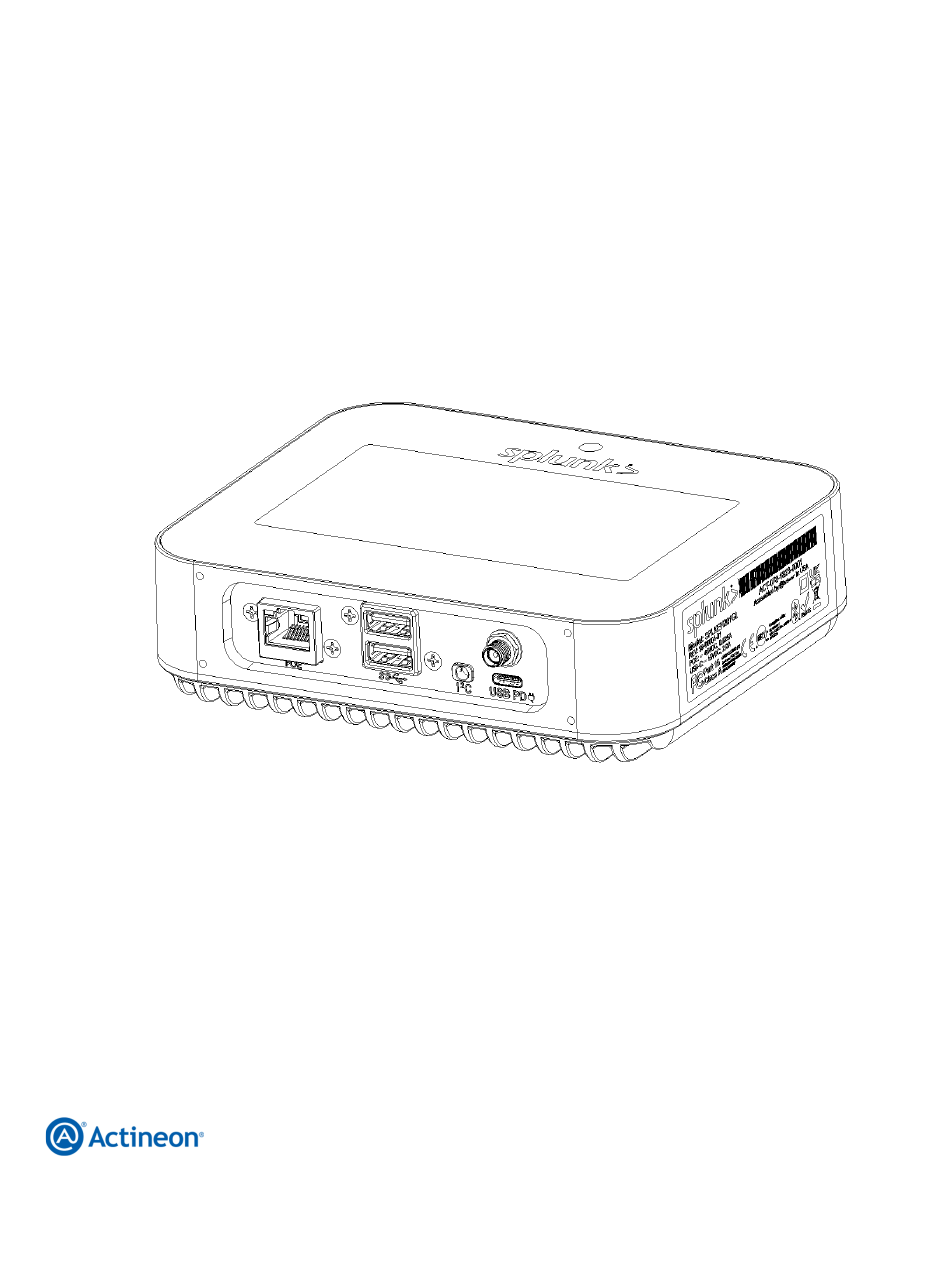

- Page 1 ® Splunk Edge Hub User Manual May 2023 SPLKEH201GL 382 Laurelwood Rd Santa Clara, CA 95054...
- Page 2 Actineon logo are trademarks of Splunk Inc. Any non-Actineon trademarks are used for reference purposes only. ® Splunk and the Splunk logo are trademarks of Splunk Inc. in the United States and other countries. All Splunk logos and trademarks used herein are licensed to Actineon by Splunk.
-
Page 3: Table Of Contents
Contents Welcome to Splunk Edge Hub by Actineon About the Splunk Edge Hub partner program Partner services Edge Hub Central (EHC) Customer support escalation Splunk Edge Hub warranty Set up and configure Splunk Edge Hub software Mount your Splunk Edge Hub... -
Page 4: Welcome To Splunk Edge Hub By Actineon

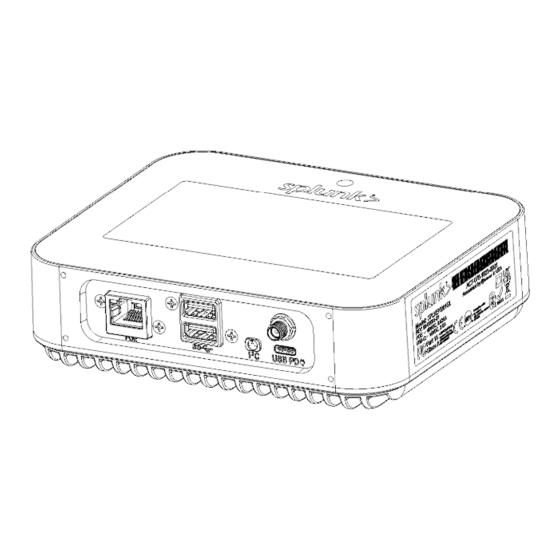

Splunk Edge Hub. The Splunk Edge Hub is a hardware device built by Actineon. It has built-in sensors and is specifically configured to integrate into your Splunk-based IoT solutions. It collects sensor data and streams the data into your Splunk platform instance. -
Page 5: About The Splunk Edge Hub Partner Program
About the Splunk Edge Hub partner program Splunk matches customers with a partner who handles Splunk Edge Hub transaction, installation, and support. Partner services The partner provides the following Splunk Edge Hub services: ● Upon request, provides bumper guards and splash guards to protect ports ●... -
Page 6: Splunk Edge Hub Warranty
THIRD‐PARTY PRODUCT OR SOFTWARE; (3) AS TO THE UNINTERRUPTED OR ERROR‐FREE OPERATION OF A PRODUCT, OR (4) REGARDING THE RESULTS TO BE OBTAINED FROM THE PRODUCT OR SOFTWARE. ACTINEON EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDITIONS NOT STATED IN THIS LIMITED WARRANTY. SOME STATES OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF EXPRESS OR IMPLIED WARRANTIES, SO THE ABOVE EXCLUSIONS MAY NOT APPLY TO YOU. - Page 7 Supplier may change the provision or term of these limited hardware warranties at its discretion, but any changes will not be retroactive. ACTINEON'S SOLE RESPONSIBILITY FOR DEFECTS IN MATERIALS OR WORKMANSHIP IS LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT, OR A PART OR COMPONENT THEREOF, AS DETERMINED BY ACTINEON.
-
Page 8: Set Up And Configure Splunk Edge Hub Software
Set up and configure Splunk Edge Hub software The Splunk Edge Hub device requires the Splunk App for AR and Edge Hub installed on your Splunk platform deployment. The Splunk Edge Mobile apps are required to set up and configure your Splunk Edge Hub using a compatible mobile device. -
Page 9: Mount Your Splunk Edge Hub
Mount your Splunk Edge Hub Mount the Splunk Edge Hub where you want to collect and monitor data. You can mount your device using a bracket or DIN rail. The Splunk Edge Hub uses the following hardware for two mounting methods: 0u or 1u bracket mounting: ●... -
Page 10: Mount Your Splunk Edge Hub In A 0U Or 1U Orientation Using A Bracket
Mount your Splunk Edge Hub in a 0u or 1u orientation using a bracket You can mount the Splunk Edge Hub in 2 orientations using the provided brackets. Mounting the device on the side walls of an enclosure is called a 0u orientation: Mounting above or below a horizontal surface is called a 1u orientation: Mount your Splunk Edge Hub to a server rack using the provided bracket and screws. -
Page 11: 1A. Assemble In The 0U Orientation
1a. Assemble in the 0u orientation Assembling the bracket and mounting the Splunk Edge Hub so that the screen faces outward is called a 0u rack mount, because it uses 0 unit space on your rack. See the following images to assemble the bracket and attach the Splunk Edge Hub to the bracket in the 0u orientation. -
Page 12: 1B. Assemble In The 1U Orientation
1b. Assemble in the 1u orientation Assembling the bracket so that the device screen faces upward is called a 1u rack mount because it uses 1 unit of space on your rack. See the following images to assemble the bracket and attach the Splunk Edge Hub to the bracket in the 0u orientation. - Page 13 2. Mount your Splunk Edge Hub to your rack Your server rack comes with standardized bolts to mount equipment. Use these bolts to mount your device to rack. Use 2 or 3 bolts for both the 0u or 1u mounting method. This is the device mounted in a 0u orientation: This is the device mounted in a 1u orientation:...
-
Page 14: Mount Your Edge Hub Using A Din Rail
Mount your Edge Hub using a DIN rail You can mount the Splunk Edge Hub using a DIN rail, as shown in the following image: 1. Attach the Splunk Edge Hub to the DIN rail bracket Align the 3 holes on the back of the device with the DIN rail bracket. Use the 3 DIN rail screws to attach the bracket to the device: 2. -
Page 15: Mount Your Edge Hub To Your Rack
To remove the Edge Hub from the rail, push the springs again to release the device. 3. Mount your Edge Hub to your rack Your rack comes with standardized bolts to mount equipment. Use these bolts to mount your Edge Hub to your rack. Mounting solutions for more applications As part of the public preview program, Splunk hopes to gain more knowledge about various mounting approaches. -
Page 16: Power Your Splunk Edge Hub
Power your Splunk Edge Hub You can power the Splunk Edge Hub with the provided AC adaptor, USB-C cable or Power-Over-Ethernet (PoE) cable. You can also use both a PoE and USB-C cable together, so that one cable is a backup power source in case the other is unplugged. The following image displays where the USB-C and PoE ports used to power the Splunk Edge Hub are located: The following image displays where the power button is located:... -
Page 17: Use A Usb-C Cable
Use a USB-C cable You can use a USB-C cable with a power source that is capable of Power Delivery (USB-PD). The power source must be capable of providing 15V/2A. Use a PoE cable Ensure that your switch is PoE enabled. The Edge Hub was developed according to the standard for PoE 802.3bt (PoE++) and requires 40W. -
Page 18: Set Up The Splunk Edge Hub Software
Set up the Splunk Edge Hub software After powering your Splunk Edge Hub, follow the on-screen prompts to configure your device. See the Splunk Edge Hub software documentation for more information about configuring the Splunk Edge Hub software. Install, set up, and configure any necessary software for the external devices that you choose to connect. -
Page 19: Splunk Edge Hub Indicator Ring
Splunk Edge Hub indicator ring The Splunk Edge Hub has an indicator ring that illuminates in different colors to indicate the status of the device. The following table describes the meaning of each indicator ring color: Indicator ring color Meaning Blue The device is unregistered. -
Page 20: Troubleshoot The Splunk Edge Hub
Troubleshoot the Splunk Edge Hub The following documentation provides troubleshooting steps for if you encounter issues with the Splunk Edge Hub hardware. Unable to load sensor readings ( "-" value on screen) Perform a soft reset from the settings menu or press the power button and check if the sensor readings load. -
Page 21: Perform A Factory Reset On Your Splunk Edge Hub
Perform a factory reset on your Splunk Edge Hub Complete these steps to reset the device to its original factory settings. This doesn't unregister your Splunk Edge Hub. The following image displays the location of the hardware reset pinhole: On your Splunk Edge Hub, locate the reset pinhole. Depending on your version of the hardware, the pinhole may be on the front of the device or next to the USB and external sensor ports.
