Summary of Contents for ANHUA AOHB-8X

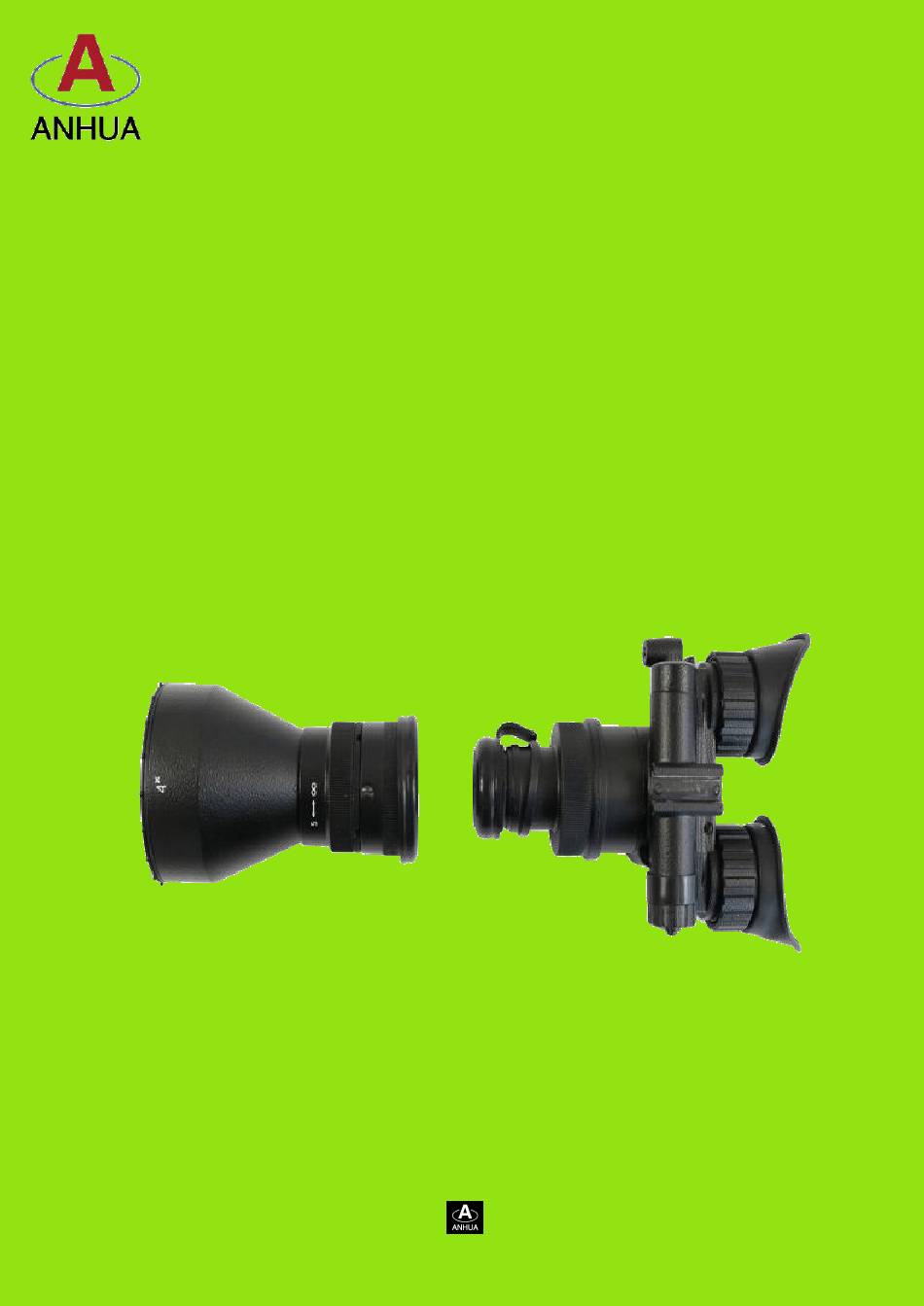

- Page 1 AOHB-8X 3 Gen night vision binocular instrument operation instructions...
- Page 2 A. Model Name: AOHB B. Product description AOHB night vision goggle is lightweight, compact, rugged, single-tube multifunctional night vision system. It utilizes a pseudo binocular design for added observation convenience. It has a built-in I R light source for complete darkness conditions. It is an exceptional choice for hands free (head-mounted and helmet-mounted) usage and ca n take either CR123 lithium battery or AA battery to power this unit without any other accessories.
- Page 3 detected will keep the same to ensure a stable viewing effect and also to protect users’ eyesight. Bright source protection: The device will shut off automatically in 10 seconds to avoid the ● damage of the image intensifier tube when the ambient light exceeds 40 Lux. Low battery indication: A greenish light in the edge of eyepiece will start flickering when the ●...
- Page 4 protect the image intensifier tube, keep the lens cap on the objective lens when the device is not in use or when checked out in daylight conditions. You might test the device through the pinhole in the center of protective cover (4) and the time can’t exceed 10 minutes. 3.
- Page 5 4. Push the same button ( F) to lower monocular to the viewing position. Turn the device on for continuation of the operation. Figure01 I. Precautions 1. Do not disassemble the unit. 2. It’s better to use device under +5℃ to +40℃. After the unit usage in temperatures below zero, wait at least 3 hours at room temperature, to avoid condensation accumulating on the internal lens surfaces and the consequent fogging caused by extreme temperature differences.
- Page 6 The observed image flickers or flashes This means there is too much light (e.g. observation during twilight conditions). Turn off the unit or place the objective lens cover. The unit will function normally in light conditions not in excess of 0.1Lx (full moon). The image is missing or not focused 1.
