Summary of Contents for SIEKON RM100 Series

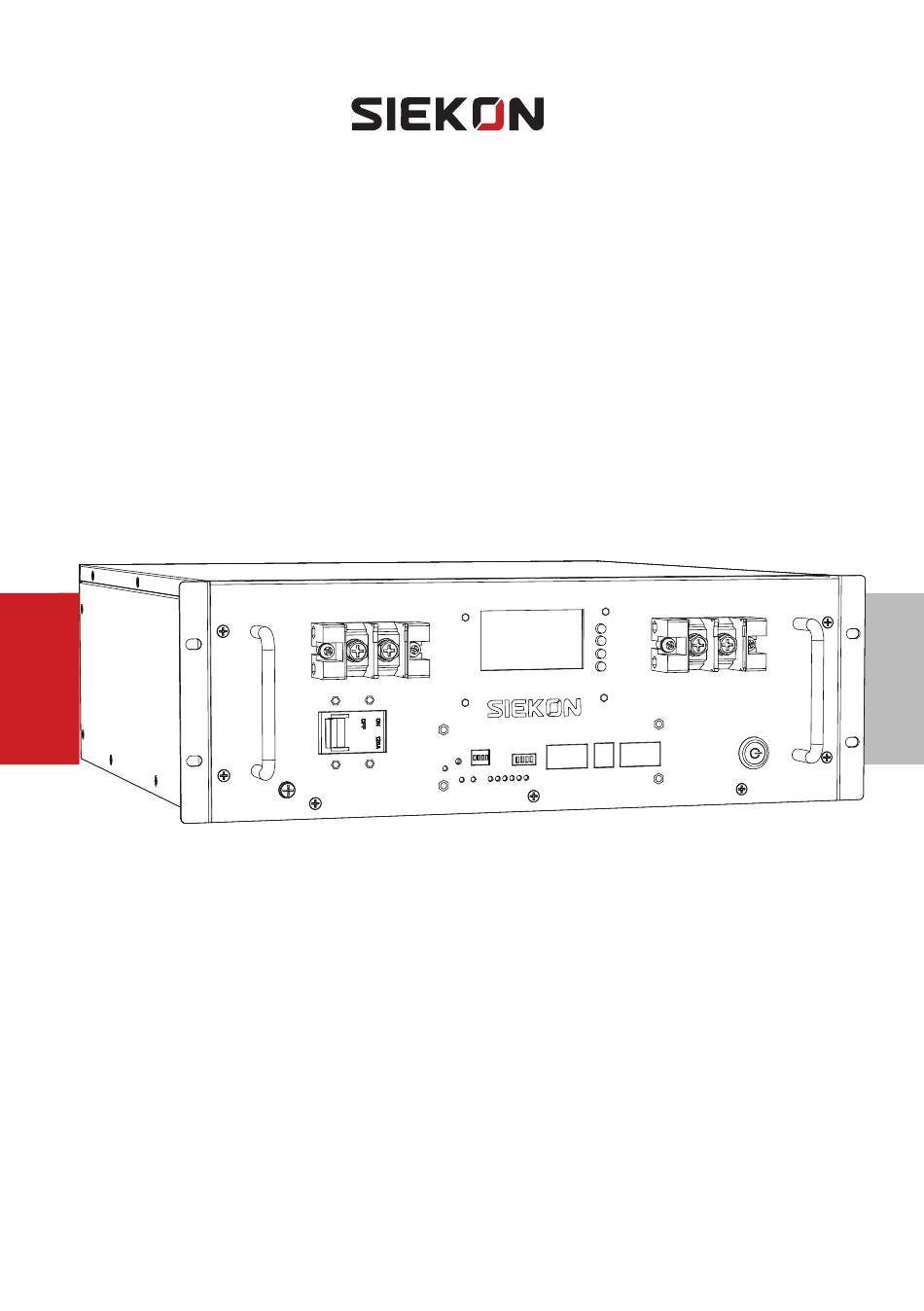

- Page 1 User Manual Residential Energy Storage Lithium Battery RM100 Series...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1.Introduction ......................01 1.1 Product Properties ..................01 1.2 Symbol Definition ..................01 2.Safety........................02 2.1 General Safety ....................02 2.2 Battery Safety ....................02 2.3 Safety Precautions ..................03 2.4 Emergency Measures ..................04 3.Product Introduction ..................05 3.1 Dimensions .....................05 3.2 Interface Definition ..................05 3.3 System Architecture ..................06 3.4 Technical Data .................... -
Page 4: Introduction
1.Introduction Thank you for choosing SIEKON’s energy storage system. SIEKON RM100 series are equipped with lithium iron phosphate batteries for family use. This system can be used to support reliable power for various types of equipment and systems. The energy storage module includes lithium-ion rechargeable batteries with 4.8Wh capacity, and the controller... -
Page 5: Safety
2.Safety The products are designed and tested strictly to comply with related safety rules. Read and follow all the safety instructions and cautions before any operations. Improper operation might cause personal injury or property damage as the products are electrical equipment. Safety information contained in this section must be always observed when working on or with batteries. -
Page 6: Safety Precautions
•The battery equipment is heavy. Please equip the corresponding personnel according to their weight, so that the equipment does not exceed the weight range the human body can carry, and cause personnel injury. •Contact after-sale service immediately if the battery is not able to be started. Otherwise, the battery might be damaged permanently. -
Page 7: Emergency Measures
Continued operation of the damaged battery may result in electrical shock, fire, or even worse. •Please do not open, repair, or disassemble the battery except staff from SIEKON or authorized by SIEKON. We do not undertake any consequences or related responsibility because of violation of safety operation or violation of design, production, and equipment safety standards. -
Page 8: Product Introduction
3.Product Introduction 3.1 Dimensions 480mm 155mm 442mm 480mm 480mm 3.2 Interface Definition DRY CONTACT RS485A RS232 RS485B RS485B RUN ALM CAPACITY Name Function Number Battery reset DIP switch. Show the address of battery DRY CONTACT Dry contact communication RS485A 485 communication interface CAN communication interface RS232 "Monitor battery and parameter changes;Perform software upgrades"... -
Page 9: System Architecture
ALARM State Condition SOC (Green) (Green) (Red) according to the state of charge (SOC) normal according to the state of charge (SOC) alarm according to the state of charge (SOC) alarm according to the state of charge (SOC) alarm 3.3 System Architecture Hybrid Inverter PV String Smart Meter... -
Page 10: Technical Data
3.4 Technical Data RM100 Series Model RL-RM1-48V100 Basic Parameters Rated Energy 4.8kWh Nominal Voltage Rated Capacity 100Ah Operating Parameters End-of-charge Voltage End-of-discharge voltage Standard charge Current Max Charge Current 100A Standard Discharge Current Max Discharge Current 100A Max Peak Current... -
Page 11: Installation
4.Installation 4.1 Packing List •Check the outer packaging for damage and model before unpacking it. If you find any damage or the model is not what you requested, do not unpack the product, and contact the after-sales service as soon as possible. •Check whether the deliverables are intact and complete first after unpacking the battery. -
Page 12: Installation Environment
4.3 Installation Environment •Install the Battery System on the ground with sufficient bearing capacity and flatness. •Increase the bearing capacity and flatness of the ground by laying the foundation, adding bearing plates, and so on. •The ambient temperature is within the range of -20°C to 60°C. •Do not install the product in a completely closed area with no air-conditioning. -
Page 13: Cable Connection
4.5 Cable Connection Overview of the cable connection Inverter Ground Standard Power Cable Power Cable Cable Net Cable for Negative Pole for Positive Pole Battery 1 Battery 2 Battery N Ground •Install the battery on the wall, as shown in the previous section. •Connect the communication cable to the inverter. -
Page 14: Maintenance Guide
5.Maintenance Guide •The battery is not fully charged when shipped. We recommend installing within three months after arrival. •It is forbidden to dismantle any battery in the battery, and it is not permitted to dissect the battery. •After the battery is over-discharged, we recommend charging the battery within 48 hours. •The battery can also be charged in parallel. -
Page 15: Alerting And Faults
Under voltage ALM lights up problem persists, please contact SIEKON. NOTICE If you need technical help or have question, please contact SIEKON any time. Brand: SIEKON Product Name: Lithium Ion Battery(LiFePO4) Model: RL-RM1-48V100-LXXX Manufacturer: ZHEJIANG SIEKON ENERGY STORAGE TECHNOLOGY CO.,LTD. - Page 16 Factory Address: No. 112, Gaoxin East Road, Tongxiang Economic Development Zone, Zhejiang Province Office Address: Room 407, Building 5, Nanke Chuangyuangu, Taoyuan Community, Dalang Street, Longhua District, Shenzhen Copyright© 2023 Siekon Transmission Technology Co.,Ltd(publ). All rights reserved. Siekon and other product and feature marks are trademarks of Siekon Group or its licensors.
