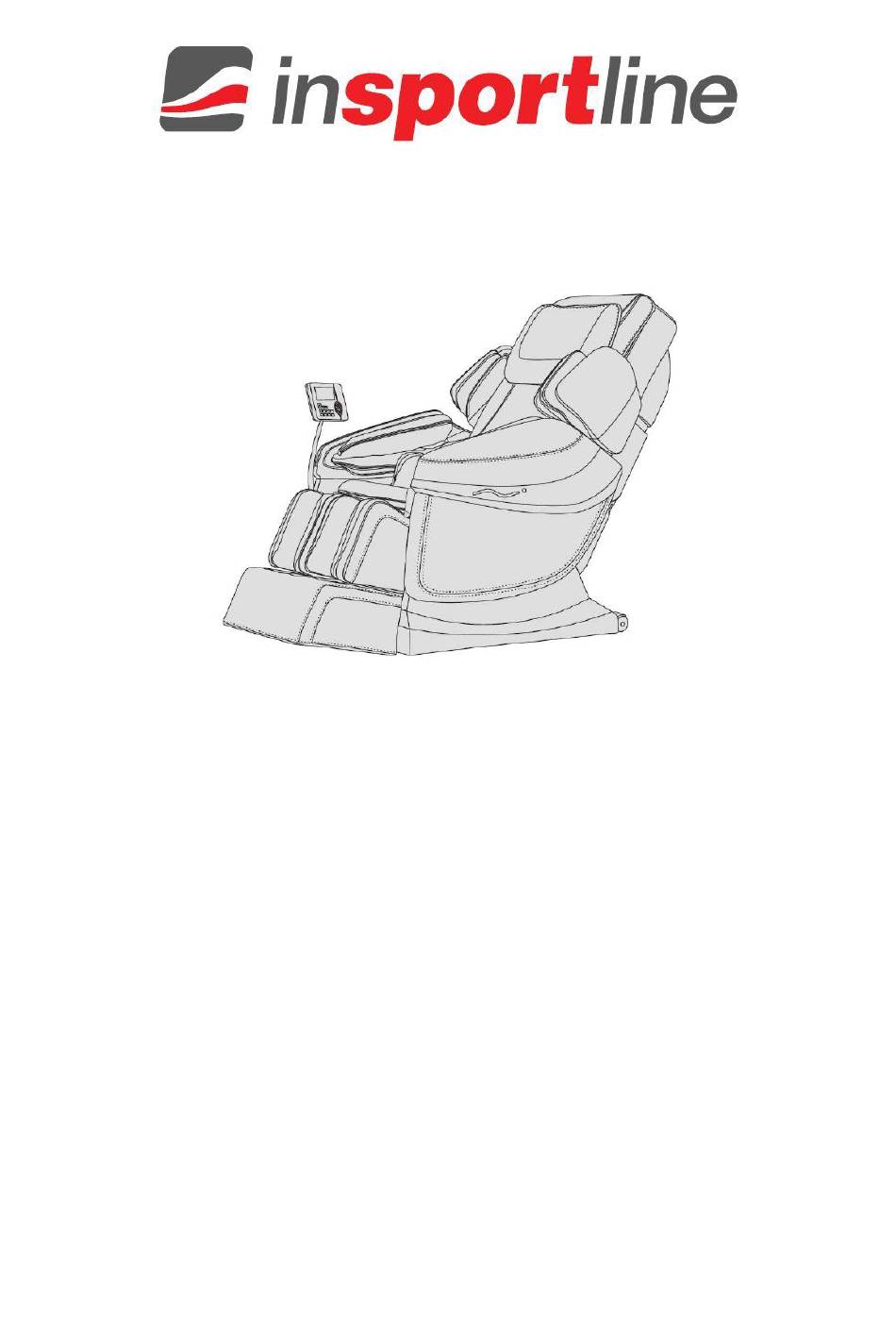

- Page 1 USER MANUAL – EN IN 11112 Massage Chair inSPORTline Adamys...
-
Page 2: Table Of Contents
CONTENTS SAFETY AND MAINTENANCE ....................... 3 PARTS DESCRIPTION ........................... 5 FUNCTION .............................. 5 CONTROL ............................... 6 INSTALLATION ............................. 11 PRODUCT SPECIFICATION ........................ 17 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ..........17 Thank you for purchasing this product. Read the entire manual to operate the device correctly. Observe all safety precautions. -
Page 3: Safety And Maintenance
SAFETY AND MAINTENANCE IMPORTANT SAFETY PRECAUTIONS • Keep children away from moving parts. • Use adequate and properly grounded power source. • For higher safety, plug the cord out from electric outlet after each use, before cleaning or maintenance. • Use it only according to the manual. - Page 4 • The chair surface is heated. People with higher skin sensitivity must pay especially attention. SAFETY • Check proper voltage before start using. • Never manipulate the cord or cables with wet hands. • Protect the chair from water to avoid electric shock or product damage. •...
-
Page 5: Parts Description
PARTS DESCRIPTION 1. Padded headrest 13. Rear cover 2. Loudspeaker 14. Controller 3. Control panel 15. Base frame 4. Forearm airbags 16. Power cord 5. Seat cushion 17. Power cord socket 6. Phone pocket 18. Main switch 7. Calf rests 19. -
Page 6: Control
• Lower-body massage: 4 airbags on back area, 5 airbags on buttock, 40 airbags in leg area. Intensity adjustable in 3 levels. • MP3 playing function from a cell phone. Loudspeaker in-built. • Heating of the back area – carbon fibre (infrared radiation) •... - Page 7 1. SWITCHING ON Main switch location (ON/OFF) Power cord plugging-in 2. MASSAGE START • Push the red button to activate massage mode. The chair reclines automatically into massage position. • Follows automatic detection of shoulder position and massage points. • After the detection you can hear a signal sound.
- Page 8 • Automatic massage Relax for musculoskeletal system F1 Auto Improving blood circulation F2 Auto Relieve from ache: deep massage reducing pains F3 Auto Overall air pressure massage. Waist buttock, F4 Auto hands and legs massaged simultaneously. Stretching the body core. First the airbags in calf F5 Auto rests are activated and the backrest goes downward.
- Page 9 Intensity adjustment in 3 levels. Air pressure massage of lower body (lower body parts, back, waist and calves). Intensity adjustment in 3 levels. Calf stretching: active in air pressure massage for lower body and calves. • Other manual functions Button Description Display Decreasing massage intensity for upper body...
- Page 10 Simultaneous backrest lifting and calf rest declining. Hold the button to change position. Simultaneous backrest declining and calf rest lifting. Hold the button to change position. 4. Other functions • Music playing from mobile. It features cell phone pocket and system for music playing. •...
-
Page 11: Installation
INSTALLATION 1. Installation of forearm rests • Push the wires and air tube through hole to the forearm rest in the frame of the chair (Pic. 1). • Ensure that the connectors are oriented properly (Pic. 2). Pic. 2 Pic. 1 •... - Page 12 • After attaching the forearm support to the steel frame, try pressing the support to make sure it is properly secured (Pic. 7). • Locate the mounting hole on the front of the metal frame and fasten the fastener using the wrench (Pic.
- Page 13 Pic. 2 Pic. 1 • Connect the cable and the air tube and make sure there is no leakage at the joint (Pic. 3). • Be careful not to pinch the cable and the tube – place the cable and the tube as shown on picture 4.
- Page 14 3. Assembly of the control panel 1. Control panel holder 2. Fastening screw 3. Holder 4. Fixating sleeve • Unscrew the fastening screw (Pic. 1). • Put on control panel holder (Pic. 2). Pic. 1 Pic. 2 • Screw the fastening screw – pay attention to proper orientation (Pic. 3). •...
- Page 15 Pic. 5 Pic. 6 NOTE: the groove in the foot must face down. • Prepare for assembly of holder (Pic. 7). • Place the holder on the mounting sleeve – make sure that the grooves are in line (Pic. 8). Pic.
- Page 16 Adjustment and use of control panel After securing the control panel to the chair (Pic. 1) holder can be freely rotated and moved to the sides (Pic. 2 and 3). Pic. 1 Pic. 2 Pic. 3 Cushion and back padding This padding reduces the vibration in the area of neck and shoulders.
-
Page 17: Product Specification
Moving Before tilting the chair on the wheels, make sure you do not interfere with any cables while moving. Fold the chair on the wheels and move it to the desired position PRODUCT SPECIFICATION Model: A50 Name: Massage chair Power voltage: 110-120V-60Hz 220-240V-50Hz/60Hz Nominal power: 200W... - Page 18 According to valid legal regulations it depends whether the Buyer is the End Customer or not. “The Buyer who is the End Customer” or simply the “End Customer” is the legal entity that does not conclude and execute the Contract in order to run or promote his own trade or business activities. “The Buyer who is not the End Customer”...
- Page 19 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.insportline.cz INSPORTLINE s.r.o. Headquarters, Warranty & Service centre: Elektricna 6471, 911 01 Trencin, Slovakia CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk Web: www.insportline.sk...
