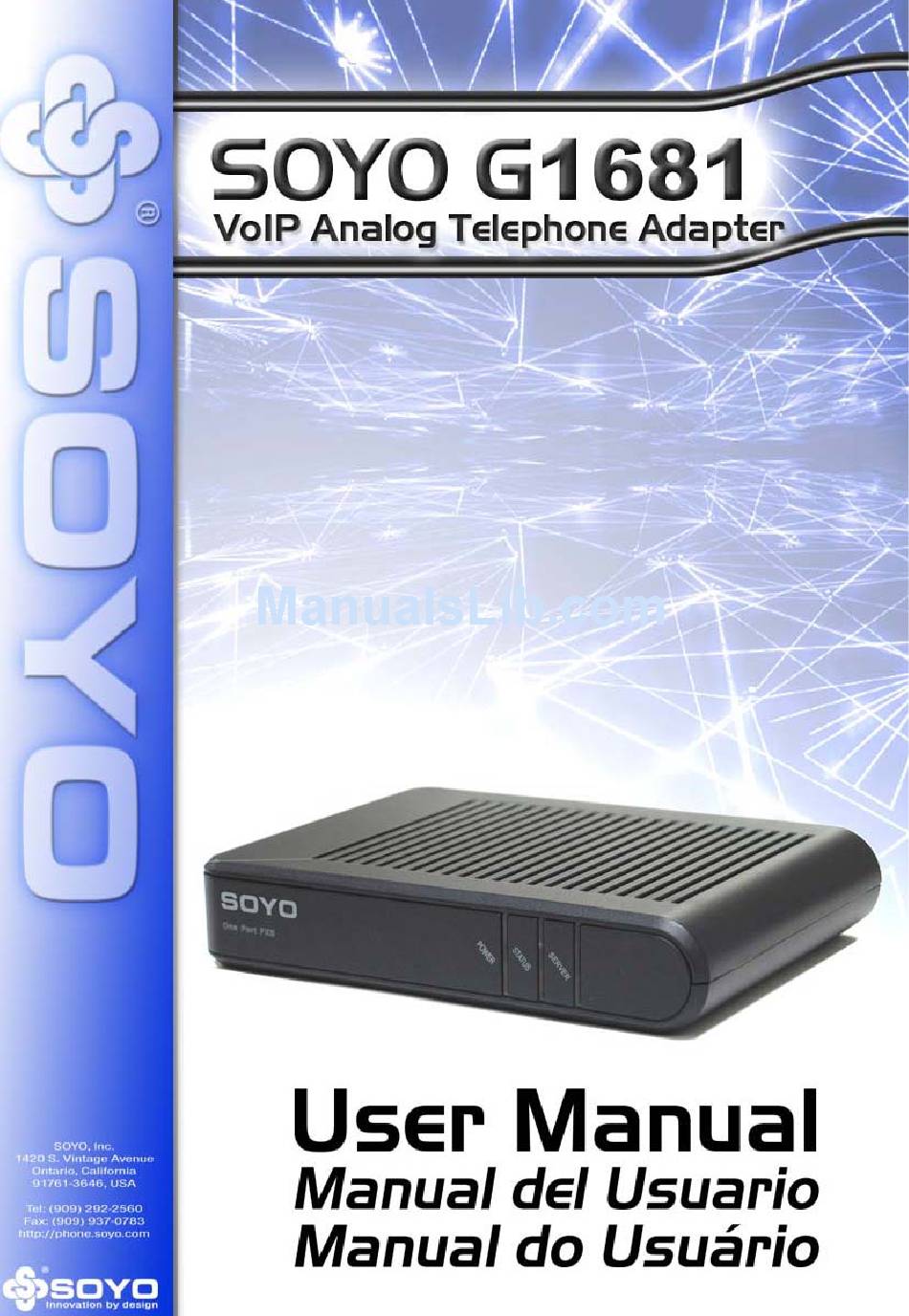

SOYO G1681 User Manual

Voip analog telephone adapter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G1681 and is the answer not in the manual?

Questions and answers

Summary of Contents for SOYO G1681

  • Page 2: Table Of Contents

    Other Settings ...20 Update...20 Upgrade Firmware ...20 Limited Settings...21 USING SOYO G1681 ATA... 22 Answering Calls ...22 Making Calls When Dual Mode is Disabled ...22 Making Calls When Dual Mode is Set to “ip first”...22 Making Calls When Dual Mode is Set to “pstn first” ...22 Making Peer to Peer Calls by Dialing IP Address...22...

  • Page 3: Safety Information

    Safety Information The SOYO G1681 ATA has been tested and approved by the highest standards of safety regulations. However safety is your responsibility too. Use only the power adapter provided Do not disassemble this product without guidance Never spill liquid of any kind on the product...

  • Page 4: Introduction

    ATA, and then you will be able to use the Internet to make phone calls. G1681 ATA works as a standalone device (no PC is needed) with any broadband Internet connection. This Internet connection...

  • Page 5: Front Panel

    SOYO G1681 Analog Telephone Adapter User Guide Front Panel Rear Side...

  • Page 6: Function Key And Led

    Function POWER STATUS Flash SERVER Buttons Function Voice prompt “Local IP” that G1681 is getting Set different internet connection type (static IP, PPPoE, DHCP) SOYO G1681 Analog Telephone Adapter User Guide Power on Power off Phone off hook Idle Talking...

  • Page 7: Specifications

    193 g (6.8 oz) Power Adapter Input – AC 110-240V Output - DC 12V/450mA Certifications FCC, CE Package of Contents G1681 Analog Telephone Adapter (ATA) One Ethernet RJ-45 Cable AC power adapter User Manual CD SOYO G1681 Analog Telephone Adapter User Guide...

  • Page 8: Installation

    1. Connect a RJ-45 cable from the LAN port of the router/switch/hub to the WAN port of the G1681 ATA. 2. Connect one end of a RJ11 cable to the TEL port of G1681 ATA, the other end to any telephone set.

  • Page 9: Configuration Via Telephone Keypad

    Press 12341 IP button Press 12342 IP button Note: If the G1681 has been set to be “dual mode” and “pstn first”, press the hook or the flash key of the phone set to turn back to ip state, then perform the above operation.

  • Page 10: Configuration Via Web Browser

    Other browsers may fail to login or cause display error. Warning Please check with VoIP service provider for the service settings. Changing the settings without proper guidance may result the ATA not functioning. SOYO G1681 Analog Telephone Adapter User Guide...
  • Page 11 SOYO G1681 Analog Telephone Adapter User Guide With H323 Firmware loaded: Note: Actual setting page may be slightly different than above because of different firmware versions.
  • Page 12 SOYO G1681 Analog Telephone Adapter User Guide With SIP Firmware loaded: Note: Actual setting page may be slightly different than above because of different firmware versions. -10-...

  • Page 13: Network Settings

    Network Settings iptype Set how G1681 ATA gets relevant network parameters by selecting corresponding item from drop down list. static ip: Select this item to authorize users t o set IP address, subnet mask and router IP address of the ATA manually.

  • Page 14: Audio Settings

    MAC address is the physical address supplied by the Ethernet NIC. SOYO ATA is shipped from the factory with a unique algorism MAC address printed on the back of the adapter. Audio Settings codec1: Set the 1 priority of the audio compression algorithm. The options are g729, g7231, g711u, g711a, iLBC, and gsm.

  • Page 15: Dial Plan Settings

    Set the volume of handset input. handset out: Set the volume of handset output. dual mode: Set G1681 VoIP and PSTN pass through dual mode property. disable: Only use VoIP to make phone calls. pstn first: Default first use PSTN to make phone calls.
  • Page 16 Forward calls when the ATA is busy. answer: Enter a number from 0 through 60 to set the entries of the seconds before the phone answers the call automatically or forward the calls. SOYO G1681 Analog Telephone Adapter User Guide -14-...

  • Page 17: Protocol Settings

    (port forwarding) needs to be properly set up on NAT device. citron: With Citron private protocol used, select this item to fit into the GnuGK system transferring the voice and signal by router. SOYO G1681 Analog Telephone Adapter User Guide -15-...
  • Page 18 Use phone number as E.164 and H323 ID to login the account: Use phone number as E.164 and designated H323 ID filled in account field as H323 ID to login GK SOYO G1681 Analog Telephone Adapter User Guide -16-...
  • Page 19 Enable/disable service by checking/clearing this box. To make calls through gatekeeper, please check this box; otherwise, ATA can only make peer to peer calls by dialing the IP address directly. SOYO G1681 Analog Telephone Adapter User Guide -17-...
  • Page 20 10 and 65535 .default value is 20. phone number: The local phone number or username of this phone, usually is allocated by system. account: With SIP system which requires authentication, please put the username/account into this field. SOYO G1681 Analog Telephone Adapter User Guide -18-...
  • Page 21 Save the debug information in SDRAM of ATA by selecting this item. no check: Disable checking firmware tags when upgrading. This is not suggested, because it will increase the risk of upgrading the wrong firmware into the ATA. SOYO G1681 Analog Telephone Adapter User Guide -19-...

  • Page 22: Other Settings

    Update button to confirm the modification. Upgrade Firmware Download the latest firmware from SOYO website and save the file on the PC. Use super password to login the setting page and make sure the debug is set...

  • Page 23: Limited Settings

    SOYO G1681 Analog Telephone Adapter User Guide to “no Check”. Then click on Upgrade Firmware button to update the firmware, the settings or the digitmap of the ATA. Limited Settings When debug is set as disable, and log in with regular password (default is 1234), then following limited setting page will pop up.

  • Page 24: Using Soyo G1681 Ata

    Internet. Refer to page 12 for detail. Note: When G1681 ATA is powered off or Internet is disconnected, the calls will be sent through the LINE port to the PSTN network.
  • Page 25 Note: Both caller and called ATA or IP phones have to be set to use the same VoIP protocol and the same standard communication ports in order to call each other. For H.323, use 1720 as ras port. For SIP, use 5060 as register port. SOYO G1681 Analog Telephone Adapter User Guide -23-...

  • Page 26: Appendix: Port Forwarding

    Disclaimer The information contained in this document is subject to change without notice. SOYO Group, Inc. shall not be liable for any direct, indirect, incidental, consequential, or other damage alleged in connection with the furnishing or use of this information.
