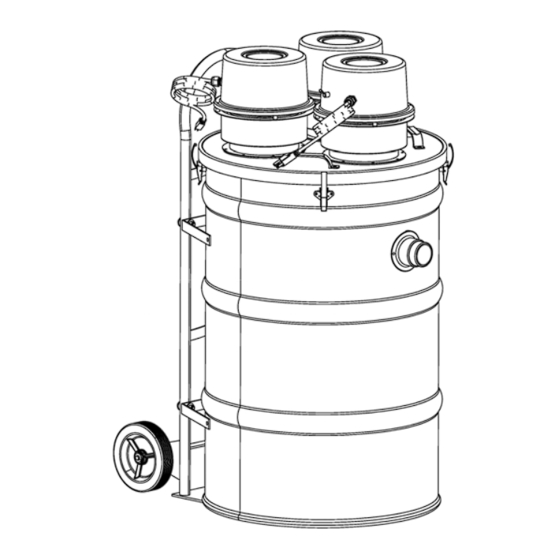

INSTRUCTION MANUAL
MODEL #HD55345
TRI-MOTOR
HEPA VACUUM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD55345 and is the answer not in the manual?

Questions and answers

Related Manuals for Nikro HD55345

Summary of Contents for Nikro HD55345

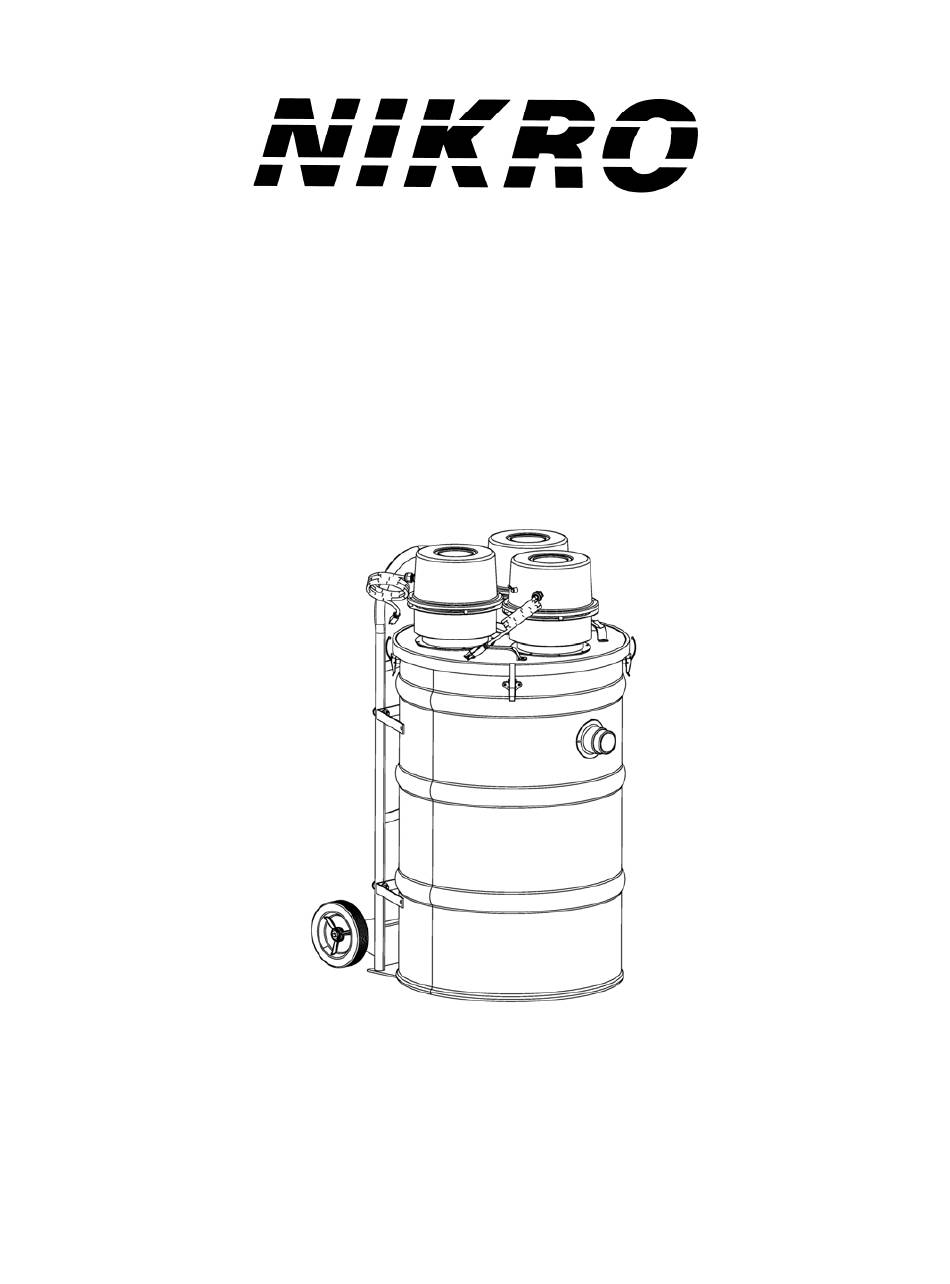

  • Page 1 INSTRUCTION MANUAL MODEL #HD55345 TRI-MOTOR HEPA VACUUM...
  • Page 2 All Nikro Industries Inc. products that have rated efficiencies of 99.97% @ 0.3 microns and/or 99.99% @ 0.3 microns, have H.E.P.A. filters that have been individually tested to meet these minimum efficiencies. Although all the filters have been pre-tested, the possibility of leaks or filter failure due to handling, transportation, punctures, loaded filters, moisture, wear and tear, etc., does exist.

  • Page 3: Important Safety Instructions

    11. This vacuum should never be operated without the proper filters installed in the manner described in the following pages of this manual. 12. This machine should never be serviced by anyone other than an authorized technician. 13. This vacuum is for commercial use only. 14. Use only original NIKRO replacement parts and attachments.

  • Page 4: Important Electrical Safety Instructions

    IMPORTANT ELECTRICAL SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: BEFORE USING (THIS APPLIANCE) READ ALL INSTRUCTIONS WARNING – To reduce the risk of fire, electric shock, or injury: 1. Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing. 2.
  • Page 5 FILTER MAINTENANCE AND REPLACEMENT INSTRUCTIONS Your Nikro vacuum has a five stage filtration system; Non-clinging Dacron bag filter bag, Canvas filter bag, Polyester Prefilter, Impaction filter, and HEPA Filter. These filters should be inspected every time the tank is emptied or when a significant loss of vacuum power is detected. If a decrease in vacuum power is detected, turn off the vacuum immediately.

  • Page 6: Filter Set-Up Procedure

    FILTER SET-UP PROCEDURE 1. Place HEPA filter on lid, making sure the airflow arrows are pointing towards motors 2. Slide HEPA filter-hold down bracket over HEPA and onto the four bolts. Using the locking nuts, tighten down the cage to secure the HEPA filter 3.
  • Page 7 #HD55345 – LID ASSEMBLY PC NO PART NO DESCRIPTION 860582 LID GASKET 860922 MOUNTING PLATE GASKET 520327 LOWER MOTOR GASKET 520029 UPPER MOTOR GASKET 860942 BAG SEALING GASKET 860150 55 GALLON LID 520009 MOUNTING PLATE 540058 MOTOR HOUSING 520365 MOTOR...
  • Page 8 #HD55345 - 55 GALLON TANK ASSEMBLY PC NO PART NO DESCRIPTION 520308 55 GAL DRUM 860154 CART ASSY 560029 DACRON FILTER BAG 520220 INTAKE 520216 INTAKE GASKET 540001 DOWN TUBE 90 ELBOW 520214 LARGE SPACER 520019 LID LATCH 860089 POLY BAG W/BREATHER HOLES (NOT SHOWN)
  • Page 9 #HD55345 WIRING DIAGRAM...

  • Page 10: Warranty

    WARRANTY Nikro HEPA Vacuums are warranted for 2 years from the date delivered to the original end user and may not be assigned or transferred. Parts, which become defective due to faulty workmanship or materials during normal use in this period will be repaired or exchanged at no charge if returned and approved by an authorized Nikro service center.
