Pressing the Save soft key brings up the Save Test Results
screen. A list of Tool ID's is displayed on the left side of the
screen. Information on the currently selected Tool ID is
displayed on the right side of the screen.
Use the Up and Down Arrow keys, along with the Top,
Bottom, Prev, and Next soft keys to move the Tool selection
cursor to the desired Tool (in ?, TOOL001A is selected).
The Up and Down Arrow keys move the cursor up and down
one Tool ID. The Top soft key moves the cursor to the first Tool
ID in the list. The Bottom soft key moves to the last Tool ID in
the list. The Prev and Next soft keys page up and down
(respectively) by 11 Tools.
The Edit soft key can be used to edit the Tool ID record of the selected Tool. To create a new Tool ID
record, select the New Tool entry, and press the Edit soft key. See Editing Tool Details below for more
information on creating and editing Tool ID records.
After selecting the desired Tool ID, press the Enter key to save the test results. The HHT creates two files
inside the sub-folder for the selected Tool ID. The file name is auto-generated based on the test type.
The HHT remembers the last Tool ID selected (until the SD Card is removed, or the unit is powered OFF).

Editing Tool Details

When editing or creating Tool ID records, the Edit Tool Details
screen is displayed. The Tool ID, Location and Details fields
are displayed, showing their current values. When creating a
new Tool ID record, the Tool ID field is blank, and must be set
to the desired Tool ID name. When editing a Tool ID record,
the Tool ID field can not be modified on the HHT.
The Edit Tool Details screen has three pages of soft keys.
Switch between soft key pages using the Up and Down Arrow
keys.
The first soft key page contains the Latin alphabet (upper
case), as well as the characters "( ) [ ] - _" (parentheses,
square brackets, dash, and underscore). The second soft key
page contains the Latin alphabet (lower case), as well as the characters "! @ # % & *" (exclamation
point, at sign, pound sign, ampersand, and asterisk). The third page contains Arabic numerals, as well
as a space character, and the "+" character (plus ). Five additional editing soft keys are available on
the third page.
Using The Handheld Tester

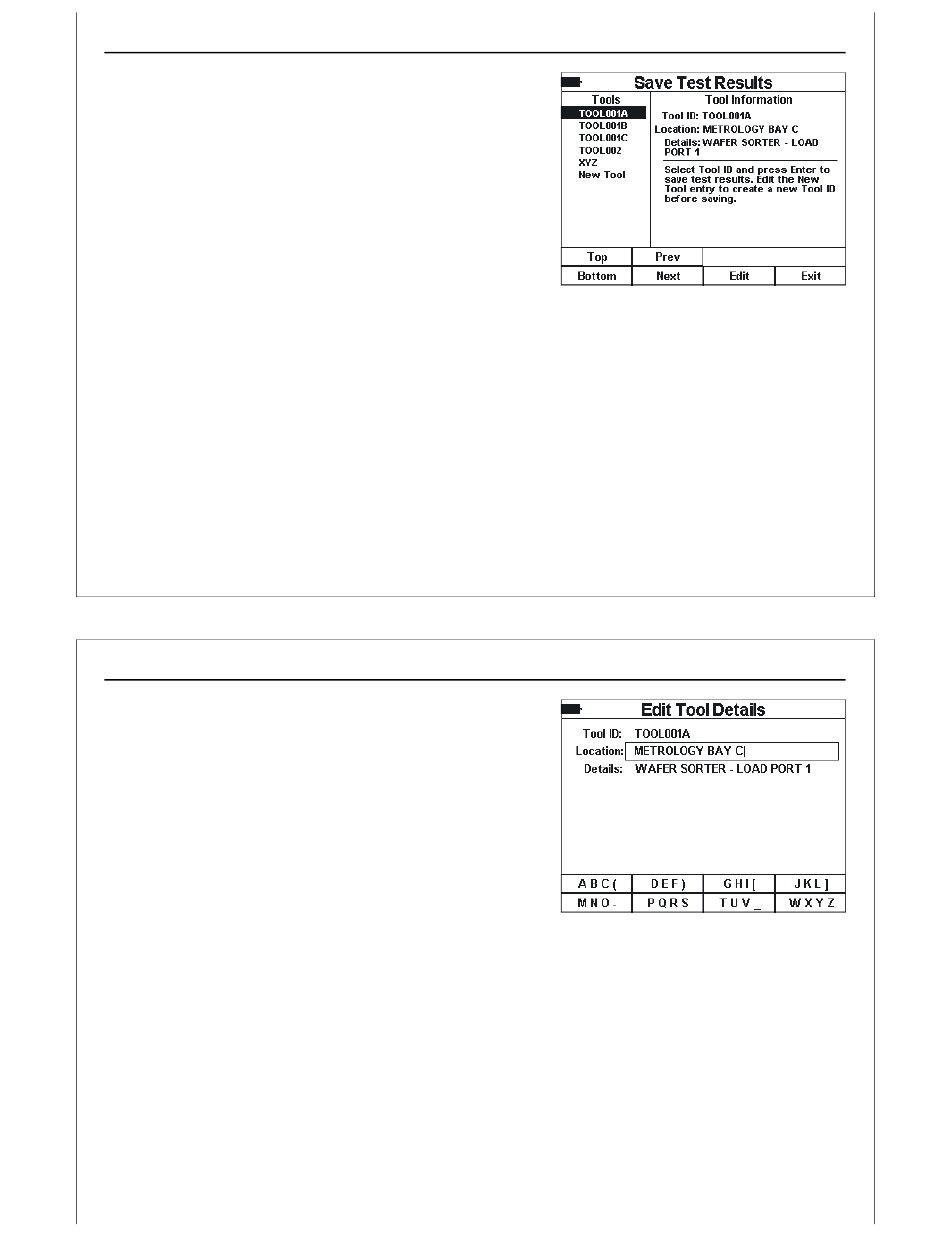

Figure 6 - Save Test Results Screen

Using The Handheld Tester

Figure 7 - Edit Tool Details Screen
