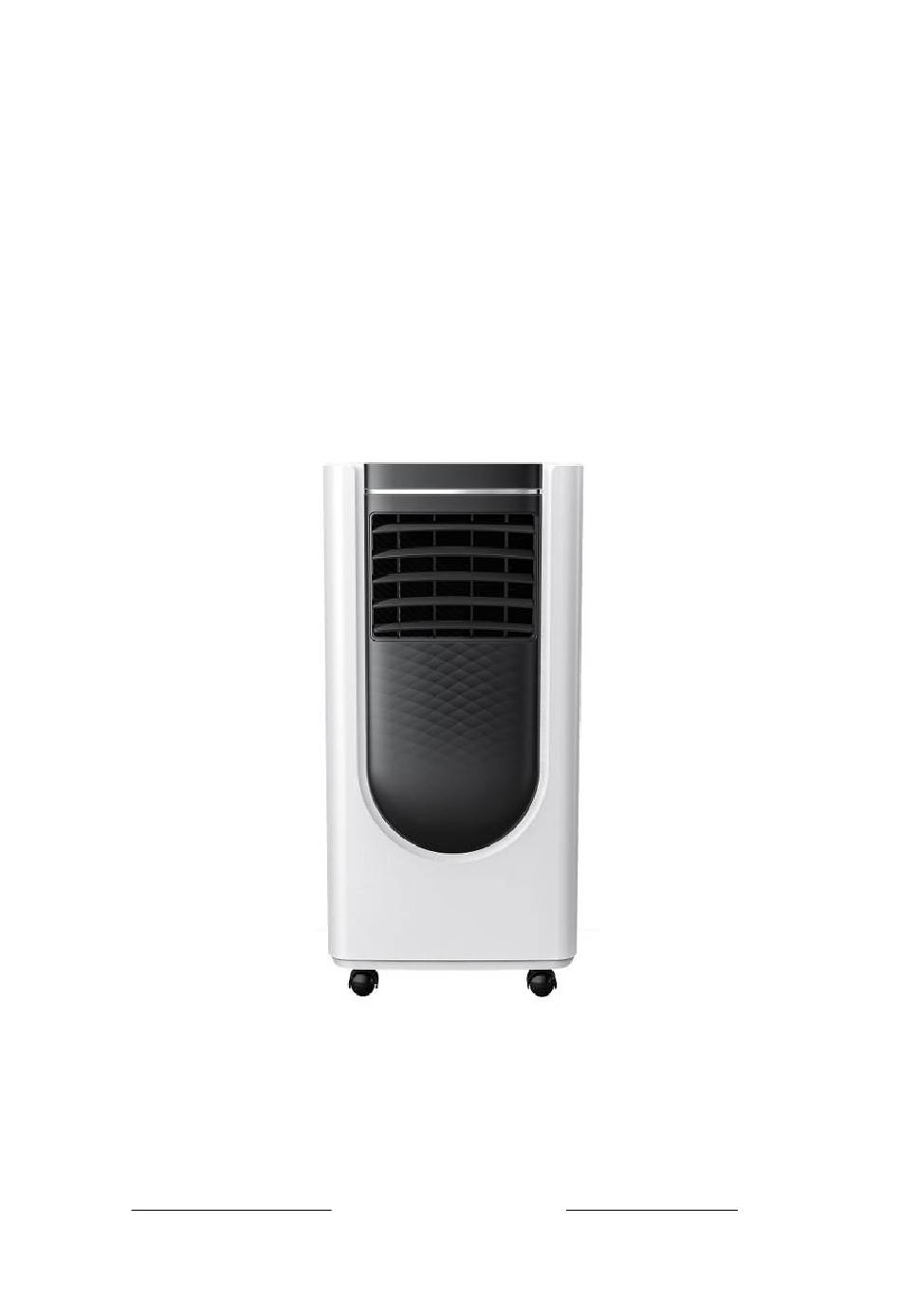

Portable Air-conditioner User's Manual(R290)
For Model : WAP1-08BC
Please read this user's manual carefully to ensure proper use, maintenance and installation.
Thanks to every customer for choosing WANAI and trust in WANAI. Our customer service is dedicated to
solving every after-sales problem for you. If there are any questions about our products, please feel free to
contact us via Amazon communication or after-sale email address wanaiamz@163.com, we will reply in 24
hours and provide you with a satisfactory answer.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for WANAI WAP1-08BC
- Page 1 Please read this user’s manual carefully to ensure proper use, maintenance and installation. Thanks to every customer for choosing WANAI and trust in WANAI. Our customer service is dedicated to solving every after-sales problem for you. If there are any questions about our products, please feel free to contact us via Amazon communication or after-sale email address wanaiamz@163.com, we will reply in 24...
-
Page 2: Table Of Contents
Contents 1. Safety Awareness ......................... 1 2. Name of Parts ........................11 3. Accessories ........................12 4. Appearance and Function of Control Panel ................ 13 5. Appearance and Function of Remote Control ..............13 6. Operation Introduction ...................... 14 7. Installation Explanations ....................16 8. -
Page 3: Safety Awareness
1. Safety Awareness 1. Safety Awareness This is a high-quality mobile air conditioner. This manual is a global model. The machine you buy may be different from these descriptions, but it will not affect some of your basic operation and use. Please read each chapter of the instruction manual according to the machine you purchased, and then keep it properly for future use. - Page 4 Do not puncture and do not burn. This appliance contains Y g (see rating label back of unit ) of R290 refrigerant gas. R290 is a refrigerant gas that complies with the European directives on the environment. Do not puncture ...
- Page 5 please check it for the requirements. 10. Children should be supervised to ensure that they do not play with the appliance. 11. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Page 6 repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants. 22. Do not operate or stop the unit by inserting or pulling out Die power plug, it may cause electric shock or fire due to heat generation .
- Page 7 1.2 Work procedure Work shall be undertaken under a controlled procedure so as to minimize the risk of a flammable gas or vapour being present while the work is being performed. 1.3 General work area All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out.
- Page 8 it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised. Initial safety checks shall include: that capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;...
- Page 9 containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked flames shall be removed/extinguished. If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak.
- Page 10 e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system. f) Make sure that cylinder is situated on the scales before recovery takes place. g) Start the recovery machine and operate in accordance with manufacturer's instructions. h) Do not overfill cylinders.
- Page 11 the relevant national competency standards that may be set in legislation. The achieved competence should be documented by a certificate. Training The training should include the substance of the following: Information about the explosion potential of flammable refrigerants to show that flammables may be dangerous when handled without care.
- Page 12 outside. Take care that the drained refrigerant will not cause any danger. In doubt, one person should guard the outlet. Take special care that drained refrigerant will not float back into the building. – Evacuate the refrigerant circuit. – Purge the refrigerant circuit with nitrogen for 5 min. –...
-
Page 13: Name Of Parts
taken in connection with these signs. The effectiveness of signs should not be diminished by too many signs being placed together. Any pictograms used should be as simple as possible and contain only essential details. Disposal of equipment using flammable refrigerants See national regulations. -
Page 14: Accessories
3. Accessories 3. Accessories Part Description Quantity Exhaust hose Window Connector Housing adaptor Remote Controller Window Kit 1 (optional) T slot screw translation 3 (optional) Water pipe 1 (optional) Batteries 2 (optional) After unpacking, please check whether the above-mentioned accessories are included, and check their purposes in the installation introduction in this manual. -
Page 15: Appearance And Function Of Control Panel
4. Appearance and Function of Control Panel 4. Appearance and Function of Control Panel Cooling only model 1 2 3 4 5 6 7 Power on/off Fan mode Operation mode Dehumidifying mode Temperature down Cooling mode Temperature up Low fan speedWater full Fan speed Timer on/off Timer on/off... -
Page 16: Operation Introduction
6. Operation Introduction 6. Operation Introduction Before starting operations in this section: 1) Find a place where there is power supply nearby. 2) As shown in Fig.2 and Fig.2a, install the exhaust hose, and adjust the window position well. Fig.2 Fig.2a 3) As shown in Fig. - Page 17 Power supply is AC110-120V，60Hz 2. Cooling operation Press the “Mode” button till the “Cool” icon appears. Press the “▲”or“ ▼”button to select a desired room temperature. (60℉-88℉) Press the “Fan Speed” button to select wind speed. 3. Dehumidifying operation Press the “Mode” button till the “Dehumidify” icon appears . Automatically set the selected fixed temperature.
-
Page 18: Installation Explanations
Continuous Drainage When you plan to leave this unit unused for a long time, please remove the rubber blockage from the drainage hole at the bottom of unit, and drain all water outside. The continuous drainage is not need to be applied when the unit working at the COOL or DEHUMIDIFY mode. - Page 19 Fig.4 B) Window Kit Installation The installation manner of window slider kit is mostly in “horizontal” or “vertical”. As shown Fig.5 and Fig.5a, check the min. and max. size of the window before the installation. 1. Install the window kit on the window (Fig.5, Fig.5a); 2.
-
Page 20: Maintenance Explanations
Water Full Alarm Function The inner water tray in the air-conditioner has one water level safety switches, it controls water level. When water level reaches an anticipated height, the water full indicator lamp lights up. (If water splash motor is damaged, when the water is full, please remove the rubber blockage at the bottom of unit, and all water will drain outside.) Fig.6 8. -
Page 21: Troubleshooting
1) Before cleaning, be sure to disconnect the unit from any electric supply outlet; 2) Do notuse gasolineorotherchemicalstocleantheunit; 3) Do not wash the unit directly; 4) If the conditioner is damaged, please contact the dealer or repair shop. 1. Air Filter If the air filter becomes clogged with dust/dirt, the air filter should be cleaned once every two weeks. - Page 22 Thanks to every customer for choosing WANAI and trust in WANAI. Our customer service is dedicated to solving every after-sales problem for you. If there are any questions about our products, please feel free to contact us via Amazon communication or after-sale email address wanaiamz@163.com, we will reply in 24...
