Summary of Contents for Audioxtra axis XT1D

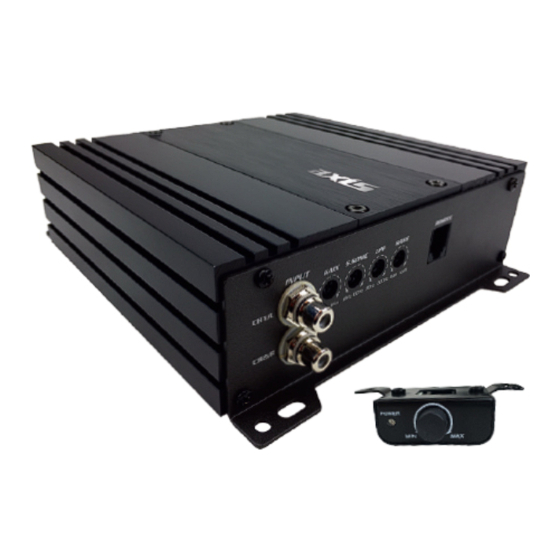

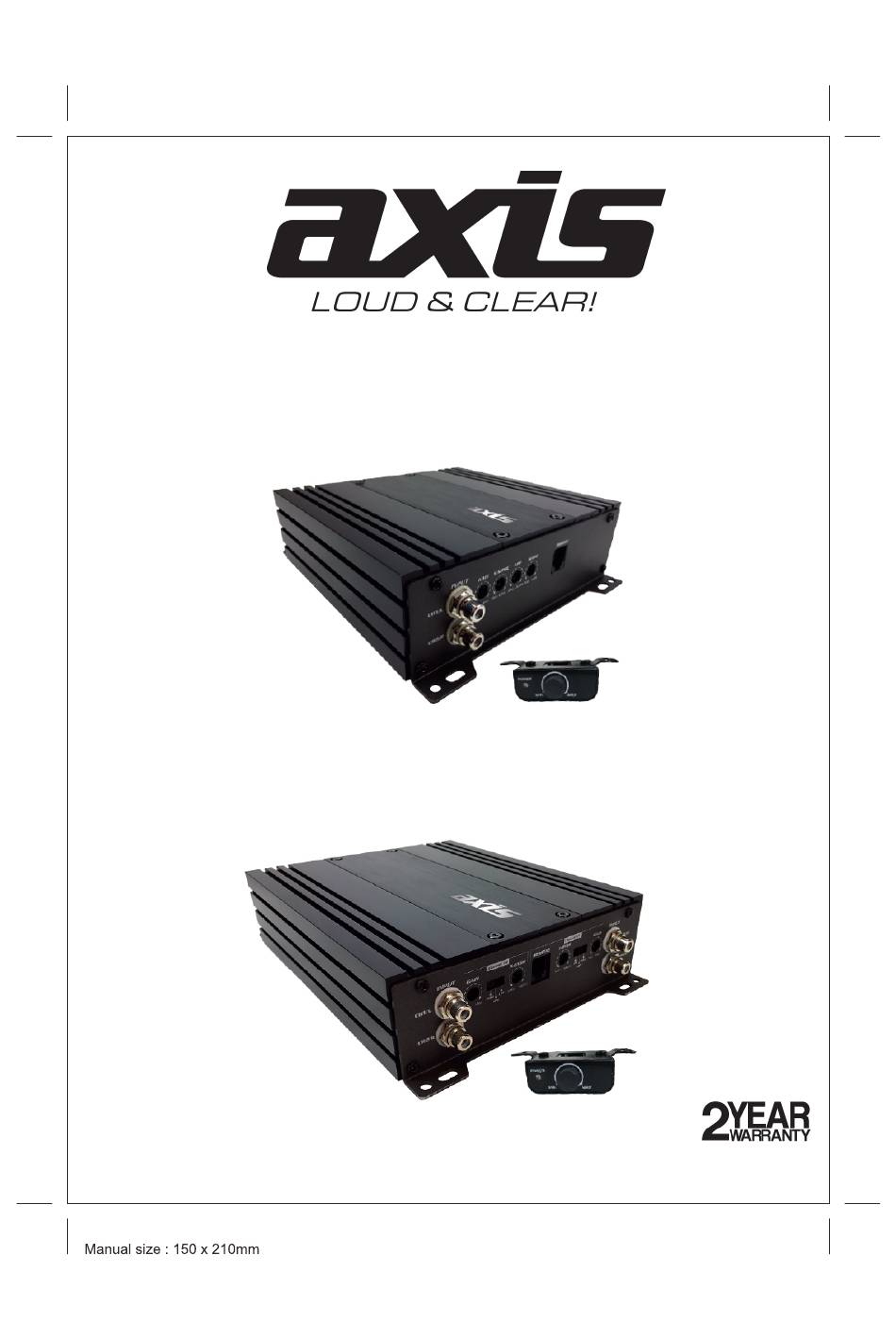

- Page 1 XT1D MONOBLOCK CLASS D DIGITAL POWER AMPLIFIER XT4D 4 CHANNEL CLASS D DIGITAL POWER AMPLIFIER INSTALLATION MANUAL...
-
Page 2: Features And Specifications
FEATURES & SPECIFICATIONS XT1D - Max Power: 1880W (43.4V) - Output Power @ 14.4V 4Ohm, 1% THD: 1 x 400W RMS @ 14.4V 2Ohm, 1% THD: 1 x 700W RMS - THD Continuous @ 4Ohm/100Hz: 0.5% - Efficiency @ 4Ohm/100Hz: 93% - S/N Ratio @ 4Ohm/100Hz: 99dB - High/Low Level Input Conversion - Input Sensitivity: 0.2 - 8V... - Page 3 RCA (LOW LEVEL) INPUT CONNECTION Both amplifiers have RCA input connectors that can be used for low level inputs and hi level inputs (Using the RCA Fly Lead/s included): For low level input (RCA output from Head Unit) Connect the left & right RCA output from the Head Unit to the left and right RCA inputs of the amplifier. Adjust the Input level (Gain) on the amplifier to the same output level of the Head Unit for distortion free sound e.g.
- Page 4 SPEAKER (HIGH LEVEL) INPUT CONNECTION For hi-level input (speaker wire output from Head Unit): • Connect only the + Positive speaker wire from the Head Unit's left channel to the "+" left RCA Fly Lead • Connect only the + Positive speaker wire from the Head Unit's right channel to the "+" right RCA Fly Lead •...
-
Page 5: Power Connection
POWER CONNECTION XT1D/XT4D FUSE POWER INPUT To +12V DC GROUND GROUND to REMOTE Turn-on from HEAD UNIT BATTERY HEAD UNIT +12V Power Connect the +12V terminal of the amplifier to the + terminal of the battery. Use the same diameter cable for ground. -
Page 6: Speaker Connection
SPEAKER CONNECTION XT1D 1. Single Voice Coil 2-4 Ohm Load ch A ch B FUSE POWER INPUT SPEAKER OUTPUT SUBWOOFER Single Voice Coil) (2-4 2 Ohm Load ch A ch B FUSE POWER INPUT SPEAKER OUTPUT SUBWOOFER x 2 Single Voice Coil) 2. - Page 7 SPEAKER CONNECTION XT4D 4-Channel (Stereo) CH1/L CH2/R CH3/L CH4/R Speaker Impedance CH1/2 BRIDGE CH1/L CH2/R 2~8 ohms CH3/L CH4/R CH3/4 BRIDGE SPEAKER OUTPUT 3-Channel (Tri Mode) Speaker Impedance 2~8 ohms CH1/L CH2/R CH3/L CH4/R CH1/2 BRIDGE CH1/L CH2/R CH3/L CH4/R CH3/4 BRIDGE SPEAKER OUTPUT...
-
Page 8: Troubleshooting
TROUBLE SHOOTING This power amplifier has in-built protection features to prevent damage. If the unit senses excessive heat, short circuit or overload, the protection LED will light up and the system will shutdown. Prior to checking the wiring for faults, turn all level controls down and turn power off. If the amplifier shuts down due to excessive heat, the protection LED will not light up. - Page 9 NOTES...
- Page 10 AudioXtra. AudioXtra shall not be liable or responsible for any loss of use of this product or any form of consequential loss.
