Summary of Contents for GlobalVue GVC3200LED

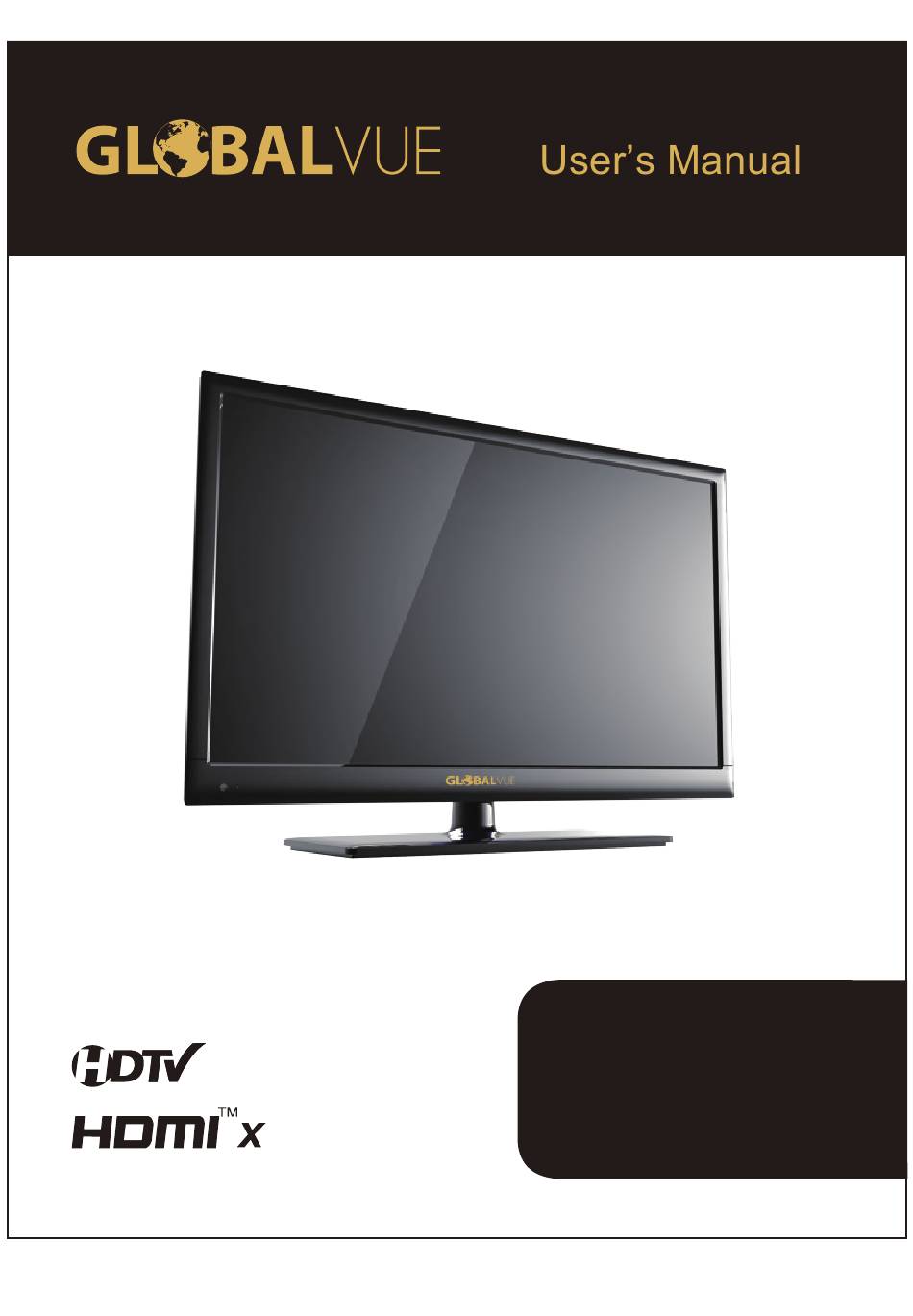

Page 1 High Definition 720P GVC3200LED...
Page 2: Caution And Warning
Caution and Warning CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Caution: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified service personnel. The lightning flash with arrowhead The exclamation point within an symbol, within an equilateral triangle equilateral triangle is intended to...
Page 3: Safety Precautions
Safety Precautions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. For example, do not use near a laundry tub, in a wet basement, or near a swimming pool, and the like.
Page 4 Safety Precautions 25. If an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA NO.70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrodes.
Page 5: Table Of Contents
Table of Contents Caution and Warning ........................... Caution ..............................Safety Precautions ............................Table of Contents ............................TV Signal Connection ..........................Cable Connections ............................Back Panel Connections ..........................................Connecting AV Composite Video device (Good Video Quality) .................. Connecting YPbPr Component device (Better Video Quality) ......................
Page 6 Table of Contents OSD Menu Operations ....................................................Adjust the OSD Screen ..............................Picture Menu ..............................Sound Menu ..............................Channel Menu ..............................Parental Menu ............................... Setup Menu ..............................Others Menu Troubleshooting ............................Wall Mounting Unit Speciﬁcation ......................Product Speciﬁcation ..........................
Page 7: Tv Signal Connection
TV Signal Connection The first step in connecting your TV is obtaining the signal. Your TV has a back panel, which allows you to receive analog and/or digital television channels via TV jack. Note: Before connecting your TV, place the TV according to the cautions and safety instructions mentioned in pages ahead, anddetermine using an antenna or a cable service to obtain the signal.
Page 8: Cable Connections
Cable Connections Choose Your Connections TV LC42WR1 supports various of connecting ways from other devices (such as DVD, VCR, Set-top box, ect.). Please follow the table sheet to choose the cables which adapt to your device. Jacks Cables Further Information Go to page 8 AV In, Audio In L and R AV/Audio cable...
Page 9: Back Panel Connections
Back Panel Connections Connecting AV Composite device (Good Video Quality) To connect an composite AV device, such as a DVD player, follow these steps: 1. Connect the Video-In jack on the back of TV to the video output jacks of device via video cable (yellow). 2.
Page 10: Connecting Ypbpr Component Device (Better Video Quality)
Back Panel Connections Connecting YPbPr Component device (Better Video Quality) To connect a component device, such as a DVD player, follo w thes e steps: 1. Connect the YPbPr jack on the back of TV to the video output jacks of device via video cable (green, blue and red).
Page 11: Connecting Hdmi Device (Best Video Quality)
Back Panel Connections Connecting HDMI device (Best Video Quality) To connect an HDMI device, such as a DVD player, Please Connect the HDMI-1,2or3 jack on the back of TV to the out Put jacks of device via HDMI cable. Note: HDMI(High-Definition Multimedia Interface) is a compact audio/video interface for transmitting uncompr essed digital data.
Page 12: Connecting A Computer
2. Connect the PC Audio In jack on the back of TV to the audio output jack of computer with audio cable (3.5mm). Note: If you want to use your TV as a monitor, please notice that the maximum resolution for GVC3200LED is 1920*1080.Please set the computer graphic correctly.
Page 13: Tv Jacks Explanation
TV Jacks Explanation TV: Connect to receive the signal from your antenna or cable via coaxial cable. Audio-In L/R, Video-In: Connect an AV device that has composite video jacks, such as a VCR or a DVD player. To access device connected to these jacks, press the INPUT button on your remote; then press the up/down arwro to select AV.Press the ENTER button at last to confirm.
Page 14: Side Keypad And Front Panel
Side Keypad and Front Panel Side Keypad Buttons If you cannot locate your remote, you can use the side keypad buttons on your TV to operate many TV features. MENU : Displays the TV Main Menu. INPUT : Displays the Source Select List. : Scans up through the channel list.
Page 15: Remote Control Instructions
Remote Control Instructions Inserting Batteries in the Remote • Remove the cover of battery cabin on the back of the remote control by lifting the cover . • Insert two AAA batteries, making sure the polarities (+ and -) are aligned correctly . •...
Page 16: Learning About Remote Control
Learning about Remote Control Remote Cont POWER ( ) : Turns the TV on or off. Subtilte: Displays the Channel Bar (see page 18). TV: Q uickly switch input to TV source. USB: Selects the sleep timer, after which the TV will shut off automatically. Numeric Buttons: Use these buttons to enter numbers.
Page 17: Initial Setup
Initial Setup If it is the ﬁrst time you turn on your TV, or you have done Clear Channel List option (see page 26), the initial setup menu appears automatically. Menu Language To choose your menu language, press the left/right arrow until the language you need appears. Available languages: English, French , Spanish, German and Portuguese.
Page 18: Basic Operations
Basic Operations Turning On and Off Connect the AC cord to power the LCD TV.At this time the TV will enter standby mode and power indicator shows red. Use Power button on the side panel of TV or on the remote control turn on the TV.After switching off the TV for 5 seconds,you can turn on TV again.
Page 19: Channel Bar
Basic Operations Channel Bar Press the DISPLAY button on the remote control, the channel bar will appear on the right top of screen. It displays the current channel’s information. The following list describes the items on the channel bar. D50 - 1 KOCE-HD English Mono...
Page 20: Osd Menu Operations
OSD Menu Operations Adjust the OSD Screen The OSD (On Screen Display) menu enables you to approach to the TV functions. To use OSD menu system, press MENU button on remote control, then use left/right arrow to highlight an option from PICTURE,SOUND, CHANNEL, PARENTAL, SETUP or OTHERS and press OK button.
Page 21 OSD Menu Operations Screen Settings Screen Size: Select a screen aspect ratio. SCREEN SETTINGS (Available ratio: Full, Normal, Wide and Cinema.) Screen Size Full Please choose the ratio that applies to your video signal format best. Auto Wide :Return :Select Menu :Change Setting MENU PC Settings (only available in PC mode)
Page 22: Sound Menu
OSD Menu Operations Sound Menu The Sound Menu lets you adjust audio output. To access the Sound Menu, press MENU on the remote, and then select SOUND from the Main Menu. Press OK button to proceed to SOUND menu. SOUND Use up/down to choose the function you need, press Sound Settings OK or right arrow to adjust or enter a sub-menu.
Page 23: Channel Menu
OSD Menu Operations Equalizer Settings EQUALIZER SETTINGS The seven-band graphic equalizer allows you to adjust the audio Mode frequency settings. You can select one of the equalizer presets (OFF, POP, ROCK,JAZZ) or create your own personal preset (USER). Press the left or right arrow to select the frequency (100Hz, 250Hz, 500Hz,1KHz, 2KHz, 4KHz, 10KHz) you want to adjust.
Page 24: Parental Menu
OSD Menu Operations Signal Type Select your TV signal type: Air or Cable. Auto Channel Search Execute an auto channel search (see page 16). Parental Menu The Setup Menu enables you to lock program with special content, panel key board and input source. Press MENU and choose PARENTAL from the Main menu.
Page 25 OSD Menu Operations Movie Rating MOVIE RATING Use arrow keys to select the rating level you want to block, press OK to lock/unlock the rating level. If you have blocked a lower level rating, the higher ratings will be PG-13 blocked too.
Page 26 OSD Menu Operations Canada V-Chip Press OK or right arrow to enter US V-Chip ratings menu, which contains two sub-menus: English Rating and French Rating. English Rating Press OK or right arrow to enter English rating menu. ENGLISH RATING Use arrow keys to select the rating level you want to block, press OK to lock/unlock the rating level.
Page 27 OSD Menu Operations Change Password Change the password of parental menu. Change Password Input the old password. Old PIN Input the new password. New PIN Input the new password again to conﬁrm. Confirm :Return :Password MENU DIGITAL Hotel Menu Please enter your four-digit password with numeric keys 0~9. The original password is “0000”. HOTEL SETTING Boot Setting Hotel Lock Setting...
Page 28: Setup Menu
OSD Menu Operations Setup Menu The Setup Menu lets you config the TV with your preferences. Select SETUP from the Main Menu. Press OK button to proceed to SETUP menu. SETUP Use up/down to choose the function you need, press Closed Caption OK or right arrow to adjust or enter a sub-menu.
Page 29 OSD Menu Operations Digital CC Style DIGITAL CC STYLE Select the item you want to adjust in Digital CC Style CC Size Default menu with up/down arrows. CC Font Default CC Opacity Default Text Color Default CC Background Opacity Default CC Background Color Default CLOSE CAPTION...
Page 30: Others Menu
OSD Menu Operations Others Menu The Others Menu lets you config the TV with your preferences in other features. C hoose OTHERS from the Main Menu. Press OK button to proceed to SETUP menun. OTHERS Use up/down to choose the function you need, Blue Back press OK or right arrow to adjust or enter a No Signal Power Off...
Page 31: Troubleshooting
Troubleshooting Identifying Problems If there are any problems when using the product, please consult the list below. If the list does not solve the problem, call our.Customer Service Center immediately. TV Problems The TV can’t be turned on. • Make sure the AC cord is plugged in. •...
Page 32 Troubleshooting Can’t select a certain channel. • The channel may be blocked or not approved in the PARENTAL Menu. • The channel may be skipped in channel list in CHANNEL Menu. Check the blocking and skipping status of channel. The stereo sound performance is bad. •...
Page 33: Wall Mounting Unit Specification
Wall Mounting Unit Specification Model Unit Dimension (unit:mm) Screw VESA 200 x 200 GVC3200LED M6screws, length 10mm 200mm Note: A. The wall mount is not contained in the accessories sold with television.We only provide installing specifica- tions but ont the wall mount itself. If you need the mount, please consult with the local dealer for a VESA wall mount.
Page 34: Product Specification
Product Specification Model GVC3200LED Diagonal Display Size 31.5 inches Television System American TV standard ATSC/NTSC system VHF: 2~13 UHF: 14~69 CATV: 1~135 Channel Coverage Digital Terrstrial Broadcast (8VSB): 2~69 Digital Cable (64/256QAM): 1~135 Power Supply AC 120 V, 60Hz RF input...
