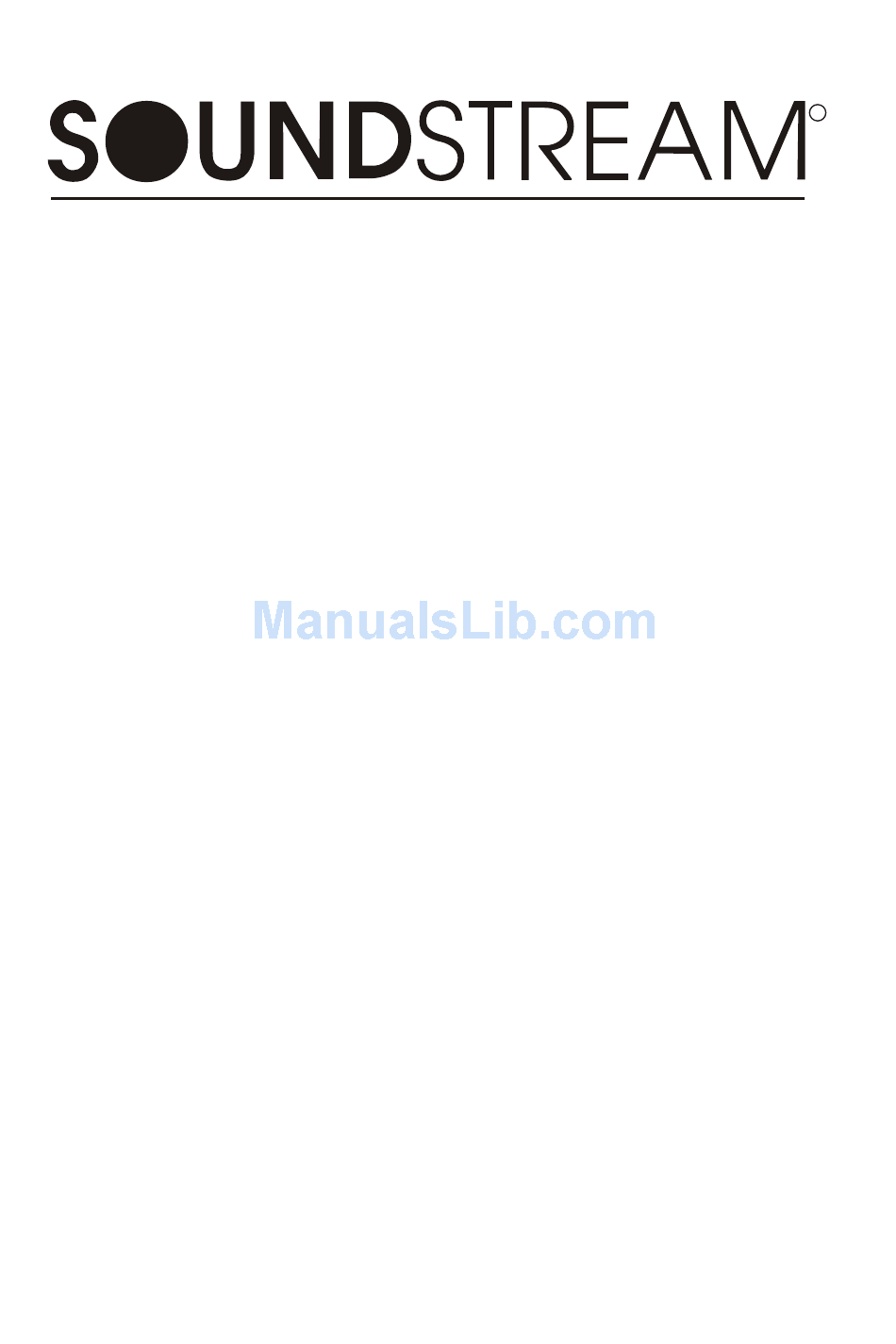

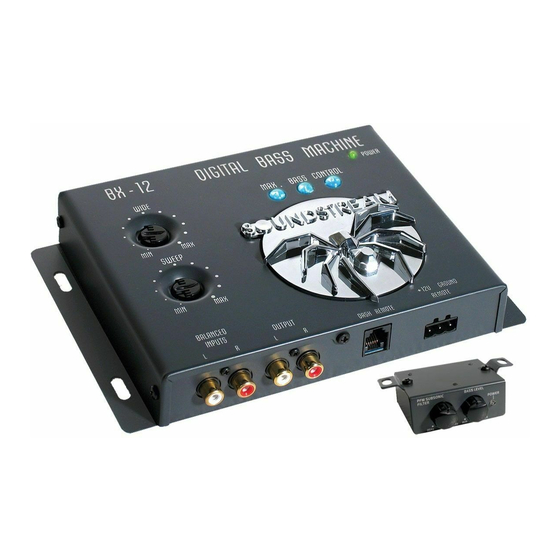

- Page 1 BX-12 Digital Bass Driver Owner s Manual Installation Guide...
- Page 2 Dash Mount Remote Control: The BX-12 comes with a Dash Mountable Remote Control that allows you to enjoy the effects of the BX-12 without having to leave the drivers seat. The Dash Mount Control has a LED indicator, this LED will grow brighter as you add more bass or dimmer when you decrease it.
- Page 3 Functions THE OUTSIDE 1. Inputs: The inputs of The BX-12 use a balanced input circuit to help minimize induced noise. The are also designed to handle very high signal voltages up to 15 volts. 2. Outputs: These RCA connectors should be connected to the next component after the BX-12, such as a crossover, equalizer, or amplifier.
- Page 4 THE INSIDE 8. Input Grounding: For most systems you can leave this jumper set in the BALANCED position. In some systems, the source unit may look for a ground through the RCA connectors. In this event, you should go ahead and change the jumpers to the UNBALANCED position.
-
Page 5: Power Connection
Connect an orange wire to remote activating (12V DC)wire of car stereo or equalizer. Connect a black wire to the car chassis for ground connection. PFM SUBSONIC BASS LEVEL FILTER 35Hz 80Hz min HEAD UNIT BX-12 DIGITAL BASS MACHINE MAX. BASS CONTROL Orange - 4 - Black... -
Page 6: Signal Connections
Crossover NOTE: For signal connection, the output RCA connectors should be connected to the next component after the BX-12, such as a crossover, equalizer, or amp lifier. Just remember, the BX-12 should go inline before a crossover. DIGITAL BASS MACHINE MAX. -
Page 7: Specifications
(3)The music on the tape (4) Speakers and speaker enclosures. Because of the variations in the recording process, we developed BX-12 to help restore any low frequencies lost during the recording process, however, the acoustics of various environments are different. -
Page 8: Troubleshooting
TROUBLE SHOOTING GUIDE If the Unit does not turn-on, and / or the power indicator LED is NOT illuminated, do this: 1) Check and make sure that B+ and GND are not reversed 2) Check that all power wires are properly connected and has the appropriate potential (11- 16 volts) 3) Check that the fuse is intact.
