Summary of Contents for Timeguard WFAD3

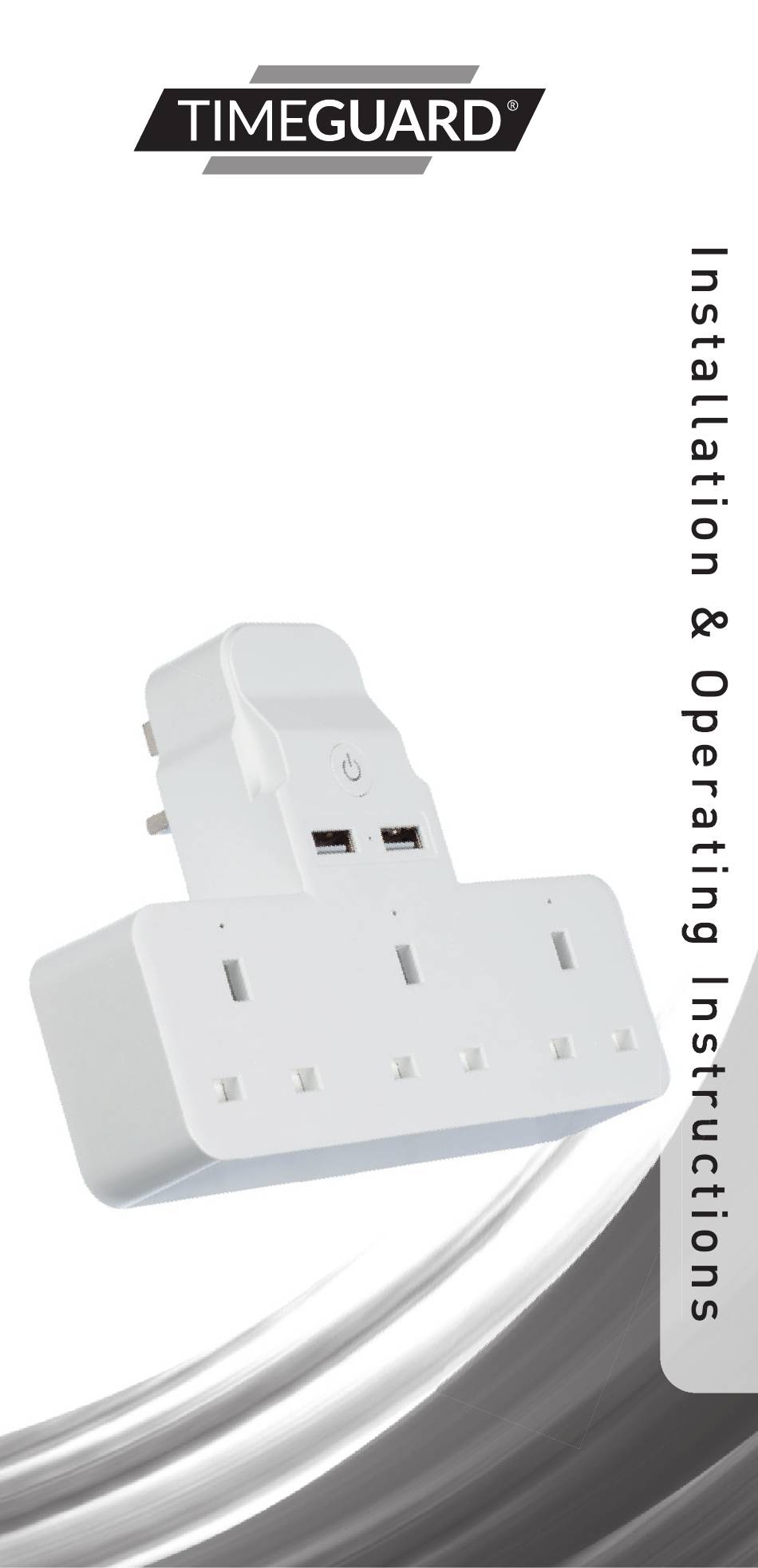

- Page 1 WiFi 3 Way Adaptor with USB Ports Model: WFAD3...
-
Page 2: General Information
1. General Information These instructions should be read carefully in full before installation, and retained for further reference and maintenance. 2. Safety • Do not plug in any appliance that exceeds the capacity of the Smart Plug. • Always ensure the plug of any appliance is fully inserted into the Smart Plug outlet. -
Page 3: System Requirements
4. System Requirements • Smartphone/Tablet with at least iOS 8.0 or Android 5.0 • WLAN-enabled router: 2.4GHz (Separate Band) • Tuya Smart App 5. Downloading App and Registration Note: The smartphone or tablet must be connected to a 2.4GHz band on the router. - Page 5 • Install the App and open it to the registration screen. Click on the ‘Register’ button.
- Page 6 Tap ‘Agree’ to accept the privacy policy. •...
- Page 7 • Choose your region by selecting the Country Code. Enter your email address or phone number and click ‘Get Verification Code’ .
- Page 8 • Enter the Verification Code sent to the email address or phone number that you provided. Once you have successfully entered the code, it will automatically move you to the Password screen. • Assign a Password (this must be between 6 to 20 characters including letters and digits) and click ‘Done’...
- Page 9 • You are now registered and by default will see the App home page.
-
Page 10: Home Management
6. Home Management Note: Before adding any devices to your account, structuring your household (or the property) may be a consideration if you plan on using Smart devices in different rooms or locations. Select the ‘Me’ option from the home •... - Page 11 Select the ‘Home Name’ option • and enter your last name or even ‘My Home’ if preferred. (This is required to allocate devices to separate rooms later once paired).
- Page 12 • Next tick the rooms you wish to assign to your account; this can be changed at any time and custom room names can also be added. • To navigate back to the home screen, press the ‘Back’ button, and then click Home.
-
Page 13: Pairing Your Device(S)
7. Pairing your Device(s) • To add a new device to your account, click the ‘Add Device’ button (or click on the + button in the top right hand corner) - Page 14 • Notice the different categories of products; it is essential that the correct product is selected for the pairing process to be successful. For the Wi-Fi 3 Way Power Strip, choose the ‘Power Strip (Wi-Fi)’ option from the list.
- Page 15 • Plug the Wi-Fi 3 Way Adaptor into a socket with the power switch in the ON position. Press and hold the round On/Off button for a few seconds until the LED starts to flash. • When the LED is flashing press the ‘Confirm indicator rapidly blinking’...
- Page 17 • The App will pair the smart product to the network. The time it takes for pairing to complete, which will differ depending on the network connection. Shortly into the pairing process, the flashing Status LED will become stable (ON). This indicates that the product has joined the network.
- Page 18 • If the following screen is displayed, then the product has been paired successfully. To rename your product, select the pencil icon. If this is not required, click on the ‘Done’ button and you will guided to the device controls menu.
- Page 20 • To navigate back to the home screen, press the ‘Back’ button. The newly paired Wi-Fi Smart Switch will now be listed. Note: If the pairing process was not successful, disconnect the mains supply from the product and re-establish power to the unit.
- Page 21 8. Smart Home Assistant • To add your device to your Smart Home Assistant services, such as Google Home or Amazon Alexa, follow the on-board instructions located on the TuyaSmart App. To do this, select the ‘Me’ option from the home menu, and then select ‘More Services’.
- Page 22 • On the more services screen, you will see support or different applications for automated Smart Home control. Follow the instructions on the TuyaSmart App to add the devices to your Smart Home Assistant service.
- Page 23 Note: The Smart Home Assistant services supported by the TuyaSmart App may change as it is a 3rd party App Service. Any services that may be removed are the responsibility of TuyaSmart developers and not Timeguard.
-
Page 24: Year Guarantee
Note: a proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs are to be paid in advance before a replacement is sent. - Page 25 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline: HELPLINE 020 8450 0515 or email helpline @ timeguard.com Qualified Customer Support Coordinators will be online to assist in resolving your query.
