VivoLink VLHDMIMAT4X2 User Manual

4KX2K 4 to 2 HDMI matrix User Manual

Introduction:

This 4x2 HDMI Matrix Switch is with 4 HDMI inputs and 2
HDMI outputs. It is a true matrix and can distribute any
one of 4 sources to either of 2 displays, and can work as
a splitter to show the same source on 2 displays
simultaneously. Analog R/L audio and digital SPDIF
audio can be extracted from HDMI signal. It supports
3D HDMI and 4KX2K.

Important safety instructions

1.Use DC5V power supply only. Make sure specification
matched if using adapters not supplied by factory.
2.Put this product in dry and ventilated place for normal
heat dissipation.
3.Keep this product away from strong static and magnetic
environment.

Package contents

1. Product 2. Remote control
3. User manual 4. Power adapter 5V2A
5. R/L audio+ SPDIF audio cable
6. Screws (to hang on wall)
7. IR extension receiver

Installation requirement

1.HDTV or other display with HDMI port input.
2.HDMI video source, such as DVD,PS3,STB,PC etc.
3.High standard HDMI cable (can support 4K X 2K).

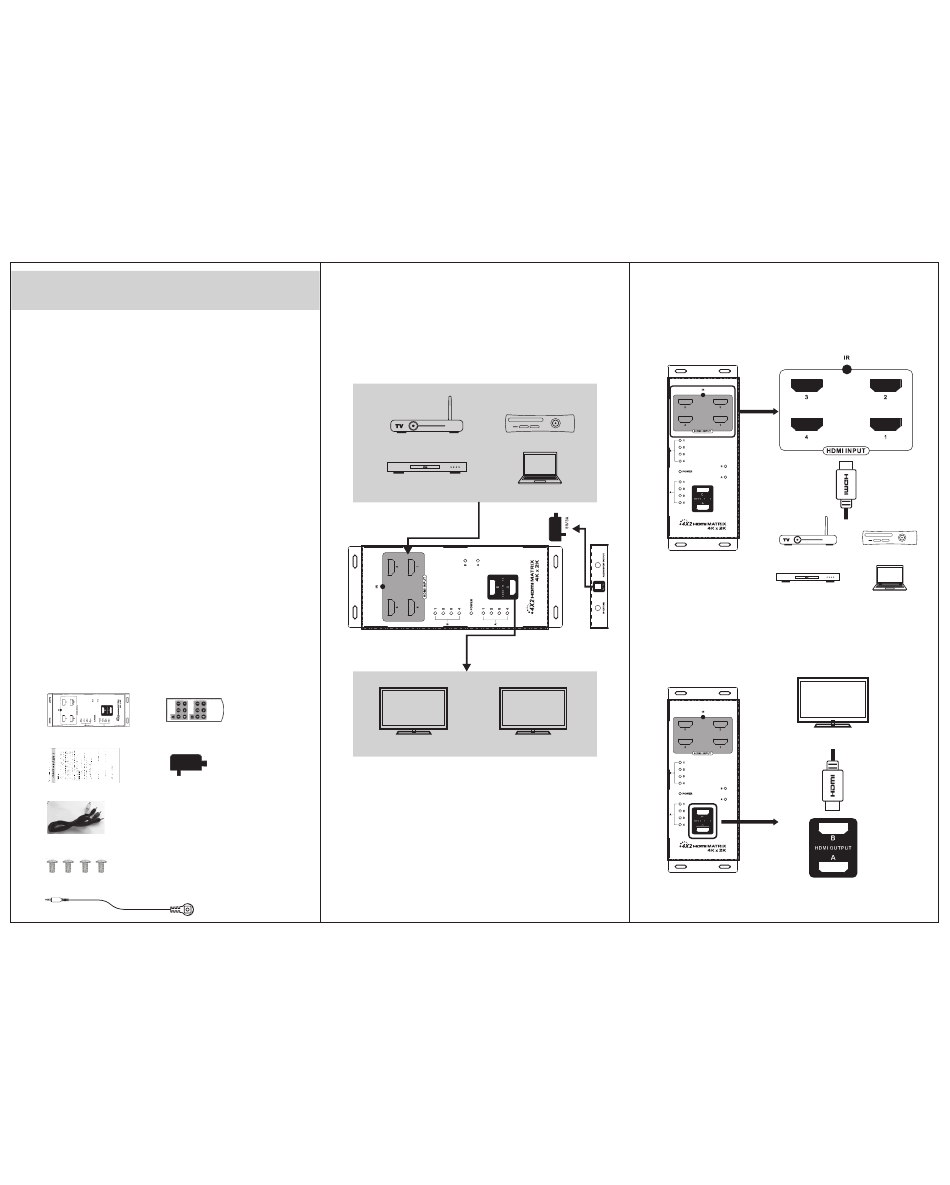

Installation steps

TV-Box Game Box
DVD
HDMI
Display HDMI
Display
Note:
1.It requires that HDMI source(DVD, STP etc), HDMI
cable and output display device all can support 4KX2K
resolution if users need to output 4KX2K signal.
2.Do not plug and unplug HDMI cable or other cables
while working.
3.Select the right HDMI input channel for displays.

Operation notes

1、Connect HDMI source devices and this product


HDMI inputs with HDMI cables.
Laptop
2.Connect this product output to HDMI displays with
HDMI cables (select the right HDMI input channel for
displays).
Input
TV-Box Game Box
Laptop
DVD
HDMI
Display
Output
