Summary of Contents for National Comfort Products NCHP-018-1019

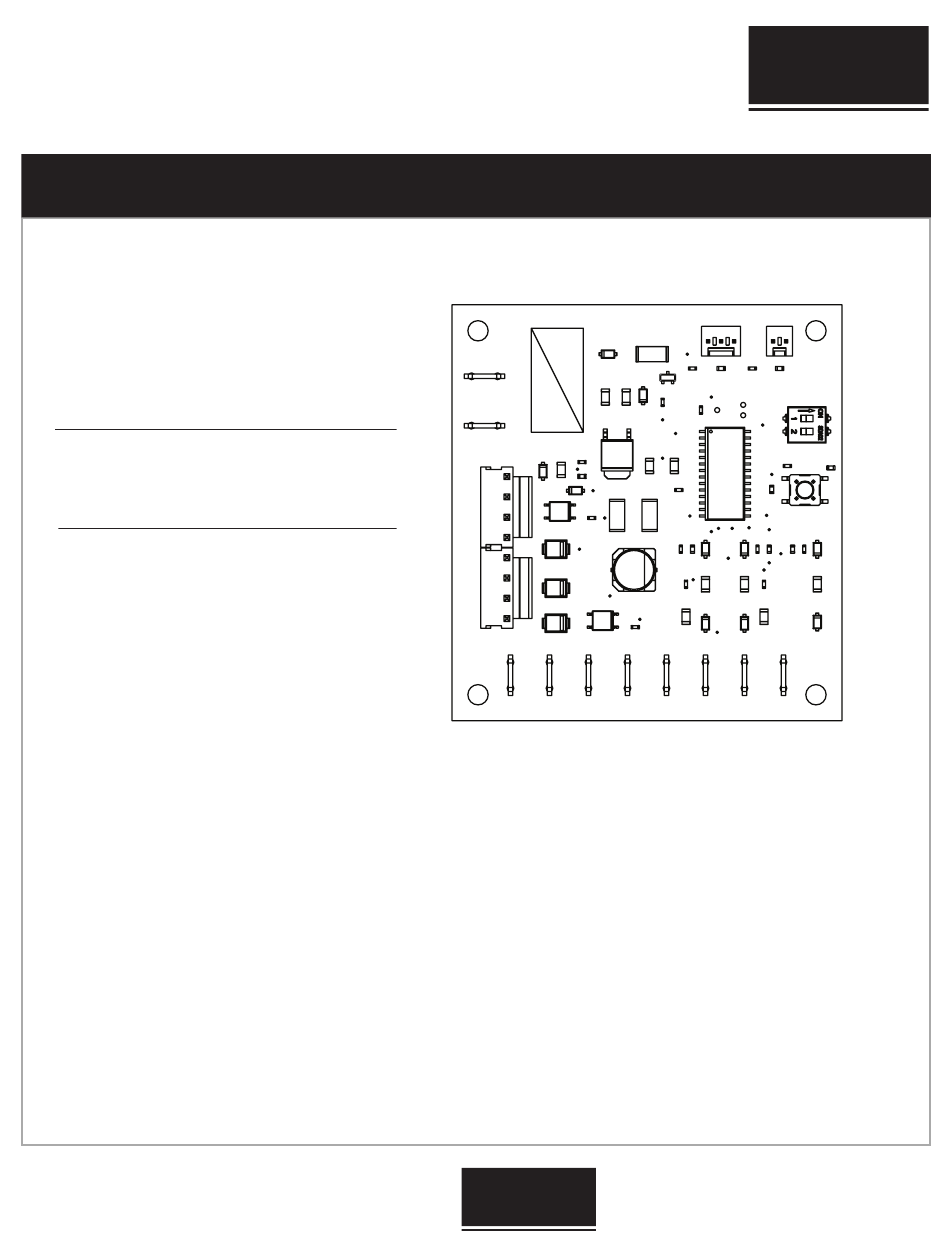

Page 1
Please read the entire installation guide before starting the installation. All phases of this installation must comply with National, State and Local codes. This manual must be left with the homeowner for future reference. National Comfort Products Go Thru-the-Wall NATIONAL ®...
Page 2
Important: This document is customer property and is to remain with this unit. DO NOT DESTROY OR THROW AWAY THIS MANUAL. IT SHOULD BE KEPT IN A SAFE PLACE FOR FUTURE REFERENCE.
Failure to follow these instructions may result in improper installation, adjustment, service or maintenance possibly resulting in fire, electrical shock, property damage, personal injury or death. Replacement Models: NCHP-018-1019 WARNING NCHP-018-3019 NCHP-024-1019 Installation and repair of this unit should be performed ONLY by NCHP-024-3019 individuals meeting the requirements of an “entry level technician”...
Installation Guide | Defrost Board Replacement Kit Defrost Board Replacement Kit Installation (For Compatibility List See Page 4) 1. Remove the access panel from the cabinet. 3. Align the defrost board bracket with the four holes in the control box and secure it using the four sheet metal screws.
Page 6
Installation Guide | Defrost Board Replacement Kit 5. Insert the plastic standoff in the center four holes of 7. Feed the white plastic temperature sensor through the metal bracket. the 3/8” hole on the right side of the coil. Push through the grille.
Page 7
Installation Guide | Defrost Board Replacement Kit 9. Connect the wires to the control board. 11. Reattach access panel (Refer to the wiring diagram included with the kit or on page 9 of this manual) 10. Change the defrost curve setting on the control board to match your unit.
Page 8
Installation Guide | Defrost Board Replacement Kit Demand Defrost Curves: DEFROST CURVES Defrost Curve_1 Defrost Curve_2 Defrost Curve_3 Defrost Curve_4 Inhibitor Set point Termina�on Set point Terminate Defrost Cycle Inhibit Defrost Cycle Timed defrost Demand Defrost OCT (°F) The demand defrost curve setting is important for system performance and equipment protection.
Installation Guide | Defrost Board Replacement Kit Y W R CC L1 CFM Fan Demand Setting Defrost Test C C RV CC In Out In Out RV Solenoid CC Coil *Use jumper when HPS is not used LEGEND WIRING DIAGRAM CC T1 - CONTACTOR LOAD SIDE 1 CFM - CONDENSER FAN MOTOR 539 DUNKSFERRY RD.
