Summary of Contents for carmelec Magnetis

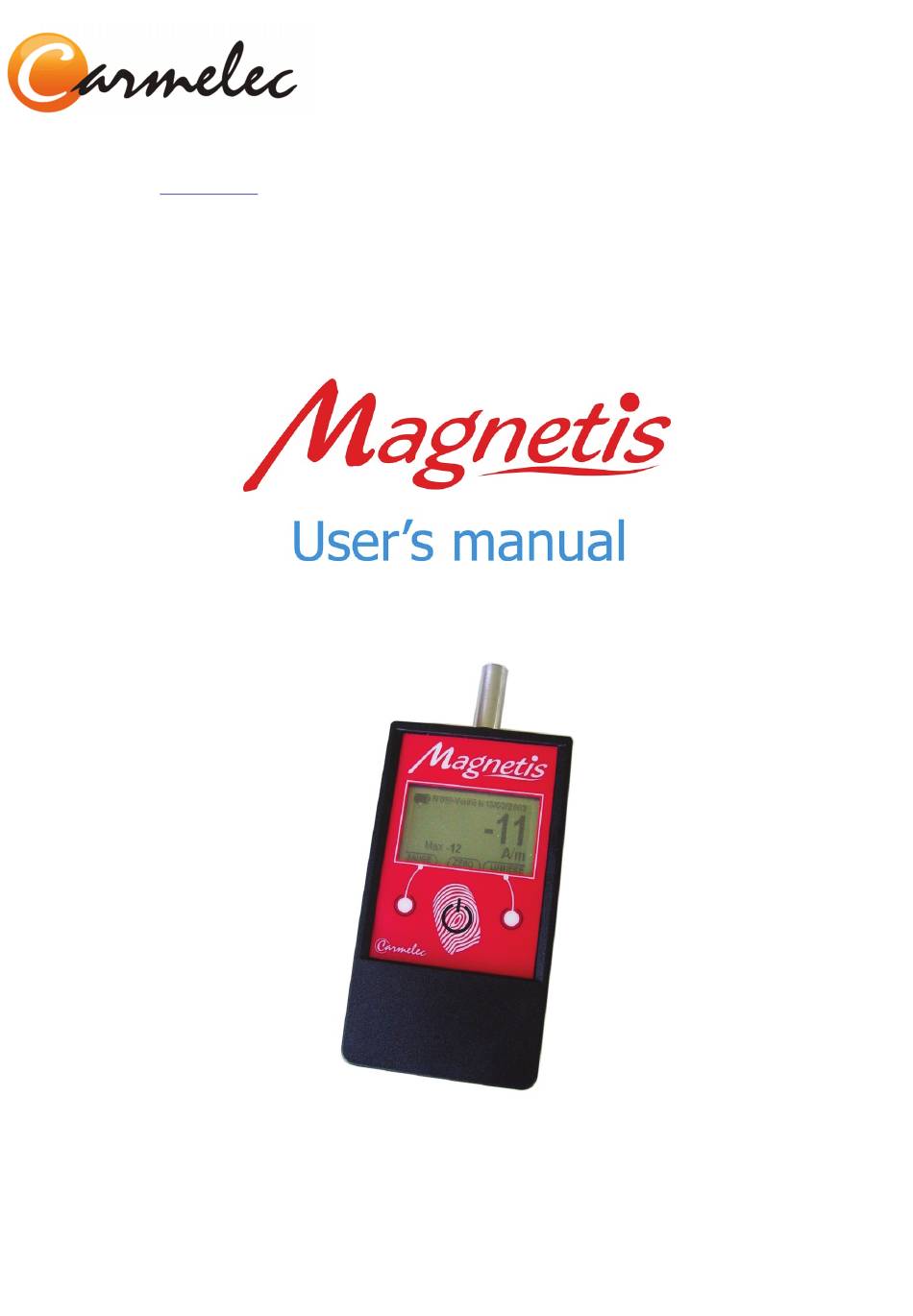

- Page 1 231, Rue James Watt - Tecnosud 66100 PERPIGNAN Phone +33 (0) 468 832 826 – Fax +33 (0) 468 831 967 Web: www.carmelec.fr Email: sav@carmelec.fr...
-
Page 2: Table Of Contents
Magnetis - User’s manual version du 6 mars 2019 - Page 2 TABLE OF CONTENTS Introduction _______________________________________________________________ 3 General deScription _________________________________________________________ 3 Physical description _________________________________________________________ 3 Mechanical description ____________________________________________________ 3 Probe details _____________________________________________________________ 4 ________________________________________________________________________ 4 Power On/off ____________________________________________________________ 5... -
Page 3: Introduction

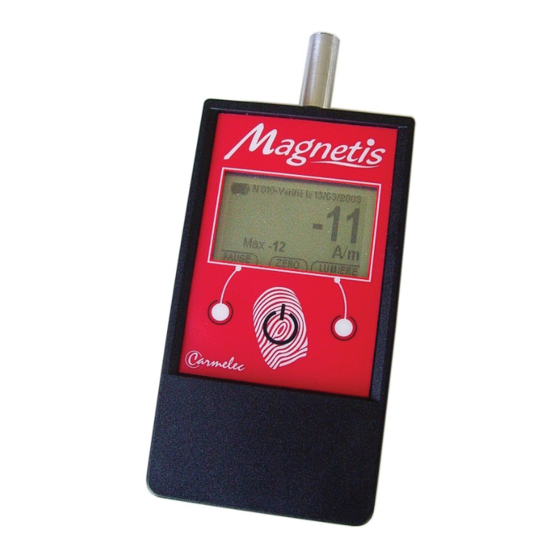

Thank you for purchasing this CARMELEC residual magnetic field meter. We hope the following information will help you to understand all the functions of your MAGNETIS. If you need further information, our team is entirely at your service. GENERAL DESCRIPTION MAGNETIS is a residual and/or DC magnetic field strength digital meter. -
Page 4: Probe Details
Magnetis - User’s manual version du 6 mars 2019 - Page 4 Probe details... -
Page 5: Power On/Off
Press the central key to turn on your MAGNETIS. An opening screen is displayed with CARMELEC logo and the « Help » tab in the bottom right corner (See « Help menu » p. 6). Then MAGNETIS passes to reading screen mode and therefore is ready for use. -
Page 6: Battery Status Indicator
Magnetis - User’s manual version du 6 mars 2019 - Page 6 Battery status indicator It is possible to check the battery level of MAGNETIS with the battery charge indicator on the top-left corner of the display. When the indicator is flashing, the battery must be replaced by a new one. -
Page 7: Measurement Procedure
MAGNETIS incorporates features which allow you to obtain reliable measures: Stability indicator It looks like a bar-graph which is filled as MAGNETIS integrates the values of the magnetic field. The reading is stable as soon as it disappears. Maximum indicator It allows keeping on the display the maximum detected value. -
Page 8: Maintenance
Magnetis - User’s manual version du 6 mars 2019 - Page 8 MAINTENANCE Annual calibration To ensure the accuracy of your meter, we advise you to carry out an annual checking of this device in a testing laboratory. Cleaning You can clean the device with any classic cleaning product. -
Page 9: Technical Data
Magnetis - User’s manual version du 6 mars 2019 - Page 9 TECHNICAL DATA Detection specifications Sensor: Hall effect sensor • Measurement range: from - 47 000 to 47 000 A/m • Resolution: • From 0 to 100 A/m: 1 A/m >... -
Page 10: After-Sales Service
Magnetis - User’s manual version du 6 mars 2019 - Page 10 AFTER-SALES SERVICE The CARMELEC after-sales service is entirely at your service. Do not hesitate to contact us for any further information. Phone: +33 (0) 468 832 826 Fax: +33 (0) 468 831 967 Email address: sav@carmelec.fr... - Page 11 Magnetis - User’s manual version du 6 mars 2019 - Page 11...
- Page 12 Magnetis - User’s manual version du 6 mars 2019 - Page 12 231, Rue James Watt - Tecnosud 66100 PERPIGNAN Phone +33 (0) 468 832 826 – Fax +33 (0) 468 831 967 Web: www.carmelec.fr Email: sav@carmelec.fr...
