Retro Roller FE 891 Instruction Manual

Instruction manual
Retro roller model FE 891
Imported by Van der Meulen.
www.retroroller.eu
PLEASE NOTE! Assembly must be done by an adult.
Keep out of reach of young children because of the
small parts.
IMPORTANT:
1. For the child's safety, all assembly steps must be carried
out properly. Incorrect assembly could cause injury.
2. Lubricate moving parts regularly or after long-term
use.
3. Ensure that all nuts and bolts have been tightened be-
fore use. Check nuts and bolts regularly and tighten where
necessary.
4. Components showing signs of wear should be replaced
immediately.
5. The child should never be left unattended when riding in
the vehicle.
1

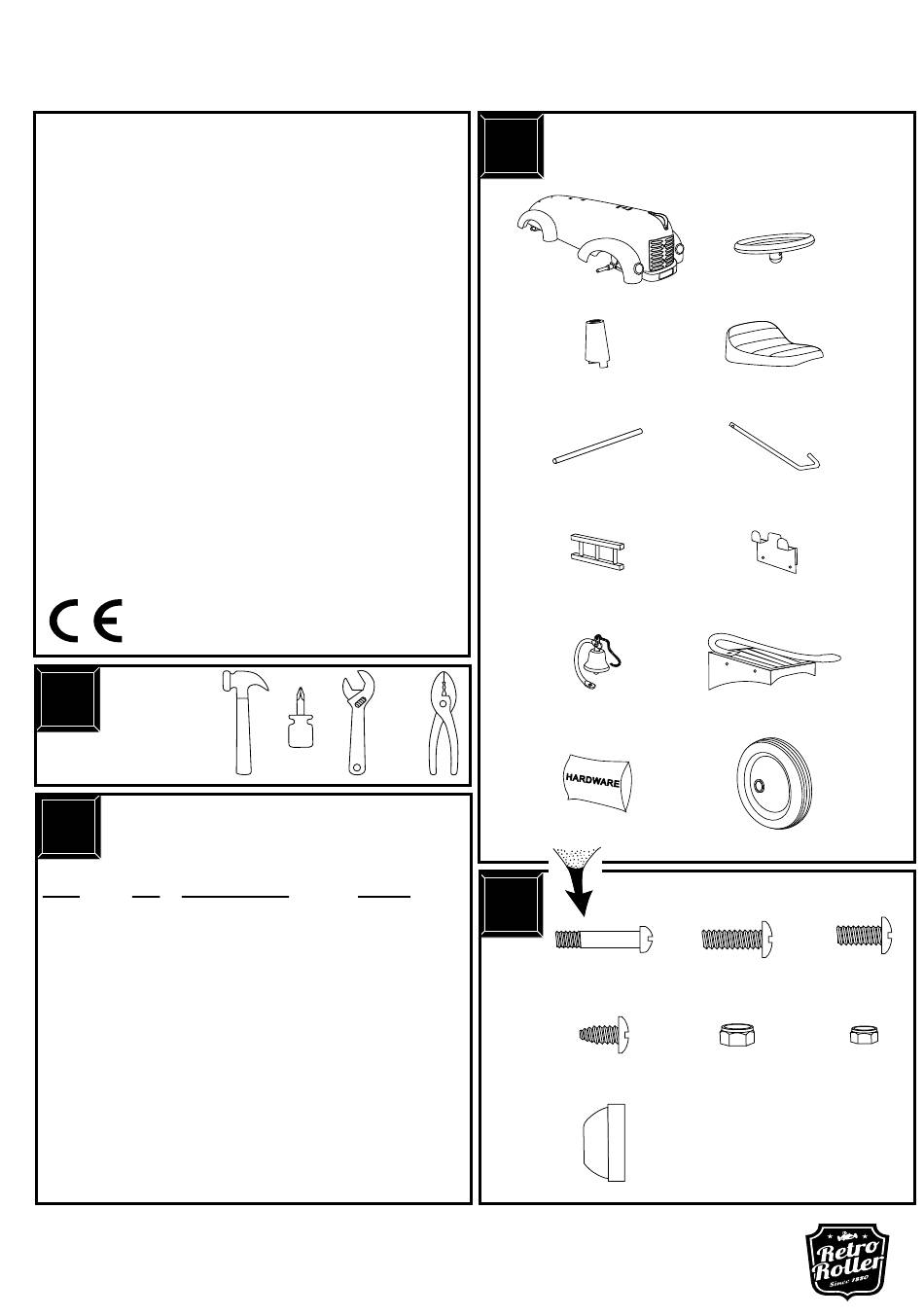

Tools required:

3
HARWARE SET COMPONENTS
Qty
Description
No.
Machine screw
*891.8001 1
Machine screw
*891.8002 1
Machine screw
*891.8003 4
*891.8004 6
Self tapping screw
*891.8005
5
Hexagon Locknut
*891.8006
1
Hexagon Locknut
4
*891.8007
Hub cap
*Standard hardware items may be purchased locally
or
short
Spec.
M4x24mm
Ø3/16" x16mm
Ø3/16" x13mm
Ø4x11mm
Ø3/16"
M4
Ø 10mm
2
Parts no x Qty
some parts may already have
been pre assembled upon receipt.
(891.001) x1
(891.003) x1
(891.005) x1
(891.007) x2
(891.009) x1
(891.011) x1
2
(891.8001) x1
(891.8004) x6
(891.8007) x4
(891.002) x1
(891.004) x1
(891.006) x1
(891.008) x2
(891.010) x1
(891.012) x4
(891.8002) x1 (891.8003) x4
(891.8005) x5 (891.8006) x1
