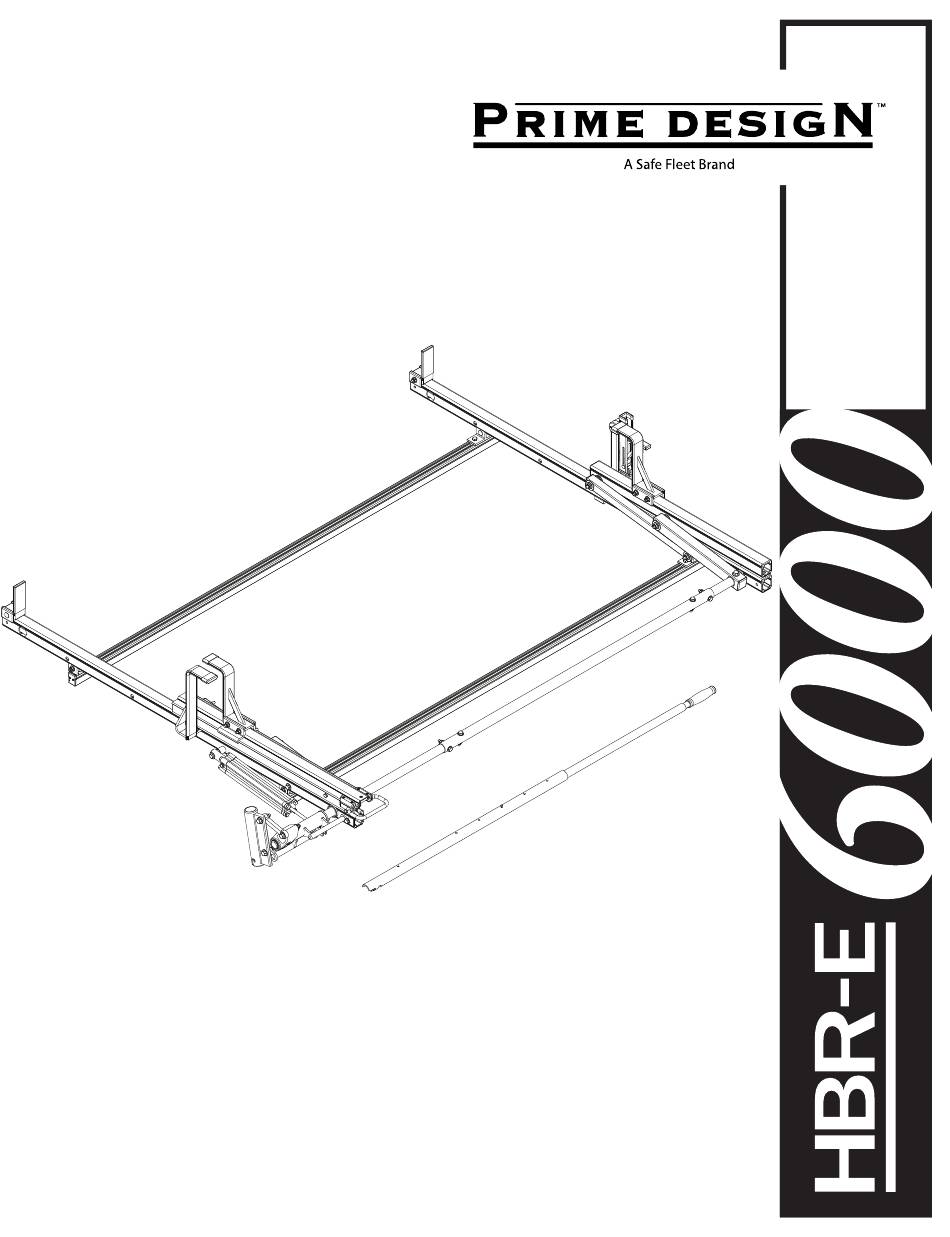

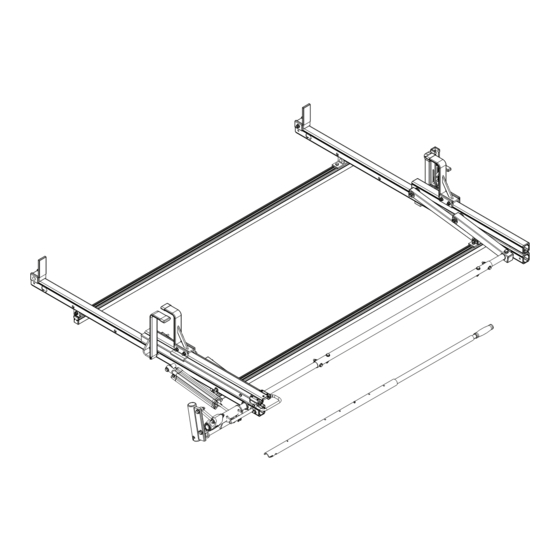

- Page 1 PRIME DESIGN, A SAFE FLEET BRAND Address: 580 Opperman Drive, Eagan, MN 55123 ▪ Toll Free: 1.8.PRIME.RACK Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
-
Page 2: Contents Overview
CONTENTS OVERVIEW INSTALLER NOTE: Mounting Hardware or Brackets to attach this rack to a vehicle roof or cap are not included in this kit, and must be purchased separately. To purchase Mounting Hardware or Brackets, please contact Prime Design Sales & Support. 1—FBM-0001 ............ - Page 3 5—HRR Handle Assembly ........(Qty 1) 35.00” 6—Connecting Bar ..........(Qty 1) 48.00” 7—Front Drive Shaft ..........(Qty 1) B Version, 35.75” 8—Z Post ............... (Qty 1) Adjustable 7.25” 9—L Post ............... (Qty 1) Roller Cap, 9.25” 10—Ladder Stop Assembly ........(Qty 2) 1.75”...
- Page 4 FBM-0001 FLUSH Set to distances then torque nuts to 80 in-lbs CHANNELS TO PRE–INSTALLED INSTALLER NOTE: Mounting Hardware or MOUNTING BRACKETS Brackets to attach this rack to a vehicle roof or cap are not included in this kit, and must be purchased separately. F r o To purchase Mounting Hardware or Brackets, please contact Prime Design...
- Page 5 FBM-0001 ALTERNATE Set to distances then torque nuts to 80 in-lbs CHANNELS TO PRE–INSTALLED MOUNTING BRACKETS F r o R i g R e a R e a See Note Left Rear See Note Loosen nuts Right Rear Move Channels rearward until front distance no longer exceeds 18” (457mm). Set to distances then torque Rear Bracket nuts to 90 in-lbs F r o R i g...
- Page 6 RIGHT ROTATION ASSEMBLY SEQUENCE 3/10 CROSSBARS CROSSBAR ADJUSTMENT F r o Even Front Even Rear Torque to 90 in-lbs Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
-
Page 7: Rear Drive Shaft
REAR DRIVE SHAFT Torque to 90 in-lbs CYLINDER HARDWARE CONNECTING BAR Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”). -
Page 8: Front Drive Shaft
FRONT DRIVE SHAFT CONNECTING BAR FASTENERS Torque to 90 in-lbs Z POSTS L POSTS SEE QUICK START GUIDE FOR ADJUSTMENTS SEE QUICK START GUIDE FOR ADJUSTMENTS Torque to 90 in-lbs Torque to 90 in-lbs Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”). - Page 9 DRIVE SHAFT SEALING CYLINDER ADJUSTMENT Adjust the Cylinder Flow Control Screw to allow approximately 3 seconds time for the ladder to glide down when operating the loaded Ladder Rack. Apply Silicone Sealant to Connecting Bar ends Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
- Page 10 LEFT SIDE BASE ASSEMBLY SEQUENCE LADDER STOPS 11.1 11.2 Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
- Page 11 Page Intentionally Left Blank...
- Page 12 USAM-HBRE6000-US01 Rev-A 0118...
