LIGHT MY BRICKS LEGO EIFFEL TOWER 10307 LIGHT KIT Installation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
LEGO
EIFFEL TOWER #10307
®
LIGHT KIT
INSTALLATION GUIDE
Part 1 of 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the LEGO EIFFEL TOWER 10307 LIGHT KIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LIGHT MY BRICKS LEGO EIFFEL TOWER 10307 LIGHT KIT

Summary of Contents for LIGHT MY BRICKS LEGO EIFFEL TOWER 10307 LIGHT KIT

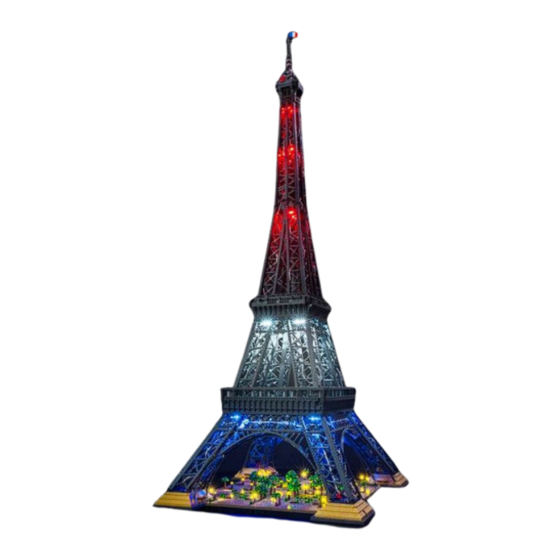

  • Page 1 LEGO EIFFEL TOWER #10307 ® LIGHT KIT INSTALLATION GUIDE Part 1 of 2...
  • Page 2 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Light My Bricks LEGO EIFFEL TOWER 10307 ® INSTALLATION GUIDE Hi There! We’re here to help you get started on the LEGO ® Eiffel Tower 10307 Light Kit. This PDF details the instructions for the LED light kit only. If you are wishing to purchase this product, please click here to view the product page.
  • Page 3 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® PACKAGE CONTENTS: * Indicates components which include spares Individual Bags Mixed Components 1 • 28x White 30cm Micro Bit Light * 4x 2-Port Expansion Board • 8x White 15cm Micro Bit Light 3x 6-Port Expansion Board •...
  • Page 4 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® PACKAGE CONTENTS: Mixed Components 4 Light String Warm White 15 LED 3 Pin 8x Plate, Round 1x1 Open Stud - Black 4x Plate, Round 1x1 with Bar Handle - Black 6x Light String 15 LED 3Pin - Warm White 4x Tile, Modified 1x1 with Open O Clip - Black 4x Bracket 1x1 - 1x1 Inverted - Dark Bluish Gray Mixed Components 5...

  • Page 5: Table Of Contents

    LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Contents Before You Begin Blueprint Instructions: Part 1 Troubleshooting Contact CONTENTS...

  • Page 6: Before You Begin

    LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Before You Begin Laying cables in between Connecting Cable and underneath bricks Connectors To Expansion Boards Cables can fit in between and underneath LEGO bricks, plates, and tiles providing ® Take extra care when inserting connectors they are laid correctly between the LEGO ®...
  • Page 7 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Before You Begin Connecting Cable Connecting Micro Cable Connectors To Strip Lights Connectors To Micro Expansion Board Ports Take extra care when inserting connectors to ports on the Strip Lights. Connectors Take extra care when inserting the can be inserted only one way.
  • Page 8 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Before You Begin Installing Bit Lights Under Lego® Bricks And Plates When installing Bit Lights under LEGO ® pieces, ensure they are placed the correct way up (Yellow LED component exposed). You can either place them directly on top of LEGO studs or in between.
  • Page 9 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Before You Begin The Symbols Used In This Guide Connect Turn/ Flip When going through the following guide you will Used when you need to Will be found in the top left come across symbols and formats that will assist connect a LEGO piece or LMB corner when the set needs to...
  • Page 10 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Before You Begin General Note Repeat Step NOTE This is a sample note that is Repeat the previous step eg. used anywhere in this guide. It Make a spotlight, then make a Take the 5cm Connecting Cable will explain a difficult section from the 4-Port Micro Expansion...

  • Page 11: Blueprint

    LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Top Level BLUEPRINT: BLUEPRINT...
  • Page 12 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® BLUEPRINT: Middle Level BLUEPRINT...
  • Page 13 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® BLUEPRINT: Bottom Level BLUEPRINT...

  • Page 14: Instructions: Part 1

    LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS: Part 1 To ensure a smooth installation of your light kit, please read and follow each step carefully. If you run into any issues, please refer to the online troubleshooting guide. INSTRUCTIONS...
  • Page 15 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE Ensure front side has the Yellow elevator on the left and the Red on the right. INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 16 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE Use the LEGO Brick Separator Tool or similar to pry apart plates. INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 17 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 18 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® USB Power Cable 8-Port Micro Expansion Board INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 19 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® 30cm Connecting Cable INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 20 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE Position the Expansion Board as shown and route the cable. This will allow the right amount of cable length. INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 21 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 15cm Micro Bit Light NOTE Position the Micro Bit Light LED sideways as shown; this will allow it to fit inside of the lamp posts. INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT...
  • Page 22 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE To check if the light is positioned correctly, remove the black cap and look for the Micro Bit Light LED. NOTE Ensure the cable is placed in between the studs and coming out from the indicated location.
  • Page 23 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 30cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 24 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE Press down on the middle of the brown piece first, then press down where indicated. NOTE Run the cables to the side of the brown piece, ensure it is under the piece when placed down.
  • Page 25 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE Connect to a 5V USB Wall Adaptor (sold separately). A power bank or battery pack is not recommended to power this set. NOTE Testing the set regularly is encouraged to ensure all of the lights are working when completing each step.
  • Page 26 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 15cm Micro Bit Light White 30cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 27 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 28 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 30cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 29 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 30cm Micro Bit Light White 30cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 30 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 30cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 31 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE Place the green plate in an upright position, this will allow you to connect the cables underneath. NOTE Run all of the Micro Bit Light cables about halfway through the red circle brick. INSTRUCTIONS DISCONNECT POWER ON TEST...
  • Page 32 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE If you have trouble attaching the Micro Bit Light cables to the Micro Expansion Board, remove the connecting cable, then reattach after. 2x Adhesive Square NOTE Position the green plate as shown, and ensure all of the cables are clear of the studs and placed in the empty...
  • Page 33 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE NOTE The green plate will be slightly Press down the centre of the raised but this is normal. There green plate first, then press are several cables underneath down each of the brown tile and making it flat will break sections indicated.
  • Page 34 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® 8-Port Micro Expansion Board INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 35 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE Hold the Micro Expansion Board in the following position, before securing the Connecting Cable in place 30cm Connecting Cable INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 36 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 37 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 15cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 38 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 30cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 39 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 40 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 15cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 41 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 30cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 42 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 30cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 43 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 30cm Micro Bit Light White 30cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 44 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 30cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 45 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® 2x Adhesive Square INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 46 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE Connect to a 5V USB Wall Adaptor (sold separately). A power bank or battery pack is not recommended to power this set. If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify where the fault lies (with the light or...
  • Page 47 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 48 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® 8-Port Micro Expansion Board NOTE Hold the Micro Expansion Board in this position, then fix the cable down and let go. 30cm Connecting Cable INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID...
  • Page 49 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 50 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 15cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 51 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 30cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 52 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 15cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 53 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 30cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 54 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 55 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 30cm Micro Bit Light White 30cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 56 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 30cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 57 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 30cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 58 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® 2x Adhesive Square INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 59 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE Connect to a 5V USB Wall Adaptor (sold separately). A power bank or battery pack is not recommended to power this set. 8-Port Micro Expansion Board If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify...
  • Page 60 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 15cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 61 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 30cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 62 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® 30cm Connecting Cable INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 63 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 64 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 15cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 65 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 30cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 66 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 30cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 67 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 30cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 68 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 30cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 69 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® White 30cm Micro Bit Light INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 70 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® 2x Adhesive Square INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 71 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE Connect to a 5V USB Wall Adaptor (sold separately). A power bank or battery pack is not recommended to power this set. IR Switch Board If you experience any issues with the lights not working and suspect an issue with a component, please try a different port on the expansion board to verify...
  • Page 72 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE Wrap the 50cm Connecting Cable up the tower leg. Follow the guide photos as closely as possible. INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 73 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® 5cm Connecting Cable 6-Port Expansion Board NOTE Connect a 5cm Connecting Cable into the “OUT B” port of the IR Switch Board. 3Pin Sparkle Effects Control Board NOTE Connect the other end of the 5cm Connecting Cable into the “+5V”...
  • Page 74 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® 2x Adhesive Square INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 75 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® 30cm Connecting Cable RGB IR Control Board NOTE Connect the 5cm Connecting Cable from the 4-Port Micro Expansion Board into the “IN” port of the Flicker Effects Board INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT...
  • Page 76 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE Twist the 50cm Connecting Cable from Step 71 only. 15cm Connecting Cable 2x Adhesive Square RGB 15cm Connecting Cable INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 77 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® RGB 15cm Connecting Cable 4x Adhesive Square Tile 1x6 - Black Brick 1x2 - Black RGB Strip Light 2.0 RGB 30cm Connecting Cable INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 78 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE Take one of the two loose 15cm RGB Connecting Cables form Step 77 and thread as shown. INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 79 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® RGB Strip Light 2.0 NOTE Take the end of the loose 30cm RGB Connecting Cable and thread it through. Tile 1x6 - Black Brick 1x2 - Black INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT...
  • Page 80 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Tile 1x6 - Black Brick 1x2 - Black NOTE RGB Strip Light 2.0 Take the loose 15cm RGB Connecting Cable from Step 77 and thread it as shown. RGB 30cm Connecting Cable INSTRUCTIONS DISCONNECT POWER ON TEST...
  • Page 81 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Tile 1x6 - Black INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 82 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Brick 1x2 - Black RGB Strip Light 2.0 NOTE Connect to a 5V USB Wall Adaptor (sold separately). A power bank or battery pack is not recommended to power this set. RGB IR Remote NOTE Use the included RGB IR...
  • Page 83 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE Light String 15 LED 3Pin - Warm White Press the R, G, and B buttons on the Remote to change the Strip Lights to Red, Green, and Blue to test if they are working. NOTE If you experience any issues with the lights not working and suspect an issue...
  • Page 84 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Adhesive Square NOTE Wrap the Light String up the tower leg. Follow the guide photos as closely as possible. INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 85 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Light String 15 LED 3Pin - Warm White INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 86 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 87 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Light String 15 LED 3Pin - Warm White INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 88 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Light String 15 LED 3Pin - Warm White INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 89 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® INSTRUCTIONS DISCONNECT POWER ON TEST CONNECT DIRECTIONAL BEND / PIVOT TURN / FLIP TWIST / BRAID NOTE ICON...
  • Page 90 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® NOTE NOTE After 30 seconds the String Leave the end of the String Lights flash rapidly for 30 Light loose for now. It will be seconds then back to static. connected to the second level Avoid staring at the effect as it of the Eiffel Tower when it is may cause discomfort to some.

  • Page 91: Troubleshooting

    LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® TROUBLESHOOTING Light My Bricks lighting To prevent unnecessary If you are experiencing kits contain individual damage to components, issues with your Light components that are very we highly recommend that My Bricks set, watch our...
  • Page 92 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Troubleshooting Firstly, ensure that the Check for AA batteries batteries have power using a using the AA battery pack battery charge gauge. Inside the battery pack are symbols indicating which direction the AA battery If the batteries have no power, should be inserted.
  • Page 93 EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Troubleshooting Check Your Wires In order for Light My Bricks components to fit If the wiring is detached from the LED itself, the in between and underneath LEGO bricks, the light will not operate.
  • Page 94 LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® Troubleshooting Check Your Expansion Board A short circuit can also result in overheating of the board, cable or Ports/ Strip Light Ports / batteries. If you suspect a short circuit, Effects Board Ports DISCONNECT POWER IMMEDIATELY Batteries can fail, catch fire, or even It is important to note that connectors can...

  • Page 95: Contact

    LEGO EIFFEL TOWER 10307 LIGHT KIT INSTALL GUIDE ® CONTACT US If you have an enquiry regarding the online shop, our products or a general enquiry please refer to our Frequently Asked Questions webpage here. Alternatively, you can contact our Customer Services team by visiting our online support portal here.
  • Page 96 © 2023 Light My Bricks Pty Ltd - Head Office: 4/26 Rushdale Street, Knoxfield VIC 3180, Australia. Phone: +61 420 643 543 | All Rights Reserved | Light My Bricks™ sell LED lighting kits only. All LEGO sets featured in images are sold ®...
