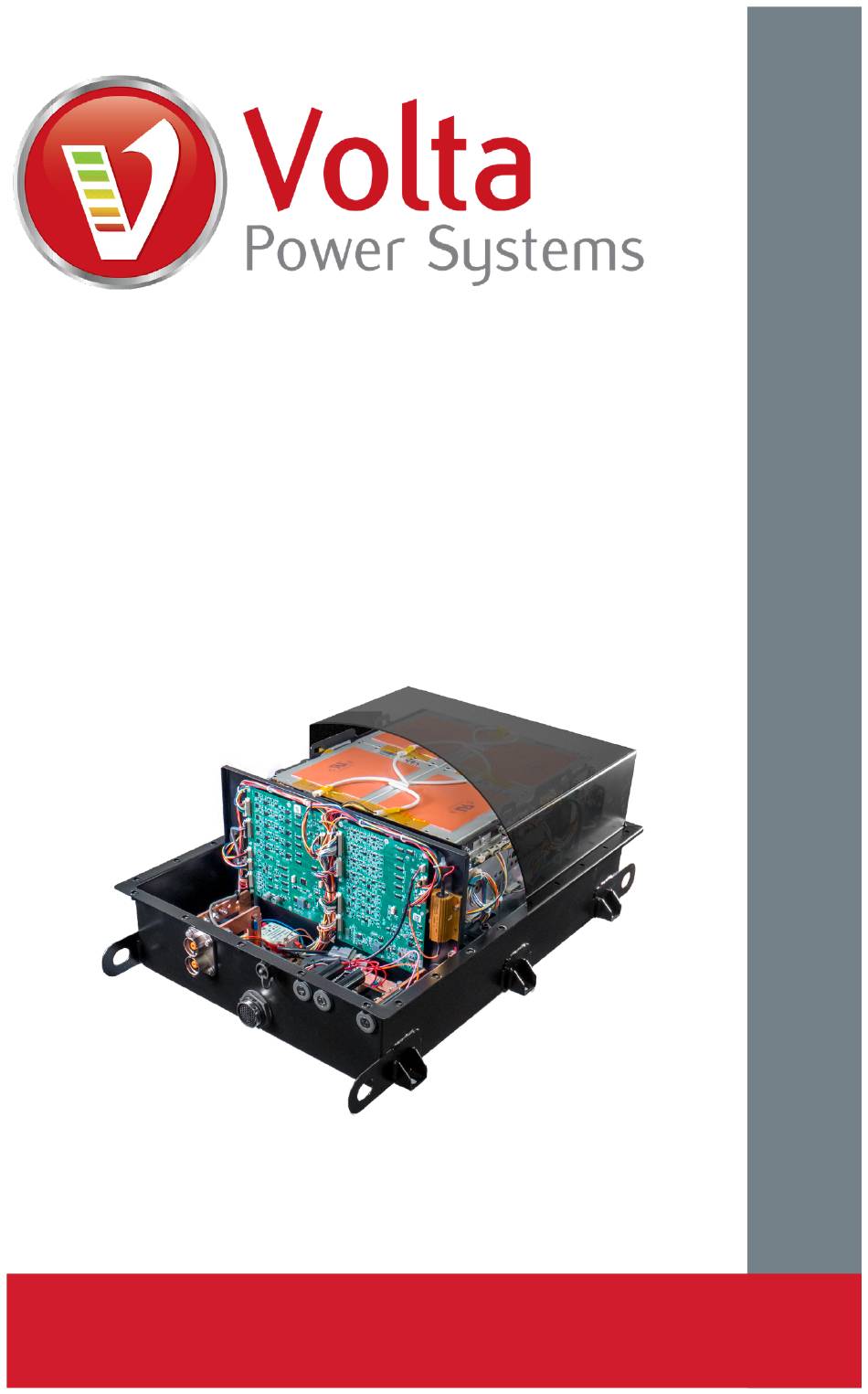

- Page 1 F L E X S Y S T E M User Manual Volta Power Systems...
- Page 3 ©2023 Volta Power Systems, LLC The intellectual property contained in this manual is owned or licensed to Volta Power Systems, LLC and is protected by applicable copyright and trademark law. This material may not be copied, modified, translated, or reproduced without the prior written permission of Volta Power Systems.
-
Page 4: Table Of Contents
Introduction About Volta Power Systems ...... 8 Service and Contacting Volta Power Systems .... 8 Return Policy . - Page 5 Troubleshooting and FAQs How long will my Volta System run? ...... 37 What’s new on Flex Pack compared to past Volta Systems? .. 37 Why is there a system delay after I press the On/Off pushbutton? .
-
Page 6: Welcome To Volta
Take the comforts of home on the road without having to compromise. More Confidence Built on the same automotive-grade technology that powers electric vehicles, Volta Systems are easy to use, virtually maintenance free, and will last the lifetime of your vehicle. More Safety Protected by seven layers of safety, our systems are engineered and tested to meet rigorous auto-industry standards, ensuring a system that’s safe and... -
Page 7: Quick Start
ON/OFF button and Touchscreen lights up. Turning Off Your Volta System To turn your Volta system off, press and release the power button, then allow the system a few seconds to power off. After it’s powered down, the touchscreen and button will go dark. -
Page 8: Introduction
Volta Power Systems provides exclusive access to safe, powerful, and simple energy solutions built with the latest in automotive-grade lithium-ion technolo- gy. RV OEMs trust Volta to deliver advanced power systems that meet environ- mental goals, drive profitability, and enhance end-user experiences like no other system can. -
Page 9: System Maintenance
System Maintenance The Volta System and its components are maintenance free. However, depend- ing on the integration of the Volta system, there may be components that are recommended by the OEM or upfitter that may require regular maintenance. For example, an OEM may recommend when to replace the belt on the second- ary alternator. - Page 10 Volta harness. Volta’s assessment of these components are essential for the safe, reliable operation of the Volta System as well as the personal safety of the individual carrying out the work. It is the vehicle owner’s responsibility to make sure that any equipment fitted complies with appropriate standards.
-
Page 11: Safety
SAFETY The user is responsible for safe use of the Volta System and Volta Power Distribu- tion Devices or Systems. Before using the Volta System, Volta recommends that all users read this manual and fully understand all instructions. Warnings The following symbol is used to denote a safety critical instruction or informa- tional detail, which if not followed or fully understood, could result in death, serious injury, or voided warranty. - Page 12 Volta Power Systems. This ecosystem of approved devices is a layer of safety within a Volta system. Use of other devices compromises this layer of safety. Use of the Volta System with other external devices could present a hazard and is expressly prohibited by Volta Power Systems.
-
Page 13: Volta System Overview
VOLTA SYSTEM OVERVIEW The Volta System provides power to your vehicle’s electrical systems using safe, powerful, and simple energy solutions built with the latest in automotive-grade Lithium-Ion technology. 120VAC Devices Charge from Solar Panels Inverter Operate Devices and Charge Pack from... -

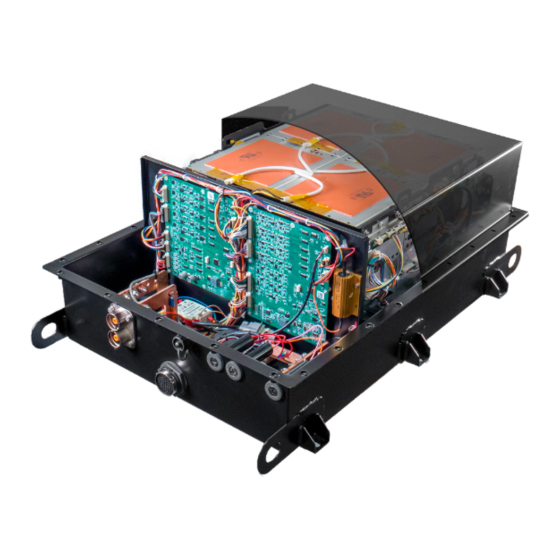

Page 14: Flex Battery Management System
The BMS continually monitors pack performance, and in the case of abuse, neglect, or failures, it will shut off Volta power distribution devices and/or energy to the Flex Pack. Information regarding the system, or pack status, is available from the Flex Pack via CAN communication. - Page 15 Flex Pack. • On/Off Pushbutton: Press the On/Off pushbutton to turn on or off the Volta System. • Touchscreen: Use the Touchscreen to monitor and control the Volta System. VPS-DOS-TR-04-E / Rev 05 Volta Power Systems Page 15 of 40...
-
Page 16: Temperature Limits
Temperature Limits The Volta System is programmed with several operational temperature limits to protect the pack and prolong its life. F ° C ° L i m i t D e s c r i p t i o n... -
Page 17: Volta System On/Off Pushbutton Overview
Press the On/Off pushbutton to turn on the Volta System and power your vehicle’s electrical systems and devices. When the On/Off pushbutton is pressed to turn on the Volta System, a 2 to 5 second system check occurs. If all systems checks are successful, the Flex Pack’s internal contactor engages, supplying power to all Volta components, turning on the Volta System. -
Page 18: Pushbutton Led Indicators
In Shore Power Mode, the Flex Pack charges as necessary and maintains optimal temperature for charging and discharging. Also, if shore power is lost, the Volta System shuts down automatically. This mode is ideal for short term storage, when preparing for a trip in cold weather, or for any scenario where it is important for the system to shut down in case of shore power loss (power outage, accidental unplugging, or if a breaker or GFCI trips). -
Page 19: Touchscreen Overview
TOUCHSCREEN OVERVIEW Monitor and control the Volta System via the touchscreen. The appearance and availability of touchscreen features on your Volta System may vary from what is shown. The touchscreen turns on a few seconds after the pushbutton is pressed, a charge source is sensed, or the vehicle is turned on. - Page 20 F) Pack Temp: Displays the current temperature of the Flex Pack. G) Power Flow: Displays the power consumption (negative value) on the Flex Pack or the rate of charge (positive value) to the Flex Pack. VPS-DOS-TR-04-E / Rev 05 Volta Power Systems Page 20 of 40 26-July-2023...
-
Page 21: Alerts Screen
C) Navigation Arrows: Press to navigate the active alerts panel. D) Active Alerts: Displays the current system alerts. Alerts reset automati- cally after the alert condition is resolved. VPS-DOS-TR-04-E / Rev 05 Volta Power Systems Page 21 of 40 26-July-2023... -
Page 22: Settings Screen
Available Settings section below for details. Available Settings Some screens require a password to edit the settings. These screens include settings that should only be adjusted by a Volta approved technician. The following screens have settings that are accessible to all users: •... -
Page 23: Inverter Screen
Auto and Manual mode. • Power Button: Toggle the Power Button dimming feature. When set to “Dim” the Volta System On/Off Pushbutton LED brightness decreases. Depending on the light levels within the vehicle, a dimmed Pushbutton LED may not be visible. -
Page 24: State Of Charge (Soc) Gauge
STATE OF CHARGE (SOC) GAUGE SOC Overview Your Volta System may be equipped with an SOC gauge. The SOC gauge provides an approximate reading of how much energy remains in the pack. The flash codes and colors communicate basic system and fault states. -
Page 25: Charging The System And Increasing System Runtime
Volta System turns on and begins charging the Flex Pack. If the Volta System does not turn on, or the Flex Pack does not begin to charge, the incoming power is likely not meeting the Volta System requirements. This feature protects the vehicle from brown outs due to insufficient power. -
Page 26: Charging Via The Secondary Alternator
If incoming power meets the requirements, the Volta System turns on and begins charging the Flex Pack. If the Flex Pack does not charge from a generator, this condition may be due to unclean or unstable power from the generator. -
Page 27: Recovery From Zero State-Of-Charge
The Volta System can be integrated with a generator using an auto-start and auto-shutoff feature, creating a hybridized charging system that increases efficiency for the Volta System and the generator. Recovery from Zero State-of-Charge The Battery Management System shuts down the Volta System if the Flex Pack reaches a very low voltage limit or 0% State-of-Charge (SOC). -
Page 28: Using The Auto Start System
Vehicle exhaust fumes are toxic. Auto Start System Overview The Volta System may be integrated with an Auto Start System. The Auto Start System automatically starts and stops the vehicle’s engine, allowing the second- ary alternator to charge the Volta System. -
Page 29: Storing Vehicles With A Volta System
Long Term Storage (Greater than 3 Months) Preparations should be made to protect the life and performance of the Flex Pack when not in use. When leaving the vehicle in storage, turn off the Volta System by pressing the On/Off pushbutton. - Page 30 Connect the vehicle to shore power. While in Shore Power Mode, the Volta System turns on, charges as needed, and maintains an operational state. For example, in cold climates, while in Shore Power Mode, the Volta System turns on as necessary to maintain an operating temperature.
-
Page 31: Using The Volta System In Hot And Cold Temperatures
Pack or prevents charging at elevated temperatures to allow the Flex Pack to cool. The Volta System charges normally up to 116°F (47°C) and distributes power nor- mally up to 134°F (57°C). At or above 116°F (47°C), the Flex Pack will not charge. At or above 134°F (57°C), the Battery Management System (BMS) shuts down the... - Page 32 Heating Pad Cold Temperature Operating Strategies When the Flex Pack is too cold to charge, monitor the Volta System SOC and touchscreen alerts to ensure precautions are in place to prevent the SOC from dropping to 0%. When cold, the pack’s internal heating pads continue to draw power to warm the pack, which will cause the pack to lose power faster.
- Page 33 If a charge source is not available, and the SOC is too low to activate the heating pads long enough to warm the Flex Pack, turn off the Volta System to limit power consumption. If possible, park the vehicle in a warmer location to raise the Flex Pack temperature, or contact Volta Power Systems for additional strategies to warm the Flex Pack to accept charge.
-
Page 34: Installing Myvolta Bluetooth Module
Touchscreen. To install, refer to the video on www.VoltaPowerSystems.com or follow these instructions: Locate the SOC gauge or Touchscreen, then turn off the Volta System via the On/Off button. Wait a few seconds for the system to shut down. - Page 35 Reinstall the SOC gauge or Touchscreen and the On/Off button unit using the four screws. Press the On/Off button to turn on the Volta system. Follow the instructions in the myVolta app to pair your mobile device with the Volta system.with the Volta system.
-
Page 36: Myvolta App
MyVolta App Download the myVolta app to your mobile device, then follow instructions in the app to pair with your Bluetooth module. You can view the following information from your Volta System in the myVolta app: • Performance Data •... -
Page 37: Troubleshooting And Faqs
The Volta System is not turned on. If attempting to charge via alterna- tor, turn the Volta System on first. • The Flex Pack is too cold or too hot to charge. Refer to “Using the Volta System in Hot and Cold Temperatures” on page 30. •... -
Page 38: How Can I Tell If My Solar Panels Are Working
Does the Volta System have to be turned on when charging? No, the Volta System can be turned off while charging. If you press the On/ Off pushbutton while it is charging via shore power, the Volta System enters Charge Only Mode. In Charge Only Mode, the electrical systems are off, the pushbutton LED flashes green, and the Volta System allows charging when necessary. -
Page 39: When Do I Need To Adjust The Selected Charge Rate? How Do I Adjust The Charge Rate
How do I dim my pushbutton LED? To dim the pushbutton, go to the settings screen on the touchscreen. Scroll until you see the pushbutton dimming option, then toggle the setting on or off. VPS-DOS-TR-04-E / Rev 05 Volta Power Systems Page 39 of 40 26-July-2023...
