Delphi MR1002 Series User Manual

MR1002 Series Thermostat User Manual
MR1002 Series thermostats are available for individual room temperature
control in residential, industrial and bus iness premises. Models are available
for heating, cooling, ventilating control.

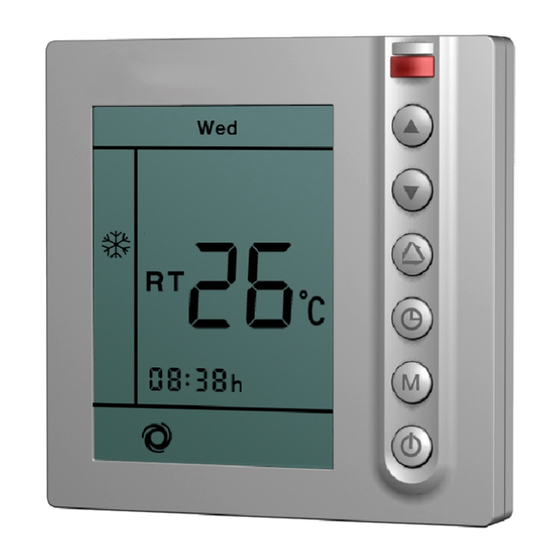

MR1002 adopts digital control technology with large LCD display , It
shows the following items: working states (cool, heat or ventilation), the speed
of fan coil, room temperat ure, set-point temperature. There are following keys
on the panel: On/Off "
Timer " ", Select fan speed (high,
temperature " " and " ".
MODEL DENOMINATIONS
Y: Control damper to open or close.
A: Control Motorized Valve and 3-speed fan; W
the temperature reaches the set-point, it w ill close
the Motorized Valve with the fan still running.
B:
Control Motorized Valve and 3-speed fan;
the temperature reaches t he set-point, it w ill close
the Motorized Valve and Fan both.
BASIC FEATURES
Room temperature setting
Manual or Auto 3-speed changeover
Defrost (low temperature protection)
Clock ( -T,-T74 )
7 days programmable ( -T74 )
IR control ( -R )
Blue backlight ( -L )
SPECIFICATIONS
Sensing element: NT C
Accuracy : ±0.5℃
Set-point range: 5
℃
Operating Temperature: 0~45℃
Operating Humidity: 5~ 90%RH (non-condensing)
Power supply: AC85
Switch current rating: 2(1)A
Power Consumption: < 2W
OPERATION
On/Off: Press" "to turn on, press"
Setting temperature: Press"6"to reduce set-point, press"5" to raise set-point.
Mode Selection: Press "M" to change sy stem working in cooling "
related icon will flash, and it will be confirmed automatically after 5 seconds. The ventilation function is invalid for 1002Y.
Fan Speed Selection (1002DA/DB): Press "
" (Auto)".
", Exchange mode (cool, heat or ventilation) "M",
medium, low or auto) "
1002 –
hen
When
STATUS DISPLAY
to 35
℃
～260V，50/60Hz
"again to turn off thermostat and its output.
" to change fan speed among "
Page 1 of 3
", set-point
T: Clock and timing on/off. Blank is invalid.
T: Clock and 7 days programming.
Blank is invalid.
R: IR remote function. Blank is invalid. (remote
controller should be ordered additionally)
Working Status: Cool , Heat
Fan Speeds: Low , Medium
Room temperature display
Temperature setting
Clock
Week
Wirings: Screw-in terminals, each terminal capable of
accepting 2 x 1.5 mm
Housing: ABS Flame Retardant
Dimensions: 86 × 86 × 13 mm
Hole pitch: 60mm
Protection Class: IP30
Display: LCD
", heating "
, Ventilation
, High and Auto
2 2
or 1 x2.5 mm wires
" or ventilation " " mode, the
(Hi)", " (Med)", " (Low)" or
