Summary of Contents for Luminar 5030

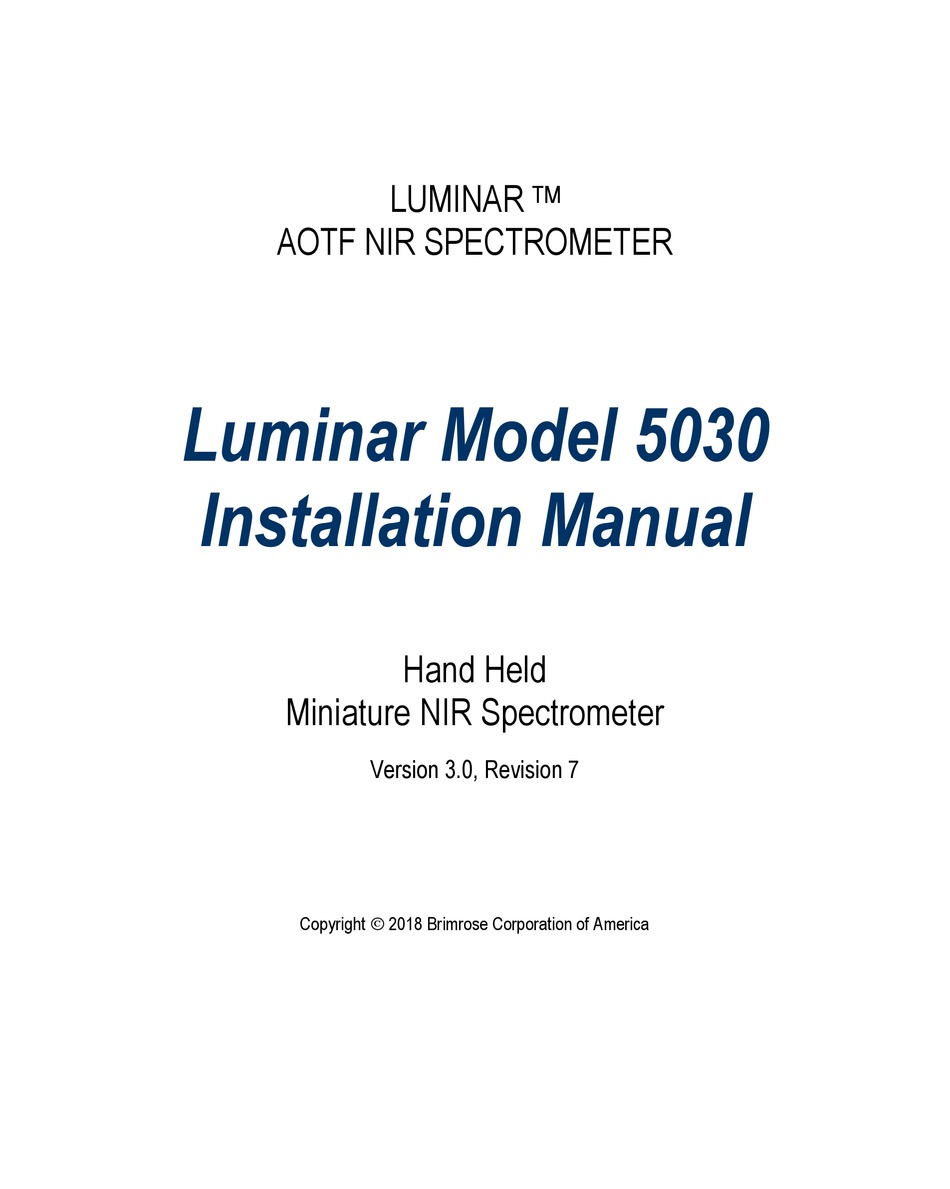

- Page 1 LUMINAR AOTF NIR SPECTROMETER Luminar Model 5030 Installation Manual Hand Held Miniature NIR Spectrometer Version 3.0, Revision 7 Copyright 2018 Brimrose Corporation of America...
- Page 2 5030 Miniature NIR Spectrometer User Gen Install Manual Page 2 of 29 Copyright © 2018 Brimrose Corporation of America. All rights reserved. No part of this manual may be reproduced or transmitted in any form, electronic or mechanical, including photocopying, recording, storing in an information retrieval system, or translating, in whole or in part, without the prior written consent of Brimrose Corporation of America.
-
Page 3: Table Of Contents
5030 Miniature NIR Spectrometer User Gen Install Manual Page 3 of 29 Table of Contents Page 1.0 Electrical Installation ........................5 1.1 Power Requirements ........................5 1.2 Connecting the Spectrometer ......................5 1.2.1 AC Mains to the Power Supply ..................5 1.2.2 UPS Connections (Optional) .................... - Page 4 5030 Miniature NIR Spectrometer User Gen Install Manual Page 4 of 29 Appendix 2 - WLAN Installation Diagram ..................16 7.0 Appendix 3 - Pre-Aligned Lamp Replacement ................17 8.0 Appendix 4 - Exchanging the Cap with the Probe ............... 22 8.1 Unit with cap in place ......................
-
Page 5: Electrical Installation
5030 Miniature NIR Spectrometer User Gen Install Manual Page 5 of 29 1.0 Electrical Installation 1.1 Power Requirements The Hand Held Miniature Spectrometers use DC power accomplished by a dedicated external power supply. The AC line provides power to the external power supply. Battery power is available as an option for portable or mobile applications. -
Page 6: Battery Power To The Spectrometer (Optional)
5030 Miniature NIR Spectrometer User Gen Install Manual Page 6 of 29 Battery Power to the Spectrometer (Optional) The spectrometer is fitted with an external battery mount (referred to as a C mount.), that allows Rechargeable NiCad batteries to be easily installed and removed. A fully automatic battery charger provides support. -
Page 7: Communications
5030 Miniature NIR Spectrometer User Gen Install Manual Page 7 of 29 2.0 Communications 2.1 Ethernet Cabling Remote control of the spectrometer through the use of a client or remote PC is provided through an Ethernet connection utilizing Twisted-Pair (10Base-T) cabling. The twisted-pair cabling for the Hand Held Unit uses an RJ-45 modular connector at the client end;... -
Page 8: Wireless Lan (Optional)
1) Begin by removing the spectrometer cover to expose the serial keyboard and VGA monitor ports. 2) Hook up a monitor and keyboard to your spectrometer. 3) After hooking up the monitor and keyboard, you should see “Luminar TCP/IP Console Manager” as shown in Figure 1: Figure 1... - Page 9 5030 Miniature NIR Spectrometer User Gen Install Manual Page 9 of 29 4) From within the “Luminar TCP/IP Console Manager”, type “quit” to close the Console Manager and Exit to the DOS prompt. 5) You should now be in the “C:\FLASH>” directory. If not, type “CD \FLASH”...
-
Page 10: Using The Putget Program To Change Ip Address
5030 Miniature NIR Spectrometer User Gen Install Manual Page 10 of 29 8) When finished making your changes, press F7 to exit the editor. If prompted to save the file, simply click the “enter” key. 9) Reboot your spectrometer by recycling the power off and back on. - Page 11 5030 Miniature NIR Spectrometer User Gen Install Manual Page 11 of 29 3) Click the “>” copy button to copy the file to the current local folder. 4) Using notepad, open the “pctcp.ini” file and find the IP Address entry under the “[pctcp ifcust 0]”...
-
Page 12: Software Installation
Page 12 of 29 3.0 Software Installation 3.1 Snap32! Installation Below are the general installation instructions to install the Snap32! Software Suite for the Luminar NIR Spectrometer: 1. Insert the Snap32! Software disc provided into your CD drive. 2. If the setup utility does not start automatically, use the Run command to find the Setup.exe file on Snap32! CD, select it and click Ok to execute it. -
Page 13: Pre-Aligned Lamp
5030 Miniature NIR Spectrometer User Gen Install Manual Page 13 of 29 4.0 Pre-aligned Lamp The Lamp Assembly is pre-aligned at the factory. Replacement of this assembly requires no field alignment. 4.1 Pre-aligned Lamp Replacement Refer to Appendix 3 for Illustrations 1. - Page 14 5030 Miniature NIR Spectrometer User Gen Install Manual Page 14 of 29 2.) Pick up the probe and note that there is a locating pin on the flange of the probe that provides orientation. Place the probe onto the front of the unit with the locating pin seated into its hole.
-
Page 15: Appendix 1- Basic Cabling Diagram
5030 Miniature NIR Spectrometer User Gen Install Manual Page 15 of 29 AC MAINS External Power Spectrometer Supply Hand Held Unit Gain Adj. Ethernet RJ 45 Laptop Gain Adjust (Hardware) Appendix 1- Basic Cabling Diagram DOC: SUMan-5030GenInstallManual-v3-rev7-20180314... -
Page 16: Appendix 2 - Wlan Installation Diagram
5030 Miniature NIR Spectrometer User Gen Install Manual Page 16 of 29 Desktop Computer Laptop computer Wireless Access Point (WAP) Spectrometer Appendix 2 - WLAN Installation Diagram DOC: SUMan-5030GenInstallManual-v3-rev7-20180314... -
Page 17: Appendix 3 - Pre-Aligned Lamp Replacement
5030 Miniature NIR Spectrometer User Gen Install Manual Page 17 of 29 7.0 Appendix 3 - Pre-Aligned Lamp Replacement 1. Remove the Heat Sink Cover, 732-01 from the Lamp Assembly. Turn the large knurled retaining ring in towards the case of the unit until it clears the threads of the Cover and remove the Cover. - Page 18 5030 Miniature NIR Spectrometer User Gen Install Manual Page 18 of 29 2. Remove the four Socket Head Screws using the hex wrench (Allen wrench) provided. DOC: SUMan-5030GenInstallManual-v3-rev7-20180314...
- Page 19 5030 Miniature NIR Spectrometer User Gen Install Manual Page 19 of 29 3. Pull the Lamp Assembly from the unit. It is held in place by two banana plugs that make the electrical connection for the Lamp. DOC: SUMan-5030GenInstallManual-v3-rev7-20180314...
- Page 20 5030 Miniature NIR Spectrometer User Gen Install Manual Page 20 of 29 4. Plug the replacement Lamp Assembly into the sockets for the banana plugs and push it into place. Replace the four socket head screws and tighten them. DOC: SUMan-5030GenInstallManual-v3-rev7-20180314...
- Page 21 5030 Miniature NIR Spectrometer User Gen Install Manual Page 21 of 29 5. Place the Heat Sink Cover over the lamp assembly and secure it by screwing the retaining ring towards the cover until it is tight. This completes the Lamp replacement.
-
Page 22: Appendix 4 - Exchanging The Cap With The Probe
5030 Miniature NIR Spectrometer User Gen Install Manual Page 22 of 29 8.0 Appendix 4 - Exchanging the Cap with the Probe The entire unit with the cap in place and probe ready to be installed. DOC: SUMan-5030GenInstallManual-v3-rev7-20180314... -
Page 23: Unit With Cap In Place
5030 Miniature NIR Spectrometer User Gen Install Manual Page 23 of 29 8.1 Unit with cap in place 1. The handheld unit with the cap still in place before disassembly. DOC: SUMan-5030GenInstallManual-v3-rev7-20180314... -
Page 24: Unit With Cap Removed
5030 Miniature NIR Spectrometer User Gen Install Manual Page 24 of 29 8.2 Unit with Cap Removed 2. Unscrew the retaining ring at the base of the installed cap and remove the ring and the cap. Set the cap aside. -
Page 25: Unit With Probe Prior To Installation
5030 Miniature NIR Spectrometer User Gen Install Manual Page 25 of 29 8.3 Unit with probe prior to installation 3. Pick up the probe and note that there is a locating pin on the flange of the probe that mates with a hole in the mounting flange. -
Page 26: Unit With Optional Probe Installed
5030 Miniature NIR Spectrometer User Gen Install Manual Page 26 of 29 8.4 Unit with optional probe installed 4. Place the probe onto the front of the unit with the locating pin seated into its hole. Slide the retaining ring over the probe and screw it into place on the threads of the unit. -
Page 27: Appendix 5 - Block Diagrams And Information For Miniature Spectrometers (4030/5030/7030)
9.0 Appendix 5 – Block Diagrams and Information for Miniature Spectrometers (4030/5030/7030) Luminar NIR Spectrometer is a high-performance computer controlled analyzer used to continuously analyze many liquids, powders and solids in industrial process streams or in laboratories. The heart of the spectrometer is a solid-state Acousto-Optic Tunable Filter (AOTF) capable of selecting up to 16,000 narrow wavelengths every second. - Page 28 5030 Miniature NIR Spectrometer User Gen Install Manual Page 28 of 29 DDS RF board provide RF frequency, which can be controlled from an internal CPU • Analog-digital converter transfer signals from interface to computer • o Interface board processing signals coming from detectors...
- Page 29 5030 Miniature NIR Spectrometer User Gen Install Manual Page 29 of 29 Electrical Block – Diagram for 4030/5030/7030 Spectrometers. DOC: SUMan-5030GenInstallManual-v3-rev7-20180314...
