Siemens RDZ100ZB Manual

Siemens RDZ100ZB Manual

Zigbee room thermostat, wired and wireless, battery powered
Hide thumbs Also See for RDZ100ZB:

Advertisement

Quick Links

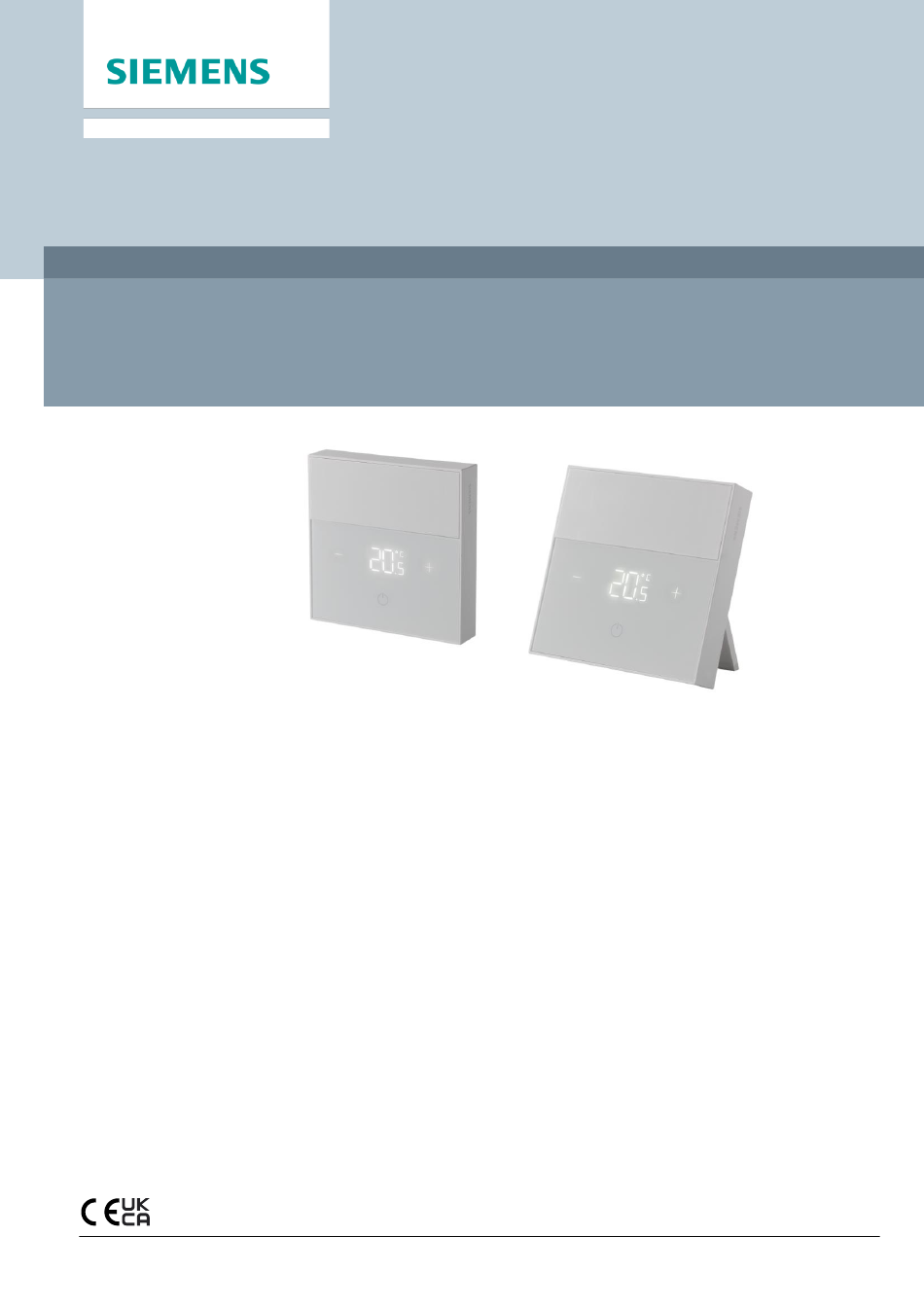

Zigbee Room Thermostat, wired and wireless, battery
powered
RDZ100ZB, RDZ101ZB
A6V13360592_en--_c
2023-10-09
For heating systems
Room temperature control
Communicates with Connected Home Hub via Zigbee network
2-position/TPI control with On/Off output for heating
– RDZ100ZB: With built-in relay
– RDZ101ZB: With wireless output module
Open window detection
Frost protection
Schedule via mobile application "Connected Home" (downloadable from
Google Play™ or Apple App Store®)
Adjustable commissioning and control parameters via mobile application
Battery-powered (2xAA batteries)
Siemens AG
Smart Infrastructure

Advertisement

loading
Need help?

Need help?

Do you have a question about the RDZ100ZB and is the answer not in the manual?

Questions and answers

Summary of Contents for Siemens RDZ100ZB

  • Page 1 ● Room temperature control ● Communicates with Connected Home Hub via Zigbee network ● 2-position/TPI control with On/Off output for heating – RDZ100ZB: With built-in relay – RDZ101ZB: With wireless output module ● Open window detection ● Frost protection ●...
  • Page 2 The RDZ100ZB/RDZ101ZB is part of Siemens Connected Home ecosystem. It is used to control the room temperature in heating systems. Typical application: ● Apartments ● Single family homes To control the following pieces of equipment: ● Thermal valves or zone valves ●...
  • Page 3 Inbox item RDZ100ZB Items Quantity RDZ100ZB mounting plate RDZ100ZB front panel Battery Mounting instructions RDZ101ZB Items Quantity RDZ101ZB mounting plate RDZ101ZB table stand RDZ101ZB front panel Battery Mounting instructions Equipment combinations Type of unit Product Data Sheet* Use with the type of...
  • Page 4 The documents can be downloaded from www.siemens.com/bt/download. Product documentation Title Document ID Mounting instructions A6V13360576 Operation manual A6V13360586 CE declaration A5W00270102A UKCA declaration A5W00270107A Product environmental declaration A5W00269582A Siemens Connected Home system A6V13661932 description Related documents such as environmental declarations, CE declarations, and so on, can be downloaded at: http://siemens.com/bt/download.
  • Page 5 Mounting ● RDZ100ZB is suitable for wall mounting. Mounting ● RDZ101ZB is suitable for wall mounting and table standing. ● Recommended height for wall mounting: 1.50 m above the floor. ● Mount the thermostat close to Connected Home Hub if possible. Note that the communication range can vary because walls, floors, wireless interference and other factors may reduce the signal strength.
  • Page 6 Max. 5 wireless output modules can be bound to one wireless room thermostat RDZ101ZB. Operation See the operation manual (http://www.siemens.com/download?A6V13360586) for detailed information. Maintenance Apart from replacing batteries upon low battery notification on the local screen or in the mobile application, the thermostat is maintenance-free.
  • Page 7 For additional details, refer to Siemens information on disposal. Warranty Technical data on specific applications are valid only together with Siemens products listed under Equipment combinations [▶ 3]. Siemens rejects any and all warranties in the event that third-party products are used.
  • Page 8 0.5 ° C Ambient conditions and protection classification Degree of protection of housing as per IP30 EN 60529 Protection against electrical shock RDZ100ZB Protection class II RDZ101ZB Protection class III Classification as per EN 60730 Function of automatic control devices...
  • Page 9 The product environmental declaration (A5W00269582A) contains data on environmentally compatible product design and assessments (RoHS compliance, materials composition, packaging, environmental benefit, disposal). The documents can be downloaded from www.siemens.com/bt/download. General Housing color RAL9003 Thermostat with box, user document and accessory RDZ100ZB...
  • Page 10 General Thermostat RDZ100ZB 157 g RDZ101ZB 173 g Technical data (RDZ100ZB only) Switching capacity of relay AC 24…230 V Voltage Current Lx - L1 Maximum 5 (2) A Lx - L2 Maximum 5 (2) A WARNING No internal fuse. External preliminary protection with maximum C 10 A circuit breaker in the supply lines is required under all circumstances.
  • Page 11 Lx, L1 NO contact (for NC valves) Actuating device WARNING Current higher than 5(2) A is not allowed to go through RDZ100ZB controller. For high current device, an additional relay or contactor must be installed. RDZ101ZB Live, AC 230 V Neutral conductor, AC 24...230 V...
  • Page 12 Application examples RDZ100ZB RDZ101ZB (with RCR110.2ZB) Gas boiler Gas boiler Floor heating with valve Floor heating with valve Radiator with pump Floor heating with pump Electric boiler Electric boiler Electric radiator RDZ100ZB/RDZ101ZB Heat generator (for example, boiler) RCR110.2ZB Magnetic valve...
  • Page 13 Dimensions Regulatory compliance information Radio equipment directive The equipment uses harmonized frequency in Europe and complies with Radio Equipment Directive 2014/53/EU (formerly 1999/5/EC). Siemens A6V13360592_en--_c Smart Infrastructure 2023-10-09...
  • Page 14 Issued by © Siemens 2023 Siemens Switzerland Ltd Technical specifications and availability subject to change without notice. Smart Infrastructure Global Headquarters Theilerstrasse 1a CH-6300 Zug +41 58 724 2424 www.siemens.com/buildingtechnologies Document ID A6V13360592_en--_c Edition 2023-10-09...
