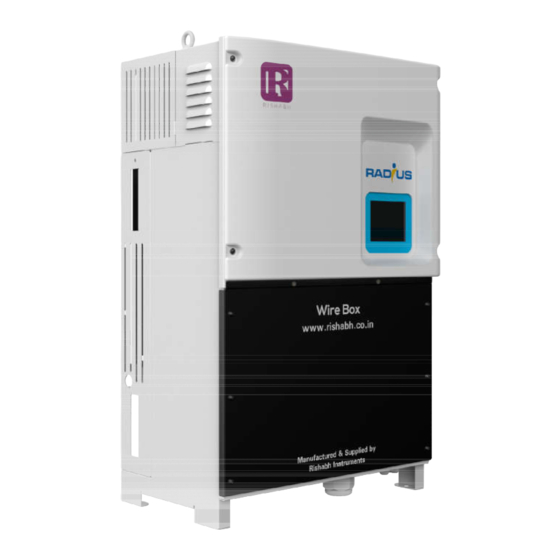

Rishabh RADIUS AP V-S-50 k-AE -TL Installation & Operation Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

RADIUS Industrial

String inverters

Mode ls: AP V-S-50 k-AE -TL

....

Installation & operation manual

Manufactured & Supplied by

Table of Contents

Need help?

Do you have a question about the RADIUS AP V-S-50 k-AE -TL and is the answer not in the manual?

Questions and answers

Summary of Contents for Rishabh RADIUS AP V-S-50 k-AE -TL

Page 1 RADIUS Industrial String inverters Mode ls: AP V-S-50 k-AE -TL ..Installation & operation manual Manufactured & Supplied by...
Page 2 Rishabh Instruments Pvt Ltd has the right to modify products, data and dimensions without notice. The data can only be used for the product description and they can not be understood as legally stated properties.
Page 3: Table Of Contents
Contents How to use this manual ........................5 Validity................................5 Target Group ..............................5 SW version ..............................5 Documentation and declaration of conformity ....................5 Safety Precautions ..........................7 Symbols used in the manual ..........................7 Symbols used on outside labels ........................7 General warnings and safety information ......................8 Intended or permitted purpose ........................9 Improper or prohibited use ..........................9 Transportation –...
Page 4 Display screens: Operating statuses, stand by, alarms and warnings ............46 7.6.1 Operating statuses (advanced level) .........................46 7.6.2 Stand-by ..................................46 7.6.3 Alarms and warnings ..............................46 Menu and description of parameters ....................48 Easy menu ..............................48 Expert menu ..............................49 Parameters description ..........................49 8.3.1 Legenda ..................................49 Communication ..........................73 RS485 serial connection with MODBUS RTU protocol................73 Master/Slave alarm monitoring and remote control functions ..............75 9.2.1 M/S alarm monitoring function ..........................75...
Page 5: How To Use This Manual
Rishabh declares that the equipment is designed to conform the current law in the country of installation & that the declaration of conformity can be consulted or requested from Rishabh radius - solar service personnel. (Inverter is designed to conform the below metioned applicable standards & meet the requiements of the given grid code) Grid code CEI 0-16–...
Page 6 Note! Available certifications can be availed at Rishabh Instruments Pvt Ltd Nashik. In case of any problem, you can email us at: inverters@rishabh.co.in .
Page 7: Safety Precautions
Safety Precautions Symbols used in the manual Indicates a procedure, condition, or statement that, if not strictly observed, could result in personal injury or death. Warning! Indicates a procedure, condition, or statement that, if not strictly observed, could result in damage to or destruction of equipment.
Page 8: General Warnings And Safety Information
Comply with local requirements for grounding the PV modules and the PV generator. • Rishabh recommends connecting the generator frame and other electrically conductive surfaces in a manner which ensures continuous conduction and grounding these in order to achieve maximum protec-...
Page 9: Intended Or Permitted Purpose
- The inverter can be connected to the grid only in qualified countries. The inverter can be used only by respecting all of the technical characteristics. Use the equipment ONLY for its INTENDED OR PERMITTED PURPOSE. If you need any explanations, please contact Rishabh Solar Service. Improper or prohibited use NEVER: - Install the equipment in potentially flammable / explosive environments or in environments with adverse or prohibited conditions (temperature and humidity).
Page 10: Transportation - Handling - Storage
Transportation – Handling - Storage All transportation, handling and storage operations must only be performed by specially trained and compe- tent operators. Caution Handling packed equipment The equipment can easily be transported using a lift truck, or fork crane with adequate load capacity, Dimensions and weights are specified in chapter “12.
Page 11: Storage
Open the packaging carefully and make sure that: - no parts of the equipment have been damaged during transportation, - the equipment is that actually ordered. Please notify the local sales office if you notice any damage or if the equipment supplied is in complete or not what was ordered.
Page 12: Handling The Equipment After Unpacking
Changes in temperature may lead to the formation of condensation inside the equipment. This is acceptable in certain conditions but not when the equipment is in use. Therefore it is always important to ensure that Caution there is no condensation in the equipment before connecting it to the power supply! Handling the equipment after unpacking The equipment can be handled with chain hoists or crane after installation of the two transport brackets .
Page 13: Disposal Of The Device
Figure 5 : Manual handling Disposal of the device The APV-S inverter can be disposed of as electronic waste according to national regulations in force for the disposal of electronic components.
Page 14: Description Of The Radius Apv-S Inverter
This is very extensive and flexible, intended mainly for photovoltaic roof arrays with complex tracking and ir- radiation features. For more information and advice on the ideal configuration for your PV plant, please contact Rishabh’s pre sales service and see the latest updated SW version of the Radius Planner configurator, downloadable free of charge from www.rishabh.co.in.
Page 15: Block Diagrams Apv-S
Block diagrams APV-S 2 Grid Residual MPPT 1 Parallel current Filters Relay monitor 3 LEVEL INVERTER MPPT 2 MAINS MPPT 3 READING REGULATION BOARD DISPLAY AND HUMAN INTERFACE (1) -F models only (2) -S models only APV-S-20k- -TL-3 -SFCX-KA Figure 6 : Block diagrams APV-S-AE Note! The unit is equipped with an automatic circuit breaker conforming to the safety requirements specified in VDE0126-1-1.
Page 16: Device Identification
Device identiﬁcation Data plate 4.4.1 The data plate with details of the specific model is attached to the left side of the inverter. RISHABH INSTRUMENTS PVT LTD F-31, MIDC, SATPUR, NASHIK - 422007 Ph: +91 2532202019 RISHABH Web: www.rishabh.co.in D.C. INPUT Max.
Page 17: Installation
Installation Safety instructions Do not remove the upper casing. The inverter contains no user-service able parts. All servicing must be performed by qualiﬁed service personnel. All wiring and electrical installation should be performed by Warning! qualiﬁed service personnel and must meet national requirements. Both AC and DC voltage sources are terminated inside the APV-S Inverter.
Page 18: Mounting
• Be careful not to obstruct the slits or the equipment cooling systems. • DO NOT place anything on the inverter while it is working. Mounting The inverters must be positioned so as to ensure free movement of ventilation air around them and facilitate wiring and maintenance operations.
Page 19: Mounting The Inverter On The Bracket
(1)U se the mounting bracket as a template, ensure it is positioned horizontally. Drill 4 holes in the wall in correspondence with the holes on the bracket shown in the ﬁgure. Attach the bracket to the wall with 4 M10 screws (not supplied). The size of the holes depends on the wall material and the anchorage system used(e.g.
Page 20: Electrical Connection
The system configuration depends on many factors (module type, production target, AC connection, installation site, current regulations, etc.) and must therefore be designed, built, and decided by a qualified technician. The Radius Planner program, downloadable from www.rishabh.co.in, can help you correctly size the PV module strings. Safety Connect the ground connector to the terminal (PE) of the APV-S inverter.
Page 21: Removal Of The Lower Panel
Removal of the lower panel To remove the lower panel unscrew the 6 torque T5 screws shown in the ﬁgure. Figure 13 : removal of the lower panel Connecting to the grid (utility grid) and ground cable (PE) • Measure grid( utility) voltage and frequency (See “11. Speciﬁcations”o n page 79). •...
Page 22 1. To ensure IP 65 degree of protection, the cables must pass through the specific cable holder with sealing membrane (see figure). 2. Connect the cables to the corresponding terminals of the AC connector. APV-S-AE: the terminals are of the spring with lever type (*). Figure 15 : Insertion of cables in spring connectors (*) Spring terminals with lever;...
Page 23: Connecting To The Pv Panel (Dc Input)
6.4.1 Connecting to the PV panel (DC input) • Before connecting the PV panels to the DC terminals, please make sure the polarity is correct. Incorrect polarity connection could permanently damage the unit. • B efore connecting the PV panels to the DC terminals, check that the maximum PV string current is be low Caution the maximum current allowed by the model (see chapter 11).
Page 24: Connection Apv-S-Ae
Terminals Signal Description Electrical Level Recommended stripping String 3 current input MPPT2 MPPT2_3 10A 1000V 12 mm String 4 current input MPPT2 MPPT2_4 10A 1000V 12 mm MPPT3_1 String 1 current input MPPT3 10A 1000V 12 mm MPPT3_2 String 2 current input MPPT3 10A 1000V 12 mm String 3 current input MPPT3...
Page 25: Removing The Backup Battery Protection
Removing the backup battery protection The APV-S inverter is equipped with a backup battery. Remove the protective plastic tab during installation/programming. See “Figure 38 : Position of battery on electronic card” on page 85.
Page 26: Fixing Of The Lower Panel
Fixing of the lower panel Reposition the lower panel by tightening the 6 torx T25 screws shown in the ﬁgure. Recommended tightening torque 4.5 Nm. In order to maintain IP65 protection level of the inverter, the recommended tightening torques must be ap- plied whenever the lower panel is repositioned.
Page 27: Dc Side Fuses And String Current Monitoring
DC side fuses and string current monitoring 6.7.1 DC side fuses ( MC4 with Fuse -F models) The DC side fuses are very useful because in case of a malfunction or short-circuit of a string module or cable they trip and eliminate the defective string. This prevents the currents from all of the other strings in parallel from contributing to the short-circuit.
Page 28: String Current Monitoring
Model Fuse Quantity gpV / 1000Vcc / 12A (*) 24 (12+12) APV-S-50k-AE-TL-2.F.. (*) 12A is the standard fuse size installed in the factory. Other fuse sizes (type gpV / 1000Vcc) can be installed according to the instructions of the PV module manufacturer. These fuses can be ordered on request. 6.7.2 String current monitoring This function is included in the -F models.
Page 29: Ground Kit
GROUND KIT The ground kit is needed only for thin film or back contact modules where specifically required by the manufac- turer. It is available for grounding either the positive or negative pole by means of a 1A fuse. The inverter with ground kit must be requested at the time of order; specify the polarity to be grounded. Inverters with ground kit must be connected to the grid by interposing an isolation transformer in order to have galvanic separation.
Page 30: Ac Side Fuses
/ 125A 6.10 Choice of leakage breaker on AC side Rishabh string inverters are equipped with a protection against ground faults in conformity to German safety standard VDE 0126-1-1. Specifically, they are equipped with a redundancy reading of leakage current to ground applicable to all current components (both DC and AC). Leakage current to ground is measured simultaneously and independently by two different processors. The protection trips if one (or both) of them detects a fault, with consequent disconnection from the grid and stop of the generation process.
Page 31: Dc Circuit Breaker
6.11 DC circuit breaker The DC circuit breaker is connected downstream of the fuses and galvanically disconnects the DC source on the AC side. Breaking is done simultaneously on the positive and negative poles of all MPPT present. Warning: the DC circuit breaker DOES NOT switch off the AC side. Warning! DC switch Figure 21 : DC circuit breaker...
Page 32: Other Connections
6.12 Other connections TERM RS485 S1 S2 S3 voltage input 0...+10V TERM RS485 S1 S2 S3 current input 4…20mA (*) S2 - S3 termination resistor inserted (*) termination resistor NOT inserted (*) = default S1-S2-S3 Figure 22 : Regulation and communication terminals. S1-S2-S3 switches Figure 23 : Insertion of cables in spring connectors TB1, TB2 and TB3 regulation and communication terminals are pressure spring type;...
Page 33: Inputs / Outputs Regulation Circuit
6.12.1 Inputs / Outputs regulation circuit • 3 analog inputs (environment sensors, 0 ... 10V, 4 ... 20mA) • 2 opto-isolated digital inputs (0-24V) • 2 opto-isolated digital outputs (0-24V) • 24V OUT (500 mA MAX) • 1 relays single contact (30 Vdc, 250 Vac / 2A) TB1 terminal strip: 2 single-contact relays The inverter has two relays with normally open contact. The relays can be configured to close at the occur- rence of an event (for example: tripping of an alarm, hazardous condition) or to signal correct connection with the grid and production of energy. Devices (flashers, buzzers, etc.) can be connected to the ends of the relay terminals. RO_1NO RO_1COM Pins Signal Description IN/OUT I/F elect. RO_1COM common relay 1 HVOLT RO_1NO...
Page 34 TB2 terminal strip: digital inputs/outputs and analog inputs The standard inverter controls a large number of inputs and outputs: • 3 analog inputs for direct connection to ambient sensors (ambient temperature, module temperature, ir- radiation, wind speed and direction, etc). They can receive a 0-10V signal or, by setting switch S1, 2 inputs (AI1 and AI2) can also accept 4-20mA signals. • 2 digital inputs to receive signals from outside. Examples of use: disable the inverter, change settings, etc. •...
Page 35 Connecting ambient sensors: Contact the pre-sale technical department for information on connecting other types of sensors. Radiation sensor (IRR-3 4-20 mA, cod. SL473) Radiation sensor+PV module temperature sensor (IRR-3-T 4-20 mA, cod. SL474) TB2 Terminals Sensor cables colour Black Orange Brown Shield SIGNAL CONVERTER / AMPLIFIER 4-20 mA...
Page 36: Communication
6.12.2 Communication • 2 opto-isolated RS485 ports (both with separate in/out) • 1 standard USB port • 1 expansion connector for wireless connection: WiFi / Bluetooth, RF, GSM, etc. (not yet available) TB3 terminal strip EQP1 EQP2 EQP1 EQP2 Pins Signal Description IN/OUT I/F elect. RS485-A1 data line LINE DRV RS485-B1 data line LINE DRV EQP1 equipotential reference (120Ω to GND) POWER shield (flat cable shielded) RS485-A2 data line...
Page 37: Usb Functions Use
6.12.3 USB functions use Operation to be performed by specially trained personnel. Warning! To access the USB port remove the lower panel as described in par. 6.3 on page 21. Figure 27 : USB Port The USB memory used must be of a standard type (format FAT32 with single partition) Note! You can use the USB port of the inverter for the following features: 1) PRODUCTION LOGS DOWNLOAD ON A USB MEMORY...
Page 38 Memory slots identify the position in which are stored the various parameters sets. There are 256 memory slots, this means that up to 256 different parameters sets can be saved. Note! It is recommended to keep clear track or the various parameters sets saved for later reuse c) Enter parameter 586 and confirm the selection ON. The symbol U will be replaced by the symbol B.
Page 39: Display And Functionality
Display and Functionality KA Display Figure 28 : KA Display Position Function Status LEDs Input graphic display and electrical data: input voltages and currents Energy graphic display (Last 16: Hours, Month, and Day) and peak value (MWh or kWh) Display of output electrical data for each phase (in sequence, L1-L2-L3): voltage, current and cosphi, AC status switch (ON/OFF) Display of output istantaneous power (Power), total daily energy produced (Day) and total energy produced since power on (Total)
Page 40: Meaning Of Leds
Meaning of LEDs 7.2.1 Inverter status: initialization procedure Reference Colour Function Green Lit. Indicates operational status is OK White F1 and F2 ON: the inverter is performing initialization procedures, calculating the isolation resistance, or waiting for the start command (if not started previously). White White White...
Page 41: Inverter Status: Special Function / Power Limitation
7.2.6 Inverter status: Special Function / Power Limitation Power generated to the grid is limited due to a derating or to a function imposed by regulations in the country of installation. Reference Colour Function Green Lit. Indicates operational status is OK White White White...
Page 42: Commissioning
Commissioning Operation to be performed by specially trained personnel. Warning! First power on After you have carefully executed the electrical connection of the APV-S inverter, at first power-on the display automatically shows a guided procedure for performing the initial settings required to start the inverter on the grid to which it is connected. The guided procedure lets you set: a) The country’s grid standard (MANDATORY) b) The language for display menus (MANDATORY) c) The date and time (MANDATORY)
Page 43 The following table shows the grid standards selectable on the ADVANCED menu and the related factory lan- guage settings. Grid standard Mains voltage Factory setting for display CEI 021 400 V Italian VDE 4105 400 V English VDE 0126 2006 400 V English India...
Page 44: Display Screens: Operating Statuses, Stand By, Alarms And Warnings
Display screens: Operating statuses, stand by, alarms and warnings 7.5.1 Operating statuses (advanced level) APV-S Starting ... PAR 5110 APVS Enable = On PAR 5110 APVS Enable = Off APV-S Initializing APV-S Not enabled PAR 5110 APVS Enable = On APV-S Connected APV-S Status OK APV-S Limited...
Page 45: Alarms And Warnings
7.5.3 Alarms and warnings When an alarm trips, the display automatically shows the alarm, as described in the section “Active alarms” on page 60. The Active alarms mode persists until all alarms are removed or you exit the menu by pressing the ◄ key. In either case, to go to display mode in Stand-by, press any key and wait for the time set in PAR 593 “Display time.”...
Page 46: Menu And Description Of Parameters
Menu and description of parameters Easy menu 1st level menu 2nd level menu Note Info Input data Strings data Menu displayed only on models APV-S-...-F. Output data Power info Analog inputs Digital in/out Inverter info History Total Today Last 7 days Last 12 Mths Last 10 years Alarms...
Page 47: Expert Menu
Expert menu 1st level menu 2nd level menu Note Info Input data Strings data Menu displayed only on models APV-S-...-F. Output data Power info Analog inputs Digital in/out Inverter info History Total Today Last 7 days Last 12 Mths Last 10 years Alarms Active alarms Alarm history...
Page 48 Info The Info menu displays the values of measured quantities, operating parameters, and information to identify the inverter and the configuration. Note! The values on the display may diverge from real values and cannot be used to calculate an official invoice. The quantities read by the inverter are needed to check its operation and to control the current to be injected in the grid.
Page 49 Strings data This menu is displayed only for models APV-S-...-F. Displayed parameters String current x, PAR 150 ... 164, 1176...1182 (*) Models MPPTn Displayed Displayed Displayed Displayed Displayed Displayed APV-S-50k-AE-TL-3.F.. Displayed Displayed Displayed Displayed Displayed Displayed “Not displayed” indicate that the inputs are not available / provided on the inverter model. (*) On AP V-S-...-F models only.
Page 50 String active Display of active strings: each bit corresponds to a string present. Together with PAR 172, indicates the strings present, the ones that are monitored, and in error. String not active String active Example: display 011111011111 String 12 = not active String 11 = active String 10 = active String 9 = active...
Page 51 Output data Description Access Vout L1 Vout L2 Vout L3 Display of AC output voltage of drive (L1= phase U, L2 = phase V, L3 = phase W). These are the values shown on the KA display. Iout L1 Iout L2 Iout L3 Display AC output current of drive (L1= phase U, L2 = phase V, L3 = phase W). These are the values shown on the KA display. Power info Description Access Active Power The value of the active power generated into the mains is displayed.
Page 52 Analog input Description Access Analog Inp 1 Analog Inp 2 Analog Inp 3 Display of value of analog input n; the unit of measurement depends on the type of sensor set in PAR 1010 AI 0 sensor, 1011 AI 1 sensor and 1012 AI 2 sensor. Digital in/out Description Access Digital Inp Display of status of digital inputs. The information is contained in a word, where each bit corresponds to 1 if there is voltage on the corresponding input terminal.
Page 53 Inverter info Description Access Name Display of inverter family: APV-S. Model Display the inverter model, i.e.: 50k-AE-TL-3XFXX-KA. Size Display of inverter size (for example: 50kWAE3mppt) Software Version Display of FW version (Main inverter version and release of internal SW components). I.e.: V 01 Main version Release HMI Release AFE Release Boost Type Build date Display of date of FW version. Work status Display of inverter work status.
Page 54 APV-S Menu Info Error The letter E appears on the display: Drive error Description Access Inverter Temp °C Display of heat sink temperature read by sensor 1 (lower). Boost Temp °C Display of heat sink temperature read by sensor 2 (upper). Only for APV-S-AE. Temp micro °C Display of HMI micro temperature. Temp board °C Display of temperature in HMI card. Boot rel Display of boot SW release.
Page 55 Description Access 4841 Alarm B1 Bit code of status of alarms specified on table. 1 bit for each alarm. For more information, see chapter 10 on page 78. Code Description Input OV DC Bus Input OC 1 Com err Input OC 2 Insulation err Missed config 1 Leakage curr B Micro OT B Internal err 1 Ground kit err Klixon err 1...
Page 56 AC Unbalanced Internal err 4 Internal err 5 Internal err 6 A Overload 4845 Warning 2 Bit code of status of alarms specified on table. 1 bit for each alarm. For more information, see chapter 10 on page 76. Code Description OverVoltageVin Module OT Heatsink OT Varistor not OK...
Page 57 History Total Description Access E tot Displays total energy generated since first firing. Value shown on KA display (Total). Time tot Displays total generating / enabling time. LifeTime Displays total operating / non operating time. Today Description Access E day Displays total daily energy. Value shown on KA display KA (Day). PW peak Day Displays daily energy peak value. 2200 Energy hh:mmh 2202 Energy hh:mmh 2204...
Page 58 Last 7 days Description Access 2000 E 7days Displays total energy generated in last 7 days. Description Access 2002 Time 7days Displays operating time in last 7 days. 2004 CO2 7days Displays calculation of kg of CO saved in last 7 days (compared to generation of electricity with fossil fuels). 2030 Energy dd/MM/YYYY 2032 Energy dd/MM/YYYY...
Page 59 2122 Energy MM/YYYY Displays value of energy generated in previous 12 months. I.e.: if today is 30 August 2013, PAR 2100 shows “07/2013”, PAR 2102 “06/2013”, etc. Last 10 years Description Access 2018 E 1Yr Displays total energy generated in last 12 months. 2020 Time 1Yr Displays operating time in last 12 months. 2022 CO2 1Yr Displays calculation of kg of CO...
Page 60 Alarms Note: For more information on alarms and warnings, see chapter 10. Active alarms The list of active alarms and warnings is saved on this menu, with indication of the time the alarm tripped. Alarms are shown starting from the most recent (no. 1) to the oldest (no. 10). Use the ▲ and ▼ arrows to scroll the screens. Press ◄ to exit the menu. This mode remains active until all alarms are removed or you exit the menu. The Code is used by technical service personnel to more precisely identify the type of alarm in question.
Page 61 Settings System Note! Any change to the value of parameters has an immediate effect on inverter operations, but is not automatically saved in perma- nent memory. All unsaved changes will be lost when power to the drive is switched off. Run PAR 550 Param Save to save the value of currently used parameters.
Page 62 After the Default param command is run, you have to repeat the Commissioning procedure when the inverter is switched on again. This parameter can be changed only with the inverter disabled (PAR 5110 APVS Enable = Off) and when the inverter is not Attention generating (PAR 511 Work status = 2, Not enabled).
Page 63 Advanced Note! Any change to the value of parameters has an immediate effect on inverter operations, but is not automatically saved in perma- nent memory. All unsaved changes will be lost when power to the drive is switched off. Run PAR 550 Param Save to save the value of currently used parameters. Description Access 5110...
Page 64 -0.9 equals production of current phased in advance compared to voltage, with convection of the generator (inductive behavior). equals production of current phased in delay compared to voltage, with convection of the generator (capacitive behavior). Description Access 5118 ReactPwrCtrl Setting of reactive power control mode. None Funzionamento a cosfi unitario Fixed Q...
Page 65 Digital in/out Note! Any change to the value of parameters has an immediate effect on inverter operations, but is not automatically saved in perma- nent memory. All unsaved changes will be lost when power to the drive is switched off. Run PAR 550 Param Save to save the value of currently used parameters.
Page 66 Analog input Note! Any change to the value of parameters has an immediate effect on inverter operations, but is not automatically saved in perma- nent memory. All unsaved changes will be lost when power to the drive is switched off. Run PAR 550 Param Save to save the value of currently used parameters.
Page 67: Communication
1041 AI Filter 2 60000 1042 AI Filter 3 60000 Filter on analog input no. Communication Note! Any change to the value of parameters has an immediate effect on inverter operations, but is not automatically saved in perma- nent memory. All unsaved changes will be lost when power to the drive is switched off. Run PAR 550 Param Save to save the value of currently used parameters.
Page 68 Description Access PortB Settings Configure data packet of second port. PortB Address Modbus address. PortMaster None Select port A or B for use as Modbus master. Not enabled. None PortA PortB LastSlave Select number of Modbus slaves if a port is Master. Not enabled. Remote Address In a Master/Slave connection, this parameter selects the number of the APV-S Slave inverter to be re- moted (two lines of the display and key functions) on the APV-S Master inverter.
Page 69 Display Note! Any change to the value of parameters has an immediate effect on inverter operations, but is not automatically saved in perma- nent memory. All unsaved changes will be lost when power to the drive is switched off. Run PAR 550 Param Save to save the value of currently used parameters. Description Access BackLight Time...
Page 70 Time Note! Any change to the value of parameters has an immediate effect on inverter operations, but is not automatically saved in perma- nent memory. All unsaved changes will be lost when power to the drive is switched off. Run PAR 550 Param Save to save the value of currently used parameters. Description Access Set DateTime...
Page 71: Rs485 Serial Connection With Modbus Rtu Protocol
Communication is performed via RS485 serial connection with MODBUS RTU protocol. To configure communication between the inverter and the monitoring/software system, you have to respect numerous elements in order to ensure correct functioning. You can connect and communicate with a maximum of 50 nodes. DO NOT exceed 250 meters for the commu- nication line (for longer lengths please contact Rishabh Solar Service). In case of communication between a single inverter and a PC (with supervision SW or inverter configuration SW installed), you need to use a USB - RS 485 converter cable (we recommend our cable code 8S8F60 length 1.8 meters or code 8S8F61 length 5 meters (laboratory tested); other “passive” converters may not work).
Page 72 APV-S (3) USB 485 converter (1) supervision PC or configuration SW. Note! The first and last element of the modbus chain must have the termination resistor inserted. APV-S: S2 / S3 (Switch): see Figure 27. Radius Log Int (see Figure 35) TM (Switch): OFF = termination resistor not inserted; ON = termination resistor inserted (120 Ω). If RADIUS LOG-INT is present, you can connect only one monitoring device.
Page 73: Master/Slave Alarm Monitoring And Remote Control Functions
Master/Slave alarm monitoring and remote control functions These functions can be useful when the APV-S inverters are positioned in different, hard-to-reach, points of the system. The inverters have to be connected via RS485 serial with MODBUS RTU protocol, as shown in the figu- re below. See section 9.1 for further details. Note! The first and last element of the modbus chain must have the termination resistor inserted. See Figure 27.
Page 74 Note! The top part of the KA and KB display (LED, graph, power, etc.) is not remoted. The data shown are always those of the APV-S Master inverter. APV-S Slave settings: • For each APV-S Slave inverter, set a different address number with PAR 203 PortA Address (or PAR 206 PortB Address). The addresses must be numbered progressively.
Page 75 • If Slave data are not displayed: A) on the Communication menu, display PAR 6070 SlaveErrAddress: this contains the address of the first inverter that has a problem (does not respond or is in error). I.e.: 3. > Communication SlaveErrAddress Enter SlaveErrAddress B) on the Communication menu, display PAR 6075 SlaveErrCode: - if = 0, it means that all of the monitored inverters are OK or (if PAR 6070 ≠ 0) when the inverter at that address does not respond. - ≠ 0 = is the alarm or warning code for the monitored inverter (selected in PAR 6070) > Communication SlaveErrCode Enter SlaveErrCode...
Page 76: Troubleshooting
Cannot read or write production or Check that log was correctly copied to USB alarms log drive. If not, copy it again. If you are not copying the log to a USB drive, contact Rishabh Solar Service ** HMI Boot Warning...
Page 77 Micro OT B Alarm Boost micro over tempe- Temperature too high Wait for inverter to cool and return to working rature range. If problem persists, contact Rishabh Solar Service Internal err 1 Alarm Internal error 1 Internal error in inverter 1 Switch inverter OFF and then back ON.
Page 78 Over Temperature Sink Inverter temperature over the Check the PV plant Module (first level) warning level Varistor not OK Warning At least one varistor failed At least one varistor failed Do an alarm reset. * (1) Code showed on display (press ►) * If problem persist contact Rishabh Solar Service ** Do an alarm reset, see section “Alarms” on page 60.
Page 79: Specifications
Specifications 11.1 APV-S-..k-AE models APV-S model INPUT DATA (DC SIDE) MPPT number Number of strings per MPPT Maximum DC current per MPPT 33.7 Max short circuit current Isc Absolute maximum permessible DC volta- 1000 ge (without load) MPPT range (@ maximum power) 520 ...
Page 80 APV-S model INTERFACES Display KA = 100x100mm touch screen with graphic display. Communications 2 RS485 ports (both with separate in/out). 1 standard USB port (only for firmware updates and downloading of historical data) Inputs / Outputs 3 analog inputs (environment sensors, 0 ... 10V) 2 digital inputs (0-24V) 2 digital outputs (0-24V) 24V OUT (500 mA MAX)
Page 81: Efficiency Curves
11.1.1 Efficiency curves APV-S-50k-AE-TL-. 100,00 99,00 98,00 97,00 96,00 95,00 94,00 93,00 92,00 91,00 90,00 89,00 88,00 87,00 100% Pac / Pnom [%] @600Vdc Note! The efficiency values are defined through measuring process with high precision instruments during nominal conditions. The inverters not working under nominal conditions can have different efficiency data.
Page 82: Dimensions And Weight
Dimensions and weight APV-S model 550 x 864 x 377 Dimensions: Width x Height x Depth [21.65 x 34.01x 14.84] [inches] Weight [lbs] [231.485]...
Page 83: Maintenance And Cleaning
The maintenance and cleaning operations described here are necessary to guarantee the minimum safety requirements of the PV inverter. It is strongly recommended to have maintenance and cleaning procedures performed by Rishabh personnel. Operation to be performed by specially trained personnel.
Page 84: Cleaning Operations
13.2 Cleaning operations It is important to avoid any build-up of dust on the outside of the inverter. DO NOT use corrosive products or material that generates electrostatic charges for this purpose. Check the cleanliness of the internal components of the inverter panel every 12 months. Remove any dust with a low-pressure jet of water or soft cloth.
Page 85 Fan Assembly This inverter comes with 3 fans, which helps in cooling the power electronic devices. These fans may require regular cleaning if the inverter is exposed to dusty environment. To clean/replace the fan kindly contact the Rishabh’s solar service.
Page 86: Warranty Conditions
Warranty conditions The warranty is valid from the date of delivery of the Rishabh RADIUS products. The standard manufacturer’s warranty, included in the price of the product, is valid for 5 years starting from the date of delivery. Before the end of that period you may purchase the RWE to extend the manufacturer’s warranty.
Page 87: Contact
Contact RADIUS Solar Service (Worlwide) Tel: +91 253 2202 019 e-mail: inverters@rishabh.co.in fax: +91 253 2351 064...
Page 92 RISHABH - TRISHALA UNIT Rishabh Manufacturing Unit Trishala Unit - R&D + Marketing F-31, M I D C Satpur, C-6, NICE area, Satpur Nashik, Maharashtra 422007 inverters@rishabh.co.in Nashik - 422005 Ph. +91 253 2202 019 Fax +91 253 2351 064 Customer Service inverters@rishabh.co.in...
