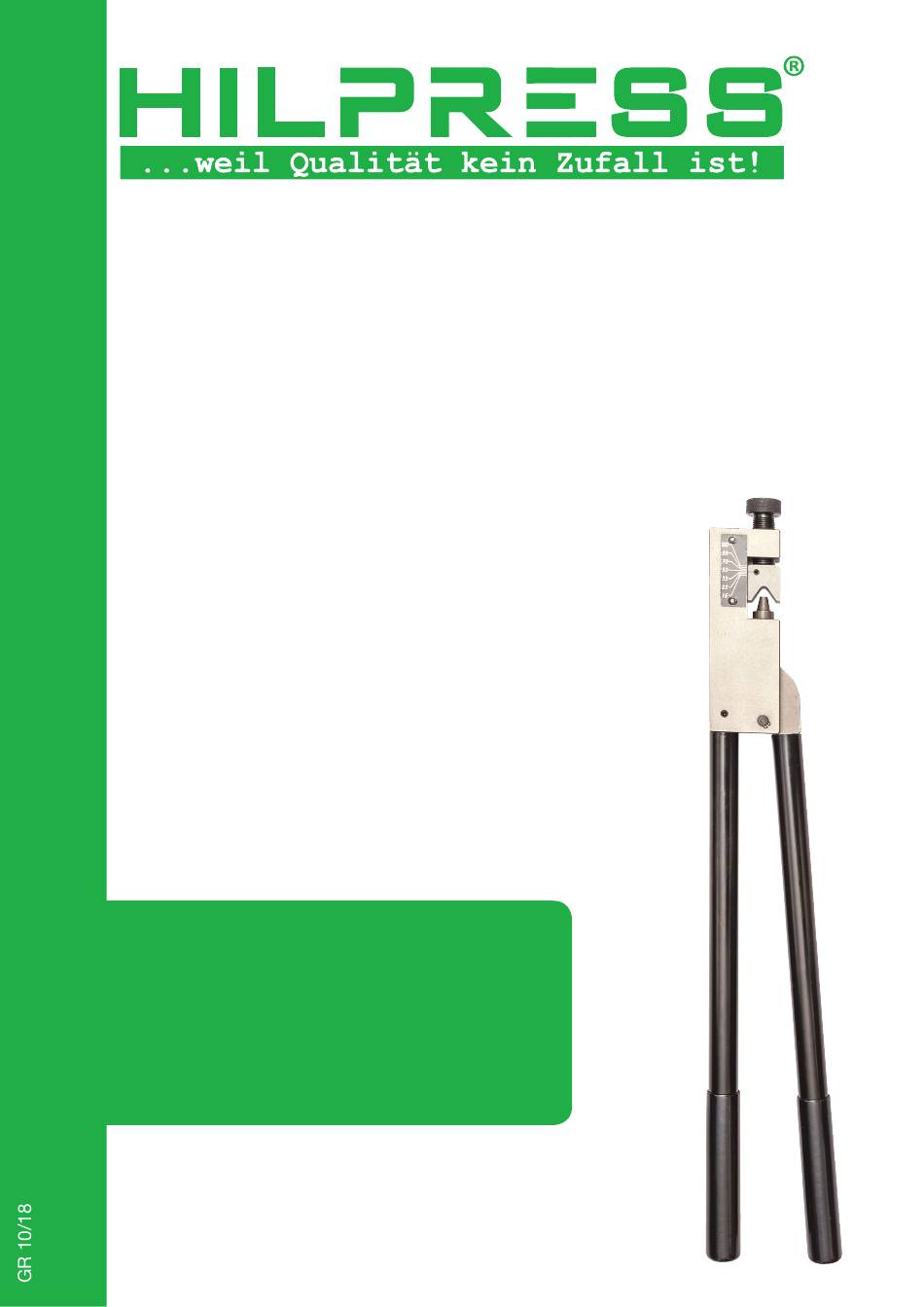

Mechanische Handpresse Peter
Indent crimping tool Peter
Bedienungsanleitung Artikel-Nr. 11302
Operating instructions article-no. 11302
Für Kabelschuhe DIN 46234
und Rohrkabelschuhe
For non insulated terminals DIN 46234 and
tubular cable lugs
Pressbereich / Crimping range: 16 - 120 mm
Gewicht / Weight: 3,5 kg
Länge / Length: 645 mm
1
© HILPRESS GmbH Hamburg
2
Advertisement
Table of Contents
Related Manuals for Hilpress 11302
Summary of Contents for Hilpress 11302
- Page 1 Mechanische Handpresse Peter Indent crimping tool Peter Bedienungsanleitung Artikel-Nr. 11302 Operating instructions article-no. 11302 Für Kabelschuhe DIN 46234 und Rohrkabelschuhe For non insulated terminals DIN 46234 and tubular cable lugs Pressbereich / Crimping range: 16 - 120 mm Gewicht / Weight: 3,5 kg Länge / Length: 645 mm...
- Page 2 Shape of indent: „C“ shape Type of wire: copper, solid or stranded, unisulated or isulated Width of crimp imprint: approx. 10 mm Tool length: approx. 645 mm Tool weight: approx. 3,5 Kg © HILPRESS GmbH Hamburg...
- Page 3 7. Do a quick pull test of the crimed terminal 8. Should the crimped terminal come off the wire during the pull test, do not crimp again the same terminal. Instead, repeat the entire process using a new terminal © HILPRESS GmbH Hamburg...
- Page 4 • Repetitive use of any manual tool may produce stress or injuries to the operator. The manufacturer • makes no statements regarding the safety of any tools with regards to the risk of such syndromes or • injuries. For high- production environments, use automatic, power assisted or semi- automatic tools • instead. © HILPRESS GmbH Hamburg...
