E-LINK LNK-AP80 Series Manual

E-link China Technology Co., Ltd.
1200Mbps High Power Outdoor Wireless AP
Model: LNK-AP80 Series
Overview
LNK-AP80 is an Qualcomm Solution 11ac high power industrial use Outdoor CPE with the
next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over
2.4GHz(300Mbps) and 5GHz(900Mbps), equipped Gigabit WAN port, fast Ethernet data
rate make more than 100 end users can access into it to enjoy seamless HD movies,
streaming, online gaming, wireless security and other bandwidth-intensive tasks.

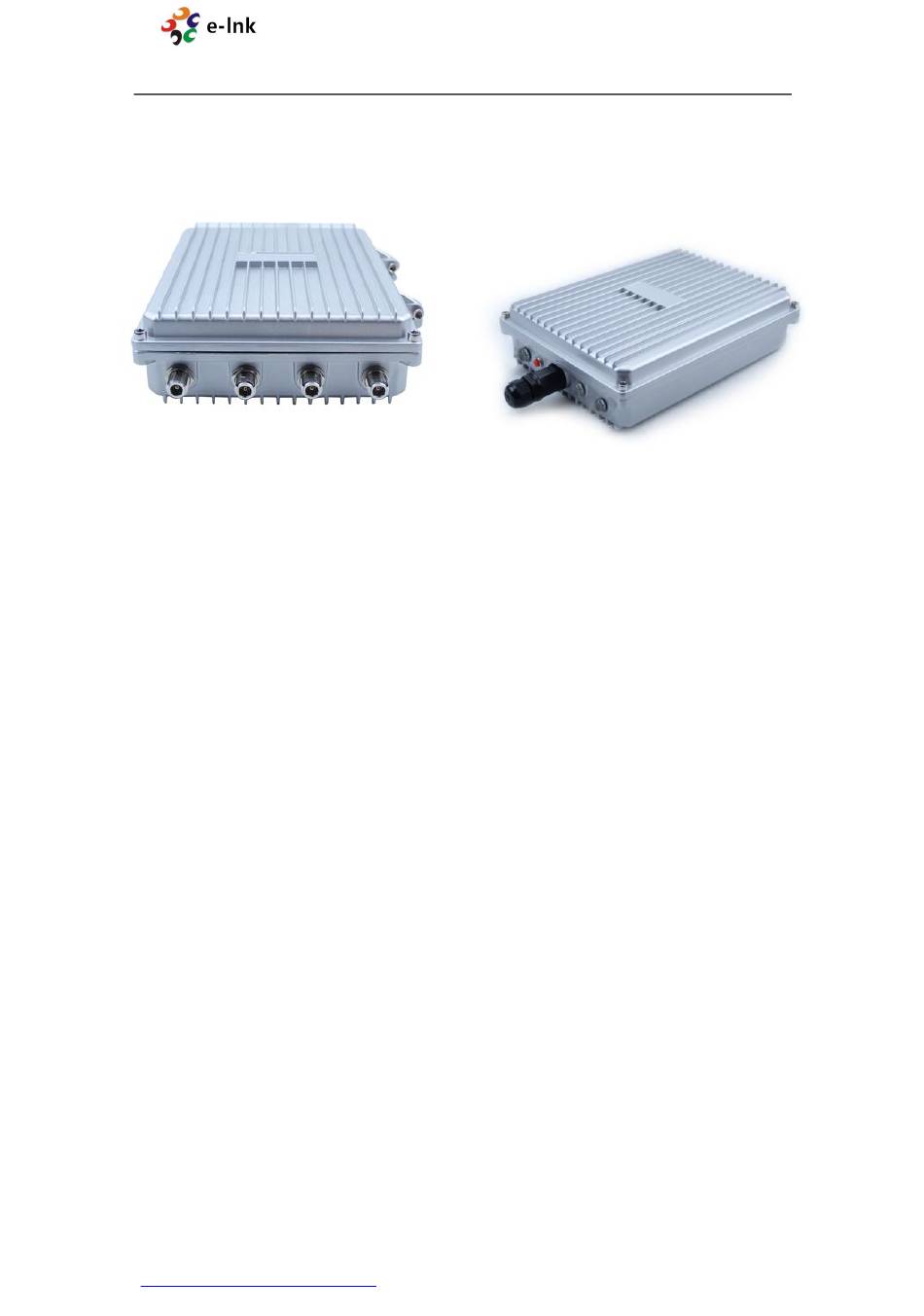

Metal waterproof, dust proof and sunscreen shell, temperature adaptive
LNK-AP80 with metal waterproof, dust proof and sunscreen shell, avoid the damage from
dust, thunderstorm weather. Meantime, it adaptive to various environment, the working
temperature can be normal at -40℃ to 55℃. Suitable for any country.
High Power design, N connector for external antenna, more range and
stable signal
Designed in two line Power Amplifier on PCB board, the power can be 1000mW high
power, 4PCS N connector,can connect with panel/omni antenna based on request, can
greatly increase the Wi-Fi range and supply the stable Wi-Fi signal for users.
Power over Ethernet
LNK-AP80 has integrated IEEE802.3at Power over Ethernet (PoE), for easy installation
and lower cost. So it can be installed in areas where power outlets are not readily
available, eliminating the mess of altering existing network infrastructure.
Access Controller System & Cloud Management System
Work with WLAN controller in wireless AP operation mode, easily access advanced
network settings through PC, like AP status monitor, change IP address, ESSID, Channel,
Http://www.e-linkchina.com sales@e-linkchina.com
