Elite Acoustics Engineering

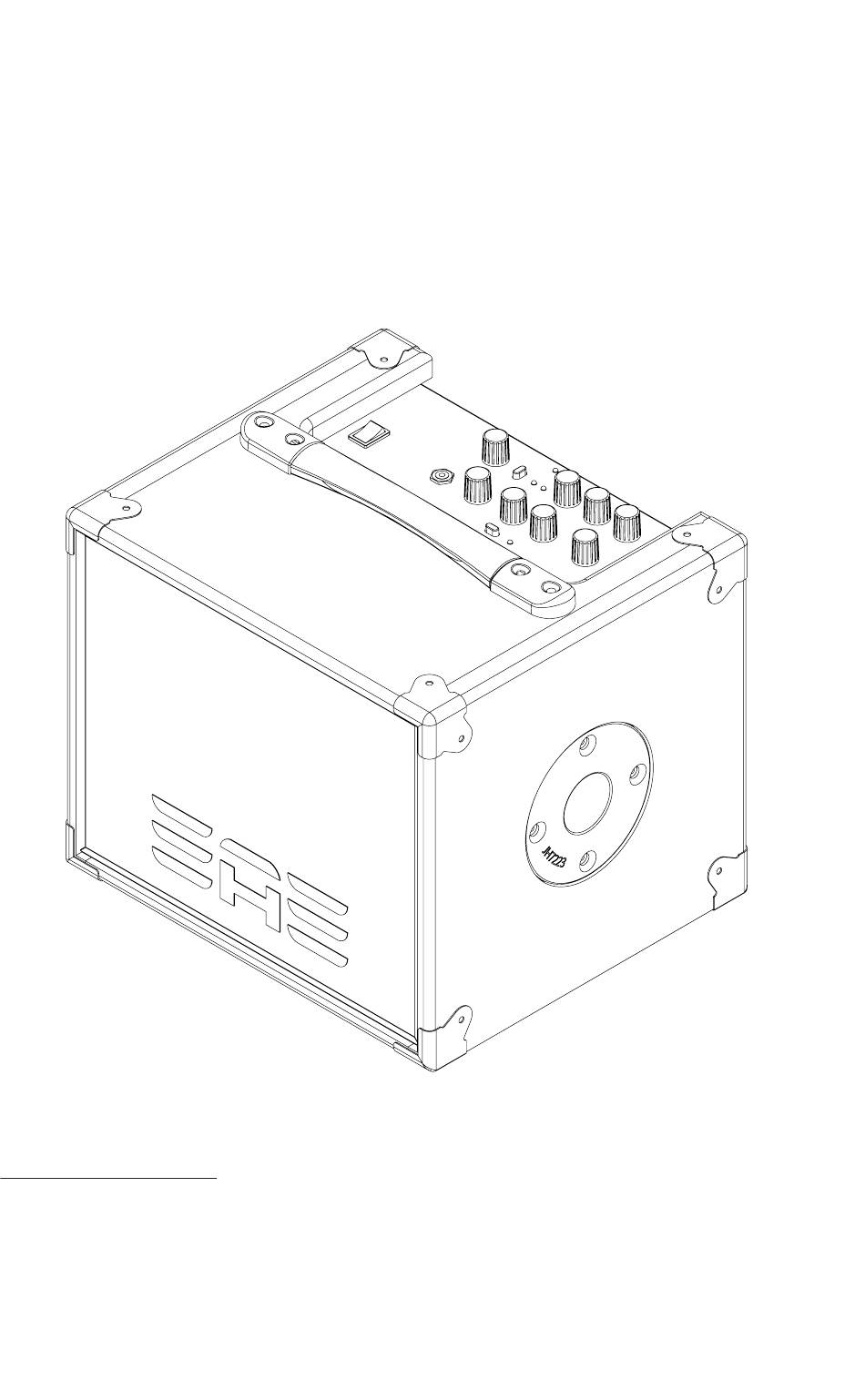

A1-8 Compact Lithium Battery Powered
Acoustic Amplfier with 3 Channels, Mixer,
and 16 digital Effects
Quick Start Guide V1.00
WHAT IS IN THE BOX
A1-8 package contains the following:
(1) Speaker
(1) 12V AC Power Supply Adapter
NOTE: Due to continuous development and improvements of our products, features and specifications are subject to
change without notice. All weights and measures are approximate. Revision Date - Oct 2023.
Advertisement
Related Manuals for Elite Acoustics A1-8
Summary of Contents for Elite Acoustics A1-8
- Page 1 Elite Acoustics Engineering A1-8 Compact Lithium Battery Powered Acoustic Amplfier with 3 Channels, Mixer, and 16 digital Effects Quick Start Guide V1.00 WHAT IS IN THE BOX A1-8 package contains the following: (1) Speaker (1) 12V AC Power Supply Adapter NOTE: Due to continuous development and improvements of our products, features and specifications are subject to change without notice.
-
Page 2: Quick Start
QUICK START Battery Switch [26] is set to Connect. (Battery Switch to preserve battery life.) Make sure the SPEAKER VOLUME [3] control is down before you turn the POWER [25] Connect the input of your microphone to the MIC IN [15.1]. Or you can connect a ¼” line input [15]from an instrument [15.2]. -
Page 3: Top Panel View
Top Panel View ELITE ACOUSTICS A1-8 - Acoustic Amplifier with Three Channels Digital Effects, and Lithium Battery Power Power LED: BLUE [1]: Indicate unit is ON +48V LED [2]: Indicates Phantom Power is on Monitor Output Controls Speaker Volume [3]: Control speakers’ volume level... - Page 4 Rate/Decay [9]: Controls the duration of the effect Effects Knob Selector [10]: Select effect of choice ELITE ACOUSTIC A1-8 Effects A1-8 - Acoustic Amplifier with three Channels, Digital Effects , and Lithium Battery R9 - Ambience1 R1 - Bright Cavern R2 - Dark Cavern...
- Page 5 Instr Mic/Line Instr lift +9VDC Output Tips. +9VDC (500mA) output is Center Positive. Use to power StompMix 4 or GigMix 4-1 digital mixers. Channel 1 Gain [16]: Gain level control Mute [17]: Mute channel EFX Send Level [13]: How much output effect is being sent out +48V Phamton Power [14] Line In [15]: 1/4”...
- Page 6 Chanel 2/3 Gain [19]: Gain level control EFX Send Level [21]: How much output effect is being send out Left/Right Input [20]: 1/4” TRS Input Output Source [22]:Assigns Main Mix Output or Channel 1 Direct Output Main Output [23]: XLR Left/Right Output GND lift For XLR outputs (24) lift...
- Page 7 CONNECTING TO ANOTHER SPEAKER FOR STEREO The Monitor Right Output (33) allows you to add a secondary active monitor while preserv- ing the stereo image. The Monitor unit will play the Left Channel content and the secondary monitor will play the Right Channel. If stereo imaging is not desired, simply engage the Mono button on the A4-8’s top panel.
-
Page 8: Battery Level
- Do not leave power switch in the “ON” position when it is not in use. • - Keep unit in a cool, dry place away from extreme temperatures • - Do not service, modify, or replace the battery • - If the battery fails to charge, contact Elite Acoustics... - Page 9 ABOUT EQ SETTINGS High – used to add sibilance and crispness to your sound, with the knob at 12:00, there is no boost or cut to the high frequency content. Mid – Helps control the clarity of your overall mix and should be adjusted to suit lower or higher volume performance levels.
- Page 10 DIGITAL EFX R9 - Ambience1 R1 - Bright Cavern R10 - Ambience2 R2 - Dark Cavern E1 - Echo R3 - Bright Hall E2 - Repeat Echo R4 - Dark Hall ER1 - Echo/Rev1 R5 - Bright Room ER2 - Echo/Rev2 R6 - Dark Room CHO - Chorus R7 - Bright Plate...
-
Page 11: System Specifications
SYSTEM SPECIFICATIONS Speakers: 8” Woofer; 1” Silk-dome Tweeters Optimized front ports for extended low-frequency response Frequency response 63Hz - 19k Hz Cabinet: Plywood. Amplifier: Ultra High-Efficiency Class D Amplifier. EQ Controls: +/- 12dB @ 50Hz (shelving) +/- 12dB @ 200Hz – 4k Hz (resonant) High +/- 12dB @ 10k Hz (shelving) Notch... - Page 12 Elite Acoustics Engineering Inc. warrants this product to be free of defects in material and workmanship (excluding battery) for a period of 1 year from the date of original retail purchase. Elite Acoustics Engineering Inc. warrants the Speaker’s Battery for 90 days from the date of original retail purchase. This warranty is enforceable only by the original retail purchaser.
