Summary of Contents for Gaggenau DI260

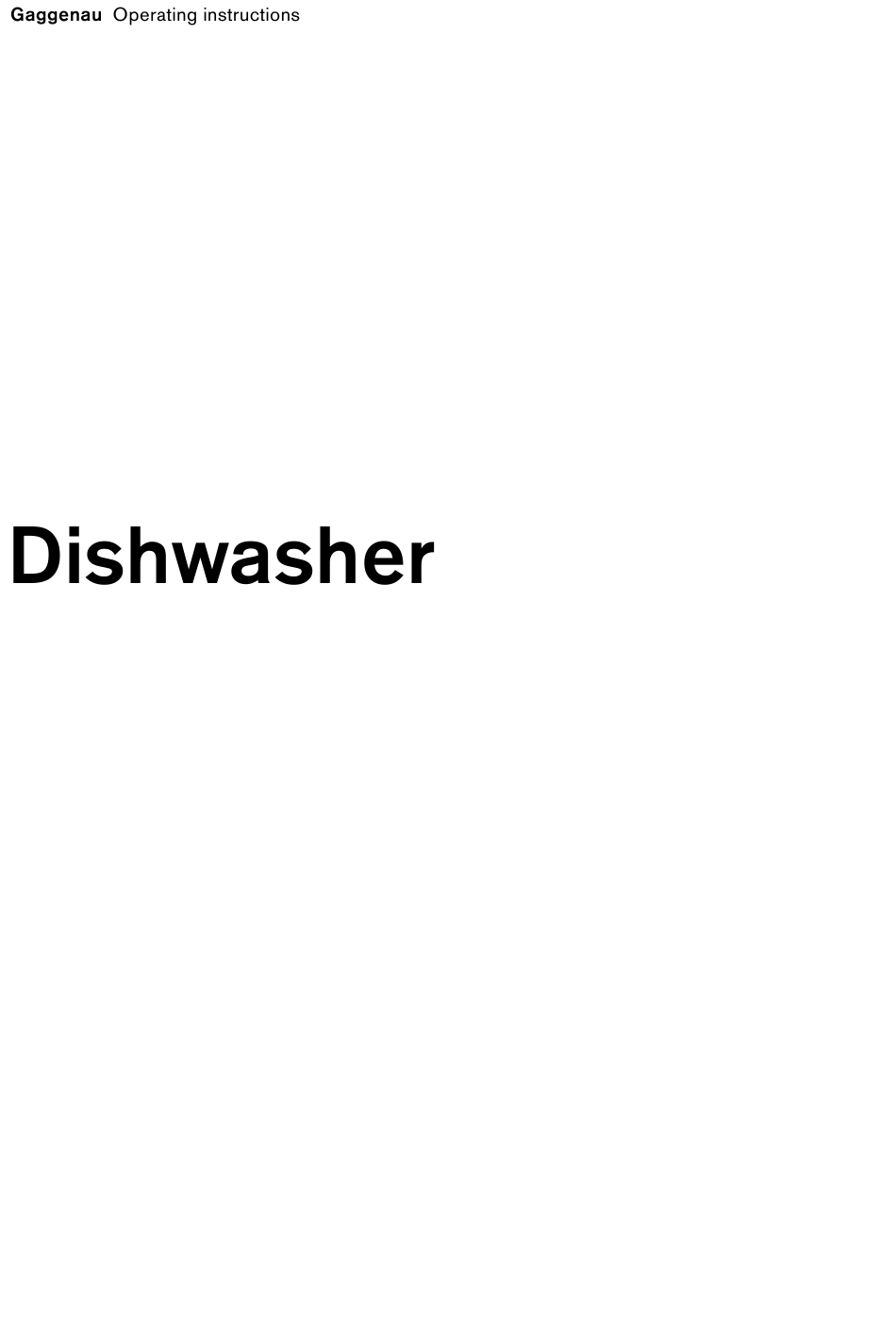

  • Page 1 DI260...

  • Page 3: Table Of Contents

    en Table of contents Intended use Additional options Express Wash/ Speed Perfect (VarioSpeed) Safety instructions Half load Hygiene Before you switch ON the appliance Intensive zone Delivery Extra drying Installation In daily use Operating the appliance Door lock Damage Programme data Disposal Aqua sensor Switching on the appliance...

  • Page 4: Intended Use

    Intended use Intended use Safety instructions This appliance is intended for use in the This appliance may be used by children over home and domestic environments. the age of 8 years old and by persons with reduced physical, sensory or mental Use the dishwasher only in the home and capabilities or by persons with a lack of only for its designated purpose: for...

  • Page 5: Installation

    Safety instructions Install built-under or integratable Installation appliances only under continuous Following installation, ensure that worktops which have been screwed the back of the dishwasher is not freely to adjacent cupboards to ensure stability. accessible (protection against contact Do not install the appliance near heat due to hot surface).

  • Page 6: Disposal

    Safety instructions Disposal Warning Make redundant appliances unusable Risks to children! to prevent subsequent accidents. If fitted, use the childproof lock. An exact Dispose of the appliance in an description can be environmentally friendly manner. found in the back of the envelope. Do not allow children to play Warning with or operate the appliance.

  • Page 7: Protection Of The Environment

    Protection of the environment Protection of the environment Getting to know your appliance Both the packaging of new appliances and the old Diagrams of the control panel and the interior of the appliances themselves contain valuable raw materials appliance can be found in the envelope at the front. and recyclable materials.

  • Page 8: Water Softening System/Special Salt

    Water softening system/Special salt Water hardness table Water softening system/Special salt To ensure good washing results, the dishwasher requires soft water, i.e. containing low amounts of lime, otherwise white limescale will be deposited on the utensils and inner container. Tap water above 1.2 mmol/l must be softened. The water is softened with special salt (regeneration salt) in the water softening system of the dishwasher.

  • Page 9: Detergents With Salt Component

    Rinse aid Using detergents with salt component Rinse aid D e t e r g e n t s w i t h s a l t c o m p o n e n t If combined detergents with a salt component are used, salt can usually be omitted up to a water As soon as the rinse-aid refill indicator h is lit on hardness of 21°...

  • Page 10: Setting Amount Of Rinse Aid

    Utensils Setting amount of rinse aid Utensils The amount of rinse aid can be set from . Please set rinse aid on to obtain very good drying results ( : is already set in factory). Not suitable Do not change the amount of rinse aid unless streaks (select lower setting) or water stains (select higher Cutlery and utensils made of wood.

  • Page 11: Unloading The Dishwasher

    Utensils Unloading the dishwasher Pans Bottom basket 1j To prevent water from dripping off the upper basket onto the utensils in the lower basket, it is recommended to empty the appliance from the bottom Hot utensils are sensitive to shock! Therefore, when the programme ends, leave the utensils to cool down in the dishwasher until they can be handled.

  • Page 12: Folding Spikes

    Utensils F olding spikes * Adjusting the height of the basket F o l d i n g s p i k e s The height of the upper utensils basket 12 can be * depending on model adjusted in 3 stages to create more space either in the The spikes can be folded down to improve upper or lower basket.

  • Page 13: Detergent

    Detergent Adding detergent Detergent If the detergent dispenser 9* is still closed, press the lock 92 to open the detergent You can use tablets as well as powder or liquid dispenser. detergents for dishwashers, but never use washing Pour detergent into the dry detergent up liquid.

  • Page 14: Combination Detergent

    Detergent Combination detergent Notes You will obtain optimum rinsing and drying results Apart from conventional detergents (Solo), a number by using solo detergents and applying salt and of products are offered with additional functions. rinse aid separately. These products contain not only the detergent but also rinse-aid and salt replacement substances (3in1) If programmes are short, tablets may not have full and, depending on the combination (4in1, 5in1, etc.),...

  • Page 15: Overview Of Programmes

    Overview of programmes Overview of programmes The max. possible number of programmes is illustrated in this overview. The corresponding programmes for your appliance can be found on the fascia. Type of utensils Type of soiling Programme Possible additional Programme sequence options pots and pans, non-sensi- Is optimised according to...

  • Page 16: Additional Options

    Additional options Additional options Operating the appliance * depending on model Programme data Additional options can be set with the buttons H. The programme data (consumption values) can be found in the summary of instructions. They refer to Ÿ normal conditions and the water hardness set value Express Wash/ E x p r e s s W a s h / S p e e d P e r f e c t ( V a r i o S p e e d ) .

  • Page 17: Timer Programming

    Operating the appliance T imer programming * Switching off automatically after T i m e r p r o g r a m m i n g the end of the programme * * depending on model S w i t c h i n g o f f a u t o m a t i c a l l y a f t e r t h e e n d o f t h e p r o g r a m m e * depending on model You can delay the start of the programme in 1-hour steps up to 24 hours.

  • Page 18: Interrupting The Programme

    Cleaning and maintenance Interrupting the programme Cleaning and maintenance Switch off ON/OFF switch (. The LEDs go out. The programme is saved. A regular inspection and maintenance of your machine If the door was opened on an appliance which has will help to prevent faults.

  • Page 19: Filters

    Cleaning and maintenance Filters Spray arms The filters 1Z keep large foreign objects in the Limescale and contaminants in the rinsing water may block nozzles and bearings on the spray arms 1: rinsing water away from the pump. These foreign and 1J.

  • Page 20: Fault, What To Do

    Fault, what to do? Waste water pump Fault, what to do? Large food remnants or foreign objects which were not captured by the filters may block the waste water Experience has shown that you can rectify most faults pump. The rinsing water will then be above the filter. which occur in daily operation yourself.

  • Page 21: Fault Table

    Fault, what to do? Fault table Fault Cause Remedial action “Check water supply” display X Supply hose kinked. Install supply hose without kinks. lights up. Tap turned off. Turn the tap on. Tap jammed or calcified. Turn the tap on. Flow rate must be min.
  • Page 22 Fault, what to do? Fault Cause Remedial action Refill indicator for salt ` and/or Refill indicator switched off. Activation/deactivation (see chapter Water sof- rinse-aid h is not lit. tening system/Special salt or Rinse aid). There is still enough special salt/rinse Check refill indicator, levels.
  • Page 23 Fault, what to do? Fault Cause Remedial action Food remnants on the utensils. Utensils placed too closely together, Arrange utensils with adequate clearance utensils basket overfilled. between them ensuring that the spray jets can reach the surface of the utensils. Prevent con- tact points.
  • Page 24 Fault, what to do? Fault Cause Remedial action White, stubborn coatings; limes- Detergent substances are deposited. Change detergent brand. cale on the utensils, container or These coatings cannot usually be Clean appliance mechanically. door. removed with chemicals (appliance cleaner, ...). Hardness range incorrectly set or water Set water softening system according to hardness greater than 8.9 mmol/l.
  • Page 25 Fault, what to do? Fault Cause Remedial action Rust spots on the cutlery. Cutlery not adequately rust-resistant. Use corrosion-resistant cutlery. Knife blades are frequently more severely affected. Cutlery will also rust if rusting parts are Do not wash rusting parts. rinsed at the same time (pan handles, damaged utensil baskets, etc.).

  • Page 26: Customer Service

    Customer service Customer service Installation and connection If you are unable to rectify the fault, please contact The dishwasher must be connected correctly, your customer service. We always find a suitable otherwise it will not function properly. solution, even to avoid unnecessary visits The specifications for the inlet and outlet as well as by technicians.

  • Page 27: Safety Instructions

    Installation and connection Safety instructions Technical specifications Please follow the safety instructions under Weight: “Installation”. max. 45 kg Voltage: Delivery 200 V, 50 Hz or 60 Hz Your dishwasher has been checked thoroughly in the factory to ensure that it is in working order. This may Connected load: cause small water stains.

  • Page 28: Installation

    Installation and connection Installation Waste-water connection The required installation dimensions can be found in The required work sequence can be found in the the installation instructions. Level the appliance with installation instructions. If required, fit a siphon the aid of the height-adjustable feet. Ensure that the with an drainage connection.

  • Page 29: Warm Water Connection

    Installation and connection Warm water connection * Electrical connection W a r m w a t e r c o n n e c t i o n * depending on model Connect the appliance only to 200 V and 50 Hz or 60 Hz alternating current via The dishwasher can be connected to cold or hot water a correctly installed socket with protective up to max.

  • Page 30: Removing The Appliance

    Installation and connection Removing the appliance Transportation Also observe the sequence of worksteps here. Empty the dishwasher and secure loose parts. Disconnect the appliance from the power supply. Drain the appliance according to the following steps: Turn off the water supply. Turn on the tap.
  • Page 32 *9000869061* 9000869061 (9510) 440MA...
