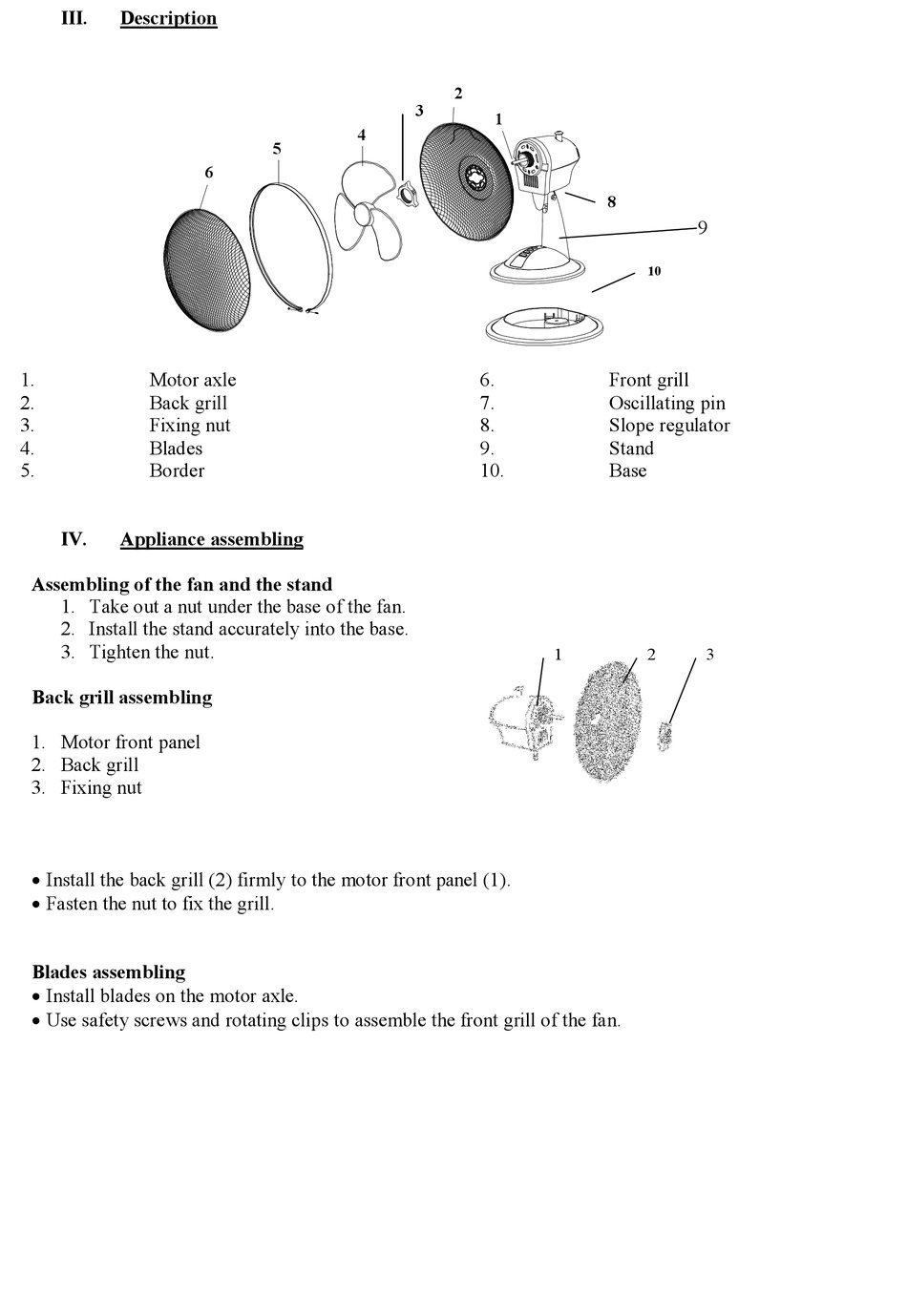

III. Description
1. Motor axle
2. Back grill
3. Fixing nut
4. Blades
5. Border
IV. Appliance assembling
Assembling of the fan and the stand
1. Take out a nut under the base of the fan.
2. Install the stand accurately into the base.
3. Tighten the nut.
Back grill assembling
1. Motor front panel
2. Back grill
3. Fixing nut
 Install the back grill (2) firmly to the motor front panel (1).
 Fasten the nut to fix the grill.
Blades assembling
 Install blades on the motor axle.
 Use safety screws and rotating clips to assemble the front grill of the fan.
4
3
5
4
6
5
2
2
3
1
1
6.
7.
8.
9.
10.
1
8
9
10
Front grill
Oscillating pin
Slope regulator
Stand
Base
2 3
