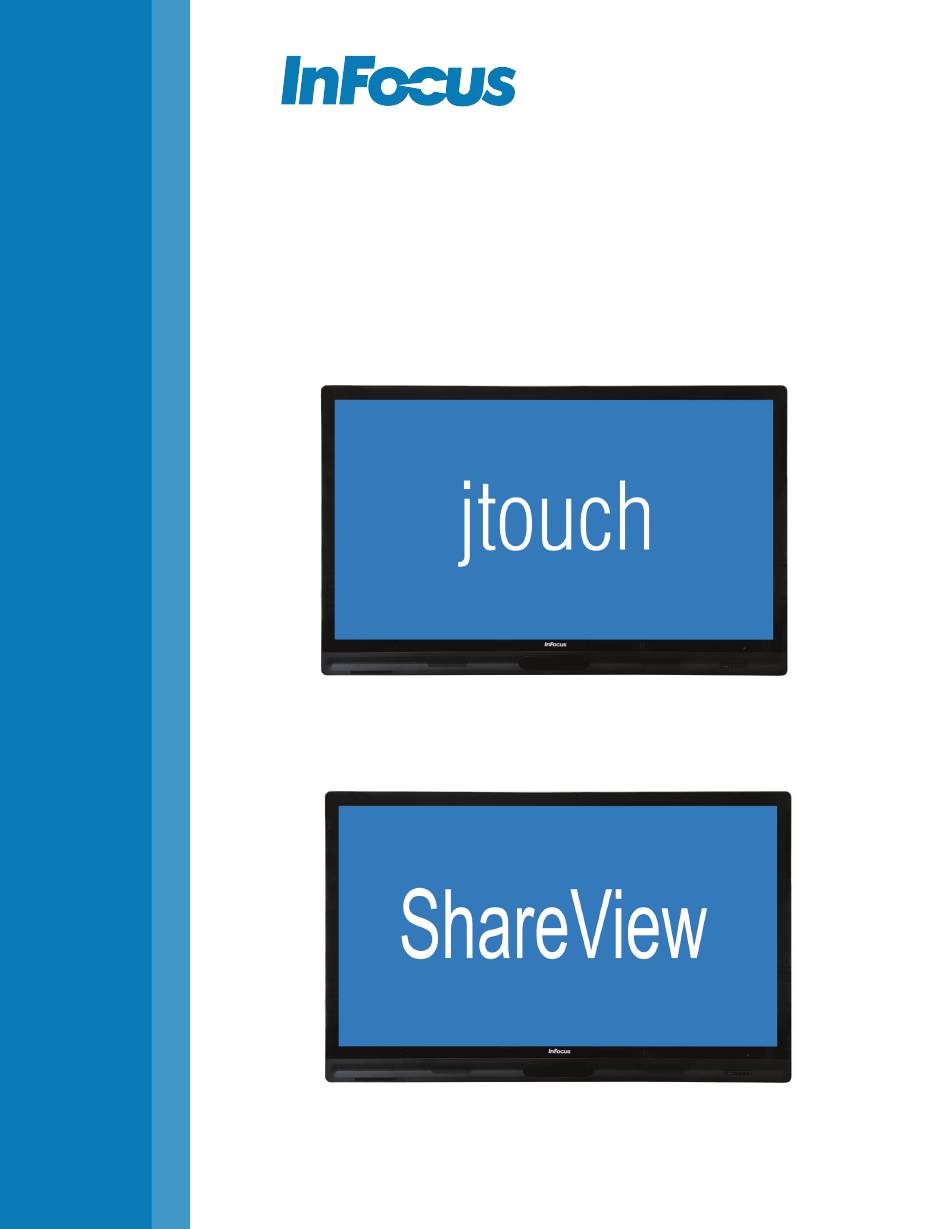

- Page 1 INF6505 / INF6505AG IND6565 / IND6565AG Hardware Guide 009-1746-00...
-
Page 3: Table Of Contents
CONTENTS Declaration of Conformity ..............................3 Safety Considerations .................................4 What’s Included ...................................6 Setup ....................................7 Mounting ..................................7 Door removal .................................7 Connecting to other devices ............................8 Connecting AC power ..............................11 External PC touchscreen control setup: IND6505 Only ....................11 Setting up the Wireless Keyboard: INF6565 Only .......................11 Turning the Display On/Off ..............................11 Using the Remote ................................12 Using the Keypad ................................13... -
Page 5: Declaration Of Conformity
SRS Labs, Inc. InFocus, In Focus, INFOCUS (stylized), MondoCenter, BigTouch, JTouch, and ShareView are either registered trademarks or trademarks of InFocus Corporation in the United States and other countries. All other trademarks are the property of their respective owners. Any other trademarks, service marks, personal names or product names are assumed to be the property of their respective owners and are used only for reference. -
Page 6: Safety Considerations
SAFETY CONSIDERATIONS Please read and follow all safety instructions provided below and on the display before connecting the display to a power source. Failure to comply with safety instructions may result in fire, electrical shock, or personal injury and may damage or impair protection provided by the equipment. - Page 7 Refer all service to qualified service personnel. Do not remove the cover or back. Servicing your own display can be dangerous to you and will void the warranty. • Only use replacement parts specified by InFocus. Unauthorized substitutions may result in fire, electrical shock or injury and may void the warranty. •...
-
Page 8: What's Included
WHAT’S INCLUDED 1920 x 1080 Display Remote control HDMI Cord Safety/Warrenty Quick Start INF6505/IND6565 (batteries not included) Guide Guide Power cord Mylar Label (varies per country) INF6505 Stylus A to B USB Cable IND6565 Wireless keyboard with trackpad (batteries not included) Page 6... -
Page 9: Setup
If desired, the door can be removed for easy access to the front connectors. Follow the instructions below. IMPORTANT : InFocus is not responsible for door breakage or for improper application of the mylar label. Press the top of the door to release the door. -
Page 10: Connecting To Other Devices
Connecting to other devices A full range of digital and analog video inputs and audio source devices can be connected to the connection panels on the front, back, and side of the display. Available jacks include: HDMI In (4), PC In (1), Composite Video (1), Component RCA (1), RS232 (1), Audio In 3.5mm (1), Audio In RCA (1-R/L), USB for touch control (1), RJ45 (1), USB 2.0-A (4), Audio Out RCA (1-R/L). - Page 11 Connect any USB device (such as a mouse, keyboard, USB thumb drive, etc.) to this USB Type LightCast USB A 2.0 connector for use with the embedded LightCast feature. Source USB Connect a USB thumb drive to this USB Type A 2.0 connector. Source USB Connect a USB thumb drive to this USB Type A 2.0 connector.
- Page 12 Connect an HDMI cable from the display to an HDMI external device (such as a VCR or DVD HDMI 1 - 4 player). Connect a VGA computer cable from the display to an external computer. Connect a component RCA video cable from the display to an external device (such as a DVD COMPONENT player, HDTV device, or Laser Disc player) (YPbPr) signals.
-
Page 13: Connecting Ac Power
Connecting AC power Connect one end of the AC power cord to the AC In jack on the back of the display. Connect the other end of the AC power cord to an AC outlet. Toggle the power switch to the ON position. Press the power switch. -
Page 14: Using The Remote
USING THE REMOTE The remote uses two (2) AAA batteries (not included). Install the batteries by removing the cover from the remote’s back, aligning the + and – ends of the batteries, sliding them in place and replacing the cover. To operate, point the remote at the display sensor at the bottom right-hand corner of the display. -
Page 15: Using The Keypad
USING THE KEYPAD The keypad, located on the front of the display, has the following buttons: Source Power button: If the display is off, pressing the Power button turns the display on. If the display is on and the Power button is pressed for less than four seconds, the display goes into standby. -
Page 16: Osd (On-Screen Display) Menu System
OSD (ON-SCREEN DISPLAY) MENU SYSTEM The OSD provides the user the ability to control the display. To access the OSD, press the Menu button on the remote or the keypad located on the right-hand side of the display. Use the up and down arrows on the remote or keypad to scroll through the menu options and press OK to enter the highlighted menu. Use the up and down arrows and OK button to select the item you would like to adjust. -
Page 17: Picture
Picture PICTURE BRIGHTNESS CONTRAST SHARPNESS NATIVE COLOR TEMPERATURE COLOR CONTROL GREEN BLUE STANDARD PICTURE MODE PICTURE RESET < > Adjust Enter Back Quit Brightness: changes the intensity of the image. Range: 0-100. (Default 70.) Contrast: controls the degree of difference between the lightest and darkest parts of the picture and changes the amount of black and white in the image. -
Page 18: Screen
Screen SCREEN H POSITION V POSITION CLOCK CLOCK PHASE BLANK DIMMING ASPECT RATIO WIDE SCREEN RESET < > Adjust Enter Back Quit H Position: adjusts the horizontal position of the image. Range: 0-100. (Default 50.) V Position: adjusts the vertical position of the image. Range: 0-100. (Default 50.) Clock: adjusts the width of the image (For VGA input only). -
Page 19: Audio
Audio Speaker: controls whether both the internal and external speakers (sound bar, etc.) or just external speakers are used. Options include: Internal (both internal and external speakers operate) and External (only external speakers operate). Default Internal. Audio Source: selects the audio input source. Options include: HDMI 1, HDMI 2, HDMI 3, HDMI 4, Lightcast, Audio 1, Audio 2, PC and PC Speaker. -
Page 20: Pip
PIP MODE PIP INPUT PIP POSITION TOP-RIGHT PIP SWAP PIP SIZE SMALL PIP AUDIO MAIN PIP RESET < > Adjust Enter Back Quit PIP Mode: enables or disables Picture-in-Picture mode. Options include: Yes and No. PiP Input: selects the source input for the PiP window. Options include: Video, component, VGA, HDMI1, HDMI2, HDMI3, HDMI4, HDMI5, PC. -
Page 21: Configuration 1
Configuration 1 CONFIGURATION 1 LANGUAGE ENGLISH AUTO SOURCE USB HUB SWITCH AUTO CONFIGURATION RESET FACTORY RESET < > Adjust Enter Back Quit Language: switches the OSD menu language. Auto Source: When enabled, automatically searches for an active source. If no source is detected, the display will revert to the previously active source. -
Page 22: Configuration 2
Configuration 2 CONFIGURATION 2 OSD TURN OFF FREEZE OSD H POSITION OSD V POSITION OSD ROTATION PORTRAIT MONITOR INFORMATION < > Adjust Enter Back Quit OSD Turn Off: controls how many seconds the OSD menu remains on the screen Range: 5-120 (seconds). (Default: 10) Freeze: When enabled, freezes the image which is currently displayed. -
Page 23: Advanced Option
Advanced option Gamma Selection: adjusts the gamma value of the image and optimizes image brightness and contrast. Options include: Mode 1, Mode 2, Mode 3. Over scan: removes noise around the edges of a video image. Options include: On and Off (default). IR Control: disables and enables the IR sensor on the display. -
Page 24: Troubleshooting
TROUBLESHOOTING SYMPTOM POSSIBLE SOLUTIONS No power • Verify the power cord is properly connected to the power outlet and to the display. • Verify the power switch is ON and that the Power button on the remote or keypad has been turned on (the front LED should be green). - Page 25 2)Verify that the power switch on the back of the unit is turned on; 3) Plug another electrical device to the power outlet to verify that the outlet is supplying the proper voltage. For additional troubleshooting support, please contact: InFocus Corporation - Technical Support 877-388-8385 www.infocus.com/support INF6505/IND6565 Hardware Guide...
-
Page 26: Limited Warranty
If a hardware defect arises and a valid claim is received within the Warranty Period, at its option and to the extent permitted by law, InFocus will either (1) repair the hardware defect at no charge, using new parts or... - Page 27 (l) if the product is not used under normal operating conditions which are defined as use not in excess of 16 hours continuously per day with a minimum 8 hour period of continuous rest in the powered off state; or (m) if any InFocus serial number has been removed or defaced.
- Page 28 InFocus will provide warranty service either (i) at an ASP location, where service is performed at the location, or the ASP may send the product to an InFocus repair service location for service, (ii) by sending you prepaid way bills (and if...
- Page 29 InFocus specifies in the materials shipped with a replacement CSR part whether a defective part must be returned to InFocus. In cases where it is required to return the defective part to InFocus, you must ship the defective part back to InFocus within a defined period of time, normally five (5) business days, and clearly display the Return Material Authorization (RMA#) on the outside of the shipping carton or a similar package affording an equal degree of protection.
- Page 30 Page 28...
