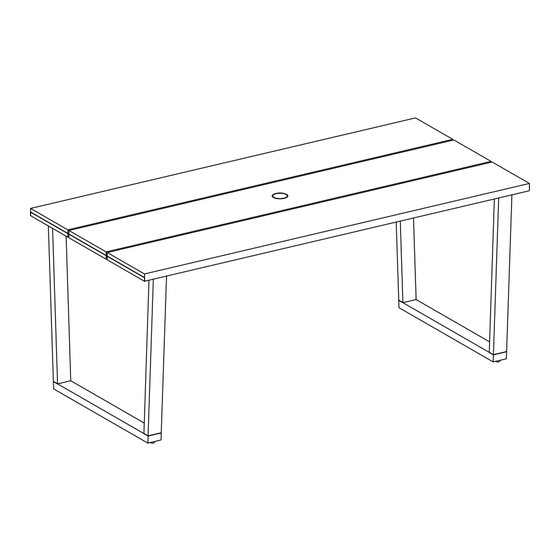

- Page 1 Dining Table Table à Manger HW71004-15 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 2: Before You Start
Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. Read through each step carefully and follow the proper order. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled. - Page 4 PART LIST / LISTE DES PIÈCES 2 x2 3 x2 1 x1 Side Slat Connecting Slat Middle Slat /Latte Latérale /Latte de Connexion /Latte du Milieu 4 x2 5 x4 6 x2 Base of Table Table Leg Connecting Slat with Iron Dowel /Base de Table /Pied de Table /Latte de Raccordement...
- Page 5 Please don't fasten the screw completely during assembly process. It will be likely to lead to an assembling problem that screw hole position is not aligned. You can fasten completely when all parts have been assembled. Veuillez ne pas serrer complètement la vis pendant le processus d'assemblage.
- Page 6 100% C x8 100% A x16...
- Page 7 Finished/Complété...
- Page 8 Return / Damage Claim Instructions DO NOT discard the box / original packaging. In case a return is required, the item must be returned in original box. Without this your return will not be accepted. Take a photo of the box markings. A photo of the markings (text) on the side of the box is required in case a part is needed for replacement.
- Page 9 USA office: Fontana AUS office: Truganina GBR office: Ipswich FRA office: Saint Vigor d'Ymonville USA:cs.us@costway.com If you're having difficulty, our friendly AUS:cs.au@costway.com GBR:cs.uk@costway.com customer team is always here to help. FRA:cs.f r @costway.com...
